Lab Ball Mill
>
|
|
| Place of Origin | Hunan, China |
| Brand Name | Kingda |
| Certification | CE ISO |
| Model Number | KDWXQM |

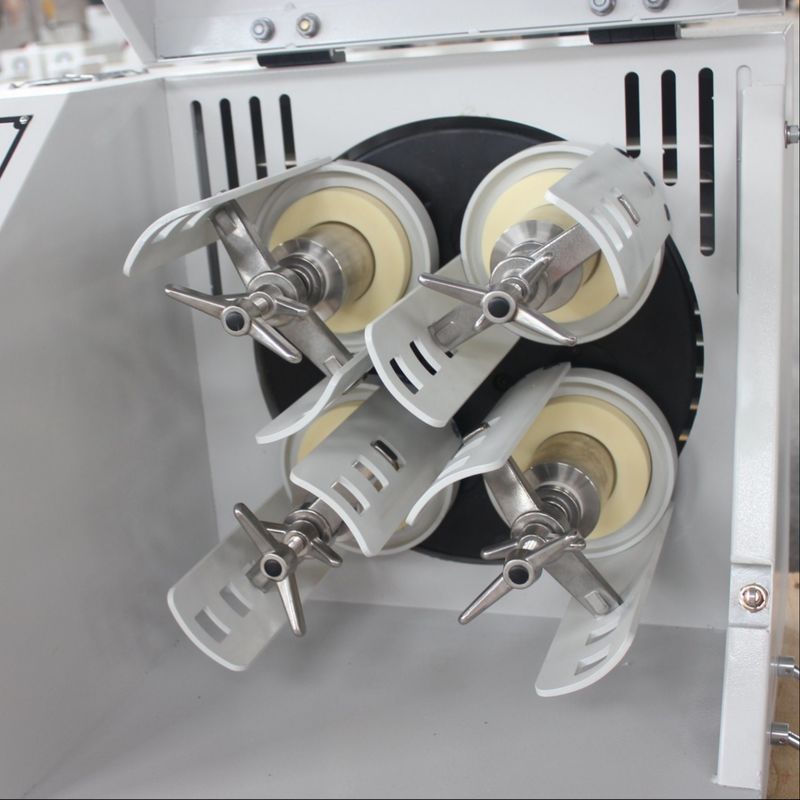

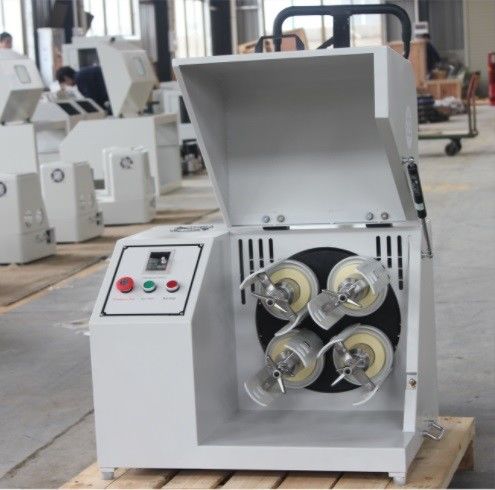

Kingda Light Type Full Automatic Horizontal Lab Planetary Ball Mill
Application————————
Food Sample Preparation:
Planetary ball mills are employed for the grinding and mixing of food samples, ensuring the uniform distribution of components such as spices, pigments, and additives. They play a crucial role in food quality control and research and development.
Pigment and Ink Production:
In the manufacturing of pigments and inks, planetary ball mills are utilized to grind pigment particles, ensuring uniform color and high pigment dispersion, thereby enhancing the quality of the final product.
Cosmetic Formulation and Production:
Applied in cosmetic production, planetary ball mills enable the precise grinding and mixing of cosmetic ingredients, ensuring a smooth texture and even distribution of colors in the final product.
Waste Treatment and Recycling:
Planetary ball mills find application in waste treatment, facilitating efficient grinding and mixing processes that contribute to the recycling of waste materials. For instance, they can grind discarded plastics into reusable granules.
Technical Specifications————————
| Model No. | Specifications | Matchable Sizes
of Mill Jars |
Matched Quantity | Matchable Sizes
of Vacuum Mill Jars |
| WXQM-0.4 | 0.4L | 50ml, 100ml | 4 pcs | 50ml |
| WXQM-1 | 1.0L | 50ml, 100ml, 250ml | 4 pcs | 50ml. 100ml |
| WXQM-2 | 2.0L | 50ml-500ml | 4 pcs | 50ml, 100ml, 250ml |
| WXQM-4 | 4.0L | 250ml-1000ml | 4 pcs | 50ml-500ml |
| WXQM-6 | 6.0L | 1L-1.5L | 4 pcs | 50ml-750ml |
Table 2 Technical Parameters For Horizontal Planetary Ball Mill Light Type
| Model No. | Voltage | Power | Rotation Speed | Noise |
| WXQM-0.4 | 220V-50Hz | 0.75KW | 70-670 rpm | Less than 58db |
| WXQM-1 | 220V-50Hz | 0.75KW | 70-670 rpm | Less than 60db |
| WXQM-2 | 220V-50Hz | 0.75KW | 70-670 rpm | Less than 60db |
| WXQM-4 | 220V-50Hz | 0.75KW | 70-670 rpm | Less than 60db |
| WXQM-6 | 220V-50Hz | 0.75KW | 70-670 rpm | Less than 60db |
Table 3 Technical Parameters For Horizontal Planetary Ball Mill Light Type
| Model No. | Speed Control | Net Weight | Net Dimensions |
| WXQM-0.4 | Frequency Control | 86kgs | 700*510*570mm |
| WXQM-1 | Frequency Control | 86kgs | 700*510*570mm |
| WXQM-2 | Frequency Control | 86kgs | 700*510*570mm |
| WXQM-4 | Frequency Control | 86kgs | 700*510*570mm |
| WXQM-6 | Frequency Control | 86kgs | 700*510*570mm |
Features————————
1. Easy operation.
2. Unique gear with low noise.
3. Horizontal structure of the mill pots prevents materials from sinking to the bottom of jars.
Accessories of Grinding Pots & Balls————————
Available grinding jars in full sizes:Zirconia ball mill jar, alumina ball mill jar, Agate ball mill jar, Tungsten ball mill, hard metal mill jar and etc.
| Categories of Materials | Recommended Mill Jars |
| Soil and other Materials which are not allowed with any impurity | Agate mill jar |
| Metal & nonmetal materials which are not allowed with any impurity | Zirconia mill jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide mill jar |
| Strong add & alkali materials or other materials at high temperature | PTFE mill jar |
| lron ore materials with lower impurity sensitivity | 304 Stainless steel mill jar |
| Pigment or other materials with later process under high temperature | Nylon mill jar |
| Aluminum materials like ceramic glaze | Corundum mill jar |
| Electronic materials like lithium battery | Polyurethane mill jar |
| Easily oxidized materials or some special materials which need tobe protected under special atmosphere | Vacuum mill jar |

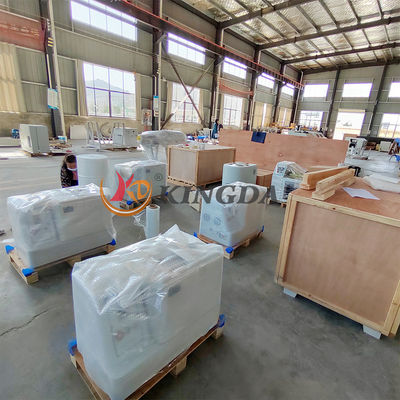

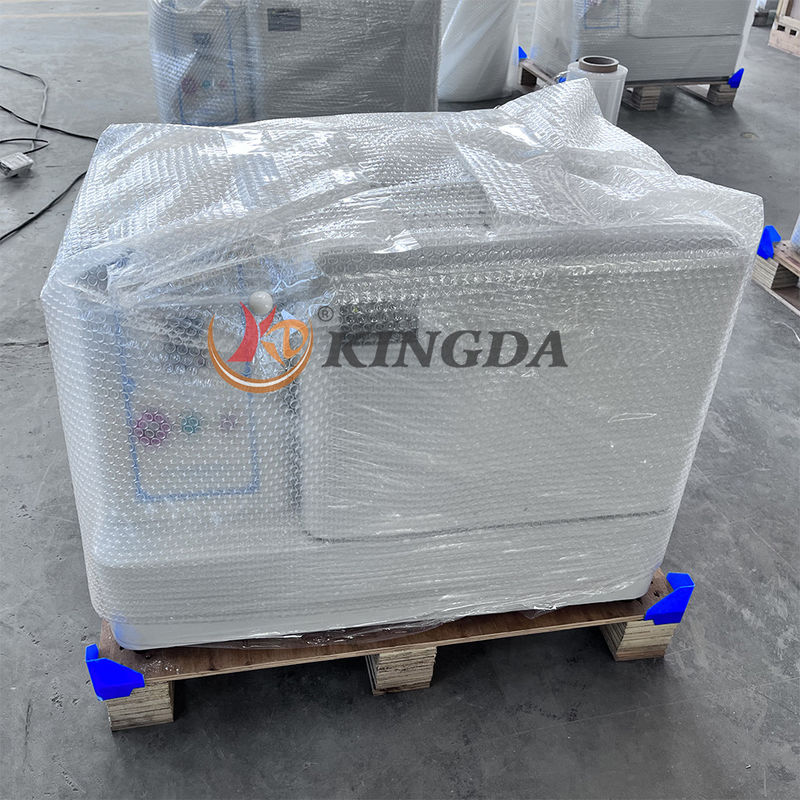

Package & Shipping————————
Package Type:
PE Form + Cartons / Woodern cases;
Can be dispatched according to customr's requirement
Port:
Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao port.
Delivery time:
Within 3-7 working days from the date of payment receipt

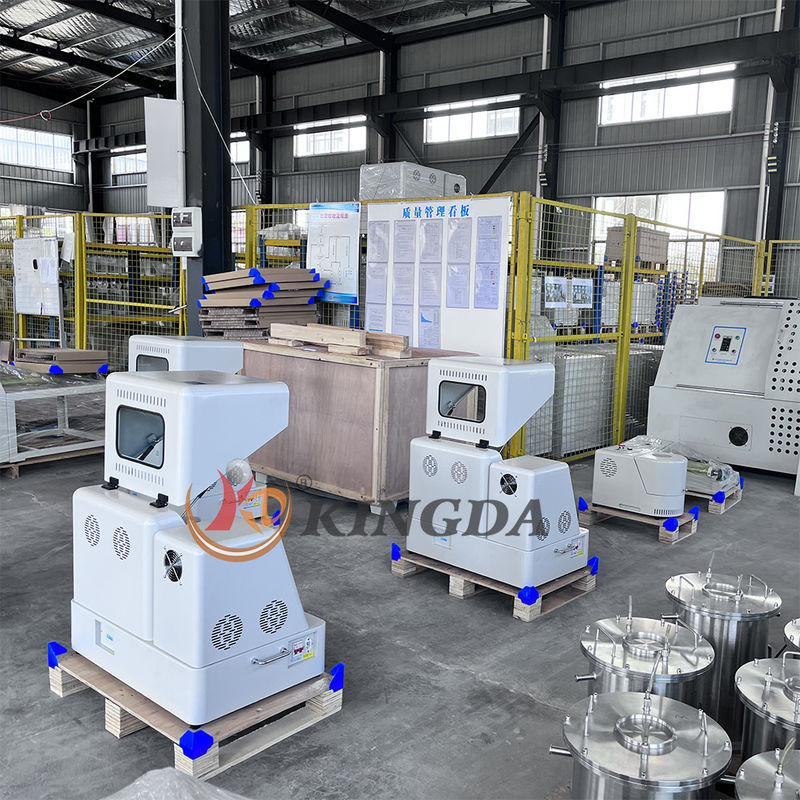

Factory————————
FAQ————————
1.Q: What is the size in your products?
A: The minimum type is 1L planetary ball mill. We have other types from 0.2-100L to 100L for your options.
2.Q: What is your terms of delivery?
A: FOB, CFR, CIF.
3.Q: Can you accept small quantity sample order before production?
A: Yes, we can offer sample for your testing first before production, but the customers have to pay the courier cost.
4.Q: What is your production time?
A: Generally, it will take 3-7 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5.Q: What is your terms of payment?
A: T/T 30% as deposit, 70% balance against the copy of original B/L. Or 100% L/C at sight. We'll show you the photos of the products and the copy of original B/L before you pay the balance.
Our Service————————
1. We can produce other grinding balls as your need.
2. We test all the goods before delivery.
3. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
4. If you have any questions, please contact with us without any hesitation, we will reply you in 2 hours.
ABOUT KINGDA————————
1. HUNAN KINGDA CERAMIC TECHNOLOGY CO.,LTD is a manufacturer of the Grinding Media Ball, Grinding Jars, Zirconium Dioxide, Zirconia structures, etc.
2. "Quality Is in the First Position forever", we have gained a high reputation and good recognition from a lot of domestic and overseas customers such as University of Oxford, Lough borough University, Peking University, Tsinghua University, etc.
3. We promise that we would make great efforts to provide high quality grinding products and best services for all customers in the coming years.
4. Nowadays, KINGDA CERAMIC MATERIALS has gained great reputation from our business partners. We will continue to contribute the best to realize mutual benefit and sustainability.
5. We appreciate your interest and support in the efforts and passion of KINGDA CERAMIC, the company of Human Technology.
