High Energy 400ml 2L Grinder Machine Small Planetary Ball Mill for Powder Within 10mm at Best

400ml planetary ball mill

2L small grinder machine

10mm powder planetary mill

Place of Origin:

Hunan, China

Brand Name:

Kingda

Certification:

CE ISO

Request A Quote

Product Details

Model NO.:

Planetary Ball Mill

Working Style:

High-speed Universal

Disc Diameter:

180mm

Variable Speed:

With Variable Speed

Product Name:

Vertical Planetary Ball Mill

Weight:

55kg

Voltage:

220V-50Hz

Core Components:

Bearing, Pump, Gear

Power Supply:

110V-60Hz Or 220-50Hz 0.32kw

Rotation Speed:

90-870 Rpm

Working Position:

4 Working Positions

Matchable Jar Volume:

50ml/100ml

Feed Size Of Material:

Less Than 10mm

Power:

0.75kw

After-Sales Service Provided:

Free Spare Parts, Field Installation...

After Warranty Service:

Video Technical Support, No Service, Spare Parts

Warranty:

1 Year

Product Type:

Powder

Output Size (Mesh):

45 - 535 Mesh

Transport Package:

530*300*340 Mm

Specification:

0.2L-16L

Trademark:

KINGDA

Origin:

Hunan, China

HS Code:

8479909090

Supply Ability:

50000 Pieces/Year

Type:

Disc Grinder

Power Source:

Electricity

Object:

Milling Cutter

Application:

Laboratory

Disc(Wheel) Type:

Grinding Disc

Material:

Steel

Customization:

Available | Customized Request

Highlight:

400ml planetary ball mill

2L small grinder machine

10mm powder planetary mill

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

PE Foam + Cartons / Wooden cases

Delivery Time

3-7 Days

Payment Terms

L/C, D/A, D/P, T/T, Western Union

Supply Ability

1000 Set / Month

Cryogenic Planetary Ball Mill with Cooling Insulation Chamber for Heat Sensitive Powder Milling

Get Best Price

Video

Air Cooling Cryogenic Planetary Ball Mill with Thermal Insulation Cotton for Stable Low Temperature Grinding

Get Best Price

Video

Laboratory Planetary Ball Mill with Air Cooling Device for High Energy Grinding

Get Best Price

Video

0.2 Liter 110 Volt High-Efficiency Laboratory Planetary Ball Mill for Nanopowder Preparation

Get Best Price

Contact Now

Product Description

Planetary Ball Mill Industrial For Production Nano Powder Planetary Ball Mill

Product Description

Planetary Ball Mill

Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. Tencan planetary ball mill owns small volume, high efficiency, low noise and functional features which is a ideal equipment for R&D institution, university, enterprises laboratory to get samples (each experiment can get four samples at the same time). It gets powder samples under the vacuum state when equipped with vacuum ball mill tank.

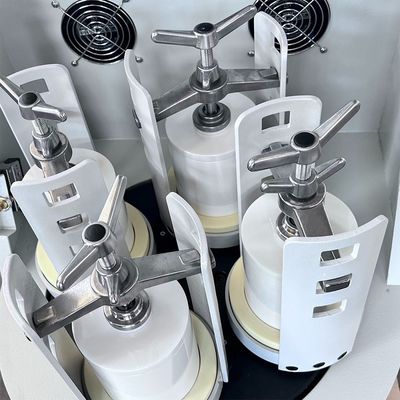

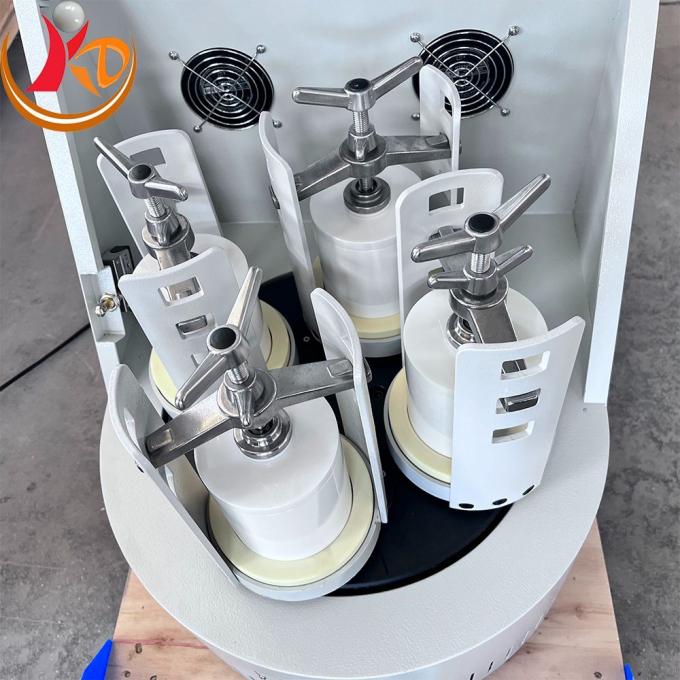

0.4L planetary ball milling machine has four ball grinding tanks installed on one turnplate. When the turnplate rotates, the tank axis makes planetary movements and the balls in the tanks grinds and mixes samples in high speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of grinded products can be as small as 0.1 micron (i.e.) 1.0×10-4mm)

It is widely used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.

Product Pictures

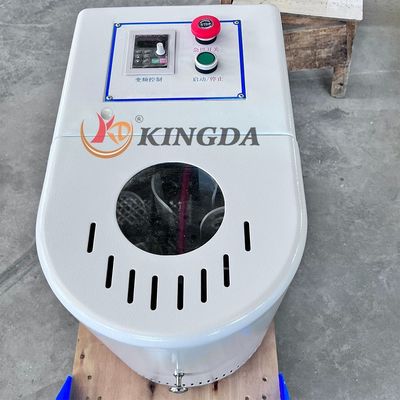

Best Price Laboratory High Energy 400ml 2L Grinder Machine Small Planetary Ball Mill

Application

1. Particularly suitable for vertical stirring mills, horizontal roller ball mills, vibrating mills and various high linear, speed pin- type sand mills.
2. For wet or dry ultrafine dispersion and grinding of pastes and powders without contamination.
3. Perfect grinding media with good flatness, smooth surface, bright,high density and high strength.
4. Wear and corrosion resistant product: coating, textile, pigment, dyeing.
5. High strength, high tenacity product: magnetic material, piezoelectric ceramics, dielectric ceramics.
6. Pollution prevention: medicine, food, cosmetics.
7. Ceramics: electronic ceramics, refractory ceramics, structural ceramics.

Features

Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
Four powder samples from different sizes and different materials can be produced at one time.
The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.

Product Paramenters

Types for Planetary Ball Mill

Model	*Specification*	*Spec(ml,L)*	*Quantity (Items/Set) (Mated with a* *number of milling balls)*
XQM-0.4L	0.4L	50-100ml	4 mill tanks
XQM-1L	1L	50-250ml	4 mill tanks
XQM-2L	2L	50-500ml	4 mill tanks
XQM-4L	4L	50-1000ml	4 mill tanks
XQM-8L	8L	0.5-2L	4 mill tanks
XQM-12L	12L	1-3L	4 mill tanks
XQM-16L	16L	1-4L	4 mill tanks

Technical Specifications

Drive Mode: gear drive and belt drive
Operation Mode: two or four grinding tanks working together
Maximum Loading Capacity: 2/3 of the capacity of milling tank
Feeding Granularity: soil material ≤10mm, other materials ≤3mm
Output Granularity: Minimum 0.1um
Rotational speed ratio (revolution: rotation): 1:2 (0.4L,2L,4L);1:1.5(12L,20L)
Rotation Speed: 0.4L:0~600rounds/min; 2L:0~580rounds/min 4L:0~530rounds/min 20L:0-280 rounds/min
Speed Regulation Mode: variable-frequency-control-type and program-control-type stepless speed regulation; manual or automatic timed positive or negative revolving
Max. continuous operating time (full-load): 72 hours

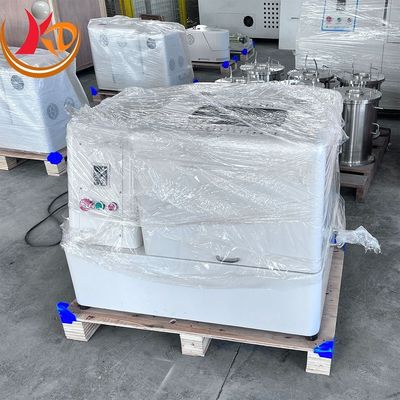

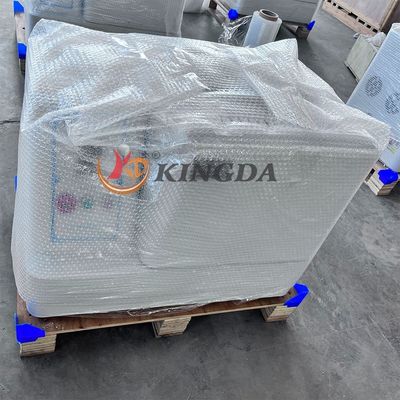

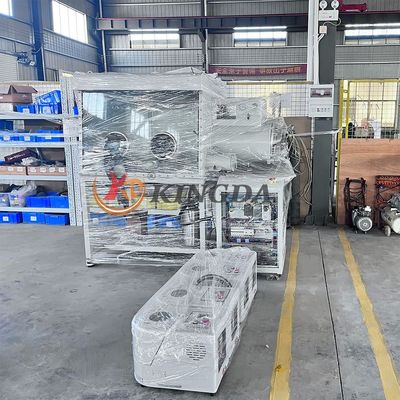

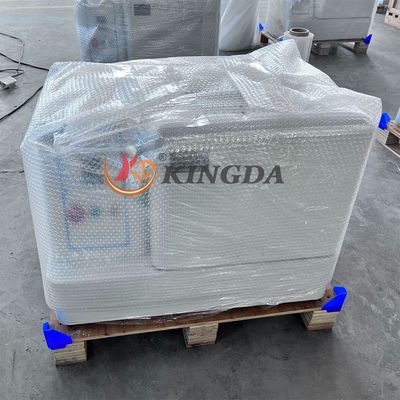

Package & Shipping

Package Type: Carton or plywood case + foam
Port: Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao port.
Delivery time: Within 15 working days from the date of payment receipt.

FAQ

1.Q: I need a mill machine for lab use, what's your mini type?
A: The minimum type is 0.4L planetary ball mill, ModelXQM-0.4A in size of 53*30*34cm, machine weight 26kgs. We have other types from 1L to 100L for your options.

2.Q: What is your terms of delivery?
A: FOB, CFR, CIF.

3.Q: Can you accept small quantity sample order before production?
A: Yes, we can offer sample for your testing first before production, but the customers have to pay the courier cost.

4.Q: What is your production time?
A: Generally, it will take 5 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

5.Q: What is your terms of payment?
A: T/T 30% as deposit, 70% balance against the copy of original B/L. Or 100% L/C at sight. We'll show you the photos of the products and the copy of original B/L before you pay the balance.

Our Service

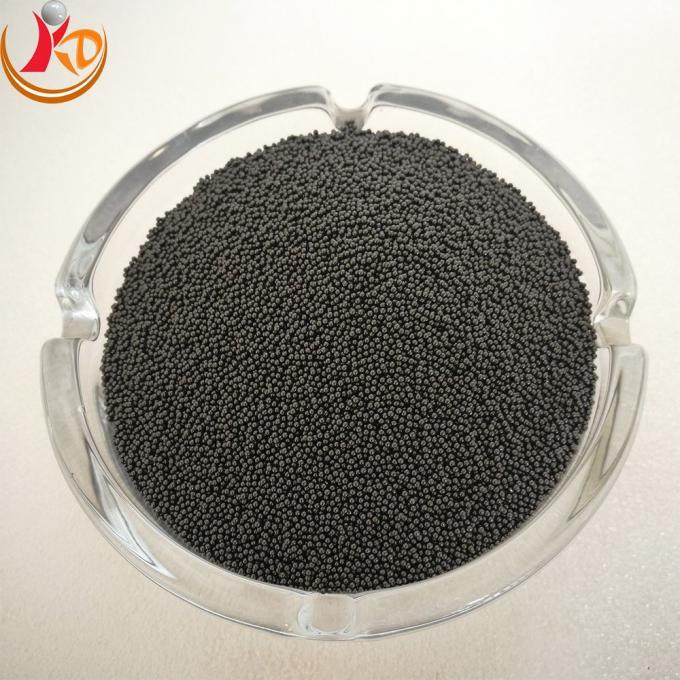

1. Customized Grinding Media: We can provide customized grinding balls and grinding media according to your specific application, material, size, and performance requirements.

2. Quality Inspection Before Delivery: All products are carefully inspected and tested before shipment to ensure they meet the agreed specifications and quality requirements.

3. Professional & Reliable Service: We value every customer and are committed to building long-term and mutually beneficial partnerships. We provide professional service and reliable support to customers worldwide.

4. Fast Response & Technical Support: If you have any questions or specific requirements, please feel free to contact us at any time. Our team will respond within 12 hours and provide professional assistance whenever needed.
