| Place of Origin | Hunan, China |
| Brand Name | Kingda |
| Certification | CE ISO |
| Model Number | 0.2L |

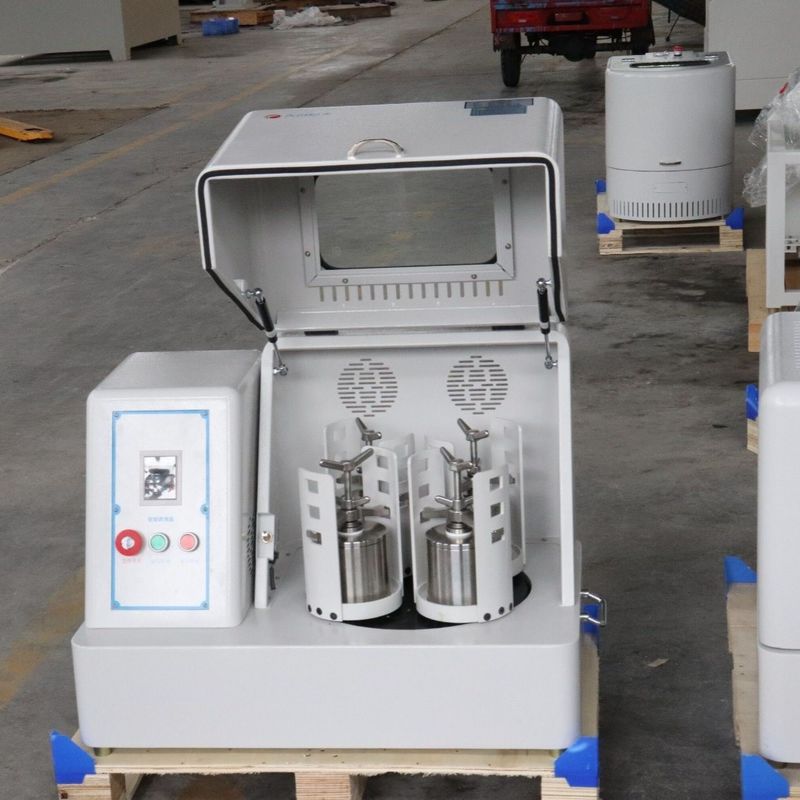

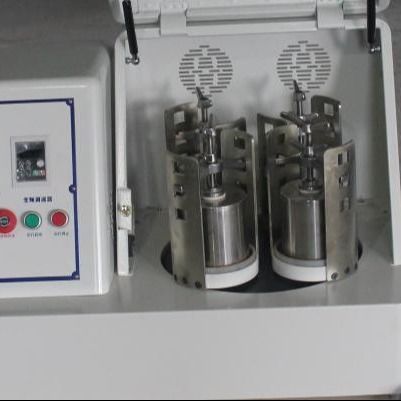

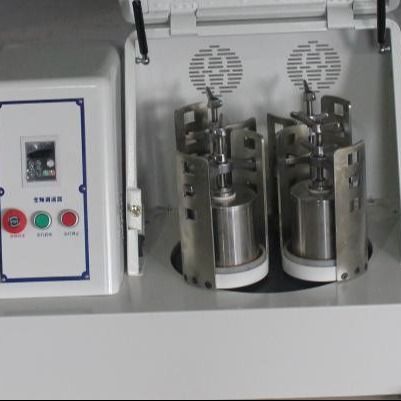

0.4L Ceramic Ball Mill 220V Desktop Laboratory Grinding Equipment
Product Description————————
High-Speed Grinding: Planetary ball mills operate at high speeds, typically in the range of 50 to 400 revolutions per minute (RPM). The high rotational energy generated by the sun wheel and the grinding balls result in efficient grinding and mixing.
Two or More Grinding Stations: Planetary ball mill machines often have two or more grinding stations, which allow for simultaneous grinding of multiple samples. Each grinding station consists of a milling jar and the corresponding sun wheel.
Intermittent or Continuous Operation: Planetary ball mills can operate in either intermittent or continuous modes. In intermittent mode, the grinding process is paused periodically to allow for cooling or to collect samples. In continuous mode, the grinding process is continuous without interruption.
Safety Features: Planetary ball mill machines may incorporate safety features such as interlock mechanisms to prevent operation when the jars are not properly secured or when the machine is opened. This ensures user safety during operation.
Application————————
1. Materials Research and Development: The Vertical Planetary Ball Mill plays a crucial role in the mixing, fine grinding, and new product development of high-tech materials. Researchers can utilize its ability for small batch production, swiftly obtaining samples with high purity and precise particle size.
2. Laboratory Sample Preparation: As an ideal laboratory equipment, the Vertical Planetary Ball Mill is employed in universities, research institutions, and enterprise laboratories for sample preparation. Its small volume and high efficiency ensure the acquisition of four samples in a single experiment, enhancing experimental efficiency.
Technical Specifications————————
| Drive Mode | gear drive / belt drive |
|---|---|
| Operation Mode | 2 / 4 grinding tanks working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling tank |
| Feeding Granularity | soil material ≤10mm, other materials ≤3mm |
| Output Granularity | Minimum 0.1um |
| Rotational speed ratio | 1:2 (0.4L,2L,4L); 1:1.5(12L,20L) |
| Rotation Speed | 0.4L:0~600rounds/min; 2L:0~580rounds/min 4L:0~530rounds/min 20L:0-280 rounds/min |
| Speed Regulation Mode | variable-frequency-control-type and program-control-type stepless speed regulation; manual or automatic timed; positive or negative revolving |
| Max. continuous operating time full-load) |
72 hours |
Features————————
1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.
Types for Planetary Ball Mill————————
| Model | Specification | Spec(ml,L) | Quantity (Set) |
|---|---|---|---|
| KD-XQM-0.4L |
0.4L |
50-100ml | 4 mill tanks |
| KD-XQM-1L | 1L | 50-250ml | 4 mill tanks |
| KD-XQM-2L |
2L |
560-500ml | 4 mill tanks |
| KD-XQM-4L | 4L | 50-1000ml | 4 mill tanks |
| KD-XQM-8L | 8L | 0.5-2L | 4 mill tanks |
| KD-XQM-12L | 12L | 1-3L | 4 mill tanks |
| KD-XQM-16L | 16L | 1-4L | 4 mill tanks |
Package & Shipping————————
Package Type:
PE Form + Cartons / Woodern cases;
Can be dispatched according to customr's requirement
Port:
Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao port.
Delivery time:
Within 3-7 working days from the date of payment receipt

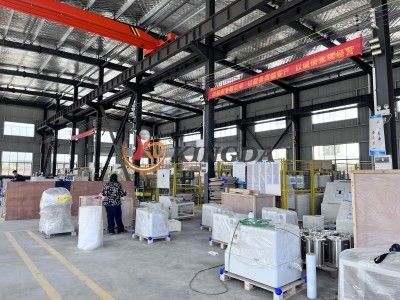

Factory————————
FAQ————————
1.Q: What is the size in your products?
A: The minimum type is 0.4L planetary ball mill Model XQM-0.4A in size of 53*30*34cm, machine weight 26kgs. We have other types from 0.2-100L to 100L for your options.
2.Q: What is your terms of delivery?
A: FOB, CFR, CIF.
3.Q: Can you accept small quantity sample order before production?
A: Yes, we can offer sample for your testing first before production, but the customers have to pay the courier cost.
4.Q: What is your production time?
A: Generally, it will take 3-7 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5.Q: What is your terms of payment?
A: T/T 30% as deposit, 70% balance against the copy of original B/L. Or 100% L/C at sight. We'll show you the photos of the products and the copy of original B/L before you pay the balance.
6.Q: What is the working principle of planetary ball mill?
A: Please refer to this news: China Hunan jingshengda ceramic technology Co.,ltd latest company news about Working principle of planetary ball mill (ecer.com)
