100ml Zirconia oxide Grinding Cup for Fritsch PULVERISETTE 9
ZIRCONIUM OXIDE - ZRO2 -, USEFUL VOLUME 100 ML
No. 48.5410.00
Equipment model: FRITSCH Vibrating cup Mill PULVERISETTE 9
for comminution of medium-hard, brittle, fibrous samples and for metal-free grinding material you will find in the element analysis.Grinding sets of zirconium oxide are only suitable for grinding ceramic materials, minerals etc and never for hard-tough samples, such as metals.
Our suggestion: Grinding sets with high density, e.g. tempered steel or tungsten carbide, shorten the grinding time.
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: good
Suitable for: medium-hard, brittle, fibrous samples, metal-free grinding
Detailed information about the zirconia oxide grinding sets have been developed especially for extreme test conditions such as high sample throughput and high mechanical stress. Features include.
- safe, non-slip attachment with integral safety devices on cover and base
- gap between dish and cover edge for easy opening
- optimum sealing with O-ring
- protective jacket made from stainless steel (for agate, zirconium oxide and tungsten carbide dishes)
- grinding set identification (article number, material and volume)
- marking field (e. g. for information about sample)
- available in 3 sizes and 5 materials
We have mass-produced various types of ball mill jars for Retsch and Fristch from Germany brand.
Retsch grinding jar: 50ml,80ml,125ml zirconium oxdie, agate, tungsten carbide grinding jar for Retsch planetary bal mill PM100,PM200,PM 400; 25ml,35ml,50ml zirconia oxide ,tungsten carbide jars for Retsch Mix mill MM 500; 50ml,100ml,250ml and 500ml zirconia oxide and tungsten carbide for Retsch vibratory disc ball mill RS200
Fritsch grinding jar: 250ml and 500ml zirconia,alumina,agate grinding jar for Fritsch P6.
We have drawings for all the above models of equipment.
We have inventory of all the above ball mill jars. Just let us talk more!
Just let us talk more! whatapp/wechat: +86 153 6787 4686
Technical indicators for Zirconia Ball mill jar
|
Composition
(%)
|
Specific Gravity
(G/CM3)
|
Bulk Density
(Kg/L)
|
Capacity
(ML)
|
|
ZrO2: 95± 0.2
Y2O3: 5± 0.2
|
≥ 6.02 |
≥3.7 |
25,50,80,100,125,250,
500,1000,2000,3000
|
Dimesion for our regualar avaliable zirconia mill jar (offer OEM & ODM Service)
| Zirconia oxide Jar Volume |
OD (mm) |
ID (mm) |
Total Height (mm) |
| 25ml |
49 |
32 |
51 |
| 50ml |
55 |
38 |
67 |
| 100ml |
65 |
50 |
75 |
| 250ml |
92 |
74 |
88 |
| 500ml |
100 |
84 |
118 |
| 1000ml |
128 |
108 |
150 |
| 2.0L |
158 |
138 |
162 |
| 3.0L |
158 |
138 |
220 |
Note 1: Jar size of each patch will control tolerance ±0.1-0.2mm.
2:One set includes: jar + lid + rubber sealing gasket.
Choice of Grinding Jars & Grinding Balls
In order to prevent excessive abrasion, the hardness of the grinding jars used and of
the grinding balls must be higher than that of the material used. Normally, grinding jars
and grinding balls of the same material should be chosen.
| Recommendation For Matching Solutions About Mill Jars & Materials |
| Categories of Materials |
Recommended Mill Jars |
| Soil and other Materials which are not allowed with any impurity |
Agate mill jar |
| Metal & nonmetal materials which are not allowed with any impurity |
Zirconia mill jar |
| High hardness materials like diamond, tungsten carbide |
Tungsten carbide mill jar |
| Strong add & alkali materials or other materials at high temperature |
PTFE mill jar |
| Iron ore materials with lower impurity sensitivity |
304 Stainless steel mill jar |
| Pigment or other materials with later process under high temperature |
Nylon mill jar |
| Aluminum materials like ceramic glaze |
Corundum mill jar |
| Electronic materials like lithium battery |
Polyurethane mill jar |
| Easily oxidized materials or some special materials which need to be protected under special atmosphere. |
Vacuum mill jar |
| Matching Solutions for Mill Jars & Balls |
| Items |
Agate Balls |
Alumina Balls |
Stainless Steel Balls |
Zirconia Balls |
Tungsten Carbide Balls |
| Agate Mill jar |
1 |
|
|
|
|
| Alumina/Corundum Mill Jar |
2 |
1 |
|
2 |
|
| Stainless Steel Mill Jar |
|
|
1 |
|
|
| Zirconia Mill Jar |
|
2 |
|
1 |
|
| Nylon Mill Jar |
2 |
|
|
1 |
|
| PTFE Mill Jar |
1 |
|
|
2 |
|
| Polyurethane Mill Jar |
1 |
|
|
2 |
|
| Tungsten Carbide Mill Jar |
|
|
|
2 |
1 |
1 means: most suitable , 2 means: suitable
|
Features of Zirconium oxdie grinding jar:
1. High specific gravity, high efficiency
2. Highly wear resistant to acid and solvents
3. High cost-effective, low wear and long lifetime
4. Highly polished, smooth, easy to clean, low abrasion to the equipment
5. High mechanical strength, good toughness, impact resistance, no broken beads
6. Mainly used for lab planetary ball mill machines

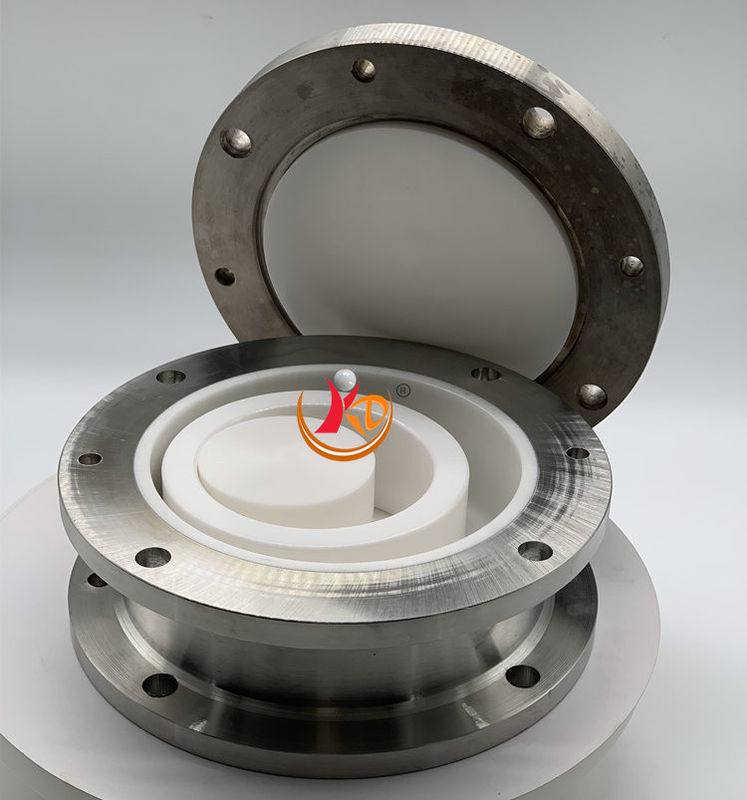

Image of FRITSCH Vibrating cup Mill PULVERISETTE 9 accessories: 100ml zirconia grinding cup with grinding mortar and grinding ring
Related Products
250ml zirconium oxide jar and agate milling jars for FRITSCH P6 P5 P4
Retsch RS 200 Retsch Brand Model 01.462.0355 WC 100ml and 250 ml
Fit in Retsch PM400 accessories: 250ml Zirconium oxide jar
Detailed Images for 50ml,80ml,125ml zirconium oxdie grinding jar for Retsch
PM 100/PM 200/PM 300/ PM 400:
