50ml Tungsten Carbide TC Milling Jars for Retsch VIBRATORY DISC MILLRS 200

Large Image : 50ml Tungsten Carbide TC Milling Jars for Retsch VIBRATORY DISC MILLRS 200

Product Details:

Place of Origin:	Hunan, China
Brand Name:	kingda
Certification:	TUV
Model Number:	50ml Tungsten Carbide milling jars only Used for Retsch VIBRATORY DISC MILLRS 200

Payment & Shipping Terms:

Price:	$1,399.00 - $1,699.00/pieces

Contact Now

50ml Tungsten Carbide TC Milling Jars for Retsch VIBRATORY DISC MILLRS 200

Description

Type:	Ceramic Parts	Application:	Industrial Ceramic
Material:	50ml Tungsten Carbide Jar Used For Retsch, 100% Virgin Tungsten Carbide	Processing Service:	Moulding
Name:	50ml Tungsten Carbide Ball Mill Jar Used For Retsch RS 200,RS300	Size:	50ml,100ml,250ml,500ml
Grade:	YG6/YG8/YG15	Shape:	Cylinder And With Ring
Surface:	Polishing	Usage:	Size Reduction, Mixing, Milling, Dispersing,triturating
Quality:	European Standard	Fit In Machine:	Retsch VIBRATORY DISC MILLRS 200,RS300
Highlight:	50ml Tungsten Carbide TC Milling Jars , Tungsten Carbide TC Milling Jars , Milling Jars for Retsch

50ml Tungsten Carbide milling jars only Used for Retsch VIBRATORY DISC MILLRS 200

50ml Tungsten Carbide TC Milling Jars for Retsch VIBRATORY DISC MILLRS 200 0

RETSCH Ball Mill Tungsten Carbide Comfort Grinding Jars:

Technical Datas
Model Number:KD-WC-50
Material:Tungsten Carbide -WC-YG15
Volume:50ml
Max Loading Capacity : 2/3 capacity of the grinding jar
Density:14.95g/m³
Abrasion Resistance : Very good
Attachment : silicon sealing gasket and lid
Compatible Samples:Hard, abrasive samples
Applicable Grinding Balls : mixed Tungsten Carbide ball
Applicable instrument:VIBRATORY DISC MILLRS 200,RS300:

RETSCH’s Vibratory Disc Mills rapidly pulverize materials such as cement, cement clinker, ceramics, coal, coke, concrete, corundum, glass, metal oxides, minerals, ores, silicate, slag, soil, etc.

50ml Tungsten Carbide TC Milling Jars for Retsch VIBRATORY DISC MILLRS 200 2

With polished surface, highly wear-resistant and resistant to acid and alkali and high hardness, tungsten carbide ball mill jars can meet the vast majority of metal powder crushing and refining. Tungsten carbide ball mill jar is used as milling jar of planetary ball mill,virbratory disc mill matched with tungsten carbide balls, which is suitable for grinding materials in high hardness such as hard alloy powder, diamond powder, and silicon carbide powder, etc.

We have mass-produced various types of ball mill jars for Retsch and Fristch from Germany brand.

For Retsch grinding jar: 50ml,80ml,125ml tungsten carbide,agate, zirconium oxdie, alumina oxide, grinding jar for Retsch planetary bal mill PM100, PM100CM, PM200, PM 400; 25ml,35ml,50ml tungsten carbide,zirconia oxide jars for Retsch Mix mill MM 500; 50ml,100ml,250ml and 500ml tungsten carbide ,agate, zirconia oxide for Retsch vibratory disc ball mill RS200,RS300.

For Fritsch grinding jar: 250ml and 500ml agate,zirconia,alumina oxide, grinding jar for Fritsch P6.

We have inventory of all the above ball mill jars. Just let us talk more!

Physical Parameters:

Composition

Grade

Specific Gravity

g/cm³

Compression modulus Mpa

Hardness

HRA

Bending strength Mpa

Elasticity modulus Gpa

WC: 92%

Cobalt: 8%

YG8

≥14. 6

89. 0

≥2320

510.0

Dimesion for our regualar avaliable Tungsten carbide milling jars

Volume of Jar	External Diameter (mm)	Inner Diameter (mm)	Height of without lid (mm)	Total Height (mm)
50ml	49	38	52	56
100ml	63	51	59	63
250ml	86	73	69	75
500ml	104	90	96	103
1L	131	115	110	117
1.5L	131	115	172	181
2L	170	156	121	128
Remarks: Size deviation within ±0.5mm, Size deviation within 20-50gram. We also can provide YG6,YG8,YG15.

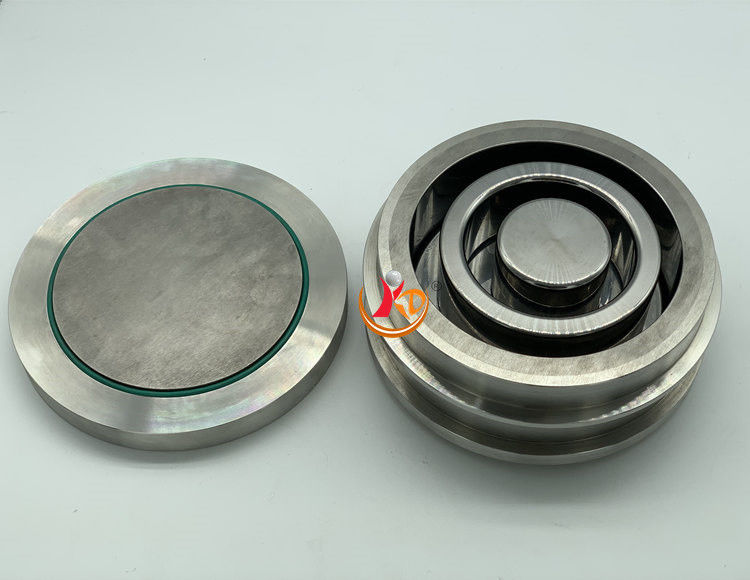

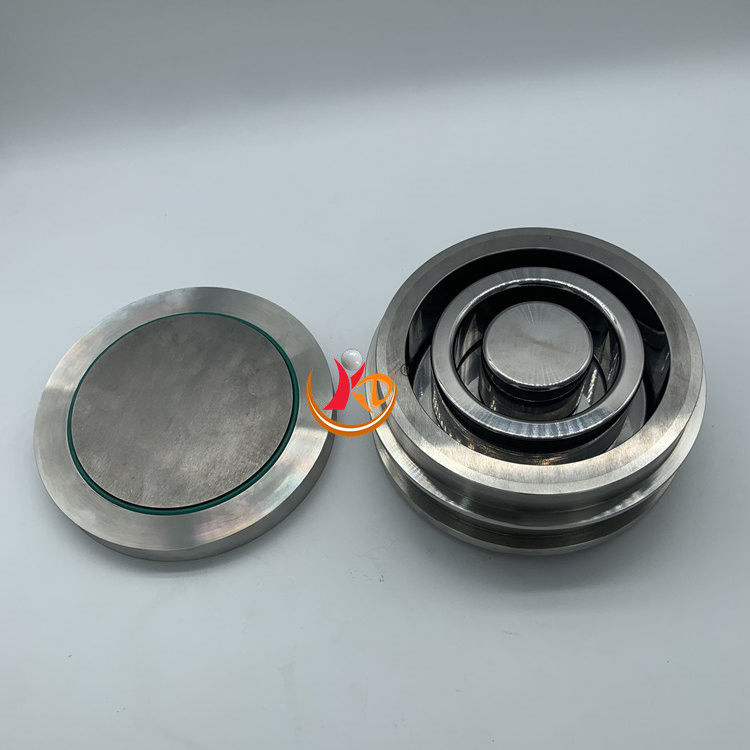

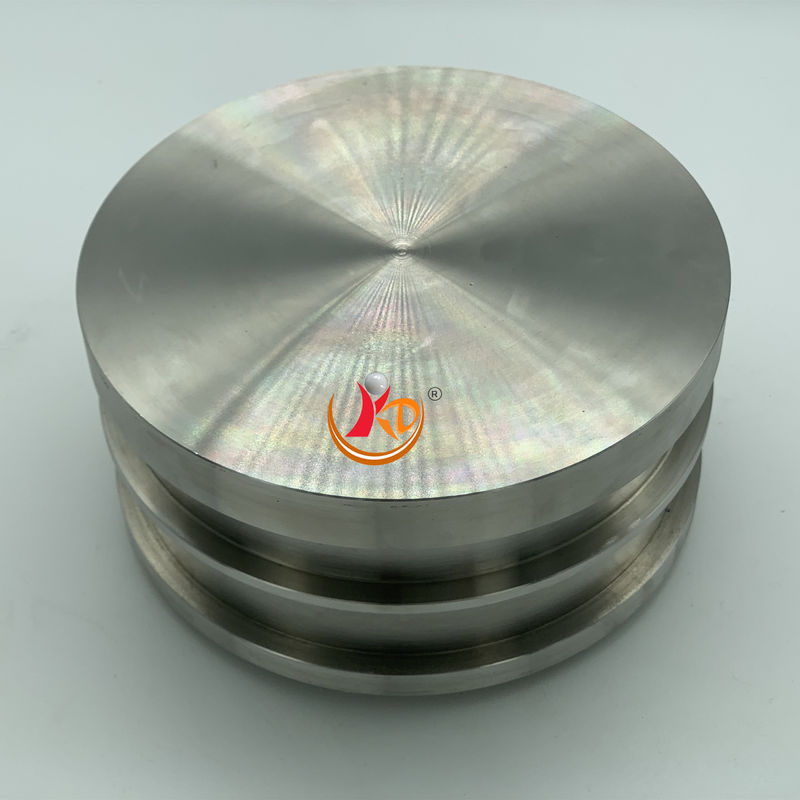

Image show of 50ml tungsten carbdie jar only fit in Retsch VIBRATORY DISC MILL RS 200

50ml Tungsten Carbide TC Milling Jars for Retsch VIBRATORY DISC MILLRS 200 4

50ml Tungsten Carbide TC Milling Jars for Retsch VIBRATORY DISC MILLRS 200 5

50ml Tungsten Carbide TC Milling Jars for Retsch VIBRATORY DISC MILLRS 200 6

Packaging & Shipping

50ml Tungsten Carbide TC Milling Jars for Retsch VIBRATORY DISC MILLRS 200 7

Application Fields:

50ml Tungsten Carbide TC Milling Jars for Retsch VIBRATORY DISC MILLRS 200 8

50ml Tungsten Carbide TC Milling Jars for Retsch VIBRATORY DISC MILLRS 200 9
