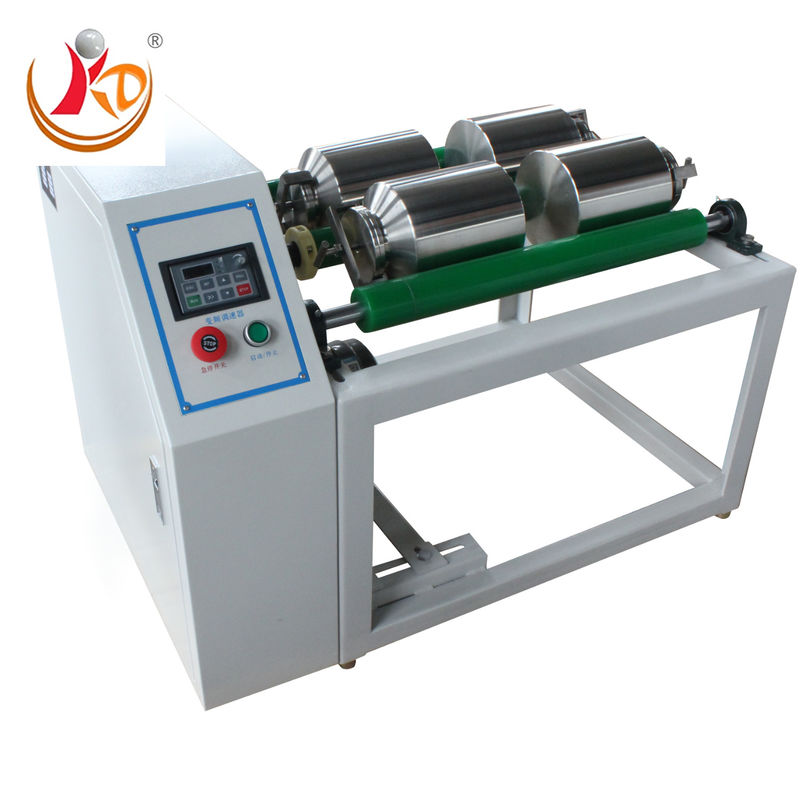

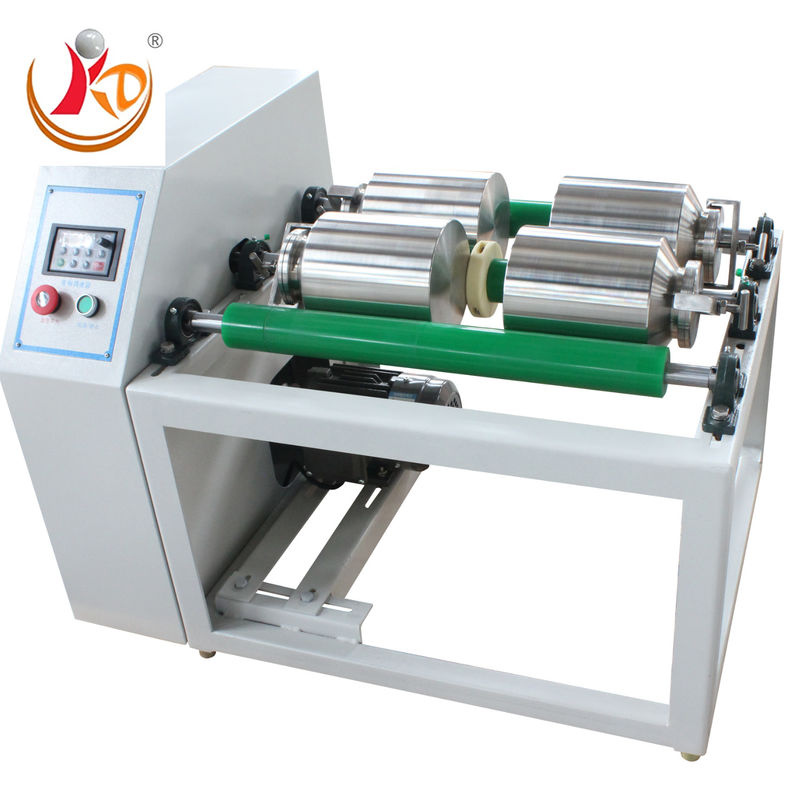

20L Jar Rolling Ball Mill Laboratory Grinding Machine Mill
  • 20L Jar Rolling Ball Mill Laboratory Grinding Machine Mill
  • 20L Jar Rolling Ball Mill Laboratory Grinding Machine Mill
  • 20L Jar Rolling Ball Mill Laboratory Grinding Machine Mill
  • 20L Jar Rolling Ball Mill Laboratory Grinding Machine Mill
20L Jar Rolling Ball Mill Laboratory Grinding Machine Mill

20L Jar Rolling Ball Mill Laboratory Grinding Machine Mill

Tempat asal Hunan, Cina
Nama merek Kingda
Sertifikasi CE ISO
Nomor model KDGQM
Rincian Produk
Model NO.:
KDGQM-4-20
Nama produk:
gilingan bola bergulir
Bernyanyi berat beban botol:
120Kg
Tegangan:
220V-50HZ
Sumber daya listrik:
110V-60Hz atau 220-50Hz 0,75kW
Kecepatan rotasi:
40-365rpm
Posisi Kerja:
4 posisi kerja
Volume Jar yang Cocok:
20L
Ukuran Pakan Bahan:
kurang dari 10mm
Kekuatan:
2.2KW
Jaminan:
1 tahun
Jenis Produk:
Bubuk
Ukuran Keluaran (jala):
13um
Paket Pengangkutan:
1270*820*690 mm
Merek dagang:
Raja
Asal usul:
Hunan, Cina
Jenis:
Penggiling Disk
Bahan:
baja
Menyoroti:

Laboratory Grinding Machine Mill

,

Laboratory Rolling Ball Mill

,

20L Rolling Ball Mill

Ketentuan Pembayaran & Pengiriman
Kuantitas min Order
1 set
Harga
Dapat dinegosiasikan
Kemasan rincian
Kotak kayu
Waktu pengiriman
3-7 hari
Syarat-syarat pembayaran
L/C,D/A,D/P,T/T,Western Union
Menyediakan kemampuan
1000 Set / Bulan
Deskripsi Produk



                                                      Rolling Ball Mill Laboratory Grinding Machine



20L Jar Rolling Ball Mill Laboratory Grinding Machine Mill 0



Product Description


The Rolling Ball Mill is a type of powder milling equipment designed for ultra-fine grinding and mixing in laboratory settings and small batch production. Also known as a rolling ball mill with multiple working positions, it is an ideal tool for scientific research, education, experiments, and production due to its elegant and modern design, compact structure, ease of operation, high efficiency, and uniform granularity.

It is widely used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.

Product Pictures



20L Jar Rolling Ball Mill Laboratory Grinding Machine Mill 1



Application

1. Particularly suitable for vertical stirring mills, horizontal roller ball mills, vibrating mills and various high linear, speed pin- type sand mills.
2. For wet or dry ultrafine dispersion and grinding of pastes and powders without contamination.
3. Perfect grinding media with good flatness, smooth surface, bright,high density and high strength.
4. Wear and corrosion resistant product: coating, textile, pigment, dyeing.
5. High strength, high tenacity product: magnetic material, piezoelectric ceramics, dielectric ceramics.
6. Pollution prevention: medicine, food, cosmetics.
7. Ceramics: electronic ceramics, refractory ceramics, structural ceramics.


Working Principle

When the machine starts to work, the grinding media and the materials of the cylinder are rotated to a certain height. Due to the gravity, they fall down from the tube wall. The materials are crushed by impact action of the grinding media, and friction and shearing action of grinding media’s rolling and sliding. It not only saves time and labor, but is easy for operation.



Features

1. More kinds of sample material can be ground each time.
2. It can be operated intermittently or continuously.
3. Timing can be set according to users’ needs.
4. Suitable for ultrafine grinding with high efficiency of pulverizing.
5. Rubber roller is made of special materials and durable in use.

Technical Parameter


Category Dimensions/WT
(mm)		 Model No. Motor
Power(kw)		 Voltage Rotate Speed
(rpm)
2 work station 950*480*685mm/59kgs GQM-2-5 0.37 220V-50Hz/60Hz 50-410
2 work station 1130*550*690mm/80kgs GQM-2-15 1.1 220V-50Hz/60Hz 40-365
2 work station 13506550*690mm/92kgs GQM-2-20 1.5 220V-50Hz/60Hz 40-365
4 work station 950*660*690mm/70kgs GQM-4-5
Single Layer		 0.75 220V-50Hz/60Hz 50-410
4 work station 950*480*870mm/92kgs GQM-4-5
Double Layers		 0.75 220V-50Hz/60Hz 50-410
4 work station 1130*800*690mm/95kgs GQM-4-15 1.5 220V-50Hz/60Hz 40-365
4 work station 1350*820*690mm/122kgs GQM-4-20 2.2 380V-50Hz/60Hz 40-340
8 work station 950*660*960mm/106kgs GQM-8-5 1.5 220V-50Hz/60Hz 50-410
8 work station 1130*800*690mm/152kgs GQM-8-15 2.2 380V-50Hz/60Hz 40-365

20L Jar Rolling Ball Mill Laboratory Grinding Machine Mill 2




 Recommendation For Matching Solutions About Mill Jars & Materials
Categories of Materials Recommended Mill Jars
Soil and other Materials which are not allowed with any impurity Agate mill jar
Metal & nonmetal materials which are not allowed with any impurity Zirconia mill jar
High hardness materials like diamond, tungsten carbide Tungsten carbide mill jar
Strong add & alkali materials or other materials at high temperature PTFE mill jar
Iron ore materials with lower impurity sensitivity 304 Stainless steel mill jar
Pigment or other materials with later process under high temperature Nylon mill jar
Aluminum materials like ceramic glaze Corundum mill jar
Electronic materials like lithium battery Polyurethane mill jar
Easily oxidized materials or some special materials which need to
be protected under special atmosphere		 Vacuum mill jar


Materials of jars for choosing:
Agate, Zirconia, Alumina ceramic (Corundum), Tungsten Carbide, Stainless steel,PU (Polyurethane), PU with stainless steel liner, PTFE (Polytetrafluoroethylene), Nylon etc.
Vacuum jars are available as well.

Mill balls
Materials of balls for choosing:
Agate, Zirconia, Alumina, Tungsten Carbide, Stainless steel,PU, PTFE, Nylon, Carbon steel, PU etc.
Sizes for choosing: 1mm, 3mm, 5mm, 8mm, 10mm, 12mm, 15mm, 20mm, 25mm, 30mm

​​


Factory

20L Jar Rolling Ball Mill Laboratory Grinding Machine Mill 3

Package & Shipping

Package Type: Carton or plywood case + foam
Port: Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao port.
Delivery time: Within 15 working days from the date of payment receipt.


20L Jar Rolling Ball Mill Laboratory Grinding Machine Mill 4

20L Jar Rolling Ball Mill Laboratory Grinding Machine Mill 520L Jar Rolling Ball Mill Laboratory Grinding Machine Mill 6



FAQ

1.Q: I need a mill machine for lab use, what's your mini type?
A: The minimum type is 0.4L planetary ball mill, ModelXQM-0.4A in size of 53*30*34cm, machine weight 26kgs. We have other types from 1L to 100L for your options.

2.Q: What is your terms of delivery?
A: FOB, CFR, CIF.

3.Q: Can you accept small quantity sample order before production?
A: Yes, we can offer sample for your testing first before production, but the customers have to pay the courier cost.

4.Q: What is your production time?
A: Generally, it will take 5 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

5.Q: What is your terms of payment?
A: T/T 30% as deposit,  70% balance against the copy of original B/L. Or 100% L/C at sight. We'll show you the photos of the products and the copy of original B/L before you pay the balance.



Our Service

1. We can produce other grinding balls as your need.

2. We test all the goods before delivery.

3. We  respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

4. If you have any questions, please contact with us without any hesitation, we will reply you in 12 hours.

20L Jar Rolling Ball Mill Laboratory Grinding Machine Mill 7

Company Profile


20L Jar Rolling Ball Mill Laboratory Grinding Machine Mill 8

HUNAN JINGSHENGDA CERAMIC TECHNOLOGY CO.,LTD is a manufacturer of the Grinding Media Ball, Grinding Jars, Zirconium Dioxide, Zirconia structures, etc.
"Quality Is in the First Position forever", we have gained a high reputation and good recognition from a lot of domestic and overseas customers such as University of Oxford, Loughborough University, Peking University, Tsinghua University, etc. We promise that we would make great efforts to provide high quality grinding products and best services for all customers in the coming years.


Nowadays, KINGDA CERAMIC MATERIALS has gained great reputation from our business partners. We will continue to contribute the best to realize mutual benefit and sustainability.
We appreciate your interest and support in the efforts and passion of KINGDA CERAMIC, the company of Human Technology.
