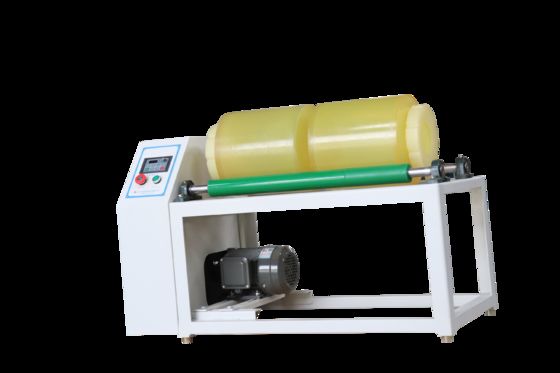

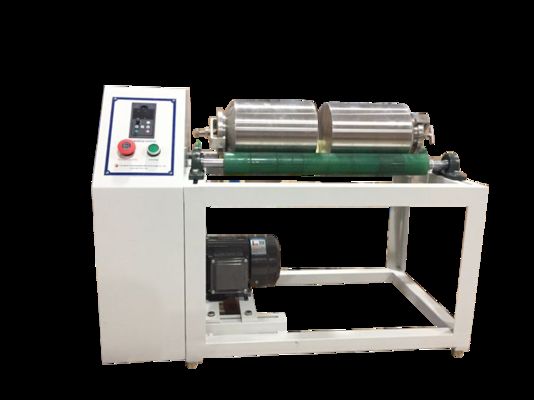

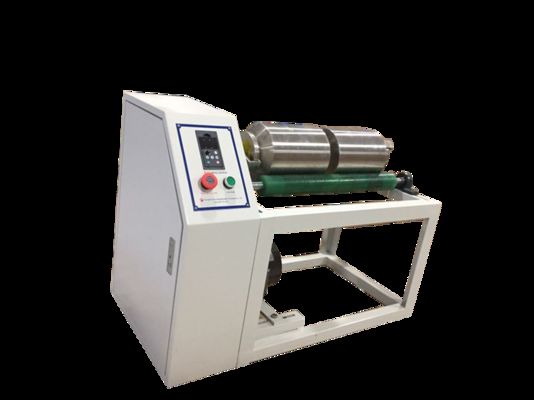

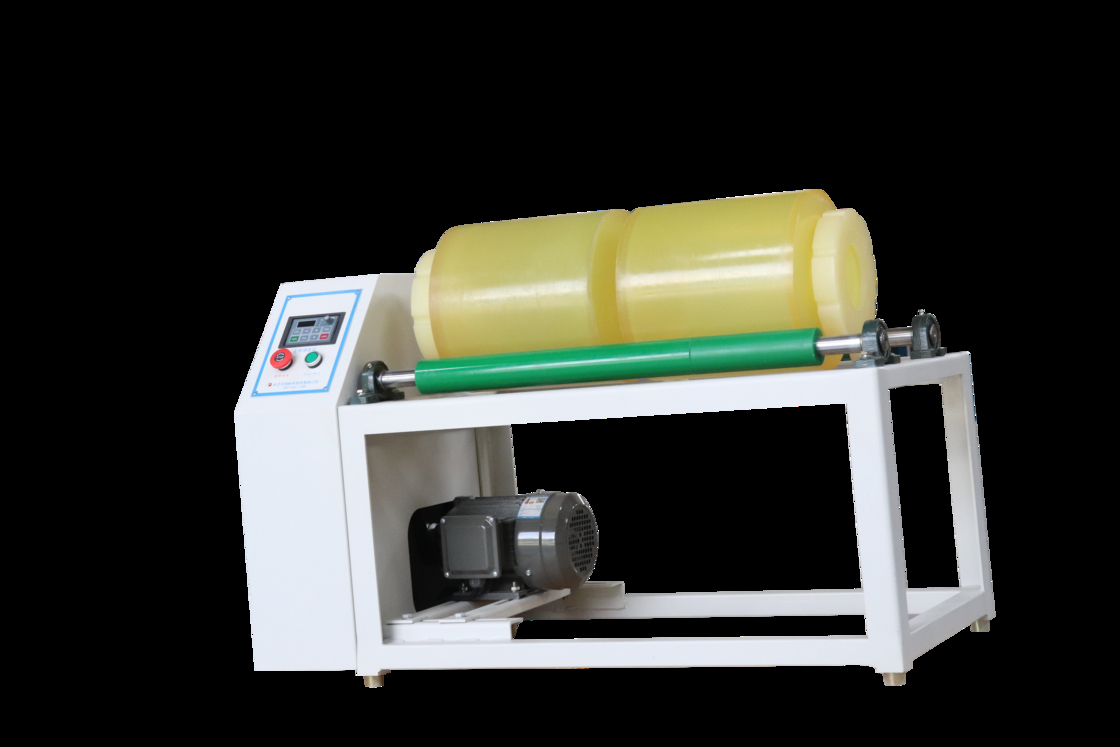

Laboratory Jar Mill with Multiple Grinding Stations for Material Testing

Designed for ultra-fine grinding and mixing, this multi-functional machine is ideal for laboratory and small-batch production use. It serves a wide range of industries, including electronics, magnetics, pharmaceuticals, ceramics, metallurgy, and advanced material research.

• Dual-workstation design for processing multiple sample materials simultaneously
• Digital timing control panel with pause and cumulative timing functions
• Optimized rotation speed with durable rubber roller drive system
• Produces uniform micro-powders through inclined rolling motion
• Compact, user-friendly design with high efficiency operation

During operation, the grinding media and materials are lifted to a certain height and then fall under gravity. This motion crushes the materials through the combined effects of impact, friction, and shear forces generated by the rolling and sliding of the media, achieving efficient and uniform particle size reduction.

Available materials: Agate, Zirconia, Alumina ceramic (Corundum), Tungsten Carbide, Stainless steel, PU (Polyurethane), PU with stainless steel liner, PTFE (Polytetrafluoroethylene), Nylon. Vacuum jars are also available.

Available materials: Agate, Zirconia, Alumina, Tungsten Carbide, Stainless steel, PU, PTFE, Nylon, Carbon steel. Available sizes: 1mm, 3mm, 5mm, 8mm, 10mm, 12mm, 15mm, 20mm, 25mm, 30mm.

Delivery within 7-10 working days after full payment (total value: USD3088.0)
