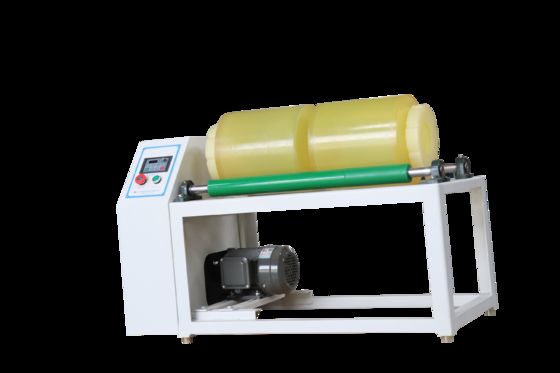

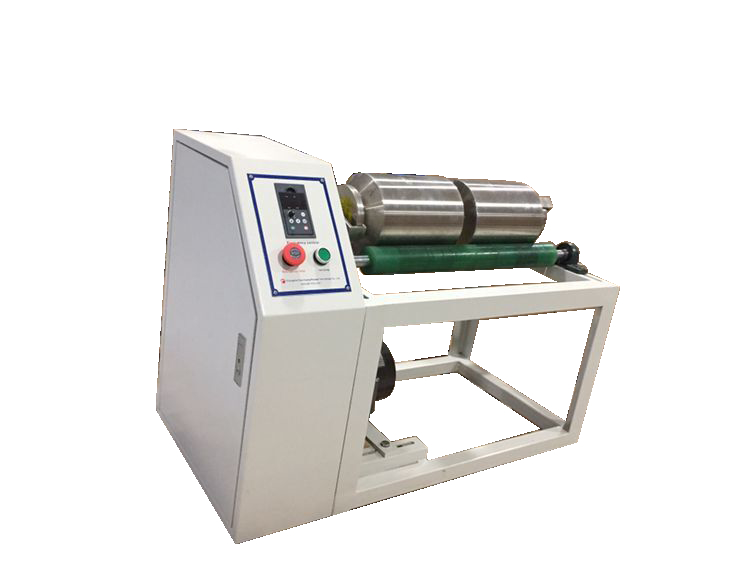

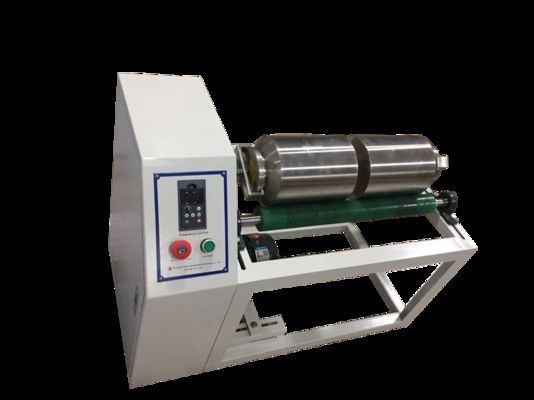

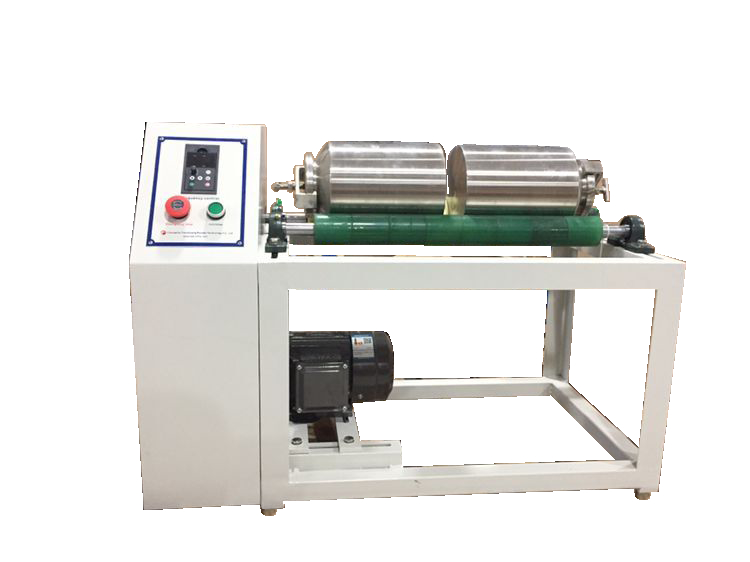

Bench-Top Jar Mill for Laboratory Material Testing and Sample Preparation
This multi-purpose powder grinding and mixing machine is specially designed for ultra-fine processing in laboratories and small-scale production settings. It is widely used across a variety of fields, including electronic materials, magnetic materials, pharmaceuticals, ceramic glazes, metal powders, non-metallic minerals, and the development of new materials.
Key Features
- Dual-workstation design for processing multiple sample materials simultaneously
- Digital timing control panel with pause and cumulative timing functions
- Optimized rotation speed with durable rubber roller drive system
- Produces uniform micro-powders through inclined rolling motion
- Compact, user-friendly design with high efficiency operation
Working Principle
During operation, the grinding media and materials are lifted to a certain height and then fall under gravity. This motion crushes the materials through the combined effects of impact, friction, and shear forces generated by the rolling and sliding of the media, achieving efficient and uniform particle size reduction.
Mill Pot Options
Available materials: Agate, Zirconia, Alumina ceramic (Corundum), Tungsten Carbide, Stainless steel, PU (Polyurethane), PU with stainless steel liner, PTFE (Polytetrafluoroethylene), Nylon. Vacuum jars are also available.
Mill Balls Options
Available materials: Agate, Zirconia, Alumina, Tungsten Carbide, Stainless steel, PU, PTFE, Nylon, Carbon steel. Available sizes: 1mm, 3mm, 5mm, 8mm, 10mm, 12mm, 15mm, 20mm, 25mm, 30mm.
Pricing Information
| Item NO. |
Description |
Qty |
Unit price (exw-works) |
Total price |
| 1 |
GQM-2-15L rolling ball mill |
1set (220V) |
USD1068.0/set |
USD1068.0 |
| 2 |
10L 95% alumina rolling ball mill jar |
4pc |
USD480.0/pc |
USD1920.0 |
| 3 |
92% alumina grinding balls 15mm |
20kg |
USD5.0/kg |
USD100.0 |
| Total price |
USD 3088.0 |
Delivery within 7-10 working days after full payment (total value: USD3088.0)
Frequently Asked Questions
1. How do you ensure product quality?
Our products are developed and manufactured in our own facility, with each unit calibrated by laboratory professionals before leaving the factory to ensure accurate test results.
2. What is your warranty policy?
One-year warranty period. For any issues, contact Service Hotline: 0086 15367874686
3. Do you offer sample testing services?
Yes, we provide free powder testing services for customers who send materials to us.
4. Can you accommodate different power requirements?
We can provide transformers and plugs to match your local power specifications.
5. What payment methods do you accept?
T/T, L/C, D/P and other standard methods.
6. How is the product packaged?
Standard export wooden box packaging.
7. What is your delivery time?
Standard models ship within 3 working days after payment confirmation, with delivery typically completed within 10 days.
