Fritsch Agate Grinding Jar set:100ml agate jar+agate grinding mortar+agate ring
for comminution of soft to medium-hard, brittle, fibrous samples
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft, medium-hard, brittle, fibrous samples
Detailed information about the material you will find in the element analysis.
Agate grinding set with agate mortar and agate ring
Physical and mechanical properties
Density
2.65 g/cm³
Hardness
6.5 – 7 Mohs
Our suggestion: Grinding sets with high density, e.g. hardened steel jar or tungsten carbide milling jars, shorten the grinding time.
Agate is a rock consisting primarily of cryptocrystalline silica, chiefly chalcedony, alternating with microgranular quartz. It is characterized by its fineness of grain and variety of color. Although agates may be found in various kinds of host rock, they are classically associated with volcanic rocks and can be common in certain metamorphic rocks. Kingda Ceramics' agate is mainly imported from Brazil.
We have mass-produced various types of ball mill jars for Retsch and Fristch from Germany brand.
For Retsch grinding jar: 50ml,80ml,125ml agate, zirconium oxdie, alumina oxide, tungsten carbide grinding jar for Retsch planetary bal mill PM100, PM100CM, PM200, PM 400; 25ml,35ml,50ml zirconia oxide ,tungsten carbide jars for Retsch Mix mill MM 500; 50ml,100ml,250ml,agate, zirconia oxide and tungsten carbide for Retsch vibratory disc ball mill RS200,RS300.
For Fritsch grinding jar: 250ml and 500ml agate,zirconia,alumina oxide, grinding jar for Fritsch P5/P6,P9.
We have drawings for all the above models of equipment.
We have inventory of all the above ball mill jars. Just let us talk more!
Just let us talk more! whatapp/wechat: +86 153 6787 4686

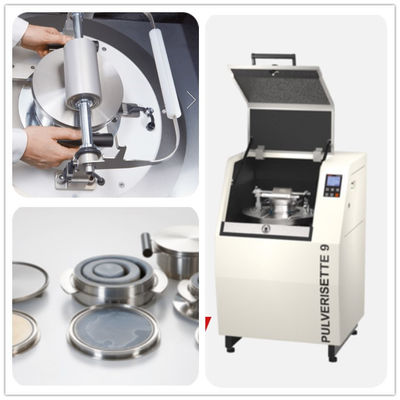

Typical sample Material Agate grinding jar fit in FRITSCH Vibrating Cup Mill PULVERISETTE 9
materials such as cement,cement clinker, ceramics, coal, coke, concrete, corundum, glass, metal oxides,minerals, ores, silicate, slag, soil, etc.
Dimesion for our Regualar Avaliable Agate Ball Mill Jar Only (offer OEM & ODM Service)
Volume of Jar
Outside Diameter
(mm)
Inner Diameter
(mm)
Inner Depth
(mm)
Height of without lid
(mm)
Total Height
(mm)
50ml
65
45
37
49
58
100ml
73
50
52
62
70
150ml
90
62
55
70
80
250ml
93
73
70
80
90
400ml
105
82
80
93
103
500ml
104
86
90
100
108
1L
133
107
114
126
140
1.5L
167
137
103
118
133
2L
156
130
155
170
188
note: 1. Size deviation within ±0.2-0.5mm; 2:One set includes: jar + lid + rubber sealing gasket. 3. Agate covered 1mm stainless steel outside as per request.
Choice of Grinding Jars & Grinding Balls
In order to prevent excessive abrasion, the hardness of the grinding jars used and of the grinding balls must be higher than that of the material used. Normally, grinding jars and grinding balls of the same material should be chosen.However, the size of grinding jars and grinding balls should be determined experimentally if necessary.
Recommendation For Matching Solutions About Mill Jars & Materials
Categories of Materials
Recommended Mill Jars
Soil and other Materials which are not allowed with any impurity
Agate mill jar
Metal & nonmetal materials which are not allowed with any impurity
Zirconia mill jar
High hardness materials like diamond, tungsten carbide
Tungsten carbide mill jar
Strong add & alkali materials or other materials at high temperature
PTFE mill jar
Iron ore materials with lower impurity sensitivity
304 Stainless steel mill jar
Pigment or other materials with later process under high temperature
Nylon mill jar
Aluminum materials like ceramic glaze
Corundum mill jar
Electronic materials like lithium battery
Polyurethane mill jar
Easily oxidized materials or some special materials which need to be protected under special atmosphere.
Vacuum mill jar
Matching Solutions for Mill Jars & Balls
Items
Agate Balls
Alumina Balls
Stainless Steel Balls
Zirconia Balls
Tungsten Carbide Balls
Agate Mill jar
1
Alumina/Corundum Mill Jar
2
1
2
Stainless Steel Mill Jar
1
Zirconia Mill Jar
2
1
Nylon Mill Jar
2
1
PTFE Mill Jar
1
2
Polyurethane Mill Jar
1
2
Tungsten Carbide Mill Jar
2
1
1 means: most suitable , 2 means: suitable
Features of Agate Grinding Jars
High purity, low contamination to the samples
High cost-effective, low wear and long lifetime
Highly wear resistant to acid and solvent
Highly polished, smooth, easy to clean, low abrasion to the equipment
High mechanical strength, good toughness, impact resistance, no broken beads
Mainly used for lab planetary ball mill machines,such as Retsch PM100,PM100CM

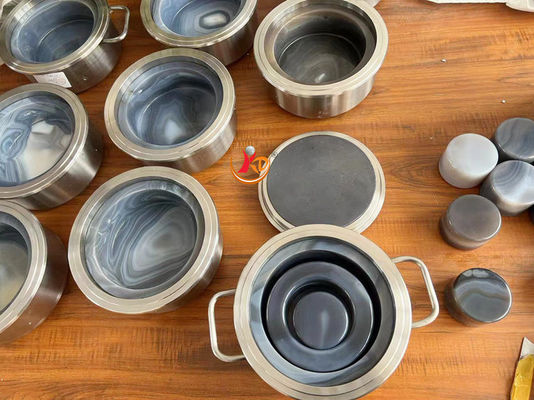

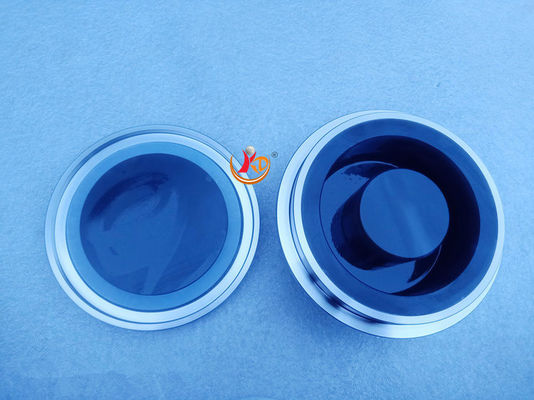

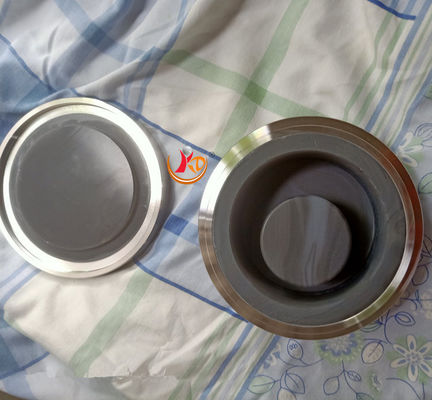

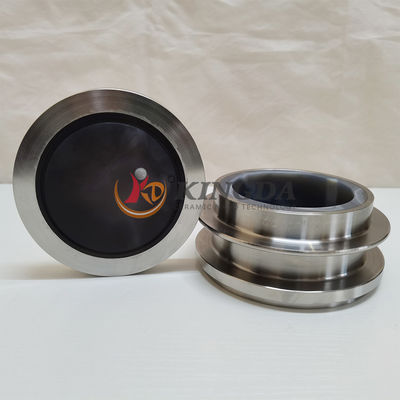

Detailed Images for 100ml agate grind set with agate grinding mortar fit in Fritsch P9
