0.4L Ceramic Planetary Ball Mill 220V Desktop Laboratory Grinding Equipment for Precision Sample Preparation

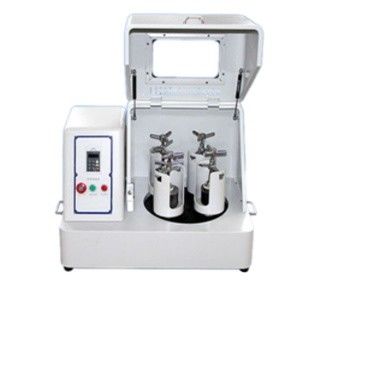

Large Image : 0.4L Ceramic Planetary Ball Mill 220V Desktop Laboratory Grinding Equipment for Precision Sample Preparation

Product Details:

Place of Origin:	Hunan, China
Brand Name:	Kingda
Certification:	CE ISO
Model Number:	0.2L

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	PE Foam + Cartons / Wooden cases
Delivery Time:	3-7 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	1000 Set / Month

Contact Now

0.4L Ceramic Planetary Ball Mill 220V Desktop Laboratory Grinding Equipment for Precision Sample Preparation

Description

Working Style:	High-speed Universal	Power Source::	Electricity
Power Supply::	110V-60Hz Or 220-50Hz 0.32kw	Matchable Jar Volume::	0.2-100L
Feeding Size (mm):	1 - 100 Mm	Rotation Speed::	90-870 Rpm
Outpute:	0.1-0.3Kg/h	Warranty:	1 Year
After Warranty Service:	Video Technical Support	Applicable Industries:	Grinding / Polishing / Despersing
Customization:	Available	Packing:	PE Foam + Cartons / Wooden Cases
Highlight:	0.2L Ceramic Ball Mill , Ceramic Ball Mill 220V , Desktop Laboratory Grinding Equipment

0.4L Ceramic Ball Mill 220V Desktop Laboratory Grinding Equipment

Product Overview

The Vertical Planetary Ball Mill is an essential device for high-tech materials mixing, fine grinding, sample preparation, new product development, and small batch production. With its compact design, high efficiency, low noise, and versatile capabilities, this mill is the ideal equipment for research institutions, universities, and enterprise laboratories requiring precision and reliability in sample preparation.

Working Principle

The 0.4L planetary ball milling machine features four ball grinding tanks installed on a single turnplate. When the turnplate rotates, the tank axis makes planetary movements, causing the balls within the tanks to grind and mix samples through high-speed motion.

Capabilities

This equipment can effectively smash and blend various products of different materials and granularity using either dry or wet methods. The minimum granularity of ground products can achieve 0.1 micron (1.0×10⁻⁴mm).

Industry Applications

Widely utilized across multiple sectors including Geology, Mining, Metallurgy, Electronics, Construction Materials, Ceramics, Chemical Engineering, Light Industry, Medicine, and Environmental Protection.

Applications

Materials Research and Development: Plays a crucial role in mixing, fine grinding, and developing new high-tech materials. Enables researchers to conduct small batch production and quickly obtain samples with high purity and precise particle size.
Laboratory Sample Preparation: Ideal for universities, research institutions, and enterprise laboratories. Its compact design and high efficiency allow for processing four samples simultaneously, significantly enhancing experimental productivity.

Technical Specifications

Drive Mode	gear drive / belt drive
Operation Mode	2 / 4 grinding tanks working together
Maximum Loading Capacity	2/3 of the capacity of milling tank
Feeding Granularity	soil material ≤10mm, other materials ≤3mm
Output Granularity	Minimum 0.1um
Rotational Speed Ratio	1:2 (0.4L,2L,4L); 1:1.5(12L,20L)
Rotation Speed	0.4L: 0~600 rounds/min; 2L: 0~580 rounds/min; 4L: 0~530 rounds/min; 20L: 0-280 rounds/min
Speed Regulation Mode	Variable-frequency-control-type and program-control-type stepless speed regulation; manual or automatic timed; positive or negative revolving
Max. Continuous Operating Time (full-load)	72 hours

Key Features

Stable revolving speed of gear transmission ensures consistent and repeatable experimental results
Planetary movement principle provides high speed, large energy, high efficiency, and small granularity output
Capable of producing four powder samples of different sizes and materials simultaneously
Frequency converter control allows selection of ideal rotating speed for expected experimental results
Multiple operation modes including one-way direction, alternation, succession, and time setting
Technical advantages: Low center of gravity, stable performance, compact structure, easy operation
Safety switch prevents accidents if safety cover is opened during operation

Available Models

Model	Specification	Capacity	Quantity
KD-XQM-0.4L	0.4L	50-100ml	4 mill tanks
KD-XQM-1L	1L	50-250ml	4 mill tanks
KD-XQM-2L	2L	560-500ml	4 mill tanks
KD-XQM-4L	4L	50-1000ml	4 mill tanks
KD-XQM-8L	8L	0.5-2L	4 mill tanks
KD-XQM-12L	12L	1-3L	4 mill tanks
KD-XQM-16L	16L	1-4L	4 mill tanks

Packaging & Shipping

Package Type: PE Form + Cartons / Wooden cases; Can be customized according to customer requirements

Port: Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao port

Delivery Time: Within 3-7 working days from the date of payment receipt

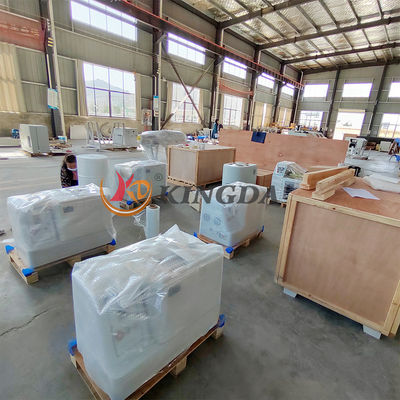

Manufacturing Facility

Frequently Asked Questions

What is the size of your products?

The smallest model is the 0.4L planetary ball mill Model XQM-0.4A with dimensions of 53×30×34cm and weight of 26kg. We offer various models ranging from 0.2L to 100L.

What are your delivery terms?

FOB, CFR, CIF.

Can you accept small quantity sample orders before production?

Yes, we can provide samples for testing before production, though customers are responsible for courier costs.

What is your production time?

Generally 3-7 days after receiving advance payment. Specific delivery time depends on items and order quantity.

What are your payment terms?

T/T 30% as deposit, 70% balance against copy of original B/L. Or 100% L/C at sight. We provide product photos and B/L copy before balance payment.

What is the working principle of planetary ball mill?

Please refer to our technical documentation: Working Principle of Planetary Ball Mill
