Planetary Milling Jars
>
|
| Place of Origin | Hunan, China |
| Brand Name | Kingda |
| Model Number | 50ML-3L |
Grinding Jar Pot For Lab Planetary Ball Mill Machines 95% Purity 500cc Zirconia Ceramic Ceramic Parts Industrial Ceramic

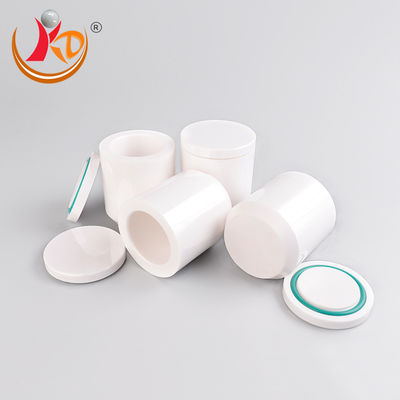

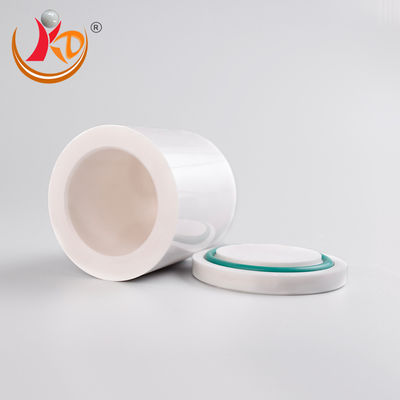

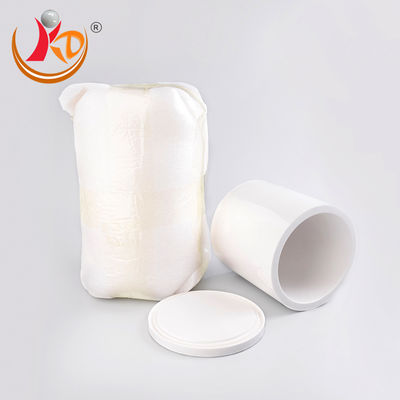

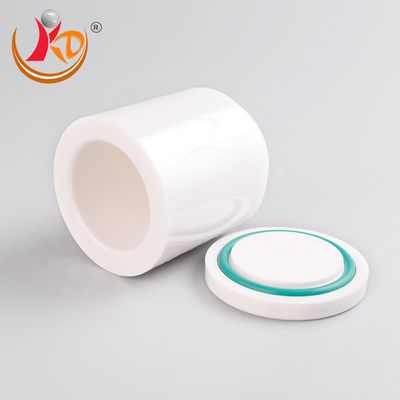

Highly polished YSZ (Yttrium stabilized ZrO2) zirconium oxide jars, 60 times the hardness of regular steel, highly wear-resistant and resistant to acid and solvents. The grinding jars are extensively applied on in the fields of Paint, Ink,Coating, Geology, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, Environmental Protection and so on. Each jar set includes grinding jar, jar lid, rubber sealing gasket and different sizes of mixed zirconium oxide grinding balls.
|
Composition (%) |
Specific Gravity (G/CM3) |
Bulk Density (Kg/L) |
Capacity (Ml) |
|
ZrO2: 95± 0.2 Y2O3: 5± 0.2 |
≥ 60.2 | ≥3.7 |
0.05;100;250; 500;1000;1500;2000;3000 |
| Jar Volume | OD (mm) | ID (mm) | Total Height (mm) |
| 50ml | 55 | 38 | 67 |
| 100ml | 65 | 50 | 75 |
| 250ml | 92 | 74 | 88 |
| 500ml | 100 | 84 | 118 |
| 1000ml | 128 | 108 | 150 |
| 1.5L | 132 | 112 | 175 |
| 2.0L | 158 | 138 | 162 |
| 3.0L | 158 | 138 | 220 |
In order to prevent excessive abrasion, the hardness of the grinding jars used and of the grinding balls must be higher than that of the material used. Normally, grinding jars and grinding balls of the same material should be chosen.
1.What's product your company supply?
A.We can supply yttrium stab.zirconia bead,cerium stab.zirconia bead,zirconia silicate bead,high alumina ball, agate ball, ball mill grinding jar,zirconium powder,ceramic structual elements etc.
2. Q: What is your MOQ?
A: 1KG. We accept smaller quantity but price is higher.
3. Q: Can you provide free samples?
A: Yes, the buyers just afford shipping cost .
4. Q: What is your production time for bulk order?
A: 7~30 days, according to order quantity.
5. Q: What is your normal package?
A: Woven bag or barrel ,drum,carton box and pallet.
6. Q: What is your payment term?
A: T/T 30%-70% Deposit, balance against copy of B/L.
L/C at sight,Western Union, paypal,Visa,etc
