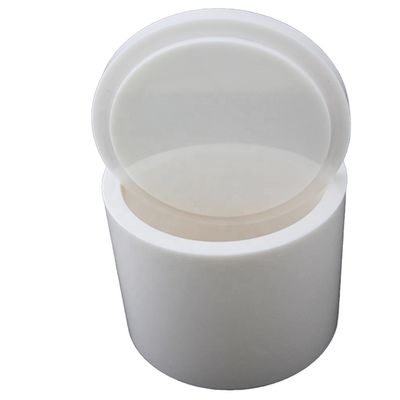

Zirconia Mill Jar YSZ Yttria Stabilized Zirconia ZrO2 Ceramic Crucible
  • Zirconia Mill Jar YSZ Yttria Stabilized Zirconia ZrO2 Ceramic Crucible
  • Zirconia Mill Jar YSZ Yttria Stabilized Zirconia ZrO2 Ceramic Crucible
  • Zirconia Mill Jar YSZ Yttria Stabilized Zirconia ZrO2 Ceramic Crucible
Zirconia Mill Jar YSZ Yttria Stabilized Zirconia ZrO2 Ceramic Crucible

Zirconia Mill Jar YSZ Yttria Stabilized Zirconia ZrO2 Ceramic Crucible

Place of Origin Hunan, China
Brand Name Kingda
Model Number 50ML-3L
Product Details
Application:
Structure Ceramic, Abrasive Refractory Ceramic Industry
Material:
Zirconia Ceramic
Processing Service:
Bending, Welding, Cutting, Punching, Decoiling, Moulding, Grinding
Color:
White
Size:
50ML-3L
Certificate:
TUV
Hardness:
9 Mohs Scale
Feature:
Faster Grinding,high Toughness
Surface:
Polishing
Corrosion Resistance:
High
Wear Loss:
<10ppm/hr (24hr)
Port:
Shanghai Qingdao
Payment & Shipping Terms
Minimum Order Quantity
1 PC
Price
Negotiable
Packaging Details
PE Foam + Cartons / Wooden cases
Delivery Time
3-7 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
5000 pcs / Month
Product Description
Product Description

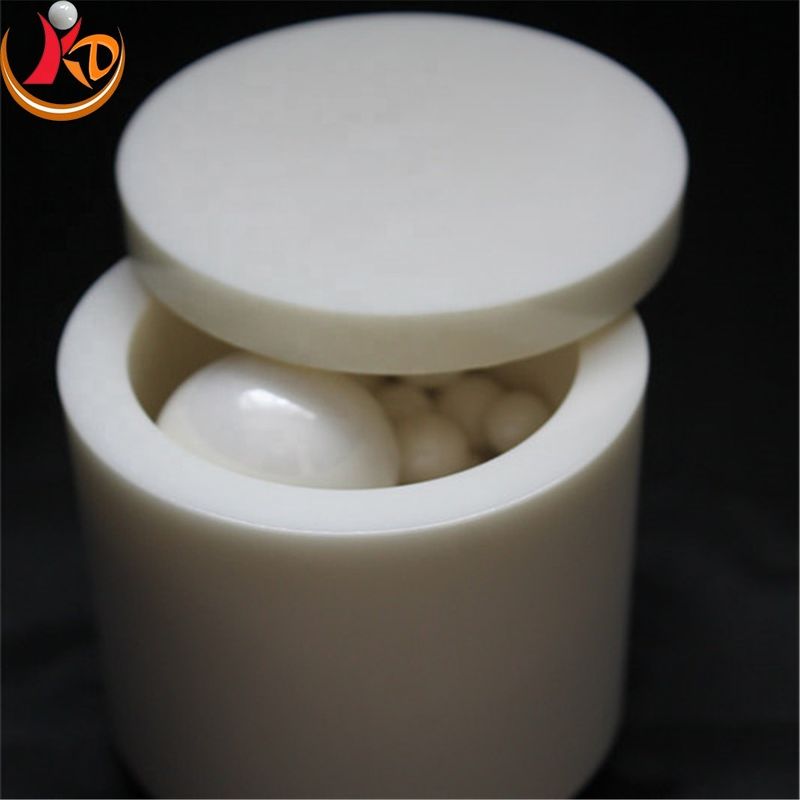

Highly polished YSZ (Yttrium stabilized ZrO2) zirconium oxide jars, 60 times the hardness of regular steel, highly wear-resistant and resistant to acid and solvents. They are extensively applied to in the field of Paint, Ink, Geology, Metallurgy,Electronics, Pigment, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, Environmental Protection and so on. Each jar set includes grinding jar, jar lid and silicon sealing gaskets.
Zirconia material has advantages of high hardness, high strength, high tenacity, high wear resistance and good corrosion resistance which is widely applied in fields of ceramics, fire proofing material, machinery, electronic, photics, Aeronautics and astronautics, biology and chemicals and etc. Zirconia mill jar is particularly suitable for vertical stirring mill, horizontal rolling mill, vibration mill, and various high-wire-speed sanding stick pins, etc
Application

1. Particularly suitable for vertical stirring mills, horizontal roller ball mills, vibrating mills and various high linear, speed pin- type sand mills.
2. For wet or dry ultrafine dispersion and grinding of pastes and powders without contamination.
3. Perfect grinding media with good flatness, smooth surface, bright,high density and high strength.
4. Wear and corrosion resistant product: coating, textile, pigment, dyeing.
5. High strength, high tenacity product: magnetic material, piezoelectric ceramics, dielectric ceramics.
6. Pollution prevention: medicine, food, cosmetics.
7. Ceramics: electronic ceramics, refractory ceramics, structural ceramics.

Features

  • high hardness
  • high mechanical strength
  • corrosion resistance
  • non-conducted, low thermal conduction
  • high thermal expansion rate
  • non-greased and self lubrication
  • light weight with low density, decrease in centrifugal load



Product Paramenters



Performance
Unit
Parameter
Component
Wt%
94.6% ZrO2, 5.2% Y2O3
Filled Density
Kg/l
3.5(φ5mm)
Density
g/cm3
5.95-6.00
Hardness
GPa
>11
Elasticity Modulus
GPa
200
Thermal conductivity
W/m.k
3
Coefficient of thermal Expansion
10*10-6/ºC(20-400)
9.6
Crush Strength
KN
≥20(φ7mm)
Bending toughness
MPam1/2
8


Remarks: 1. Size deviation within ±2mm; 2. Weight deviation within ±0.2KG
Application Fields
Zirconia Mill Jar YSZ Yttria Stabilized Zirconia ZrO2 Ceramic Crucible 0
Packaging & Delivery
Zirconia Mill Jar YSZ Yttria Stabilized Zirconia ZrO2 Ceramic Crucible 1
Company Profile
Zirconia Mill Jar YSZ Yttria Stabilized Zirconia ZrO2 Ceramic Crucible 2
Zirconia Mill Jar YSZ Yttria Stabilized Zirconia ZrO2 Ceramic Crucible 3
FAQ
1.Q:What's product your company supply?
A.We can supply yttrium stab.zirconia bead,cerium stab.zirconia bead,zirconia silicate bead,high alumina ball, agate
ball,tungsten carbide ball, ball mill grinding jar, tungsten carbide ball, zirconium powder,ceramic structual elements etc.

2. Q: What is your MOQ?
A: 1KG. We accept smaller quantity but price is higher.

3. Q: Can you provide free samples?
A: Yes, the buyers just afford shipping cost .

4. Q: What is your production time for bulk order?
A: 7~30 days, according to order quantity.

5. Q: What is your normal package?
A: Woven bag or barrel ,drum,carton box and pallet.
