Product Details:
|
| Type: | Ceramic Balls | Application: | Industrial Ceramic |
|---|---|---|---|
| Material: | Zirconia Ceramic | Color: | Gold |
| Shape: | Round | Density: | 6.0g/cm3 |
| Usage: | Grinding,dispersing And Polishing | Compress Strength: | 2000 MPa |
| Certificate: | SGS | Size: | 0.4-5.0mm |
| Raw Material: | 80%ZrO2+20%CeO2 | Feature: | High Wear-resistance |

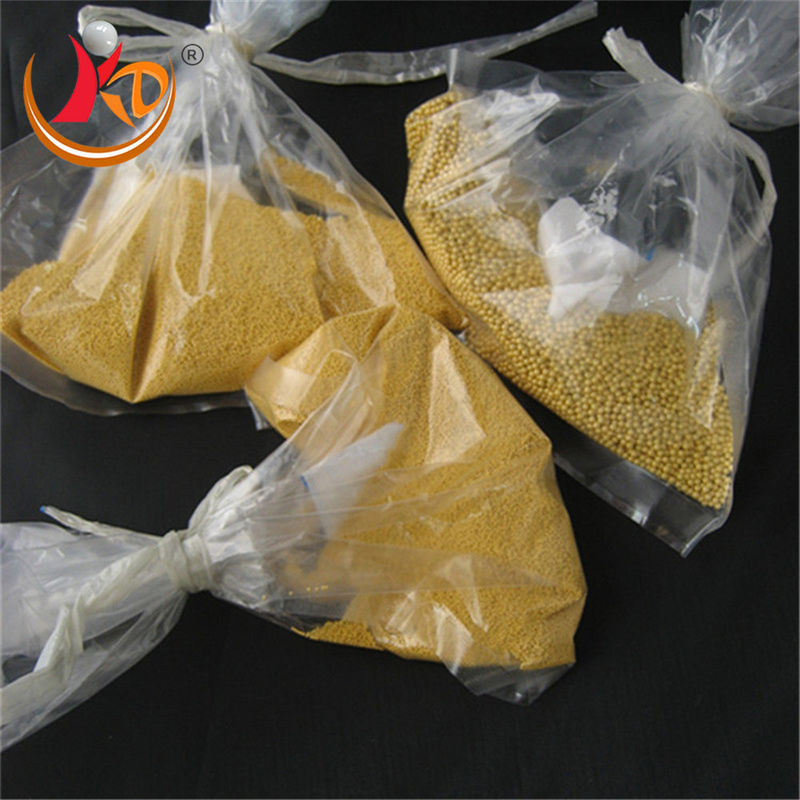

| Product Name: | CSZ Grinding Media/cerium Stabilized Zirconia Ceramic Mineral Bead | Port: | Shanghai,guangzhou,shenzhen |
| Highlight: | CSZ Ceramic Grinding Media,Zirconia Ceramic Grinding Media,Zirconia Grinding Media Stabilized |
||
|
Composition |
wt% |
ZrO2 :18~80% |
|
Packed Density |
Kg/L |
3.8(Φ7mm) |
|
Specific Density |
g/cm3 |
5.95~6.0 |
|
Hardness(HV) |
GPa |
>9 |
|
Elastic modulus |
GPa |
200 |
|
Thermal Conductivity |
W/m.K |
3 |
|
Crushing Load |
KN |
≥10 (Φ7mm) |
|
Fracture Toughness |
MPam1-2 |
8.5 |
|
regular size (φ) |
mm |
0.3-0.5,0.4-0.6,0.6-0.8,0.8-1.0,1.2.3.6.8.10.20.etc |
|
Thermal expansion |
10x10 -6 / °C(20-400) |
9.0 |
![]()
![]()
![]()
Features:
A. Long lifespan: 30 times longer life than glass beads, 6 times than zirconium silicate beads.
B.High efficiency: around 6 times higher than glass beads; 2 times than zirconium silicate beads.
C. Excellent wear resistance and fracture toughness is especially suited for high-solid-phase high viscosity, high hardness of the paste for grinding and dispersing of pure; good match at the same
time high input energy and the high shear machine sanding.
![]()
![]()
![]()
![]()
![]()
