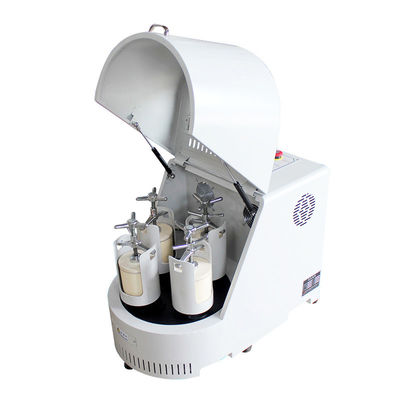

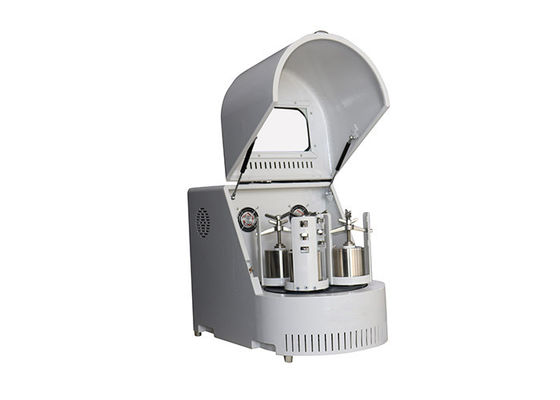

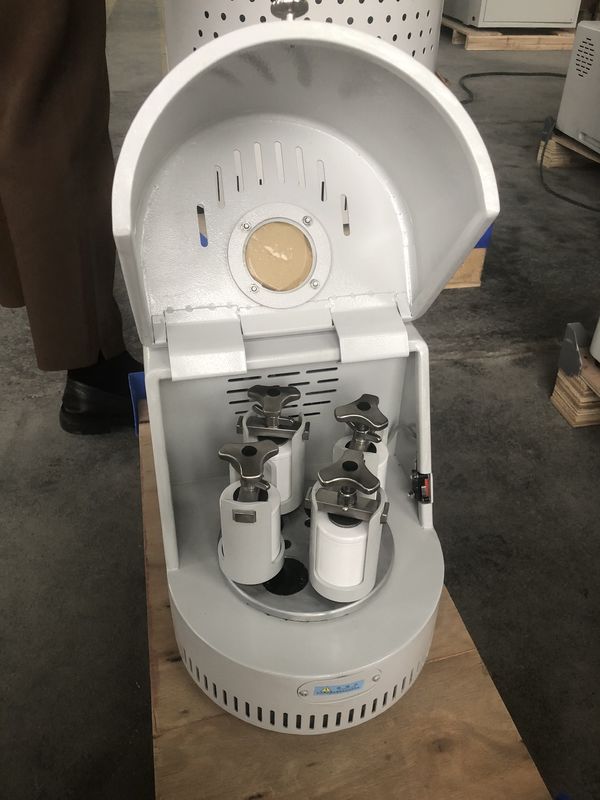

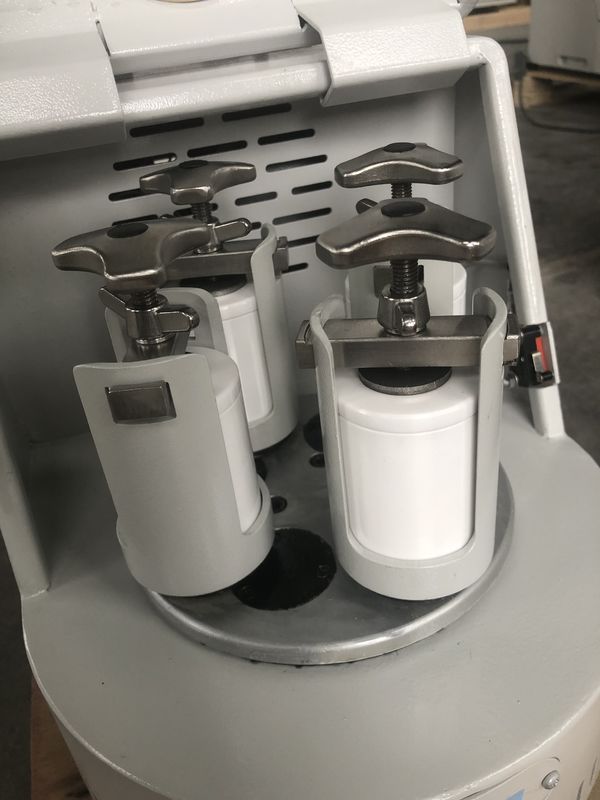

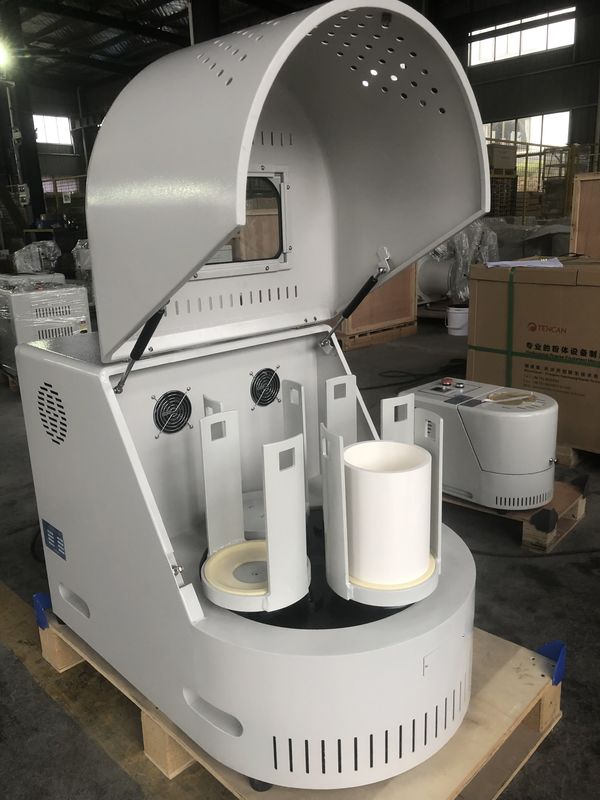

Germany Retsch Multifunctional High-speed Universal Laboratory Planetary Ball Mill with 0.1um Output Granularity

Large Image : Germany Retsch Multifunctional High-speed Universal Laboratory Planetary Ball Mill with 0.1um Output Granularity

Product Details:

Place of Origin:	Hunan, China
Brand Name:	Kingda
Certification:	CE ISO
Model Number:	KD-XQM-1L

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	PE Foam + Cartons / Wooden cases
Delivery Time:	3-7 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	1000 Set / Month

Contact Now

Germany Retsch Multifunctional High-speed Universal Laboratory Planetary Ball Mill with 0.1um Output Granularity

Description

Working Style:	High-speed Universal	Power Source::	Electricity
Power Supply::	110V-60Hz Or 220-50Hz 0.32kw	Matchable Jar Volume::	0.2-100L
Feeding Size (mm):	1 - 100 Mm	Rotation Speed::	90-870 Rpm
Application:	Grinding / Polishing / Despersing	Warranty:	1 Year
After Warranty Service::	Video Technical Support	Packing::	PE Foam + Cartons / Wooden Cases
Customization::	Available
Highlight:	Multifunctional Laboratory Planetary Ball Mill , Laboratory Planetary Ball Mill , Multifunctional Small Ball Mill

Germany Retsch Same Principle Multifunctional Laboratory Planetary Ball Mill

Product Overview

The Germany Retsch Planetary Ball Mill is an essential device for high-tech materials mixing, fine grinding, sample preparation, new product development, and small batch production. This versatile equipment combines compact design with high efficiency and low noise operation.

Ideal for R&D institutions, universities, and enterprise laboratories
Simultaneously processes four different samples
Capable of powder sampling under vacuum conditions
Advanced planetary movement principle for superior grinding performance
Handles both dry and wet grinding methods
Achieves minimum particle size of 0.1 micron (1.0×10-4mm)
Wide application across geology, mining, metallurgy, electronics, construction materials, ceramics, chemical engineering, light industry, medicine, and environmental protection

Applications

Vertical stirring mills, horizontal roller ball mills, vibrating mills, and high-speed pin-type sand mills
Wet or dry ultrafine dispersion and grinding of pastes and powders without contamination
Wear and corrosion resistant applications: coatings, textiles, pigments, dyeing
High strength, high tenacity materials: magnetic materials, piezoelectric ceramics, dielectric ceramics
Pollution prevention industries: medicine, food, cosmetics
Ceramics manufacturing: electronic ceramics, refractory ceramics, structural ceramics

Technical Specifications

Drive Mode	Gear drive / Belt drive
Operation Mode	2 / 4 grinding tanks working together
Maximum Loading Capacity	2/3 of the capacity of milling tank
Feeding Granularity	Soil material ≤10mm, other materials ≤3mm
Output Granularity	Minimum 0.1μm
Rotational Speed Ratio	1:2 (0.4L, 2L, 4L); 1:1.5 (12L, 20L)
Rotation Speed	0.4L: 0-600 rpm; 2L: 0-580 rpm; 4L: 0-530 rpm; 20L: 0-280 rpm
Speed Regulation Mode	Variable-frequency control and program-control stepless speed regulation; manual or automatic timing; positive or negative rotation
Max. Continuous Operating Time (full-load)	72 hours

Planetary Ball Mill Models

Model	Power (KW)	Voltage	Dimension (mm)	Revolution Speed (rpm)	Rotation Speed (rpm)	Weight (KG)
KD-XQM-1	0.75	220V-50Hz	750470564	35-325	70-670	80
KD-XQM-2	0.75	220V-50Hz	750470564	35-335	70-670	80
KD-XQM-4	0.75	220V-50Hz	750470564	35-335	70-670	80
KD-XQM-6	0.75	220V-50Hz	750470564	35-335	70-670	80
KD-XQM-8	1.5	220V-50Hz	900600640	35-290	70-580	132
KD-XQM-10	1.5	220V-50Hz	900600640	35-290	70-580	132
KD-XQM-12	1.5	220V-50Hz	900600640	35-290	70-580	132

Key Features

Stable gear transmission ensures consistent and repeatable experimental results
Planetary movement principle delivers high speed, energy efficiency, and fine particle size reduction
Simultaneous processing of four different powder samples
Frequency converter control for precise speed selection
Versatile operation modes: one-way direction, alternation, succession, and time setting
Low center of gravity, stable performance, compact structure
Easy operation with reliable safety features and low noise
Integrated safety switch prevents accidents during operation

Available Grinding Accessories

Comprehensive range of grinding jars in full sizes including:

Zirconia ball mill jar
Alumina ball mill jar
Agate ball mill jar
Tungsten ball mill jar
Hard metal mill jar

Packaging & Shipping

Package Type: PE Form + Cartons / Wooden cases (customizable according to customer requirements)

Port: Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao Port

Delivery Time: Within 3-7 working days from payment receipt

Manufacturing Facility

Frequently Asked Questions

What sizes are available in your products?

The minimum type is 1L planetary ball mill. We offer various models from 0.2-100L to 100L for your selection.

What are your delivery terms?

FOB, CFR, CIF

Can you accept small quantity sample orders before production?

Yes, we can provide samples for testing before production, with customers covering courier costs.

What is your production time?

Generally 3-7 days after receiving advance payment. Specific timing depends on order items and quantity.

What are your payment terms?

T/T 30% deposit, 70% balance against original B/L copy, or 100% L/C at sight. We provide product photos and B/L copies before final payment.

Our Service Commitment

Custom grinding ball production according to your requirements
Comprehensive product testing before delivery
Dedicated customer service with 2-hour response time

About KINGDA CERAMIC

HUNAN KINGDA CERAMIC TECHNOLOGY CO., LTD specializes in manufacturing grinding media balls, grinding jars, zirconium dioxide, and zirconia structures. Our commitment to quality has earned recognition from prestigious institutions including University of Oxford, Loughborough University, Peking University, and Tsinghua University.

We are dedicated to providing high-quality grinding products and exceptional services to customers worldwide, focusing on mutual benefit and sustainability in the ceramic materials industry.
