0.4L-12L Vertical Lab Planetary Ball Mill Grinding Tank Machine Price with Optional Zirconia/Agate Jars/ Balls

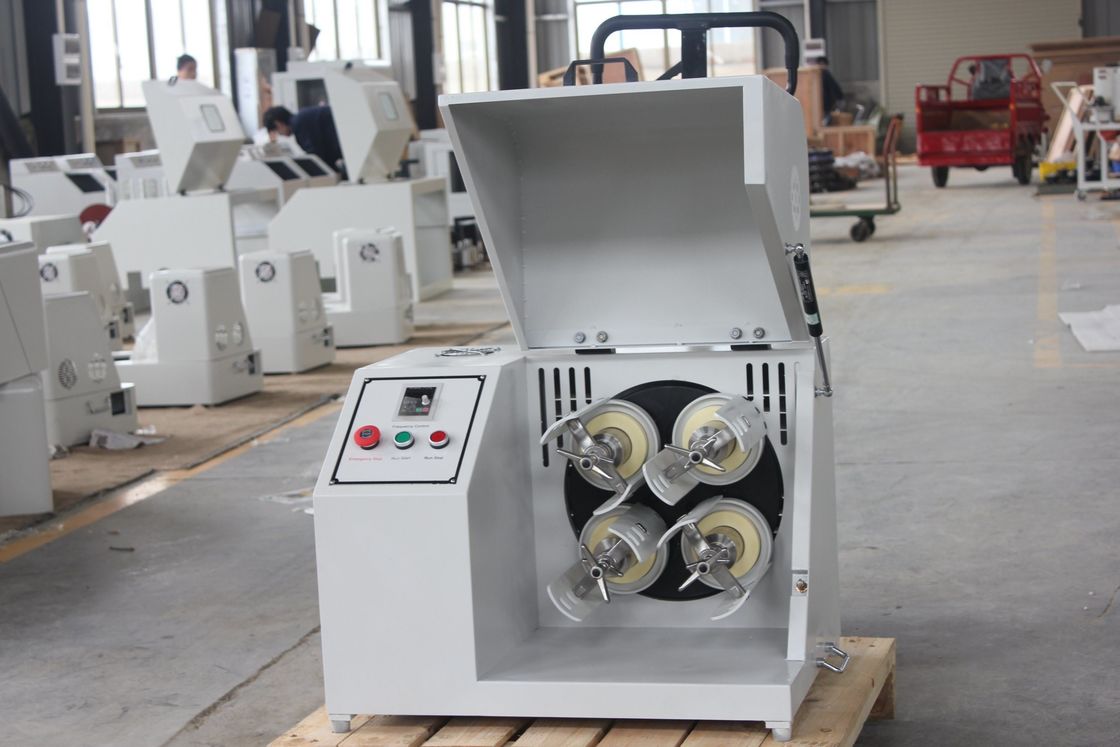

Large Image : 0.4L-12L Vertical Lab Planetary Ball Mill Grinding Tank Machine Price with Optional Zirconia/Agate Jars/ Balls

Product Details:

Place of Origin:	Hunan, China
Brand Name:	Kingda
Certification:	CE ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	PE Foam + Cartons / Wooden cases
Delivery Time:	3-7 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	1000 Set / Month

Contact Now

0.4L-12L Vertical Lab Planetary Ball Mill Grinding Tank Machine Price with Optional Zirconia/Agate Jars/ Balls

Description

Model NO.:	Planetary Ball Mill	Working Style:	High-speed Universal
Disc Diameter:	100mm-400mm	Variable Speed:	With Variable Speed
Product Name:	Vertical Planetary Ball Mill	Weight:	55kg
Voltage:	220V-50Hz	Core Components:	Bearing, Pump, Gear
Power Supply:	110V-60Hz Or 220-50Hz 0.32kw	Rotation Speed:	90-870 Rpm
Working Position:	4 Working Positions	Matchable Jar Volume:	50ml/100ml
Feed Size Of Material:	Less Than 10mm	Power:	0.75kw
After-Sales Service Provided:	Free Spare Parts, Field Installation...	After Warranty Service:	Video Technical Support, No Service, Spare Parts
Warranty:	1 Year	Product Type:	Powder
Output Size (Mesh):	45 - 535 Mesh	Transport Package:	530300340 Mm
Specification:	0.2L-16L	Trademark:	KINGDA
Origin:	Hunan, China	HS Code:	8479909090
Supply Ability:	50000 Pieces/Year	Type:	Disc Grinder
Power Source:	Electricity	Object:	Grinding Mill
Application:	Laboratory	Disc(Wheel) Type:	Grinding Disc
Material:	Steel	Customization:	Available \| Customized Request
Highlight:	Vertical Lab Planetary Ball Mill , Zirconia Planetary Ball Mill , 0.4L Planetary Ball Mill

Product Description

0.4L-12L Vertical Lab Planetary Ball Mill Grinding Tank Machine Price with Optional Zirconia/Agate Jars/ Balls

Product Description

Planetary Ball Mill

Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. Tencan planetary ball mill owns small volume, high efficiency, low noise and functional features which is a ideal equipment for R&D institution, university, enterprises laboratory to get samples (each experiment can get four samples at the same time). It gets powder samples under the vacuum state when equipped with vacuum ball mill tank.

0.4L planetary ball milling machine has four ball grinding tanks installed on one turnplate. When the turnplate rotates, the tank axis makes planetary movements and the balls in the tanks grinds and mixes samples in high speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of grinded products can be as small as 0.1 micron (i.e.) 1.0×10-4mm)

It is widely used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.

Product Pictures

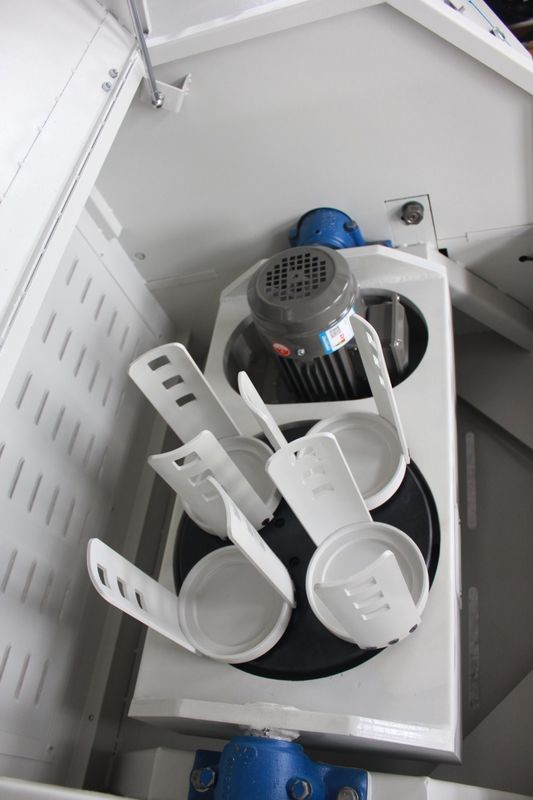

0.4L-12L Vertical Lab Planetary Ball Mill Grinding Tank Machine Price with Optional Zirconia/Agate Jars/ Balls 0

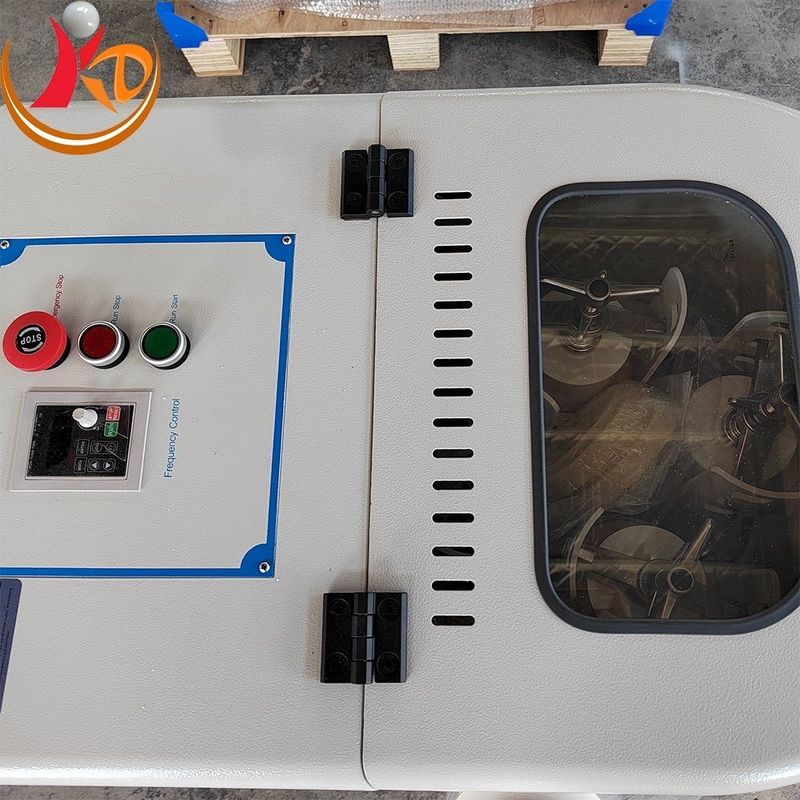

0.4L-12L Vertical Lab Planetary Ball Mill Grinding Tank Machine Price with Optional Zirconia/Agate Jars/ Balls 1

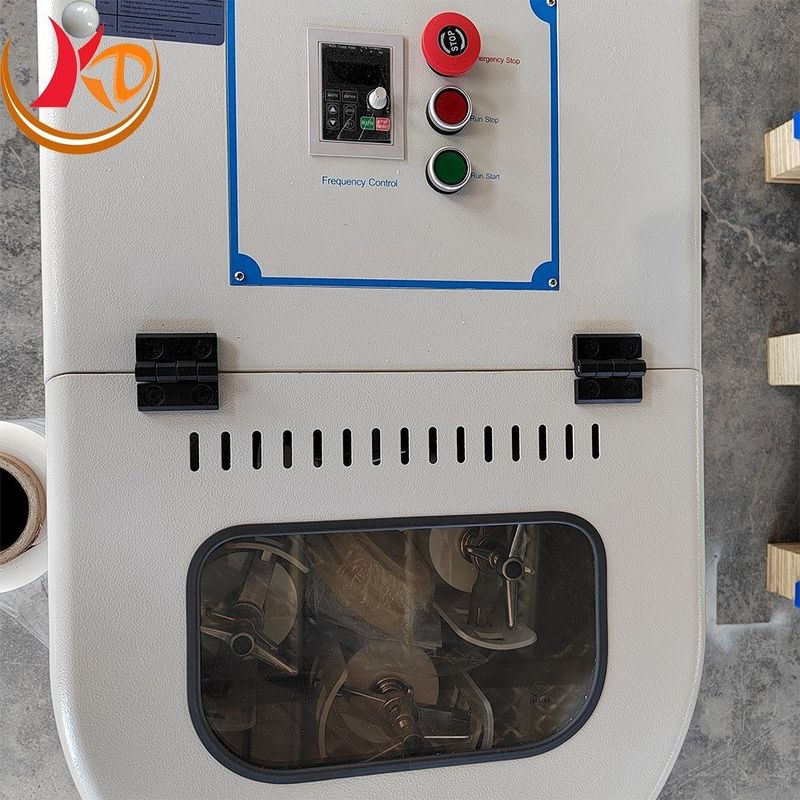

0.4L-12L Vertical Lab Planetary Ball Mill Grinding Tank Machine Price with Optional Zirconia/Agate Jars/ Balls 2

Application

1. Particularly suitable for vertical stirring mills, horizontal roller ball mills, vibrating mills and various high linear, speed pin- type sand mills.
2. For wet or dry ultrafine dispersion and grinding of pastes and powders without contamination.
3. Perfect grinding media with good flatness, smooth surface, bright,high density and high strength.
4. Wear and corrosion resistant product: coating, textile, pigment, dyeing.
5. High strength, high tenacity product: magnetic material, piezoelectric ceramics, dielectric ceramics.
6. Pollution prevention: medicine, food, cosmetics.
7. Ceramics: electronic ceramics, refractory ceramics, structural ceramics.

Features

Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
Four powder samples from different sizes and different materials can be produced at one time.
The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.

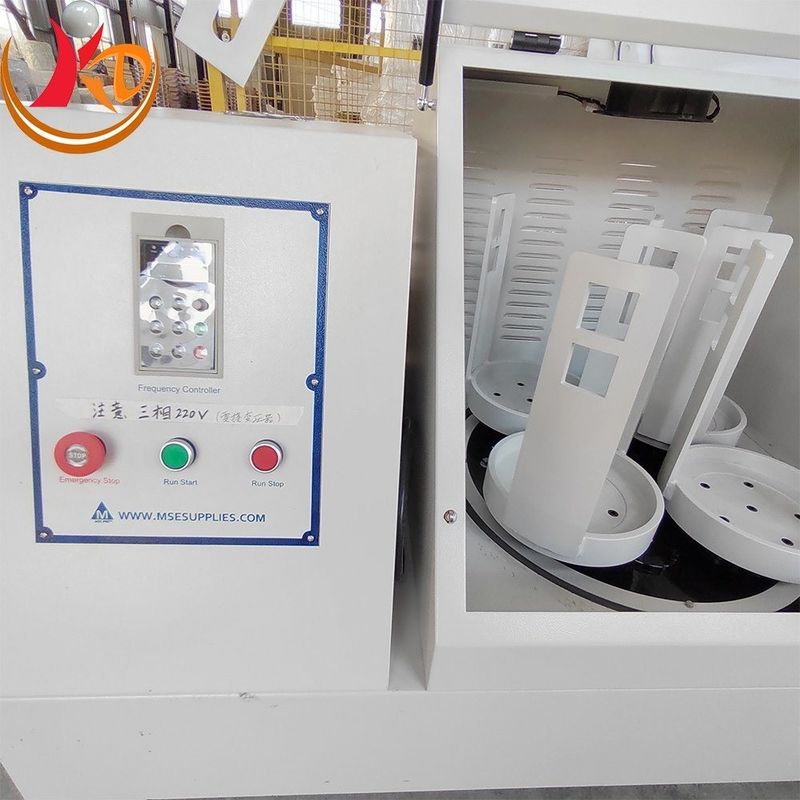

0.4L-12L Vertical Lab Planetary Ball Mill Grinding Tank Machine Price with Optional Zirconia/Agate Jars/ Balls 3

Product Paramenters

Types for Planetary Ball Mill

Model	*Specification*	*Spec(ml,L)*	*Quantity (Items/Set) (Mated with a* *number of milling balls)*
XQM-0.4L	0.4L	50-100ml	4 mill tanks
XQM-1L	1L	50-250ml	4 mill tanks
XQM-2L	2L	50-500ml	4 mill tanks
XQM-4L	4L	50-1000ml	4 mill tanks
XQM-8L	8L	0.5-2L	4 mill tanks
XQM-12L	12L	1-3L	4 mill tanks
XQM-16L	16L	1-4L	4 mill tanks

Technical Specifications

Drive Mode: gear drive and belt drive
Operation Mode: two or four grinding tanks working together
Maximum Loading Capacity: 2/3 of the capacity of milling tank
Feeding Granularity: soil material ≤10mm, other materials ≤3mm
Output Granularity: Minimum 0.1um
Rotational speed ratio (revolution: rotation): 1:2 (0.4L,2L,4L);1:1.5(12L,20L)
Rotation Speed: 0.4L:0~600rounds/min; 2L:0~580rounds/min 4L:0~530rounds/min 20L:0-280 rounds/min
Speed Regulation Mode: variable-frequency-control-type and program-control-type stepless speed regulation; manual or automatic timed positive or negative revolving
Max. continuous operating time (full-load): 72 hours

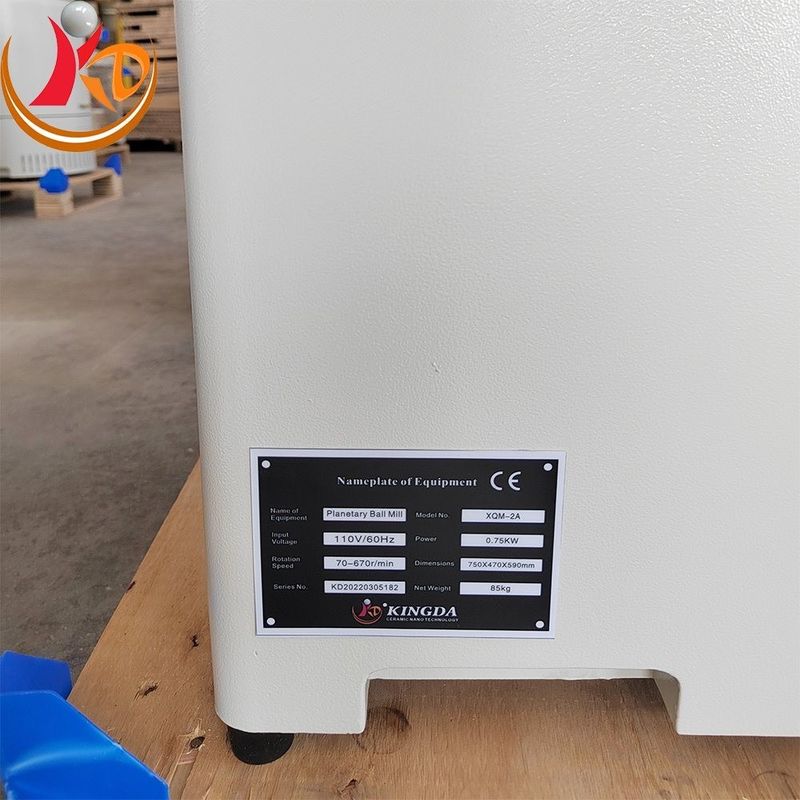

0.4L-12L Vertical Lab Planetary Ball Mill Grinding Tank Machine Price with Optional Zirconia/Agate Jars/ Balls 4

Package & Shipping

Package Type: Carton or plywood case + foam
Port: Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao port.
Delivery time: Within 15 working days from the date of payment receipt.

FAQ

1.Q: I need a mill machine for lab use, what's your mini type?
A: The minimum type is 0.4L planetary ball mill, ModelXQM-0.4A in size of 53*30*34cm, machine weight 26kgs. We have other types from 1L to 100L for your options.

2.Q: What is your terms of delivery?
A: FOB, CFR, CIF.

3.Q: Can you accept small quantity sample order before production?
A: Yes, we can offer sample for your testing first before production, but the customers have to pay the courier cost.

4.Q: What is your production time?
A: Generally, it will take 5 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

5.Q: What is your terms of payment?
A: T/T 30% as deposit, 70% balance against the copy of original B/L. Or 100% L/C at sight. We'll show you the photos of the products and the copy of original B/L before you pay the balance.

Our Service

1. We can produce other grinding balls as your need.

2. We test all the goods before delivery.

3. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

4. If you have any questions, please contact with us without any hesitation, we will reply you in 12 hours.

0.4L-12L Vertical Lab Planetary Ball Mill Grinding Tank Machine Price with Optional Zirconia/Agate Jars/ Balls 5

Factory

0.4L-12L Vertical Lab Planetary Ball Mill Grinding Tank Machine Price with Optional Zirconia/Agate Jars/ Balls 6

0.4L-12L Vertical Lab Planetary Ball Mill Grinding Tank Machine Price with Optional Zirconia/Agate Jars/ Balls 7

0.4L-12L Vertical Lab Planetary Ball Mill Grinding Tank Machine Price with Optional Zirconia/Agate Jars/ Balls 8
