Kingda 0.2-100L Vertical Planetary Ball Mill
Nano lab fine powder grinding machine for high-tech materials mixing, fine grinding, sample preparation, and small batch production.
Product Description

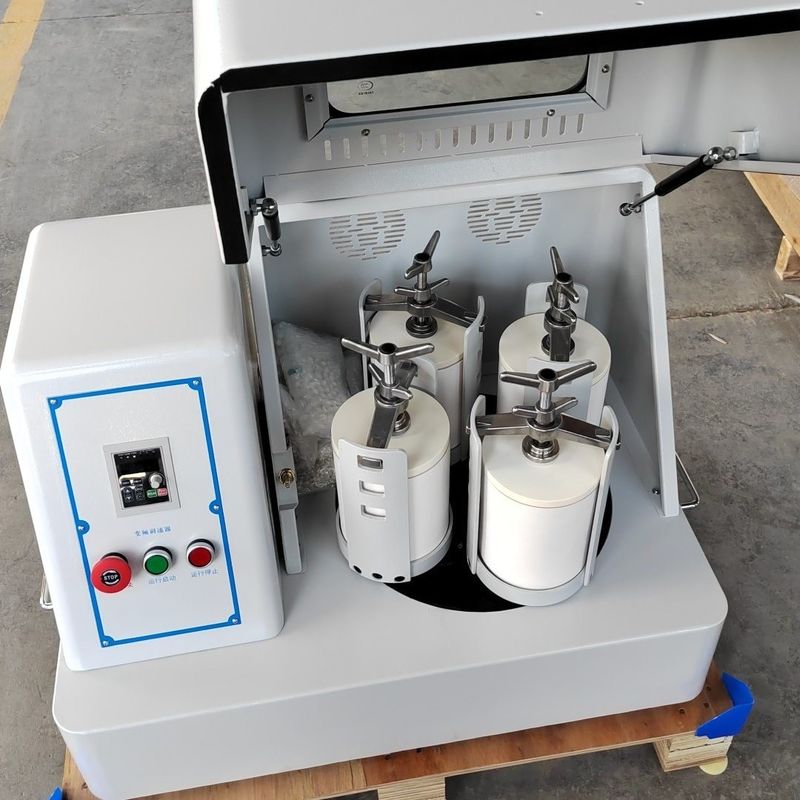

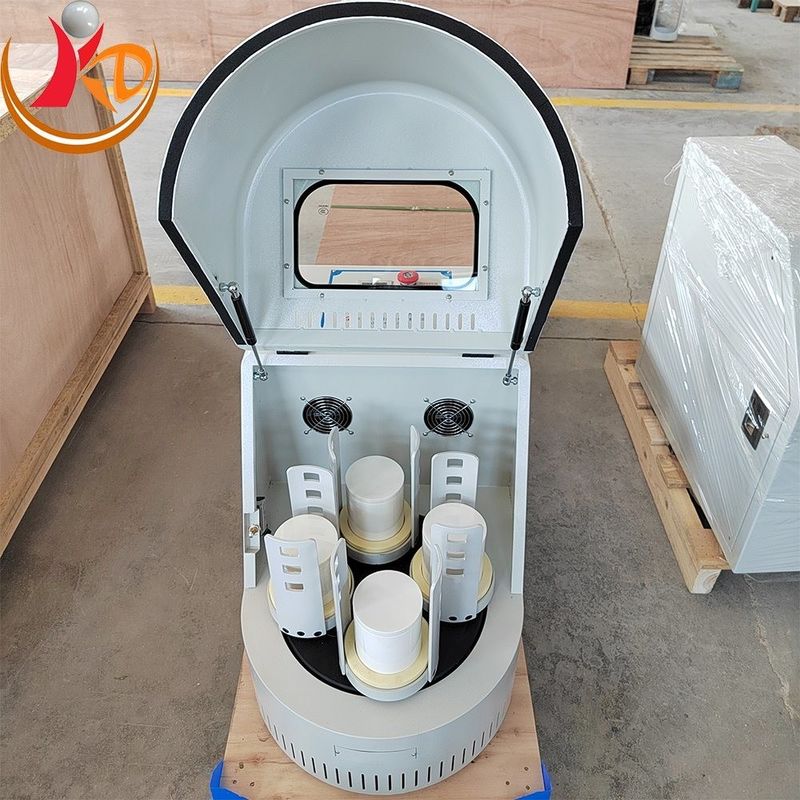

Vertical planetary ball mill is essential for high-tech materials mixing, fine grinding, sample preparation, and small batch production. This compact machine offers high efficiency, low noise operation, and versatile functionality, making it ideal for R&D institutions, universities, and enterprise laboratories.
Key capabilities include:
- Simultaneous processing of four different samples
- Vacuum ball mill tank capability for powder processing under vacuum conditions

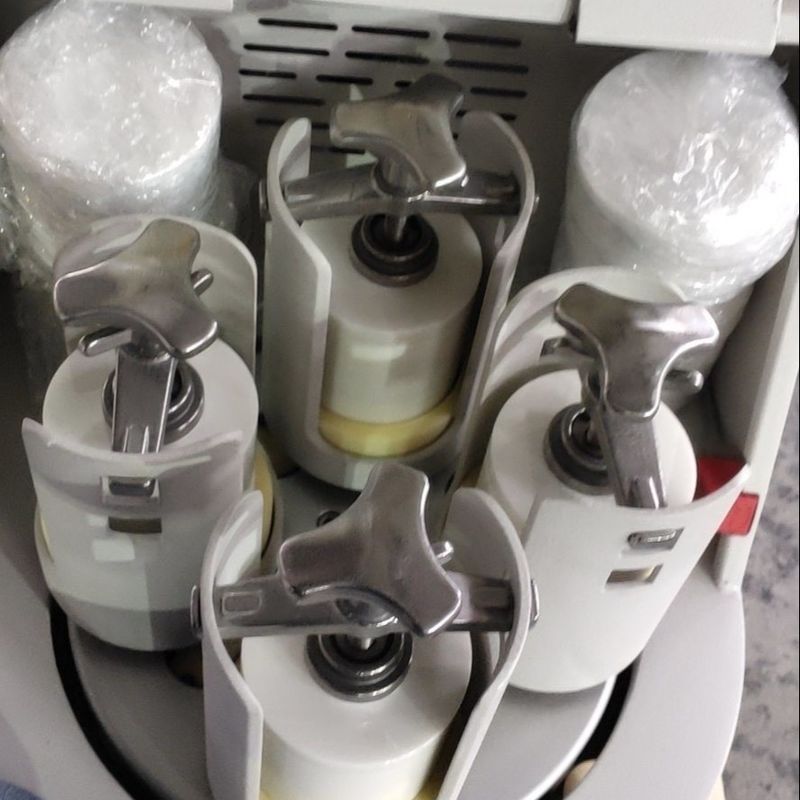

- Four ball grinding tanks mounted on rotating platform for planetary movement
- Dry and wet method grinding for various materials and granularities
- Minimum achievable granularity of 0.1 micron (1.0×10-4mm)
Widely used in Geology, Mining, Metallurgy, Electronics, Construction Materials, Ceramics, Chemical Engineering, Light Industry, Medicine, and Environmental Protection.
Applications
Food Sample Preparation
Ensures uniform distribution of components like spices, pigments, and additives for quality control and R&D.
Pigment and Ink Production
Grinds pigment particles for uniform color and high dispersion, enhancing final product quality.
Cosmetic Formulation and Production
Enables precise grinding and mixing for smooth texture and even color distribution.
Waste Treatment and Recycling
Facilitates efficient grinding processes for recycling materials, such as converting plastics into reusable granules.
Features
- Stable gear transmission ensures consistent and repeatable experimental results
- Planetary movement principle delivers high speed, high energy, and high efficiency
- Simultaneous processing of four different powder samples
- Frequency converter control for ideal rotating speed selection
- Timing functions with multiple operation modes (one-way, alternation, succession)
- Low center of gravity, stable performance, compact structure
- Safety switch prevents operation when safety cover is open
Technical Specifications
| Drive Mode |
gear drive / belt drive |
| Operation Mode |
2 / 4 grinding tanks working together |
| Maximum Loading Capacity |
2/3 of the capacity of milling tank |
| Feeding Granularity |
soil material ≤10mm, other materials ≤3mm |
| Output Granularity |
Minimum 0.1um |
| Rotational speed ratio |
1:2 (0.4L,2L,4L); 1:1.5(12L,20L) |
| Rotation Speed |
0.4L:0~600rounds/min; 2L:0~580rounds/min; 4L:0~530rounds/min; 20L:0-280 rounds/min |
| Speed Regulation Mode |
Variable-frequency control and program-control stepless speed regulation |
| Max. continuous operating time (full-load) |
72 hours |
Planetary Ball Mill Models
| Model |
Power (KW) |
Voltage |
Dimension (mm) |
Revolution Speed (rpm) |
Rotation Speed (rpm) |
Weight (KG) |
| KD-XQM-1 |
0.75 |
220V-50Hz |
750*470*564 |
35-325 |
70-670 |
80 |
| KD-XQM-2 |
0.75 |
220V-50Hz |
750*470*564 |
35-335 |
70-670 |
80 |
| KD-XQM-4 |
0.75 |
220V-50Hz |
750*470*564 |
35-335 |
70-670 |
80 |
| KD-XQM-6 |
0.75 |
220V-50Hz |
750*470*564 |
35-335 |
70-670 |
80 |
| KD-XQM-8 |
1.5 |
220V-50Hz |
900*600*640 |
35-290 |
70-580 |
132 |
| KD-XQM-10 |
1.5 |
220V-50Hz |
900*600*640 |
35-290 |
70-580 |
132 |
| KD-XQM-12 |
1.5 |
220V-50Hz |
900*600*640 |
35-290 |
70-580 |
132 |
Grinding Pots & Balls Accessories
Available grinding jars in full sizes including:
- Zirconia ball mill jar
- Alumina ball mill jar
- Agate ball mill jar
- Tungsten ball mill
- Hard metal mill jar
Packaging & Shipping
PE Form + Cartons / Wooden cases; Custom packaging available per customer requirements.
Ports: Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao port.
Delivery time: Within 3-7 working days from payment receipt.
Frequently Asked Questions
What is the size in your products?
The minimum type is 1L planetary ball mill. We have other types from 0.2-100L to 100L for your options.
What is your terms of delivery?
FOB, CFR, CIF.
Can you accept small quantity sample order before production?
Yes, we can offer samples for testing before production, with customers covering courier costs.
What is your production time?
Generally 3-7 days after receiving advance payment. Specific delivery time depends on items and order quantity.
What is your terms of payment?
T/T 30% as deposit, 70% balance against copy of original B/L. Or 100% L/C at sight. We provide product photos and B/L copy before balance payment.
Our Service Commitment
- Custom grinding balls production available
- Comprehensive pre-delivery testing
- Customer-focused business relationships
- Prompt response within 2 hours for all inquiries

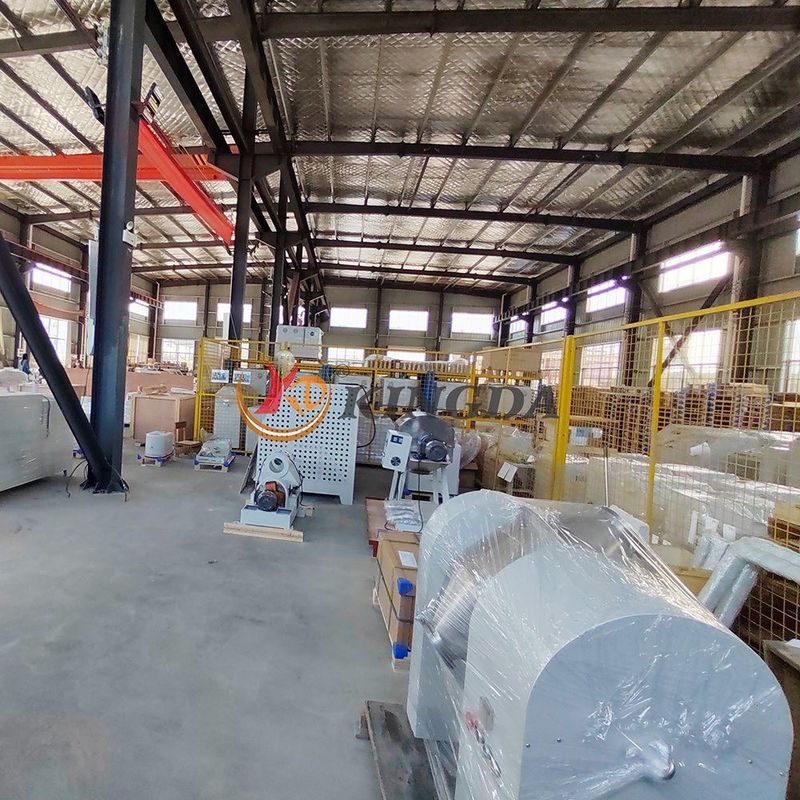

About Kingda Ceramic Technology
HUNAN KINGDA CERAMIC TECHNOLOGY CO.,LTD specializes in manufacturing Grinding Media Balls, Grinding Jars, Zirconium Dioxide, and Zirconia structures.
- "Quality Is in the First Position forever" philosophy
- High reputation among domestic and international clients including University of Oxford, Loughborough University, Peking University, and Tsinghua University
- Commitment to providing high quality grinding products and exceptional services
- Dedicated to mutual benefit and sustainability
