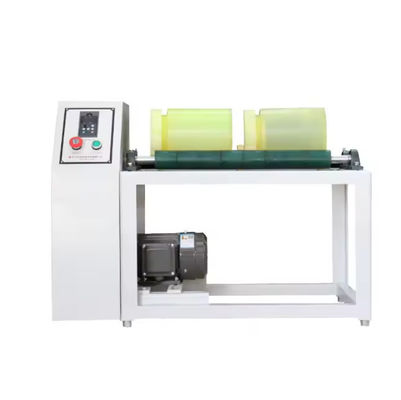

GQM Series Lab Jar Roller Ball Mill Machine
Factory sale lab jar roller mill and ball mill grinding equipment with drum and ball mill jars for roller ball mill laboratory applications.
Product Applications
Pharmaceutical Mixing
Achieve unparalleled precision in pharmaceutical blending for optimal drug formulations with our GQM-1-5 Lab Jar Milling Machine. Optional digital controls enhance efficiency and streamline laboratory operations.
Food Industry Homogenization
Elevate uniformity standards in food production processes using our specialized attachments designed specifically for food industry applications.
Cosmetic Product Development
Transform cosmetic product development from creams to lotions with unmatched texture and blend consistency. Choose from our diverse array of interchangeable jars and mixing blades.
Paint and Coating Manufacturing
Enhance paint and coating manufacturing with precision milling expertise. Experience superior color dispersion and quality finishes through tailored parameters.
Ceramic Material Synthesis
Optimize ceramic material synthesis in research labs with uniform particle distribution. Select from various jar materials and sizes for precise control.
Working Principle
The grinding media and materials rotate within the cylinder to a predetermined height, then descend by gravity from the inner walls. Material crushing occurs through impact, friction, and shearing from rolling and sliding movements. This optimized procedure enhances efficiency while ensuring smooth operation.
Technical Specifications
| Category |
Model No. |
Power Supply |
Rotate Speed |
Max Load Per Jar |
Dimensions & Net Weight |
| 2 Work Positions |
GQM-2-5 |
220V-50Hz or 60Hz/0.75kw |
50-410 rpm |
35KGS |
950*480*685mm 59KGS |
| GQM-2-15 |
220V-50Hz or 60Hz/1.1kw |
40-365 rpm |
80KGS |
1130*550*690mm 80KGS |
| GQM-2-20 |
220V-50Hz or 60Hz/1.5kw |
40-340 rpm |
120KGS |
1350*650*690mm 92KGS |
| 4 Work Positions |
GQM-4-5 Single layer |
220V-50Hz or 60Hz/0.75kw |
50-410 rpm |
35KGS |
950*660*690mm 70KGS |
| GQM-4-5 Double layer |
220V-50Hz or 60Hz/0.75kw |
50-410 rpm |
35KGS |
950*480*870mm 92KGS |
| GQM-4-15 |
220V-50Hz or 60Hz/1.5kw |
40-365 rpm |
80KGS |
1130*800*690mm 95KGS |
| GQM-4-20 |
380V-50Hz or 60Hz/2.2kw |
40-340 rpm |
120KGS |
1350*820*690mm 122KGS |
| 8 Work Positions |
GQM-8-5 |
220V-50Hz or 60Hz/1.5kw |
50-410 rpm |
35KGS |
950*660*960mm 106KGS |
| GQM-8-15 |
380V-50Hz or 60Hz/2.2kw |
40-365 rpm |
80KGS |
1130*800*960mm 152KGS |
Key Features
- Multiple sample materials can be ground simultaneously
- Offers both intermittent and continuous operation modes
- Adjustable timing to suit specific requirements
Available Grinding Pots & Balls
Full range of grinding jars available including zirconia ball mill jar, alumina ball mill jar, agate ball mill jar, tungsten ball mill, hard metal mill jar and more.
Packaging & Shipping
Package Type: PE Form + Cartons / Wooden cases (customizable per customer requirements)
Port: Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao port
Delivery Time: Within 3-7 working days from payment receipt
Manufacturing Facility
Frequently Asked Questions
What roll mill jars are available in your products?
Our available roll mill jars include alumina/zirconia ceramic, nylon, stainless steel, tungsten carbide, PTFE, polyurethane and more.
What are your terms of delivery?
FOB, CFR, CIF
Can you accept small quantity sample orders before production?
Yes, we can provide samples for testing before production, with customers covering courier costs.
What is your production time?
Generally 3-15 days after receiving advance payment. Specific timing depends on items and order quantity.
What are your payment terms?
T/T 30% deposit, 70% balance against B/L copy, or 100% L/C at sight. We provide product photos and B/L copies before final payment.
Our Service Commitment
- Custom grinding balls production available
- Comprehensive testing of all goods before delivery
- Respectful partnership with all customers worldwide
- Prompt response within 2 hours for any inquiries
About Kingda Ceramic Technology
Hunan Kingda Ceramic Technology Co., Ltd specializes in manufacturing grinding media balls, grinding jars, zirconium dioxide, and zirconia structures. Our commitment to quality has earned us recognition from prestigious institutions including University of Oxford, Loughborough University, Peking University, and Tsinghua University.
