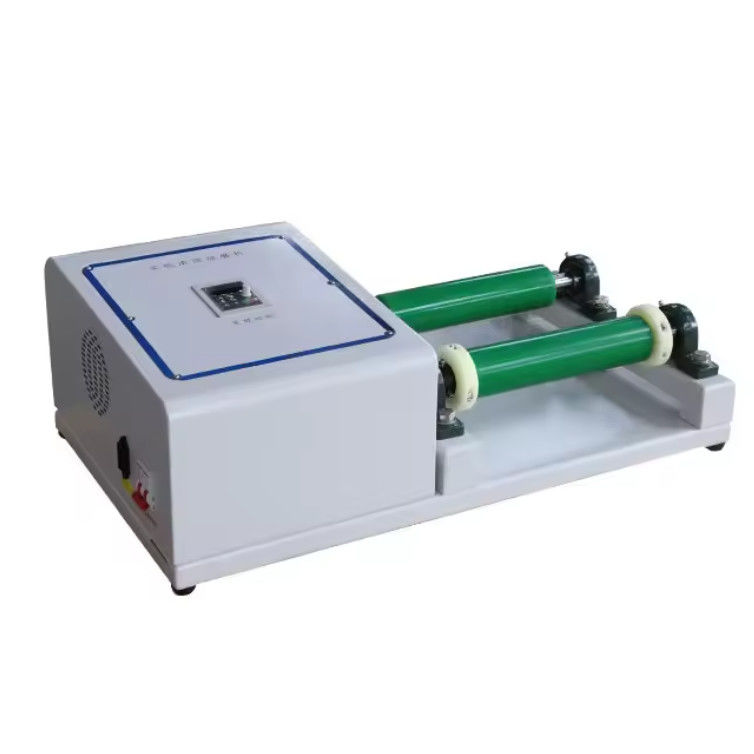

Kingda Factory Sale 1 Working Station 5L Small Roller Jar Mill Ball Mill for Mixing and Grinding
Product Description————————
1. Efficient Grinding:
The Kingda QM-5L Lab Roller Ball Mill ensures efficient grinding for laboratory planetary grinding applications, providing reliable results with minimal effort.
2. Easy Cleaning Design:
Designed for convenience, our lab roller ball mill features an easy-to-clean design, allowing for quick and hassle-free maintenance between experiments.
3. Small Lab Size:
With its compact size, the QM-5L Lab Roller Ball Mill is ideal for small laboratory spaces, providing high-performance grinding capabilities without taking up excessive room.
4. Versatile Use:
Suitable for various lab planetary grinding tasks, our roller ball mill can be used for grinding, mixing, and homogenizing a wide range of materials, catering to diverse research needs.
5. Precise Control:
The QM-5L Lab Roller Ball Mill offers precise control over grinding parameters, allowing researchers to adjust speed, time, and other variables to achieve desired results with accuracy.
6. Wide Application Range:
From academic research to industrial development, our lab roller ball mill serves as a versatile tool for materials synthesis, sample preparation, and quality control in various fields.
Working Principle————————
1. Loading Samples and Media:
Firstly, solid samples and grinding media (typically metal balls) are loaded into the drum. These samples and media will undergo mixing and grinding within the drum.
2. Drum Rotation:
Once loaded, the drum begins to rotate. The rotation can be driven by a motor or operated manually. This rotation is fundamental to the operation of the equipment, causing the samples and media to move within the drum.
3. Friction and Collision Between Samples and Media:
As the samples and media move, friction and collision occur between them. This friction and collision lead to the breaking and mixing of sample particles, facilitating grinding and uniform mixing.
4. Action of Gravity:
During drum rotation, the samples and media also move downward along the drum wall due to gravity. This enhances the friction and collision between samples and media, further promoting grinding and mixing.
5. Continuous Cycling Process:
The key to the working principle lies in the continuous rotation of the drum and the ongoing friction and collision between samples and media. This cyclic process continues until the samples reach the desired particle size and mixing consistency.
Specifications————————
| Category |
Model No. |
Power Supply |
Rotate Speed |
Max Load
Per Jar
|
Dimensions
& Net Weight
|
| 2 Work Positions |
GQM-2-5 |
220V-50Hz or 60Hz/0.75kw |
50-410 rpm |
35KGS |
950*480*685mm 59KGS |
| |
GQM-2-15 |
220V-50Hz or 60Hz/1.1kw |
40-365 rpm |
80KGS |
1130*550*690mm 80KGS |
| |
GQM-2-20 |
220V-50Hz or 60Hz/1.5kw |
40-340 rpm |
120KGS |
1350*650*690mm 92KGS |
| 4 Work Positions |
GQM-4-5 Single layer |
220V-50Hz or 60Hz/0.75kw |
50-410 rpm |
35KGS |
950*660*690mm 70KGS |
| |
GQM-4-5 Double layer |
220V-50Hz or 60Hz/0.75kw |
50-410 rpm |
35KGS |
950*480*870mm 92KGS |
| |
GQM-4-15 |
220V-50Hz or 60Hz/1.5kw |
40-365 rpm |
80KGS |
1130*800*690mm 95KGS |
| |
GQM-4-20 |
380V-50Hz or 60Hz/2.2kw |
40-340 rpm |
120KGS |
1350*820*690mm 122KGS |
| 8 Work Positions |
GQM-8-5 |
220V-50Hz or 60Hz/1.5kw |
50-410 rpm |
35KGS |
950*660*960mm 106KGS |
| |
GQM-8-15 |
380V-50Hz or 60Hz/2.2kw |
40-365 rpm |
80KGS |
1130*800*960mm 152KGS |
Features————————
1.Multiple sample materials can be ground simultaneously.
2.It offers both intermittent and continuous operation modes.
3.Users can adjust timing to suit their requirements.
Accessories of Grinding Pots & Balls————————
Available grinding jars in full sizes:
Zirconia ball mill jar, alumina ball mill jar, Agate ball mill jar, Tungsten ball mill, hard metal mill jar and etc.
Package & Shipping————————
Package Type:
PE Form + Cartons / Woodern cases;
Can be dispatched according to customr's requirement
Port:
Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao port.
Delivery time:
Within 3-7 working days from the date of payment receipt
FAQ————————
1.Q: What are the roll mill jars available in your products?
A: Our available roll mill jars are alumina / zirconia ceramic, nylon, stainless steel, tungsten carbide, PTFE, polyurethane and so on.
2.Q: What is your terms of delivery?
A: FOB, CFR, CIF.
3.Q: Can you accept small quantity sample order before production?
A: Yes, we can offer sample for your testing first before production, but the customers have to pay the courier cost.
4.Q: What is your production time?
A: Generally, it will take 3-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5.Q: What is your terms of payment?
A: T/T 30% as deposit, 70% balance against the copy of original B/L. Or 100% L/C at sight. We'll show you the photos of the products and the copy of original B/L before you pay the balance.
Our Service————————
1. We can produce other grinding balls as your need.
2. We test all the goods before delivery.
3. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
4. If you have any questions, please contact with us without any hesitation, we will reply you in 2 hours.
ABOUT KINGDA————————
1. HUNAN KINGDA CERAMIC TECHNOLOGY CO.,LTD is a manufacturer of the Grinding Media Ball, Grinding Jars, Zirconium Dioxide, Zirconia structures, etc.
2. "Quality Is in the First Position forever", we have gained a high reputation and good recognition from a lot of domestic and overseas customers such as University of Oxford, Lough borough University, Peking University, Tsinghua University, etc.
3. We promise that we would make great efforts to provide high quality grinding products and best services for all customers in the coming years.
4. Nowadays, KINGDA CERAMIC MATERIALS has gained great reputation from our business partners. We will continue to contribute the best to realize mutual benefit and sustainability.
5. We appreciate your interest and support in the efforts and passion of KINGDA CERAMIC, the company of Human Technology.
