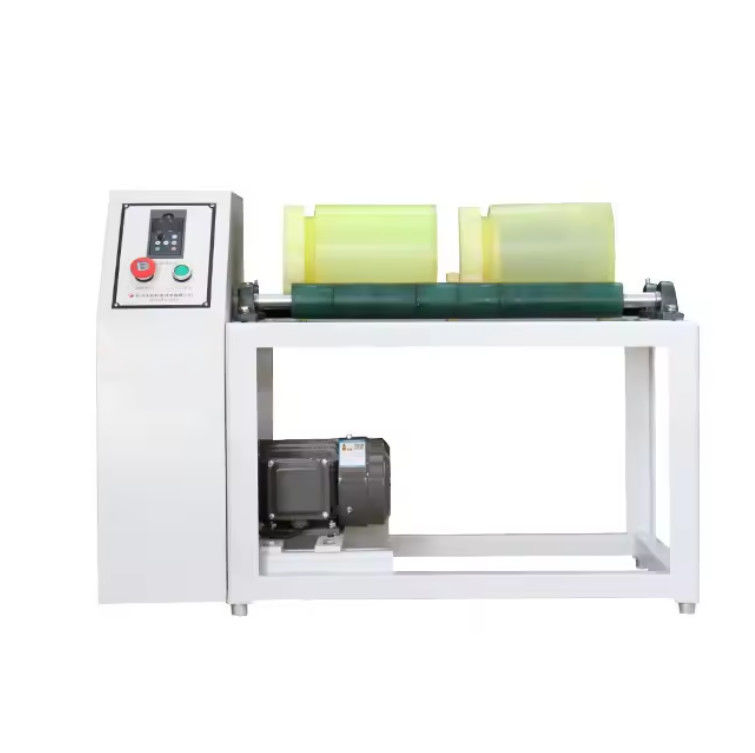

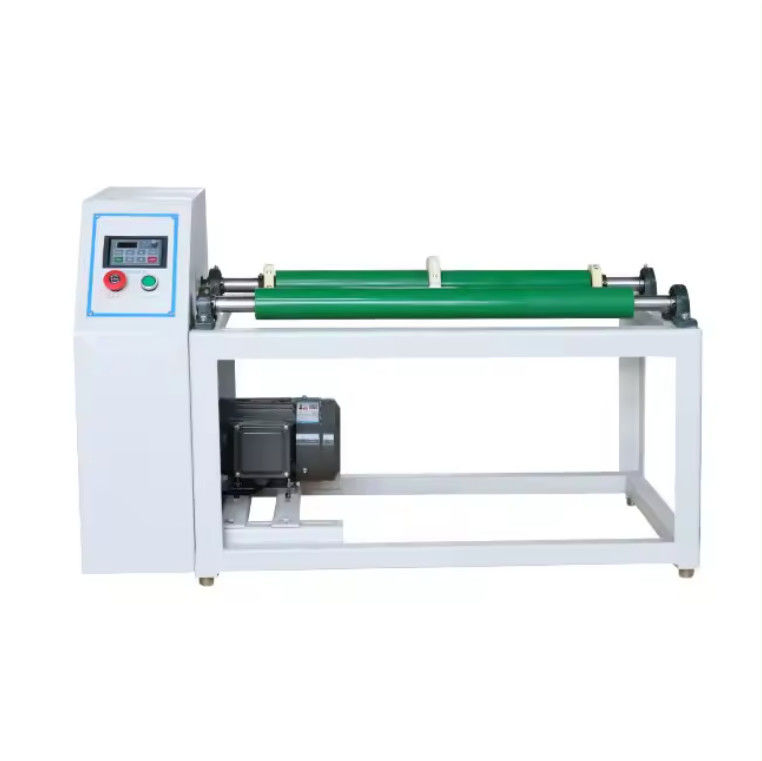

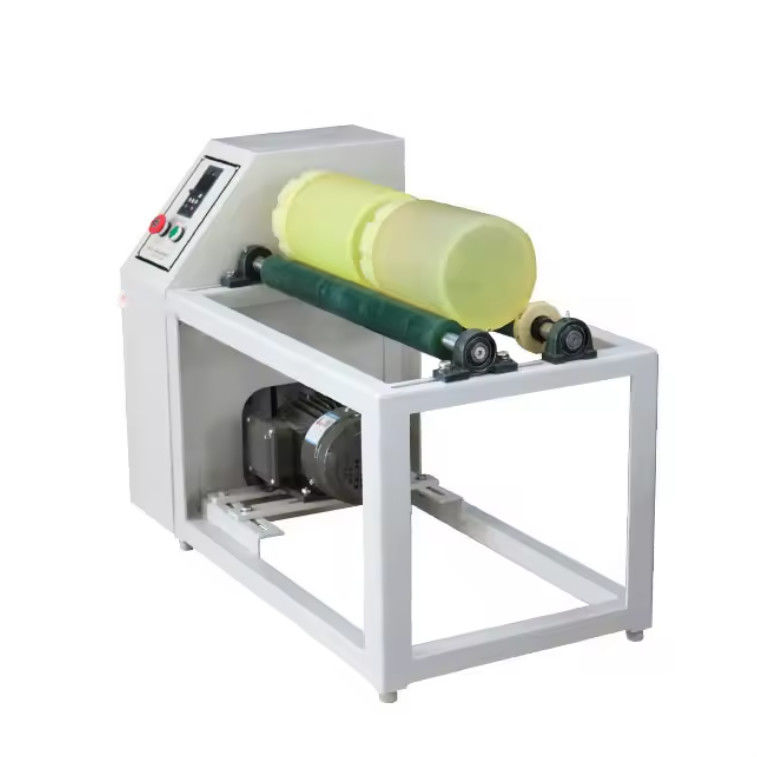

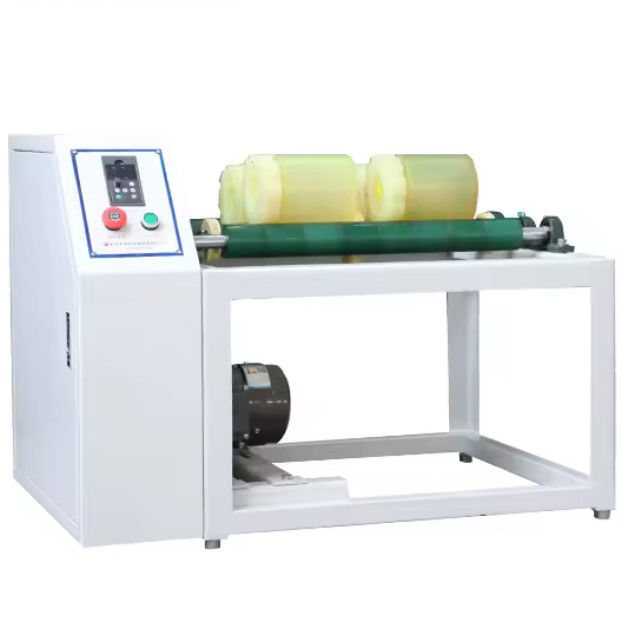

Hunan Kingda Ball Miller Machine For Metal Powder Grinding 2 working positions Factory Sale
Product Description————————
1. Efficient Grinding: The Kingda QM-5L Lab Roller Ball Mill ensures efficient grinding performance, allowing for the rapid reduction of materials to desired particle sizes in laboratory settings.
2. Easy Cleaning: Designed for convenience, our roller ball mill features a user-friendly design that facilitates easy cleaning after use, saving valuable time and effort in laboratory maintenance.
3. Small Footprint: With its compact size, the QM-5L Lab Roller Ball Mill is ideal for laboratories with limited space, offering powerful grinding capabilities without occupying excessive bench space.
4. Versatile Applications: Suitable for various laboratory applications, including planetary grinding, mixing, and homogenization, our roller ball mill is a versatile tool for research and development in scientific and industrial fields.
5. Precise Control: Equipped with advanced controls, our roller ball mill allows researchers to precisely adjust parameters such as speed, time, and rotation direction, ensuring accurate and reproducible results with every use.
6. Planetary Grinding Use: The Kingda QM-5L Lab Roller Ball Mill is specifically designed for planetary grinding, making it perfect for applications requiring high-speed rotation and uniform particle size reduction, such as in the preparation of samples for analysis or experimentation.
Working Principle————————
1. Loading Samples and Media:
Firstly, solid samples and grinding media (typically metal balls) are loaded into the drum. These samples and media will undergo mixing and grinding within the drum.
2. Drum Rotation:
Once loaded, the drum begins to rotate. The rotation can be driven by a motor or operated manually. This rotation is fundamental to the operation of the equipment, causing the samples and media to move within the drum.
3. Friction and Collision Between Samples and Media:
As the samples and media move, friction and collision occur between them. This friction and collision lead to the breaking and mixing of sample particles, facilitating grinding and uniform mixing.
4. Action of Gravity:
During drum rotation, the samples and media also move downward along the drum wall due to gravity. This enhances the friction and collision between samples and media, further promoting grinding and mixing.
5. Continuous Cycling Process:
The key to the working principle lies in the continuous rotation of the drum and the ongoing friction and collision between samples and media. This cyclic process continues until the samples reach the desired particle size and mixing consistency.
Specifications————————
| Category | Model No. | Power Supply | Rotate Speed |
Max Load Per Jar |
Dimensions & Net Weight |
| 2 Work Positions | GQM-2-5 | 220V-50Hz or 60Hz/0.75kw | 50-410 rpm | 35KGS | 950*480*685mm 59KGS |
| GQM-2-15 | 220V-50Hz or 60Hz/1.1kw | 40-365 rpm | 80KGS | 1130*550*690mm 80KGS | |
| GQM-2-20 | 220V-50Hz or 60Hz/1.5kw | 40-340 rpm | 120KGS | 1350*650*690mm 92KGS | |
| 4 Work Positions | GQM-4-5 Single layer | 220V-50Hz or 60Hz/0.75kw | 50-410 rpm | 35KGS | 950*660*690mm 70KGS |
| GQM-4-5 Double layer | 220V-50Hz or 60Hz/0.75kw | 50-410 rpm | 35KGS | 950*480*870mm 92KGS | |
| GQM-4-15 | 220V-50Hz or 60Hz/1.5kw | 40-365 rpm | 80KGS | 1130*800*690mm 95KGS | |
| GQM-4-20 | 380V-50Hz or 60Hz/2.2kw | 40-340 rpm | 120KGS | 1350*820*690mm 122KGS | |
| 8 Work Positions | GQM-8-5 | 220V-50Hz or 60Hz/1.5kw | 50-410 rpm | 35KGS | 950*660*960mm 106KGS |
| GQM-8-15 | 380V-50Hz or 60Hz/2.2kw | 40-365 rpm | 80KGS | 1130*800*960mm 152KGS |
Features————————
1.Multiple sample materials can be ground simultaneously.
2.It offers both intermittent and continuous operation modes.
3.Users can adjust timing to suit their requirements.
Accessories of Grinding Pots & Balls————————
Available grinding jars in full sizes:
Zirconia ball mill jar, alumina ball mill jar, Agate ball mill jar, Tungsten ball mill, hard metal mill jar and etc.
Package & Shipping————————
Package Type:
PE Form + Cartons / Woodern cases;
Can be dispatched according to customr's requirement
Port:
Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao port.
Delivery time:
Within 3-7 working days from the date of payment receipt
Factory————————
FAQ————————
1.Q: What are the roll mill jars available in your products?
A: Our available roll mill jars are alumina / zirconia ceramic, nylon, stainless steel, tungsten carbide, PTFE, polyurethane and so on.
2.Q: What is your terms of delivery?
A: FOB, CFR, CIF.
3.Q: Can you accept small quantity sample order before production?
A: Yes, we can offer sample for your testing first before production, but the customers have to pay the courier cost.
4.Q: What is your production time?
A: Generally, it will take 3-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5.Q: What is your terms of payment?
A: T/T 30% as deposit, 70% balance against the copy of original B/L. Or 100% L/C at sight. We'll show you the photos of the products and the copy of original B/L before you pay the balance.
Our Service————————
1. We can produce other grinding balls as your need.
2. We test all the goods before delivery.
3. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
4. If you have any questions, please contact with us without any hesitation, we will reply you in 2 hours.
ABOUT KINGDA————————
1. HUNAN KINGDA CERAMIC TECHNOLOGY CO.,LTD is a manufacturer of the Grinding Media Ball, Grinding Jars, Zirconium Dioxide, Zirconia structures, etc.
2. "Quality Is in the First Position forever", we have gained a high reputation and good recognition from a lot of domestic and overseas customers such as University of Oxford, Lough borough University, Peking University, Tsinghua University, etc.
3. We promise that we would make great efforts to provide high quality grinding products and best services for all customers in the coming years.
4. Nowadays, KINGDA CERAMIC MATERIALS has gained great reputation from our business partners. We will continue to contribute the best to realize mutual benefit and sustainability.
5. We appreciate your interest and support in the efforts and passion of KINGDA CERAMIC, the company of Human Technology.
