| Place of Origin | Hunan, China |
| Brand Name | KINGDA |
| Certification | CE ISO |
| Model Number | GQM-4*5L |
Factory Sale Lab Jar Roller Mill/Jar Ball Mill Grinding With Drum/Ball Mill Jar For Roller Ball Mill Laboratory
Product Description————————

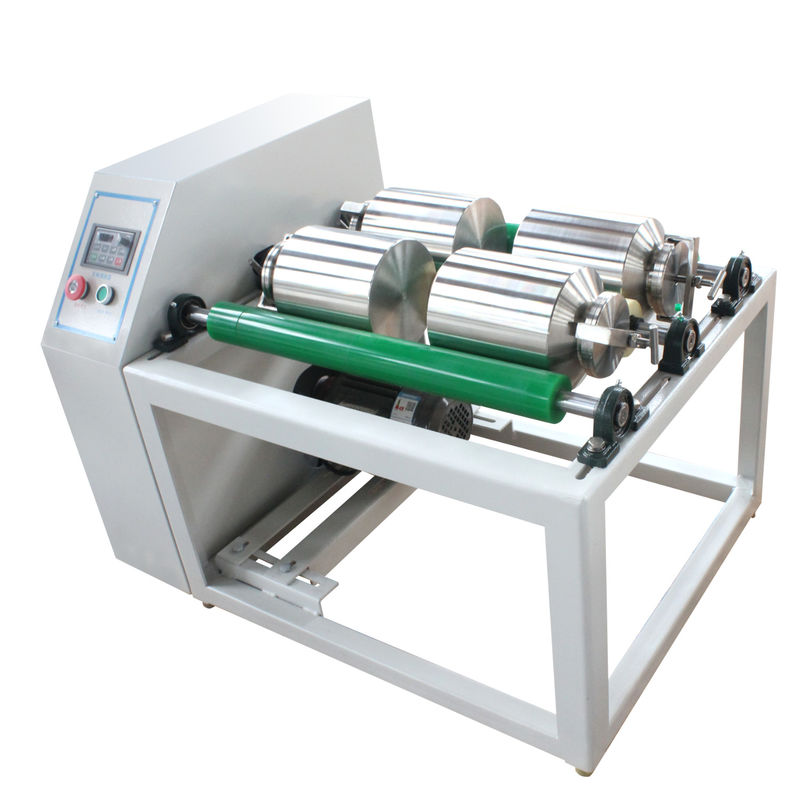

A lab jar roller mill machine, also known as a jar rolling mill or a jar mill, is a versatile laboratory equipment used for grinding, blending, and homogenizing various materials. It typically consists of a horizontal cylindrical jar or container, mounted on a roller mechanism. Here is a description of the key features and components of a lab jar roller mill machine:
1.Jar or Container: The main component of the machine is a cylindrical jar or container made of durable materials such as stainless steel or ceramic. The jar is designed to hold the materials to be processed and can vary in size and capacity depending on the application and desired batch size.
2.Roller Mechanism: The jar or container is supported and rotated by a set of rollers located on either side of the jar. The rollers can be made of rubber, polyurethane, or other materials with good frictional properties. They provide the necessary rotational motion to the jar, allowing for efficient grinding and mixing of the materials.
3.Speed Control: Lab jar roller mill machines typically have variable speed control to adjust the rotational speed of the jar. This allows for precise control over the grinding process and enables experimentation with different speeds to achieve the desired results. The speed control mechanism can be manual or electronic, depending on the specific model.
Working Principle————————
Commencing operation, the grinding media and materials enclosed within the cylinder rotate to a predetermined height.
Guided by gravity, they then descend from the inner walls of the tube. Material crushing occurs through a blend of grinding media impact, friction, and shearing from rolling and sliding movements.
This optimized procedure not only boosts efficiency, thus saving time and labor, but also guarantees smooth and effortless operation.
Specifications————————
| Category | Model No. | Power Supply | Rotate Speed |
Max Load Per Jar |
Dimensions & Net Weight |
| 2 Work Positions | GQM-2-5 | 220V-50Hz or 60Hz/0.75kw | 50-410 rpm | 35KGS | 950*480*685mm 59KGS |
| GQM-2-15 | 220V-50Hz or 60Hz/1.1kw | 40-365 rpm | 80KGS | 1130*550*690mm 80KGS | |
| GQM-2-20 | 220V-50Hz or 60Hz/1.5kw | 40-340 rpm | 120KGS | 1350*650*690mm 92KGS | |
| 4 Work Positions | GQM-4-5 Single layer | 220V-50Hz or 60Hz/0.75kw | 50-410 rpm | 35KGS | 950*660*690mm 70KGS |

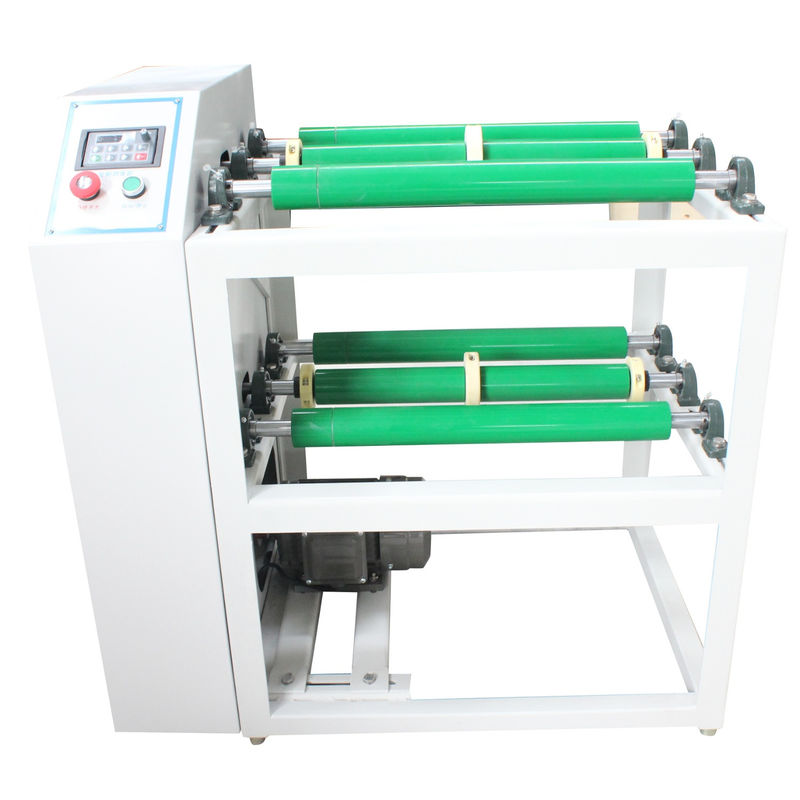

| GQM-4-5 Double layer | 220V-50Hz or 60Hz/0.75kw | 50-410 rpm | 35KGS | 950*480*870mm 92KGS | |
| GQM-4-15 | 220V-50Hz or 60Hz/1.5kw | 40-365 rpm | 80KGS | 1130*800*690mm 95KGS | |
| GQM-4-20 | 380V-50Hz or 60Hz/2.2kw | 40-340 rpm | 120KGS | 1350*820*690mm 122KGS | |
| 8 Work Positions | GQM-8-5 | 220V-50Hz or 60Hz/1.5kw | 50-410 rpm | 35KGS | 950*660*960mm 106KGS |
| GQM-8-15 | 380V-50Hz or 60Hz/2.2kw | 40-365 rpm | 80KGS | 1130*800*960mm 152KGS |
Features————————
1.Multiple sample materials can be ground simultaneously.
2.It offers both intermittent and continuous operation modes.
3.Users can adjust timing to suit their requirements.
Accessories of Grinding Pots & Balls————————
Available grinding jars in full sizes:
Zirconia ball mill jar, alumina ball mill jar, Agate ball mill jar, Tungsten ball mill, hard metal mill jar and etc.
Package & Shipping————————
Package Type:
PE Form + Cartons / Woodern cases;
Can be dispatched according to customr's requirement
Port:
Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao port.
Delivery time:
Within 3-7 working days from the date of payment receipt
Factory————————
FAQ————————
1.Q: What are the roll mill jars available in your products?
A: Our available roll mill jars are alumina / zirconia ceramic, nylon, stainless steel, tungsten carbide, PTFE, polyurethane and so on.
2.Q: What is your terms of delivery?
A: FOB, CFR, CIF.
3.Q: Can you accept small quantity sample order before production?
A: Yes, we can offer sample for your testing first before production, but the customers have to pay the courier cost.
4.Q: What is your production time?
A: Generally, it will take 3-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5.Q: What is your terms of payment?
A: T/T 30% as deposit, 70% balance against the copy of original B/L. Or 100% L/C at sight. We'll show you the photos of the products and the copy of original B/L before you pay the balance.
Our Service————————
1. We can produce other grinding balls as your need.
2. We test all the goods before delivery.
3. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
4. If you have any questions, please contact with us without any hesitation, we will reply you in 2 hours.
ABOUT KINGDA————————
1. HUNAN KINGDA CERAMIC TECHNOLOGY CO.,LTD is a manufacturer of the Grinding Media Ball, Grinding Jars, Zirconium Dioxide, Zirconia structures, etc.
2. "Quality Is in the First Position forever", we have gained a high reputation and good recognition from a lot of domestic and overseas customers such as University of Oxford, Lough borough University, Peking University, Tsinghua University, etc.
3. We promise that we would make great efforts to provide high quality grinding products and best services for all customers in the coming years.
4. Nowadays, KINGDA CERAMIC MATERIALS has gained great reputation from our business partners. We will continue to contribute the best to realize mutual benefit and sustainability.
5. We appreciate your interest and support in the efforts and passion of KINGDA CERAMIC, the company of Human Technology.
