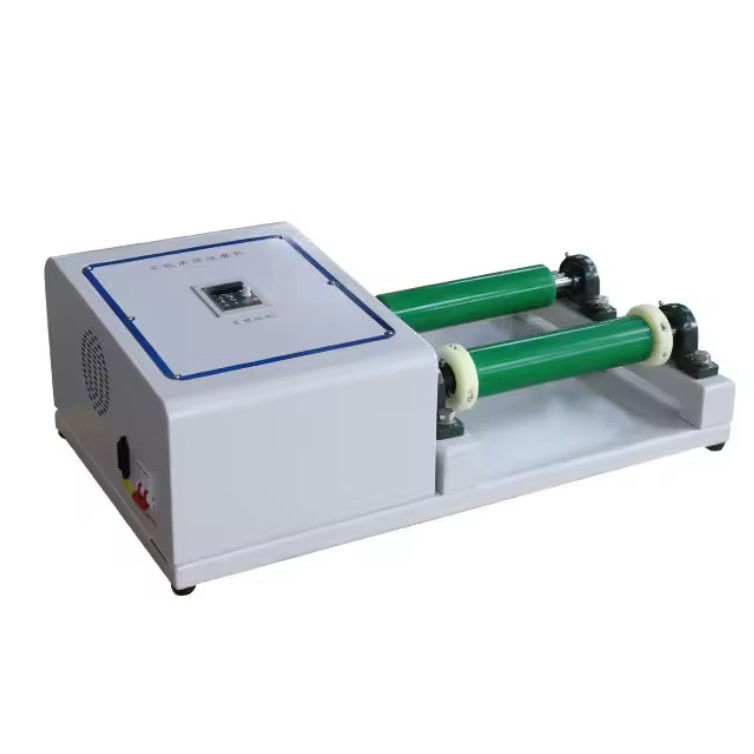

Factory Hot Sale Rolling Mill 220V/110V Alumina Ceramic Roll Pots Jar Lab Jar Milling Machine
Product Description————————
The Lab Jar Roller Mill Machine is suitable for a wide range of sample types, including powders, viscous substances, and even materials with varying hardness and brittleness. It is capable of handling different sample volumes, accommodating various jar sizes simultaneously.
With its precise milling capabilities, the Lab Jar Roller Mill Machine offers researchers and scientists the ability to obtain finely ground samples, consistent particle size distributions, and homogeneously mixed materials. This enables accurate analysis, characterization, and quality control in diverse applications.
In summary, the Lab Jar Roller Mill Machine is a robust and versatile laboratory equipment that plays a pivotal role in sample preparation. Its ability to grind, blend, and homogenize various materials makes it an invaluable tool in scientific research, quality control, and development processes across multiple industries.
Working Principle————————
Upon commencement of operation, the grinding media and cylinder materials rotate to a predetermined height. Guided by gravity, they then descend from the tube wall. Material crushing occurs through grinding media impact, along with friction and shearing from rolling and sliding. This process not only saves time and labor but also guarantees ease of operation.
Specifications————————
| Category |
Model No. |
Power Supply |
Rotate Speed |
Max Load
Per Jar
|
Dimensions
& Net Weight
|
| 2 Work Positions |
GQM-2-5 |
220V-50Hz or 60Hz/0.75kw |
50-410 rpm |
35KGS |
950*480*685mm 59KGS |
| |
GQM-2-15 |
220V-50Hz or 60Hz/1.1kw |
40-365 rpm |
80KGS |
1130*550*690mm 80KGS |
| |
GQM-2-20 |
220V-50Hz or 60Hz/1.5kw |
40-340 rpm |
120KGS |
1350*650*690mm 92KGS |
| 4 Work Positions |
GQM-4-5 Single layer |
220V-50Hz or 60Hz/0.75kw |
50-410 rpm |
35KGS |
950*660*690mm 70KGS |
| |
GQM-4-5 Double layer |
220V-50Hz or 60Hz/0.75kw |
50-410 rpm |
35KGS |
950*480*870mm 92KGS |
| |
GQM-4-15 |
220V-50Hz or 60Hz/1.5kw |
40-365 rpm |
80KGS |
1130*800*690mm 95KGS |
| |
GQM-4-20 |
380V-50Hz or 60Hz/2.2kw |
40-340 rpm |
120KGS |
1350*820*690mm 122KGS |
| 8 Work Positions |
GQM-8-5 |
220V-50Hz or 60Hz/1.5kw |
50-410 rpm |
35KGS |
950*660*960mm 106KGS |
| |
GQM-8-15 |
380V-50Hz or 60Hz/2.2kw |
40-365 rpm |
80KGS |
1130*800*960mm 152KGS |
Features————————
1.Multiple sample materials can be ground simultaneously.
2.It offers both intermittent and continuous operation modes.
3.Users can adjust timing to suit their requirements.
Accessories of Grinding Pots & Balls————————
Available grinding jars in full sizes:
Zirconia ball mill jar, alumina ball mill jar, Agate ball mill jar, Tungsten ball mill, hard metal mill jar and etc.
Package & Shipping————————
Package Type:
PE Form + Cartons / Woodern cases;
Can be dispatched according to customr's requirement
Port:
Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao port.
Delivery time:
Within 3-7 working days from the date of payment receipt
FAQ————————
1.Q: What are the roll mill jars available in your products?
A: Our available roll mill jars are alumina / zirconia ceramic, nylon, stainless steel, tungsten carbide, PTFE, polyurethane and so on.
2.Q: What is your terms of delivery?
A: FOB, CFR, CIF.
3.Q: Can you accept small quantity sample order before production?
A: Yes, we can offer sample for your testing first before production, but the customers have to pay the courier cost.
4.Q: What is your production time?
A: Generally, it will take 3-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5.Q: What is your terms of payment?
A: T/T 30% as deposit, 70% balance against the copy of original B/L. Or 100% L/C at sight. We'll show you the photos of the products and the copy of original B/L before you pay the balance.
Our Service————————
1. We can produce other grinding balls as your need.
2. We test all the goods before delivery.
3. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
4. If you have any questions, please contact with us without any hesitation, we will reply you in 2 hours.
ABOUT KINGDA————————
1. HUNAN KINGDA CERAMIC TECHNOLOGY CO.,LTD is a manufacturer of the Grinding Media Ball, Grinding Jars, Zirconium Dioxide, Zirconia structures, etc.
2. "Quality Is in the First Position forever", we have gained a high reputation and good recognition from a lot of domestic and overseas customers such as University of Oxford, Lough borough University, Peking University, Tsinghua University, etc.
3. We promise that we would make great efforts to provide high quality grinding products and best services for all customers in the coming years.
4. Nowadays, KINGDA CERAMIC MATERIALS has gained great reputation from our business partners. We will continue to contribute the best to realize mutual benefit and sustainability.
5. We appreciate your interest and support in the efforts and passion of KINGDA CERAMIC, the company of Human Technology.
