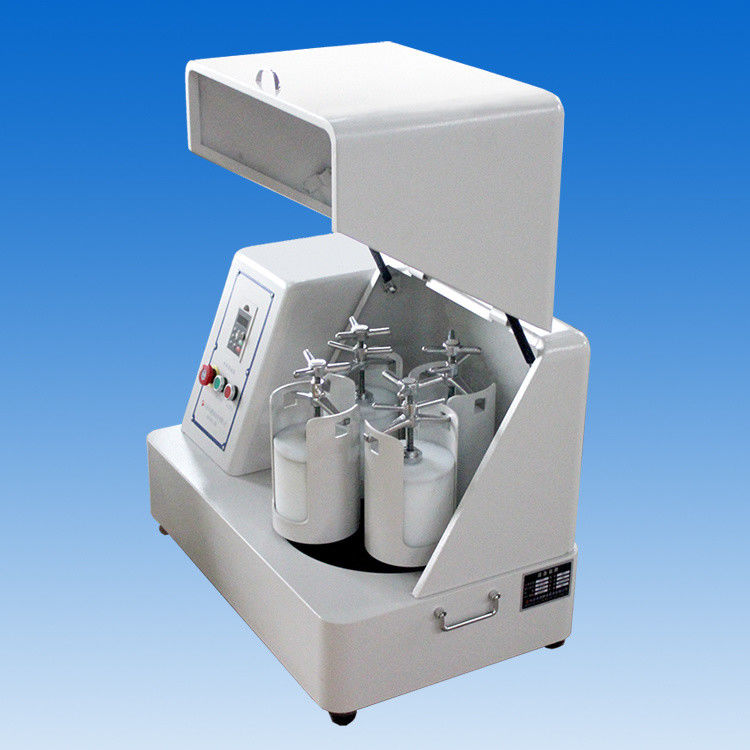

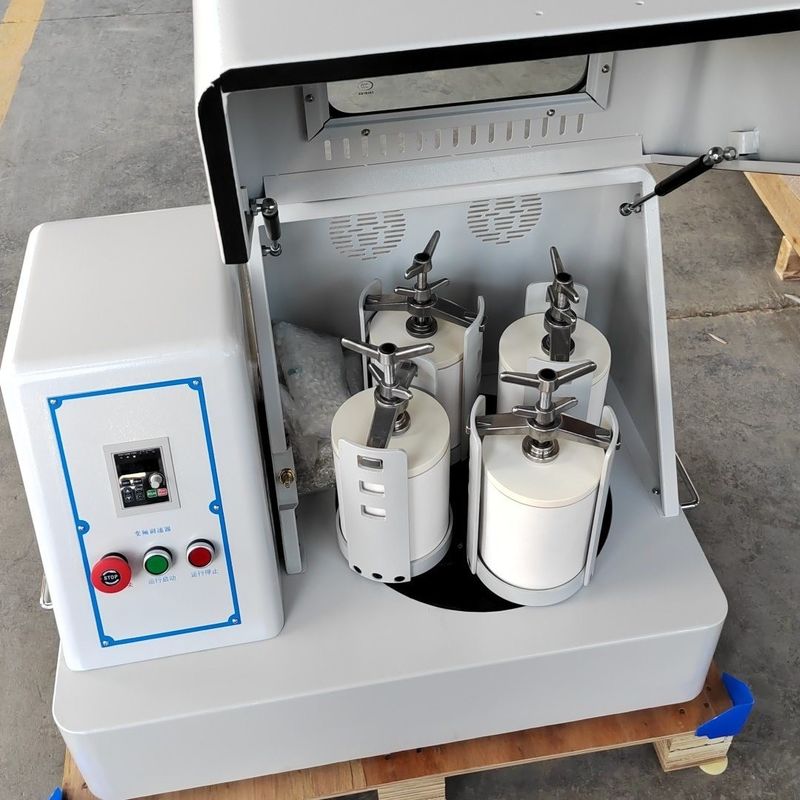

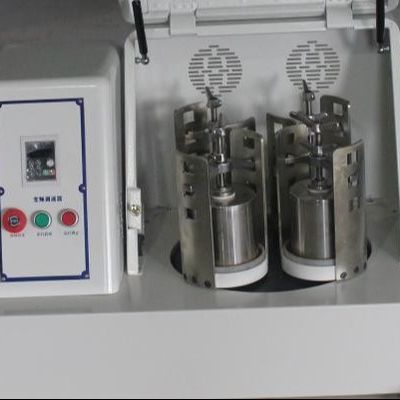

0.4L Ceramic Ball Mill 220V Desktop Laboratory Grinding Equipment
Product Description————————
A planetary ball mill machine, also known as a planetary ball mill grinder or planetary mill, is a laboratory grinding device that uses a planetary motion to rapidly grind, homogenize, and mix materials. It is widely used in research laboratories, universities, and industrial settings for various applications such as sample preparation, nanomaterial synthesis, and mechanical alloying. Here's an overview of the components, features, and operation of a typical planetary ball mill machine:
Components:
Planetary Milling Jars: These are cylindrical containers, typically made of stainless steel or ceramics, that hold the materials to be ground. The jars are placed on a rotating disk called the sun wheel and are arranged eccentrically to create a planetary motion.
Sun Wheel: The central disk that drives the rotation of the milling jars. It is usually powered by a motor and can rotate in the opposite direction to the milling jars.
Grinding Balls/Media: The spherical or cylindrical grinding media inside the milling jars. They come in different sizes and materials, such as stainless steel, ceramics, or tungsten carbide, depending on the sample and grinding requirements.
Motor and Drive System: The machine is equipped with a motor that powers the sun wheel's rotation and the movement of the milling jars. The speed of rotation can often be adjusted to control the grinding process.

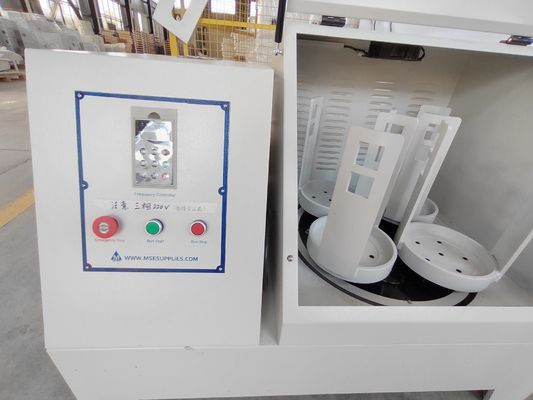

Controls and Display: Planetary ball mill machines may have controls and a display panel that allow users to set parameters such as grinding time, speed, and direction of rotation. Some advanced models offer programmable operation with multiple grinding modes and timers.
Application————————
1. Materials Research and Development: The Vertical Planetary Ball Mill plays a crucial role in the mixing, fine grinding, and new product development of high-tech materials. Researchers can utilize its ability for small batch production, swiftly obtaining samples with high purity and precise particle size.
2. Laboratory Sample Preparation: As an ideal laboratory equipment, the Vertical Planetary Ball Mill is employed in universities, research institutions, and enterprise laboratories for sample preparation. Its small volume and high efficiency ensure the acquisition of four samples in a single experiment, enhancing experimental efficiency.
Technical Specifications————————
| Drive Mode | gear drive / belt drive |
|---|---|
| Operation Mode | 2 / 4 grinding tanks working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling tank |
| Feeding Granularity | soil material ≤10mm, other materials ≤3mm |
| Output Granularity | Minimum 0.1um |
| Rotational speed ratio | 1:2 (0.4L,2L,4L); 1:1.5(12L,20L) |
| Rotation Speed | 0.4L:0~600rounds/min; 2L:0~580rounds/min 4L:0~530rounds/min 20L:0-280 rounds/min |
| Speed Regulation Mode | variable-frequency-control-type and program-control-type stepless speed regulation; manual or automatic timed; positive or negative revolving |
| Max. continuous operating time full-load) |
72 hours |
Features————————
1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.
Types for Planetary Ball Mill————————
| Model | Specification | Spec(ml,L) | Quantity (Set) |
|---|---|---|---|
| KD-XQM-0.4L |
0.4L |
50-100ml | 4 mill tanks |
| KD-XQM-1L | 1L | 50-250ml | 4 mill tanks |
| KD-XQM-2L |
2L |
560-500ml | 4 mill tanks |
| KD-XQM-4L | 4L | 50-1000ml | 4 mill tanks |
| KD-XQM-8L | 8L | 0.5-2L | 4 mill tanks |
| KD-XQM-12L | 12L | 1-3L | 4 mill tanks |
| KD-XQM-16L | 16L | 1-4L | 4 mill tanks |
Package & Shipping————————
Package Type:
PE Form + Cartons / Woodern cases;
Can be dispatched according to customr's requirement
Port:
Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao port.
Delivery time:
Within 3-7 working days from the date of payment receipt
Factory————————
FAQ————————
1.Q: What is the size in your products?
A: The minimum type is 0.4L planetary ball mill Model XQM-0.4A in size of 53*30*34cm, machine weight 26kgs. We have other types from 0.2-100L to 100L for your options.
2.Q: What is your terms of delivery?
A: FOB, CFR, CIF.
3.Q: Can you accept small quantity sample order before production?
A: Yes, we can offer sample for your testing first before production, but the customers have to pay the courier cost.
4.Q: What is your production time?
A: Generally, it will take 3-7 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5.Q: What is your terms of payment?
A: T/T 30% as deposit, 70% balance against the copy of original B/L. Or 100% L/C at sight. We'll show you the photos of the products and the copy of original B/L before you pay the balance.
6.Q: What is the working principle of planetary ball mill?
A: Please refer to this news: China Hunan jingshengda ceramic technology Co.,ltd latest company news about Working principle of planetary ball mill (ecer.com)
