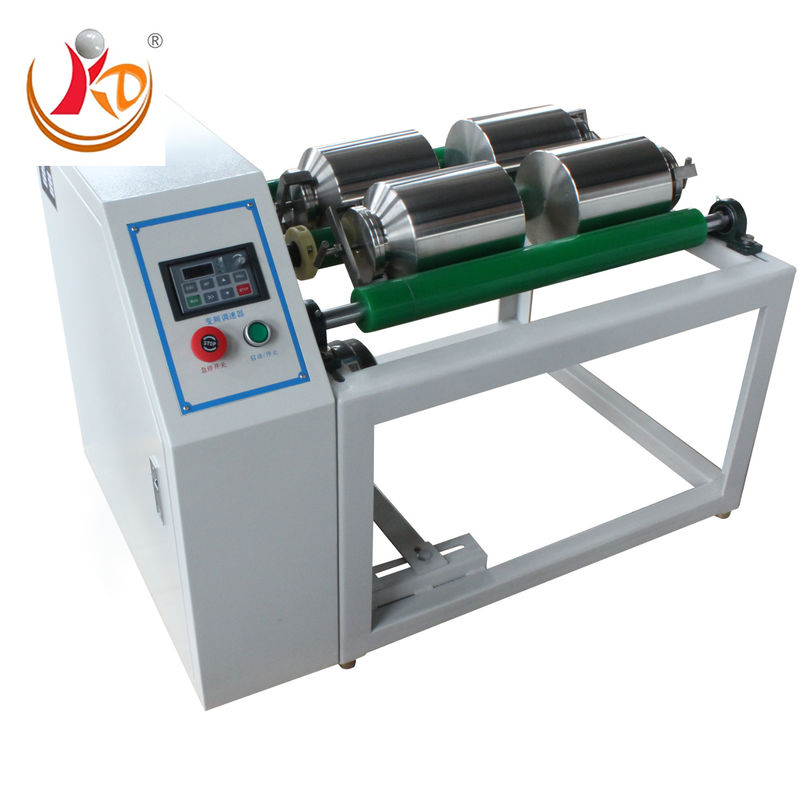

Roller Ball Mill with 4 Jars For Lab Application
Rolling Jar Mill is a kind of powder milling equipment used for ultra-fine grinding and mixing for laboratory and small batch production, which is also called roller ball mill with more than two working positions.The machine is preferred equipment for scientific research, education, experiment and production due to its advantage such as elegant and fashion design, compact structure, easy operation, high efficiency,and uniform granularity. It is widely applied to industries of electronic materials, magnetic materials,biological medicine, ceramic glaze, mental powder, nonmetallic minerals, new materials and etc.
Optimal design of rotating speed is adopted in the machine. Mill jar is dragged to rotate by rubber roller and balls inside the jar make incline flow movement and disperse materials. Thus it obtains best effects of grinding. As a result, materials are ground to micro powder. Timing control panel is adopted in the machine with controlling functions of pausing and cumulative timing, so that you may set working time according to requirement at any time. It not only saves time and labor, but is easy for operation.
Working Principle
When the machine starts to work, the grinding media and the materials of the cylinder are rotated to a certain height. Due to the gravity, they fall down from the tube wall. The materials are crushed by impact action of the grinding media, and friction and shearing action of grinding media’s rolling and sliding. It not only saves time and labor, but is easy for operation.
Applications
Rolling Jar Mill is mainly applied to industries of electronic material, magnetic material, biological medicine, ceramic glaze, metal powder, nonmetallic minerals, new materials, and etc.
Features
1. More kinds of sample material can be ground each time.
2. It can be operated intermittently or continuously.
3. Timing can be set according to users’ needs.
4. Suitable for ultrafine grinding with high efficiency of pulverizing.
5. Rubber roller is made of special materials and durable in use.
Technical Parameter
| Model No. |
Power Supply |
Rotate Speed |
Max Load
Per Jar
|
Dimensions
& Net Weight
|
| 2 Work Positions |
GQM-2-5 |
220V-50Hz or 60Hz/0.75kw |
50-410 rpm |
35KGS |
950*480*685mm 59KGS |
| |
GQM-2-15 |
220V-50Hz or 60Hz/1.1kw |
40-365 rpm |
80KGS |
1130*550*690mm 80KGS |
| |
GQM-2-20 |
220V-50Hz or 60Hz/1.5kw |
40-340 rpm |
120KGS |
1350*650*690mm 92KGS |
| 4 Work Positions |
GQM-4-5 Single layer |
220V-50Hz or 60Hz/0.75kw |
50-410 rpm |
35KGS |
950*660*690mm 70KGS |
| |
GQM-4-5 Double layer |
220V-50Hz or 60Hz/0.75kw |
50-410 rpm |
35KGS |
950*480*870mm 92KGS |
| |
GQM-4-15 |
220V-50Hz or 60Hz/1.5kw |
40-365 rpm |
80KGS |
1130*800*690mm 95KGS |
| |
GQM-4-20 |
380V-50Hz or 60Hz/2.2kw |
40-340 rpm |
120KGS |
1350*820*690mm 122KGS |
| 8 Work Positions |
GQM-8-5 |
220V-50Hz or 60Hz/1.5kw |
50-410 rpm |
35KGS |
950*660*960mm 106KGS |
| |
GQM-8-15 |
380V-50Hz or 60Hz/2.2kw |
40-365 rpm |
80KGS |
1130*800*960mm 152KGS
|
Mill pot
Materials of jars for choosing:
Agate, Zirconia, Alumina ceramic (Corundum), Tungsten Carbide, Stainless steel,PU (Polyurethane), PU with stainless steel liner, PTFE (Polytetrafluoroethylene), Nylon etc.
Vacuum jars are available as well.
Mill balls
Materials of balls for choosing:
Agate, Zirconia, Alumina, Tungsten Carbide, Stainless steel,PU, PTFE, Nylon, Carbon steel, PU etc.
Sizes for choosing: 1mm, 3mm, 5mm, 8mm, 10mm, 12mm, 15mm, 20mm, 25mm, 30mm
Factory
Package & Shipping
Package Type: Carton or plywood case + foam
Port: Shanghai Port, Guangzhou Port, Shenzhen Port, Qingdao port.
Delivery time: Within 15 working days from the date of payment receipt.
1. Which procedure to secure your Quality?
Our company has own research & development and production base, the products have been calibrated by central laboratory
professionals before they leave the factory, ensure the accuracy of test results and authority.
2.What’s your warranty?
One-year warranty period is provided. If any problem while you are using the machine, you may contact Service Hotline: 0086 15367874686
3.Can you provide testing service of grinding powder experiment before we place order?
Yes. Sample powder testing is available for any customer who sends material to us, and powder testing is also free of charge.
4.Our country's power supply and plug are different, how do you solve it?
We can according to different countries and the power plug, equipped with a transformer and plug that in accordance with your local requirement.
5.Payment methods?
T/T, L/C, D/P and so on.
6.Packing method?
Standard export wooden box packaging
7.What’s the delivery time?
We have lots of regular Models in stock. Packing can be done within 3 working days after your full payment is confirmed. Delivery
time is about 5 days by courier. Therefore, you are expected to get the equipment in about 10 days after your payment confirmed
