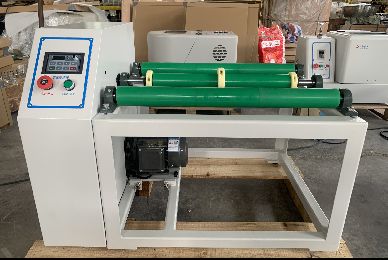

Four-Station Rolling Ball Mill with 100kg Weight and 1 Year Warranty for Flexible Lab Research
This specialized rolling ball mill can be operated either intermittently or continuously, providing flexible grinding options for different laboratory applications. Designed to grind multiple samples simultaneously, it enables efficient parallel processing with ultra-fine grinding and thorough mixing capabilities.
Key Features
- Multi-position setup ideal for scientific research, education, and experimental applications
- Sleek, modern design with compact structure
- Easy operation with high efficiency and uniform particle size results
- Optimized rotational speed with rubber roller drive for stable performance
- Timing control panel with pause and cumulative timing functions
Applications
Electronic materials, magnetic materials, biomedicine, ceramic glazes, metal powders, non-metallic minerals, and new materials research and development.
Operation Principle
During operation, grinding media and materials are rotated to a specific height before falling due to gravity. This process crushes materials through impact, friction, and shear forces generated by rolling and sliding media, ensuring efficient grinding.
Configuration Options
Mill Jar Materials: Agate, Zirconia, Alumina Ceramic (Corundum), Tungsten Carbide, Stainless Steel, PU (Polyurethane), PU with Stainless Steel Liner, PTFE (Polytetrafluoroethylene), Nylon. Vacuum jar options available.
Mill Balls Options: Materials: Agate, Zirconia, Alumina, Tungsten Carbide, Stainless steel, PU, PTFE, Nylon, Carbon steel. Sizes: 1mm, 3mm, 5mm, 8mm, 10mm, 12mm, 15mm, 20mm, 25mm, 30mm.
Pricing Information
| Item NO. |
Description |
Qty |
Unit price (exw-works) |
Total price |
| 1 |
GQM-2-15L rolling ball mill |
1set (220V) |
USD1068.0/set |
USD1068.0 |
| 2 |
10L 95% alumina rolling ball mill jar |
4pc |
USD480.0/pc |
USD1920.0 |
| 3 |
92% alumina grinding balls 15mm |
20kg |
USD5.0/kg |
USD100.0 |
| Total price |
USD 3088.0 |
Delivery within 7-10 working days after full payment (total value: USD3088.0)
Frequently Asked Questions
How do you ensure product quality?
Our products are developed and manufactured in our own facility, with each unit calibrated by laboratory professionals before leaving the factory to ensure accurate test results.
What is your warranty policy?
One-year warranty period. For any issues, contact Service Hotline: 0086 15367874686
Do you offer sample testing services?
Yes, we provide free powder testing services for customers who send materials to us.
Can you accommodate different power requirements?
We can provide transformers and plugs to match your local power specifications.
What payment methods do you accept?
T/T, L/C, D/P and other standard methods.
How is the product packaged?
Standard export wooden box packaging.
What is your delivery time?
Standard models ship within 3 working days after payment confirmation, with delivery typically completed within 10 days.
