4L Vertical Lab Planetary Ball Mill 4 Zirconia Grinding Jars 0.1μm Nano Output Enterprise Laboratory Equipment

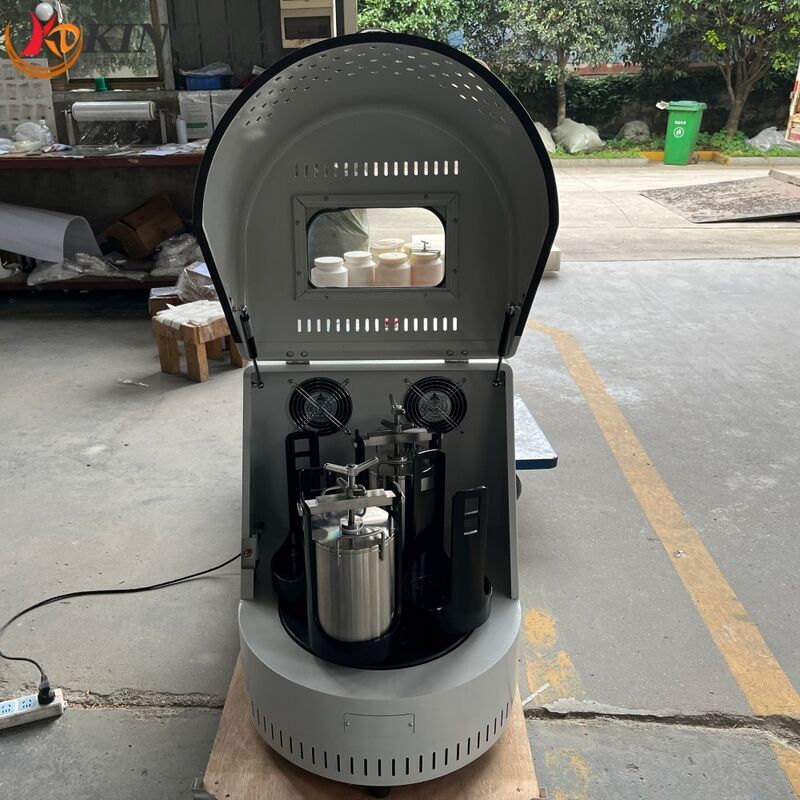

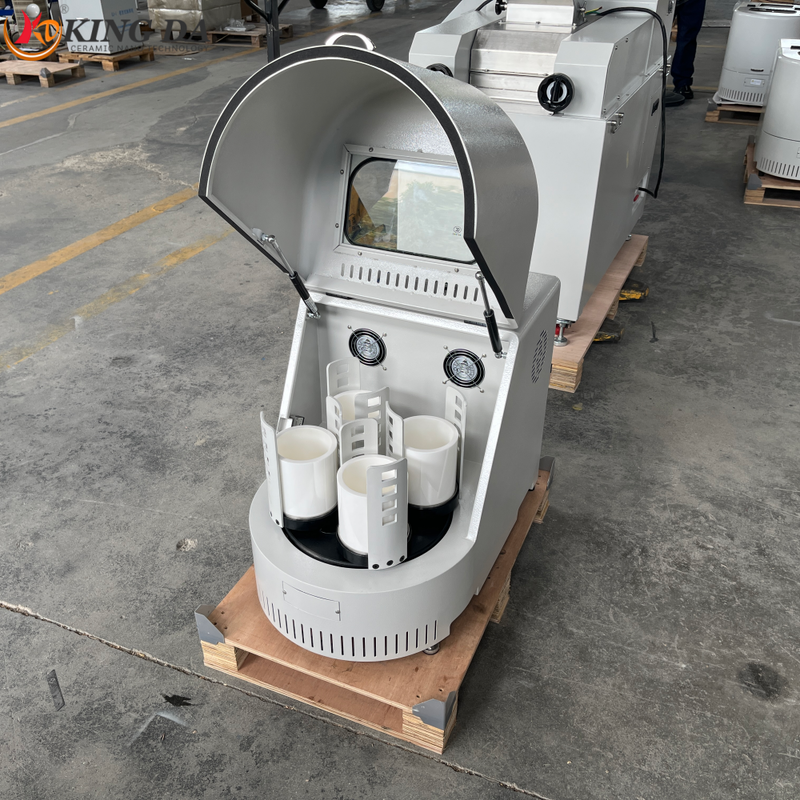

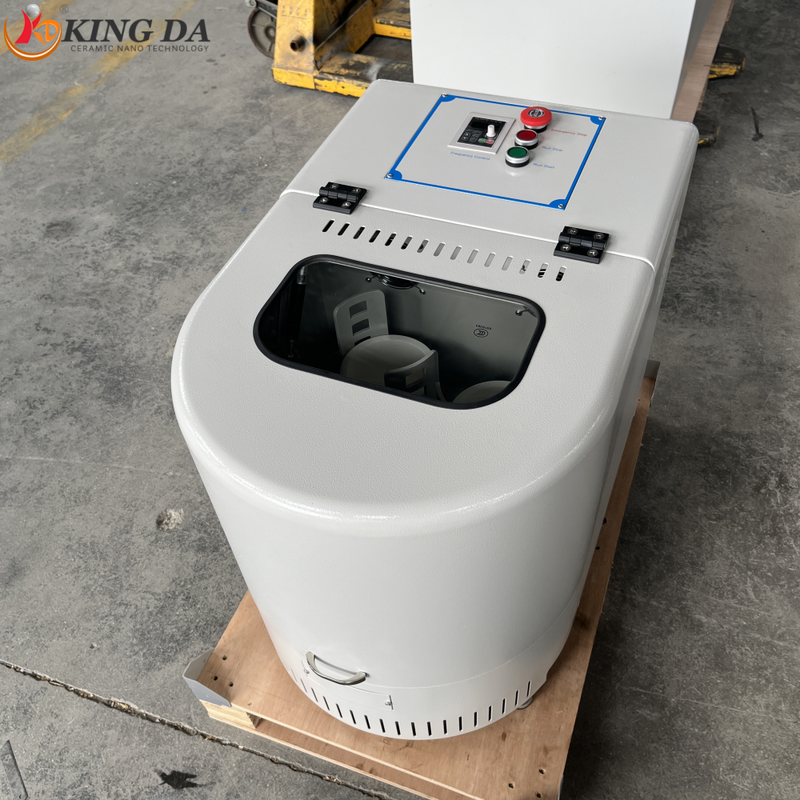

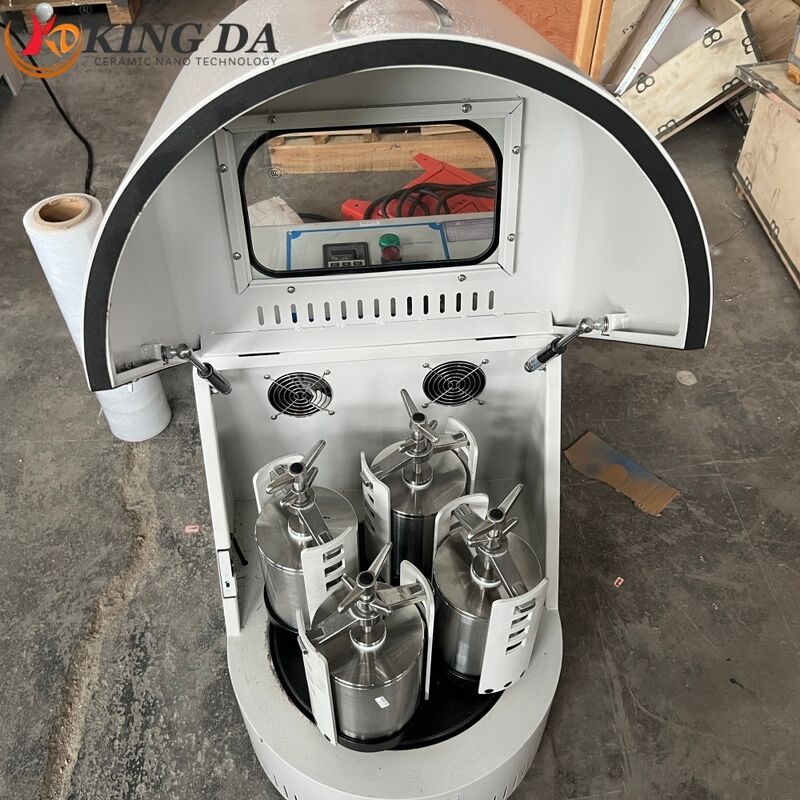

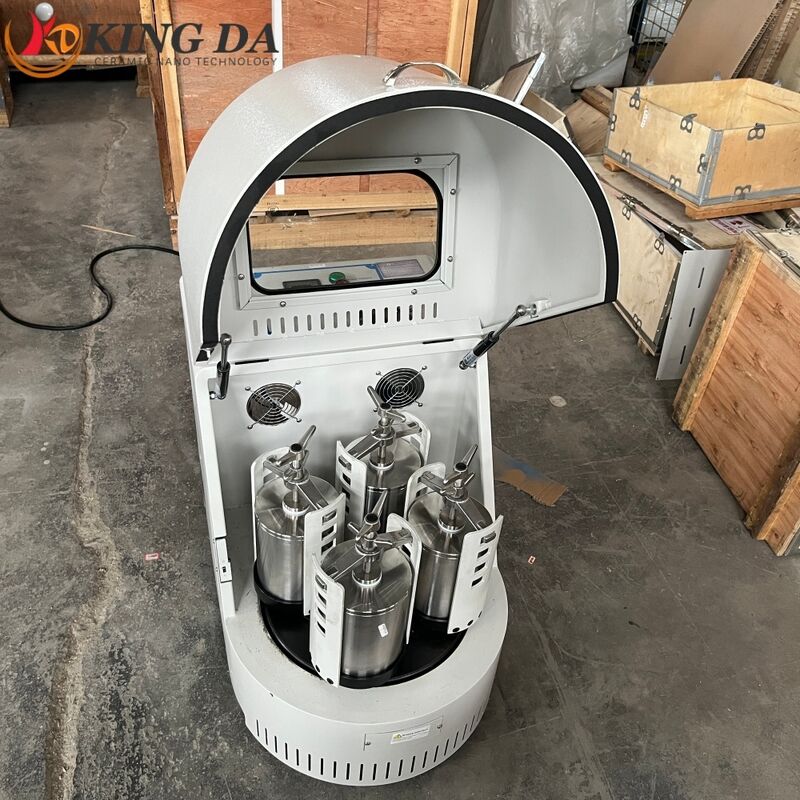

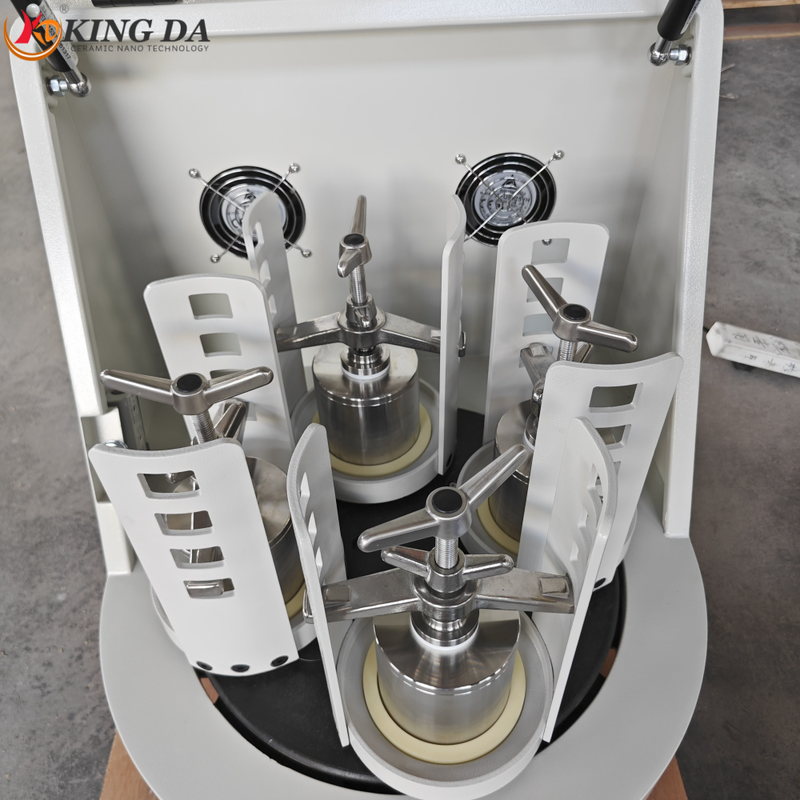

4L Vertical Lab Planetary Ball Mill with Zirconia Grinding Jars

Mid-capacity enterprise-grade planetary ball mill designed for advanced materials processing with 0.1μm nano output precision.

Product Description

The 4L Vertical Lab Planetary Ball Mill is the ideal mid-capacity solution for enterprise laboratories requiring higher throughput while maintaining precision. With four grinding stations compatible with jars from 250ml to 1000ml, it delivers reliable, reproducible results for advanced materials research and quality control.

Equipped with high-quality zirconia grinding jars, the machine employs planetary movement to ensure uniform particle size reduction to 0.1μm. The frequency converter provides stepless speed control with comprehensive safety protections.

It is extensively applied in Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, and Environmental Protection.

Applications

• Enterprise Quality Control Labs: Consistent sample preparation for batch testing
• Advanced Ceramics Research: Precise particle size control for ceramic powder processing
• Pigment and Ink Production: Uniform grinding for consistent color and dispersion
• Waste Treatment Research: Efficient grinding of recycled materials into reusable granules

Features

• 4L capacity with four grinding stations for batch processing
• 0.1μm minimum output for nano-scale precision
• Stepless frequency-controlled speed regulation 70-670 RPM
• 72-hour continuous operation capability
• Gear drive transmission for stable, repeatable results
• Positive and negative revolving with timing options
• Safety interlock switch on protective cover

Technical Specifications

Accessories

Compatible grinding jars: Zirconia, Alumina, Agate, Tungsten Carbide, Stainless Steel, Nylon, PTFE. Sizes: 250ml, 500ml, 1000ml.

Package & Shipping

PE Foam + Cartons / Wooden Cases. Ports: Shanghai, Guangzhou, Tianjin, Qingdao. Delivery: 3-7 Days from payment receipt.

FAQ

Q: What is the maximum sample volume per jar?
A: Up to 2/3 of jar capacity. With 1000ml jars, total processing is up to 2.6L per batch.

Q: Can vacuum grinding be performed?
A: Yes, with optional vacuum ball mill jars.

Our Service

Custom grinding ball production available. Pre-delivery testing on all goods. 1-year warranty with video technical support. 2-hour response time.

About Kingda

HUNAN KINGDA CERAMIC TECHNOLOGY CO.,LTD is a manufacturer of grinding media balls, grinding jars, zirconium dioxide, and zirconia structures. Our products serve laboratories at Oxford University, Loughborough University, Peking University, and Tsinghua University.
