Laboratory Planetary Ball Mill 0.4L Vertical Grinding Machine for Nano Powder

Laboratory Planetary Ball Mill 0.4L Vertical Grinding Machine for Nano Powder

Place of Origin:

Hunan, China

Brand Name:

Kingda

Certification:

CE ISO

Model Number:

KD-XQM-1L

Contact Us
Request A Quote
Laboratory Planetary Ball Mill 0.4L Vertical Grinding Machine for Nano Powder
Laboratory Planetary Ball Mill 0.4L Vertical Grinding Machine for Nano Powder Laboratory Planetary Ball Mill 0.4L Vertical Grinding Machine for Nano Powder Laboratory Planetary Ball Mill 0.4L Vertical Grinding Machine for Nano Powder Laboratory Planetary Ball Mill 0.4L Vertical Grinding Machine for Nano Powder Laboratory Planetary Ball Mill 0.4L Vertical Grinding Machine for Nano Powder Laboratory Planetary Ball Mill 0.4L Vertical Grinding Machine for Nano Powder
Product Details
Working Style:
High-speed Universal
Power Source::
Electricity
Power Supply::
110V-60Hz Or 220-50Hz 0.32kw
Matchable Jar Volume::
0.2-100L
Feeding Size (mm):
1 - 100 Mm
Rotation Speed::
90-870 Rpm
Application:
Grinding / Polishing / Despersing
Warranty:
1 Year
After Warranty Service::
Video Technical Support
Packing:
PE Foam + Cartons / Wooden Cases
Customization::
Available
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
PE Foam + Cartons / Wooden cases
Delivery Time
3-7 Days
Payment Terms
L/C,D/A,D/P,T/T,Western Union
Supply Ability
1000 Set / Month
RELATED PRODUCTS
Good price Vertical Planetary Ball Mill XQM-4L 4L Jar Grinder for Lab Pilot Powder 380V online Video

Vertical Planetary Ball Mill XQM-4L 4L Jar Grinder for Lab Pilot Powder 380V

Get Best Price
Good price Y-Stabilized Zirconia Milling Jar Planetary Ball Mill Laboratory Grinding Media online Video

Y-Stabilized Zirconia Milling Jar Planetary Ball Mill Laboratory Grinding Media

Get Best Price
Good price 360 Degree Direction Planetary Ball Mill 0.4L-40L Laboratory Powder Grinding Machine online Video

360 Degree Direction Planetary Ball Mill 0.4L-40L Laboratory Powder Grinding Machine

Get Best Price
Good price Efficient Planetary Ball Mill Ceramic Oxide Metal Samples Grinding Machine online Video

Efficient Planetary Ball Mill Ceramic Oxide Metal Samples Grinding Machine

Get Best Price
Contact Us
Contact Now
Product Description
Laboratory Planetary Ball Mill 0.4L Vertical Grinding Machine for Nano Powder
Essential equipment for high-tech materials mixing, fine grinding, sample preparation, new product development, and small batch production. This compact yet powerful machine features high efficiency, low noise operation, and versatile functionality, making it ideal for R&D institutions, universities, and enterprise laboratories.

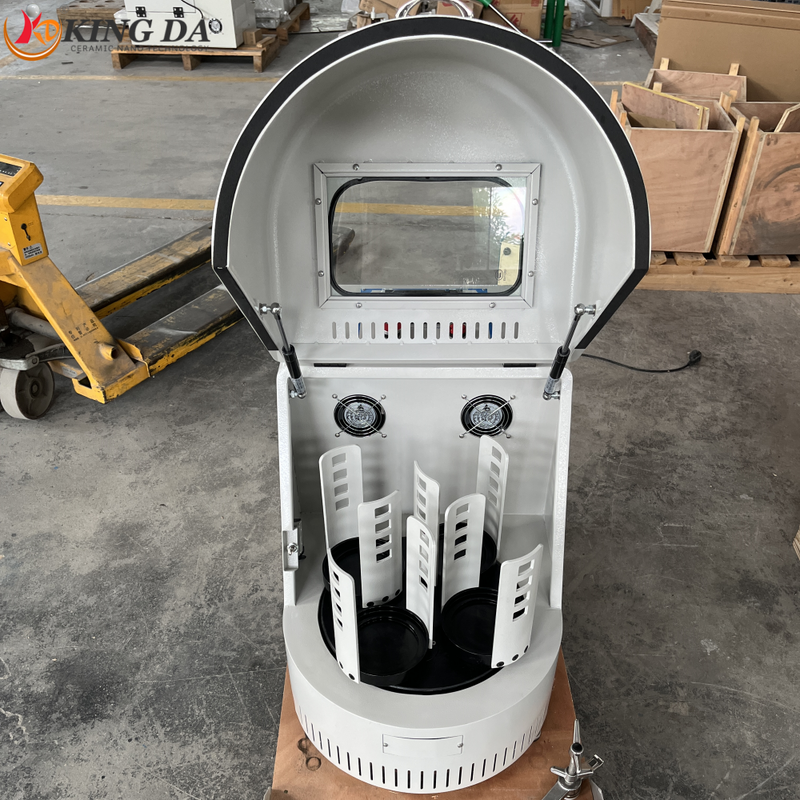

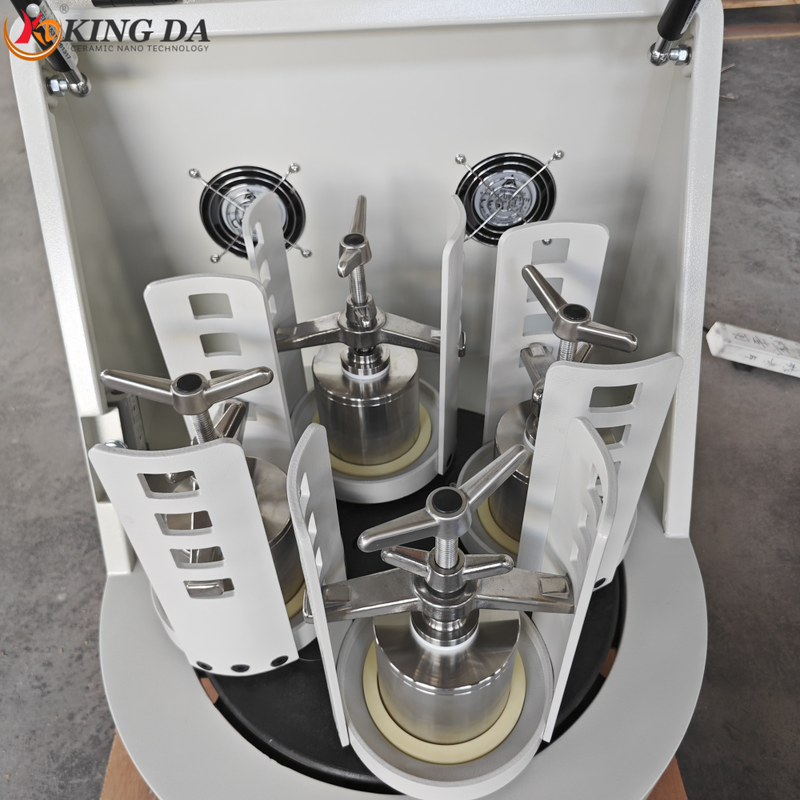

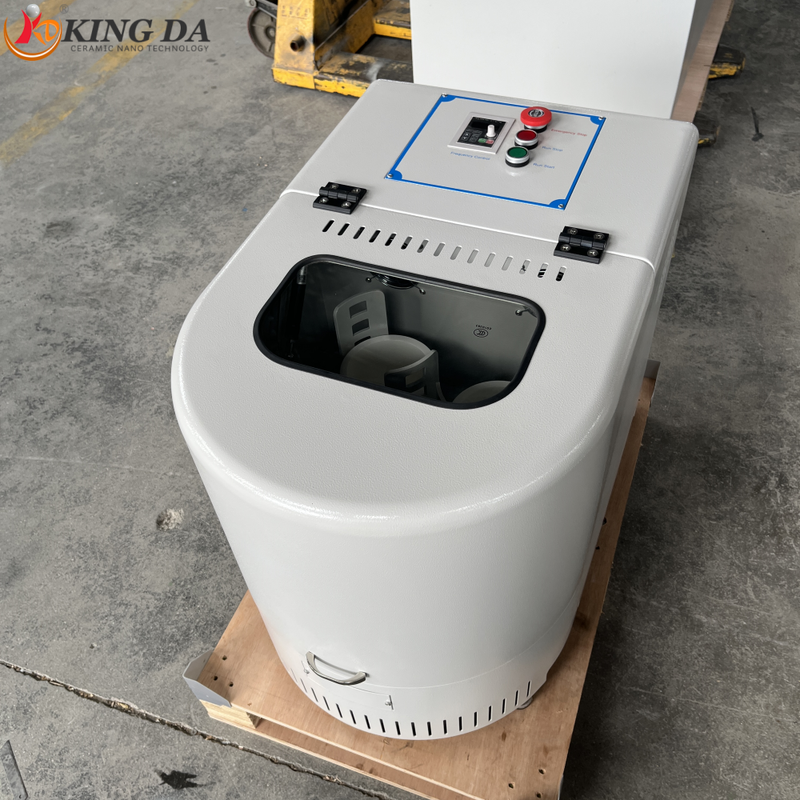

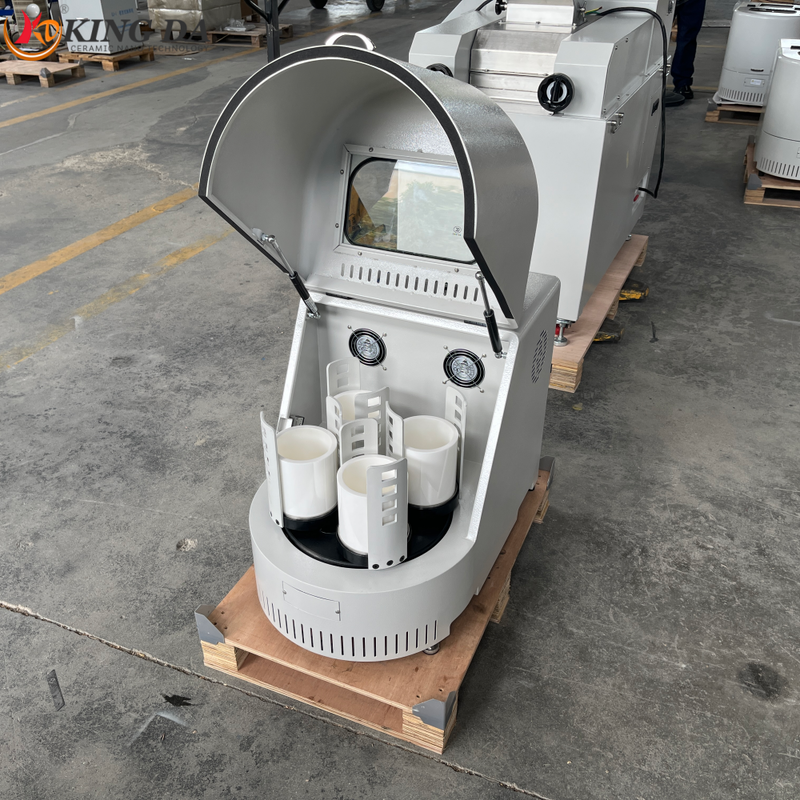

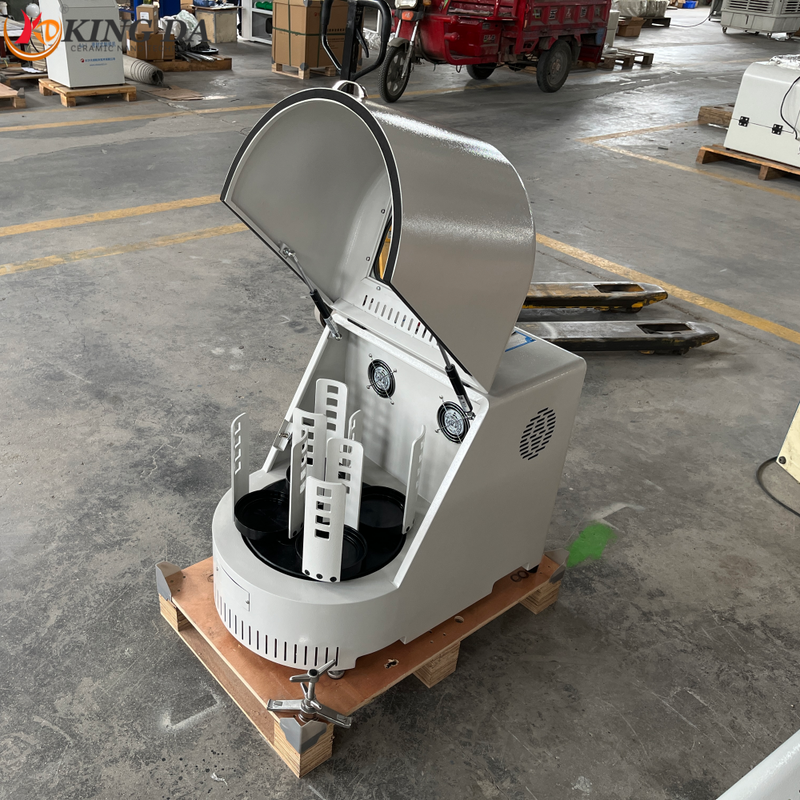

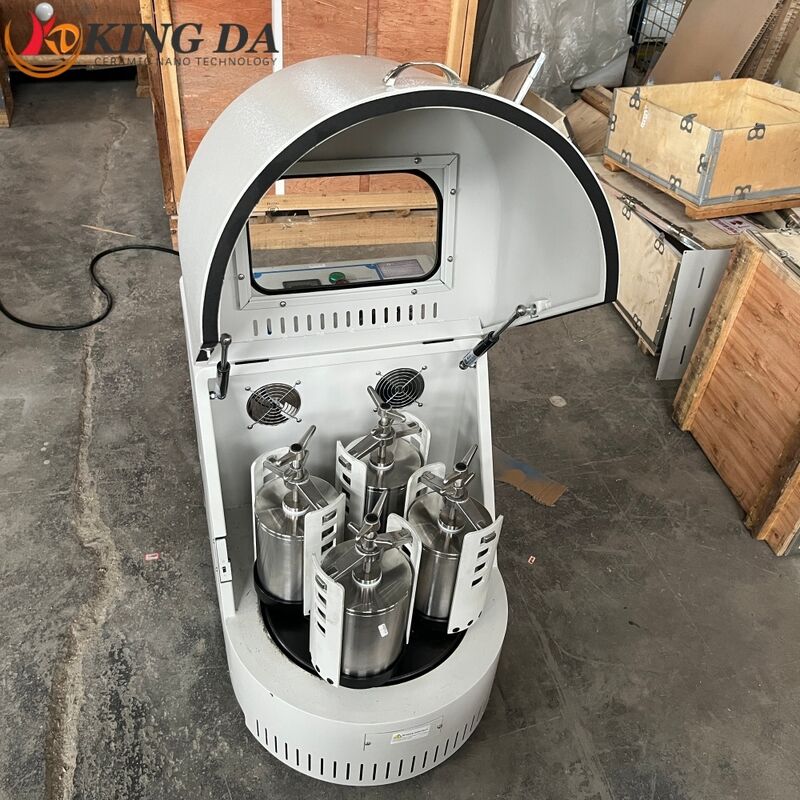

Laboratory Planetary Ball Mill Machine in operation
Technical Specifications
Feature Specification
Drive Mode Gear drive / Belt drive
Operation Mode 2 / 4 grinding tanks working together
Maximum Loading Capacity 2/3 of the capacity of milling tank
Output Granularity Minimum 0.1um
Rotation Speed 0.4L: 0-600 rpm; 2L: 0-580 rpm; 4L: 0-530 rpm; 20L: 0-280 rpm
Max. Continuous Operating Time 72 hours (full-load)
Planetary Ball Mill technical parameters and specifications
Available Models
Model Power (KW) Voltage Dimension (mm) Weight (KG)
KD-XQM-1 0.75 220V-50Hz 750*470*564 80
KD-XQM-2 0.75 220V-50Hz 750*470*564 80
KD-XQM-4 0.75 220V-50Hz 750*470*564 80
KD-XQM-8 1.5 220V-50Hz 900*600*640 132
Note: We also supply 110V-60Hz models. All equipment includes frequency converter.
Grinding Jars & Media Options
Various grinding jar options and configurationsAdditional grinding jar selection and sizesGrinding ball options and material types
To prevent excessive abrasion, the hardness of grinding jars and balls must exceed that of the material being processed. Normally, jars and balls of the same material should be selected, with sizes determined experimentally when necessary.
Available Grinding Media Materials
  • Stainless steel
  • Zirconia
  • Alumina
  • PU
  • Steel carbon
  • Tungsten
  • Agate
  • Hard metal
  • Silicon nitride
  • High wear resistant steel
  • Manganese steel
  • Cemented carbide
  • Crystal glass
Why Choose Our Planetary Ball Mill?
  • 14 years of manufacturing experience with CE, ISO 9001 and SGS certifications
  • High-quality machines with competitive pricing and 18-month warranty
  • Ready-to-use equipment requiring no assembly with easy maintenance
  • Wide selection of compatible grinding jars and media balls
  • Compatible with Retsch and Fritsch milling systems
  • Professional team providing 24/7 support
  • Global customer base with distributors worldwide
  • Custom machine configurations available
  • Fast delivery within 3-7 working days
After-Sales Support
Technical support services and customer assistance
Technical Support
  • 24/7 support via phone, email, WhatsApp, WeChat or Skype
  • Comprehensive English manuals and operation videos
  • Pre-adjusted machines delivered ready for immediate use
  • Free training and lifetime technical support
Warranty
18-month warranty covering any quality issues with the main unit under normal usage conditions, including free replacement parts during warranty period.
Customer service and support illustration
Additional Services
  • Custom grinding ball production available
  • Rigorous pre-shipment testing
  • Quick response within 12 hours for any inquiries
Packaging & Shipping
  • Package Type: PE Form + Cartons / Wooden cases
  • Port: Shanghai, Guangzhou, Tianjin, Qingdao
  • Delivery Time: 3-7 working days after payment
Product packaging example and shipping materials
Frequently Asked Questions
What sizes are available?
We offer models from 0.2L to 100L capacity.
What are your delivery terms?
FOB, CFR, CIF available.
Do you accept sample orders?
Yes, samples available with customer covering courier costs.
What is your production time?
Typically 3-7 days after receiving advance payment.
Company Profile
Company facilities and manufacturing plant
Hunan Jing Sheng Da Ceramic Technology Co., Ltd, established in 2016 and located in Changsha City, operates under the brand "KINGDA". We specialize in the design, R&D, manufacturing, and sales of laboratory ball mills, grinding jars, and nano grinding solutions.
Free Grinding Experiment Service
We offer complimentary material grinding experiments and particle size testing for customers who send us material samples. Our team will verify if the grinding results meet your requirements and provide professional grinding solutions based on time and efficiency parameters.
Grinding experiment process and methodologyMaterial testing process and analysisKINGDA factory overview and production facilities
Product Construction & Working Principle
Ball mill internal structure and components
Inner Structure
KINGDA planetary ball mills feature dust-resistant cast iron construction with a one-piece casting molding process for the main disk, significantly extending equipment lifespan compared to conventional splicing methods.
Working Principle
The planetary ball mill operates similarly to planetary motion in the solar system. Four or two ball mills positioned eccentrically on a turntable perform simultaneous rotation and revolution (1:2 ratio). This motion generates strong Coriolis forces, creating intense impact and friction that efficiently grind samples to powder as fine as 0.1μm.
Planetary ball mill working diagram and motion principle
Additional FAQs
What's your smallest lab model?
Our 0.2L planetary ball mill (Model XQM-0.4A) measures 42*30*26cm and weighs 20kg, with larger models available up to 100L capacity.
What maintenance does the equipment require?
We use specialized wear-resistant gears for reduced noise without oil seal leakage risks. Models above XQM-20 use oil seals with proper maintenance protocols.
What are your payment terms?
30% deposit via T/T with 70% balance against B/L copy, or 100% L/C at sight. We provide product photos and B/L copies before final payment.
