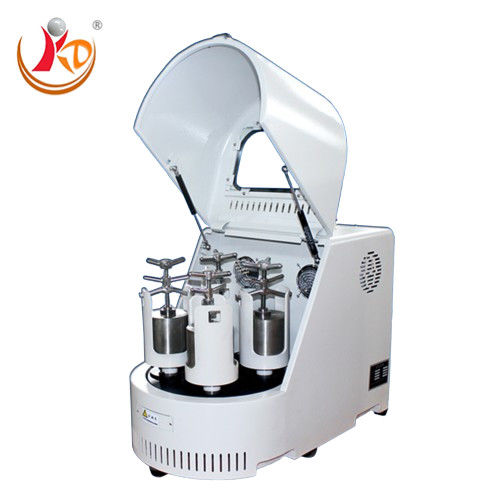

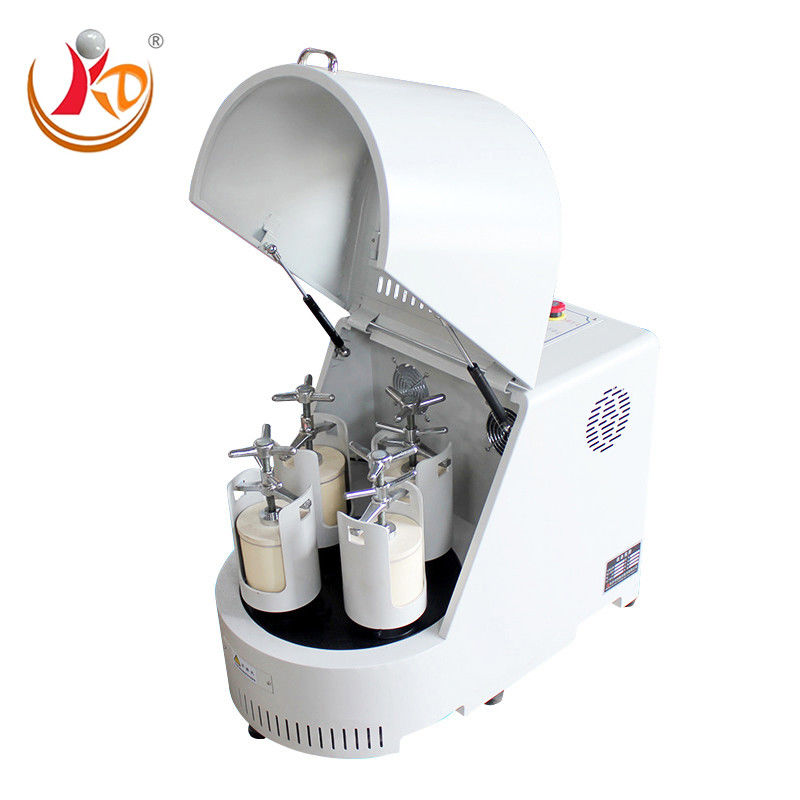

Name: Kingda Lab Semi-Circle Planetary Ball Mill with 0.1μm Granularity, 4 Grinding Tanks, and 72 Hours Continuous Operation
Brand: Hunan Jingshengda Ceramic Technology Co., Ltd
SKU: KD- XQM
Price: 50.00 USD
Availability: InStock

Home > Products > Planetary Ball Mill >

Kingda Lab Semi-Circle Planetary Ball Mill with 0.1μm Granularity, 4 Grinding Tanks, and 72 Hours Continuous Operation

220V Planetary Ball Mill

Semi- Circle Planetary Ball Mill

2L Lab Bead Mill

Place of Origin:

Hunan, China

Brand Name:

Kingda

Certification:

CE ISO

Model Number:

KD- XQM

Request A Quote

Product Details

Working Style:

High-speed Universal

Power Supply:

110V-60Hz Or 220-50Hz 0.32kw

Matchable Jar Volume:

0.4-20L

Rotation Speed:

90-870 Rpm

Applicable Industries:

Grinding / Polishing / Despersing

After Warranty Service:

Video Technical Support

Customization:

Available

Max.Continuous Operating Time:

72 Hours

Output Granule:

Smallest Granularity Can Be Achieved To 0.1μm

Feed Size Of Materials:

Soft And Crispy Materials ≤ 10mm Other Hard Materials ≤ 3mm

Materials Of Available Mill Jars:

304 Stainless Steel, 316l Stainless Steel, Zirconia, Nylon, Polyurethane, Alumina Ceramic (corundum), PTFE, Agate, Tungsten Carbide

Warranty Of Core Components:

1 Year

Highlight:

220V Planetary Ball Mill

Semi- Circle Planetary Ball Mill

2L Lab Bead Mill

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

PE Foam + Cartons / Wooden cases

Delivery Time

3-7 Days

Payment Terms

L/C,D/A,D/P,T/T,Western Union

Supply Ability

1000 Set / Month

Planetary Milling Equipment for Lithium Battery Cathode Material Processing

Get Best Price

Video

Laboratory Planetary Ball Mill Benchtop Nano Powder Grinder for Precision Material Processing

Get Best Price

Video

Low Noise High Efficiency Nano Grinding System for Small Batch Production

Get Best Price

Video

Laboratory High Energy Grinding Machine with Adjustable Speed Control

Get Best Price

15367874686

sales@kingdacera.com

Contact Now

Product Description

Kingda Lab Semi-Circle Type Planetary Ball Mill

Product Overview

The Kingda Lab Planetary Ball Mill Semi-Circle Type is an essential device for high-tech materials processing, offering precision grinding, sample preparation, and small batch production capabilities.

Essential equipment for advanced materials mixing, fine grinding, and sample development
Compact design with high efficiency, low noise operation, and versatile functionality
Capable of processing powder samples under vacuum conditions with optional vacuum ball mill tank
Four ball grinding tanks mounted on rotating platform for simultaneous sample processing
Handles various materials and granularities using dry or wet methods
Achieves minimum particle size of 0.1 micron (1.0×10⁻⁴mm)
Widely applied in geology, mining, metallurgy, electronics, construction materials, ceramics, chemical engineering, light industry, medicine, and environmental protection

Technical Specifications

Drive Mode	Gear drive / Belt drive
Operation Mode	2 / 4 grinding tanks working together
Maximum Loading Capacity	2/3 of the capacity of milling tank
Feeding Granularity	Soil material ≤10mm, other materials ≤3mm
Output Granularity	Minimum 0.1μm
Rotational Speed Ratio	1:2 (0.4L, 2L, 4L); 1:1.5 (12L, 20L)
Rotation Speed	0.4L: 0-600 rpm; 2L: 0-580 rpm; 4L: 0-530 rpm; 20L: 0-280 rpm
Speed Regulation Mode	Variable-frequency control and program-control stepless speed regulation; manual or automatic timing; positive or negative rotation
Max. Continuous Operating Time (full-load)	72 hours

Applications

Food Sample Preparation: Ensures uniform distribution of components for quality control and R&D
Pigment and Ink Production: Grinds pigment particles for uniform color and high dispersion
Cosmetic Formulation: Provides precise grinding and mixing for smooth texture and even color distribution
Waste Treatment and Recycling: Facilitates efficient grinding processes for material recycling

Key Features

Stable gear transmission ensures consistent and repeatable experimental results
Planetary movement principle delivers high speed, energy efficiency, and fine particle size reduction
Simultaneous processing of four powder samples with different sizes and materials
Frequency converter control with under-voltage and over-current protection
Multiple operation modes including timing, forward/reverse rotation, and alternation
Low center of gravity, stable performance, compact structure, and easy operation
Safety switch prevents operation when safety cover is open

Planetary Ball Mill Models

Model	Power (KW)	Voltage	Dimension (mm)	Revolution Speed (rpm)	Rotation Speed (rpm)	Weight (KG)
KD-XQM-1	0.75	220V-50Hz	750470564	35-325	70-670	80
KD-XQM-2	0.75	220V-50Hz	750470564	35-335	70-670	80
KD-XQM-4	0.75	220V-50Hz	750470564	35-335	70-670	80
KD-XQM-6	0.75	220V-50Hz	750470564	35-335	70-670	80
KD-XQM-8	1.5	220V-50Hz	900600640	35-290	70-580	132
KD-XQM-10	1.5	220V-50Hz	900600640	35-290	70-580	132
KD-XQM-12	1.5	220V-50Hz	900600640	35-290	70-580	132

Grinding Jars & Balls Selection

Available grinding jars in full sizes: Zirconia, alumina, agate, tungsten carbide, hard metal, and more.

Material Category	Recommended Mill Jar
Soil and materials sensitive to impurities	Agate mill jar
Metal & nonmetal materials sensitive to impurities	Zirconia mill jar
High hardness materials (diamond, tungsten carbide)	Tungsten carbide mill jar
Strong acid/alkali materials or high temperature applications	PTFE mill jar
Iron ore with lower impurity sensitivity	304 Stainless steel mill jar
Pigment or materials requiring high temperature processing	Nylon mill jar
Aluminum materials (ceramic glaze)	Corundum mill jar
Electronic materials (lithium battery)	Polyurethane mill jar
Easily oxidized materials or special atmosphere requirements	Vacuum mill jar

Packaging & Shipping

Packaging: PE Form + Cartons / Wooden cases; Custom packaging available according to customer requirements.

Ports: Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao Port

Delivery Time: Within 3-7 working days from payment receipt

Kingda Lab Semi-Circle Planetary Ball Mill with 0.1μm Granularity, 4 Grinding Tanks, and 72 Hours Continuous Operation 6

Frequently Asked Questions

What sizes are available in your products?

The minimum type is 1L planetary ball mill. We have other types from 0.2-100L to 100L for your options.

What are your delivery terms?

FOB, CFR, CIF.

Can you accept small quantity sample orders before production?

Yes, we can provide samples for testing, with customers covering courier costs.

What is your production time?

Generally 3-7 days after receiving advance payment. Specific timing depends on order items and quantity.

What are your payment terms?

T/T 30% deposit, 70% balance against B/L copy, or 100% L/C at sight.

Customer Service

Custom grinding balls production available
Comprehensive product testing before delivery
Dedicated customer relationship management
2-hour response time for all inquiries

About Kingda Ceramic Technology

Manufacturer of grinding media balls, grinding jars, zirconium dioxide, and zirconia structures
"Quality Is in the First Position forever" philosophy
Trusted by prestigious institutions including University of Oxford, Loughborough University, Peking University, and Tsinghua University
Commitment to high quality products and exceptional service
Established reputation for reliability and sustainability
