Zirconia Balls
>
|
|
| Place of Origin | Hunan, China |
| Brand Name | Kingda |
| Model Number | 0.1-50MM |

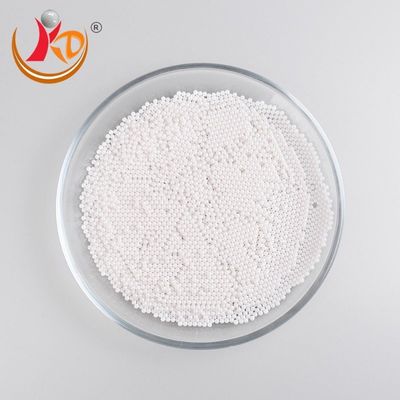

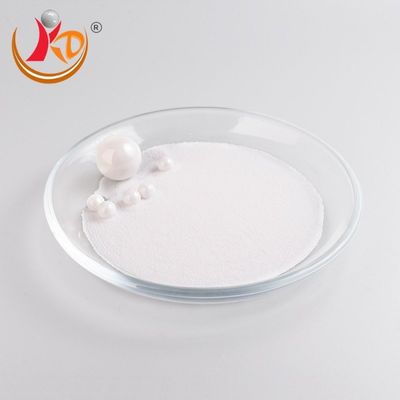

1-50mm Oxide Zro2 Ceramic Ball Ultra Fine Grinding Zirconium Beads
Product Description————————
Ultra Fine Grinding Excellence:
Elevate your grinding experience with our 1-50mm Oxide Zro2 Ceramic Ball. These ultra-fine zirconium beads redefine precision in grinding, ranging from 1 to 50mm. Crafted from high-quality zirconium oxide ceramic, they guarantee exceptional wear resistance and durability. Ideal for applications requiring ultra-fine grinding, these beads ensure a smooth and efficient milling process for various materials.
Top-Notch Zirconium Beads for Superior Performance:
Unleash the power of our 1-50mm Oxide Zro2 Ceramic Ball for ultra-fine grinding. These zirconium beads are meticulously designed to deliver superior performance in a diverse range of applications. With a size range from 1 to 50mm, they provide versatility in tackling grinding challenges. Experience the durability and efficiency of high-quality zirconium oxide ceramic for your precision grinding needs.
Versatile Zirconium Beads for Precision Applications:
Introducing our 1-50mm Oxide Zro2 Ceramic Ball, the go-to solution for ultra-fine grinding. These zirconium beads, crafted with precision, offer versatility across a spectrum of applications. The size range from 1 to 50mm caters to various grinding requirements, ensuring consistent and reliable results. Trust in the durability and excellence of zirconium oxide ceramic for your precision milling endeavors.
Application————————
1. Particularly suitable for vertical stirring mills, horizontal roller ball mills, vibrating mills and various high linear, speed pin- type sand mills.
2. For wet or dry ultrafine dispersion and grinding of pastes and powders without contamination.
3. Perfect grinding media with good flatness, smooth surface, bright,high density and high strength.
4. Wear and corrosion resistant product: coating, textile, pigment, dyeing.
5. High strength, high tenacity product: magnetic material, piezoelectric ceramics, dielectric ceramics.
6. Pollution prevention: medicine, food, cosmetics.
7. Ceramics: electronic ceramics, refractory ceramics, structural ceramics.
Properties and technique parameters————————
| Performance | Unit | Parameter |
| Component | Wt% | 95±0.2%Zro2+5±0.2%Y2O3 |
| Density | g/cm3 | 6.00-6.05 |
| Hardness | GPa | >11 |
| Elasticity Modulus | GPa | 200 |
| Thermal conductivity | W/m.k | 3 |
| Coefficient of thermal Expansion | 10*10-6/ºC(20-400) | 9.6 |
| Crush Strength | KN | ≥20(φ7mm) |
| Bending toughness | MPam1/2 | 8 |
Features————————
high hardness; good wear resisitance, corrosion resistance; high mechanical strength; low wear loss
non-conducted, low thermal conduction, high thermal expansion rate
non-greased and self lubrication
light weight with low density, decrease in centrifugal load
Matching Machine——————
Available grinding jars in full sizes:
Zirconia ball mill jar, alumina ball mill jar, Agate ball mill jar, Tungsten ball mill, hard metal mill jar and etc.
Package & Shipping————————
Package Type:
25KG/drum / 500-1000KG on pallet with shrink wrapped
Port:
Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao port.
Delivery time:
Within 3-7 working days from the date of payment receipt
Factory————————
QC————————
Laser Particle Size Analyzer Vickers hardness tester Microscopic detection Testing Meter of Powder
Specific Area
FAQ————————
1.Q: What is the size in your products?
A: Our common size is 0.08-50mm. We can also produce according to your request.
2.Q: What is your terms of delivery?
A: FOB, CFR, CIF.
3.Q: Can you accept small quantity sample order before production?
A: Yes, we can offer sample for your testing first before production, but the customers have to pay the courier cost.
4.Q: What is your production time?
A: Generally, it will take 3-7 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5.Q: What is your terms of payment?
A: T/T 30% as deposit, 70% balance against the copy of original B/L. Or 100% L/C at sight. We'll show you the photos of the products and the copy of original B/L before you pay the balance.
Our Service————————
1. We can produce other grinding balls as your need.
2. We test all the goods before delivery.
3. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
4. If you have any questions, please contact with us without any hesitation, we will reply you in 2 hours.
ABOUT KINGDA————————
1. HUNAN KINGDA CERAMIC TECHNOLOGY CO.,LTD is a manufacturer of the Grinding Media Ball, Grinding Jars, Zirconium Dioxide, Zirconia structures, etc.
2. "Quality Is in the First Position forever", we have gained a high reputation and good recognition from a lot of domestic and overseas customers such as University of Oxford, Lough borough University, Peking University, Tsinghua University, etc.
3. We promise that we would make great efforts to provide high quality grinding products and best services for all customers in the coming years.
4. Nowadays, KINGDA CERAMIC MATERIALS has gained great reputation from our business partners. We will continue to contribute the best to realize mutual benefit and sustainability.
5. We appreciate your interest and support in the efforts and passion of KINGDA CERAMIC, the company of Human Technology.
