220V Laboratory Ball Mill Planetary Mini Ball Mill Machine with CE certificate

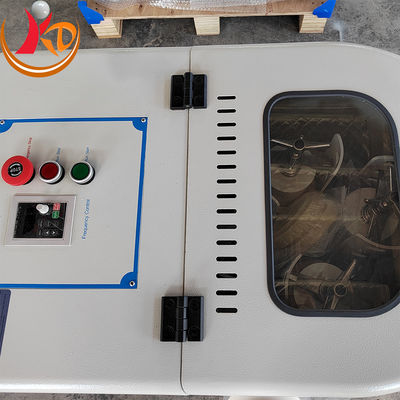

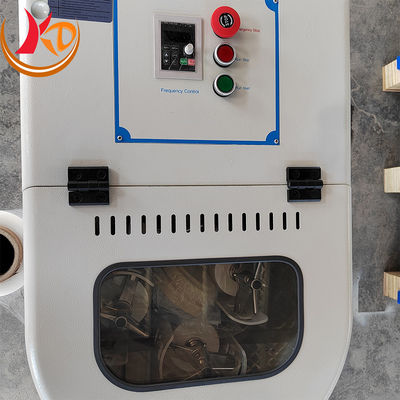

Large Image : 220V Laboratory Ball Mill Planetary Mini Ball Mill Machine with CE certificate

Product Details:

Place of Origin:	Hunan, China
Brand Name:	Kingda
Certification:	CE ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	PE Foam + Cartons / Wooden cases
Delivery Time:	3-7 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	1000 Set / Month

Contact Now

220V Laboratory Ball Mill Planetary Mini Ball Mill Machine with CE certificate

Description

Output (kg/h):	1 - 30 Kg/h	Feeding Size (mm):	0.1 - 10 Mm
Output Size (mesh):	45 - 535 Mesh	Power (kW):	0.75
Range Of Spindle Speed(r.p.m):	90 - 870 R.p.m	Voltage:	220V-50Hz
Dimension(LWH):	530300340mm	Weight (KG):	55 KG
Warranty:	1 Year	Key Selling Points:	Automatic
Machinery Test Report:	Provided	Warranty Of Core Components:	1 Year
Product Name:	Planetary Ball Mill	Model No.:	KD-0.4A
Power Supply:	110V-60Hz Or 220-50Hz 0.32KW	Rotation Speed:	90-870 Rpml
Working Position:	4 Working Positions	Matchable Jar Volume:	50ml/100ml
After-sales Service Provided:	Video Technical Support
Highlight:	220V Laboratory Ball Mill , Mini Size Planetary Ball Mill , Laboratory Planetary Ball Mill Machine

220V Mini Laboratory Planetary Ball Mill Machine

Product Overview

Technical Parameters of Mini Size Lab Vertical Planetary Ball Mill

Technical Features of Mini Planetary Ball Mill XQM-0.4A
Drive Mode	Gear Drive & Belt Drive
Operation Model	Two or four mill jars can be used in each grinding
Max Capacity	Less than 1/3 volume of each mill jar
Feed Size of Grinding Materials	Soft & crispy material ≤ 100mm Hard materials ≤ 3mm
Output Final Particle Size	The smallest particle size can reach to 0.1μm
Rotational Speed Ratio	1/2
Max Continuous Running Time	72 Hours
Mode of Speed Control	Frequency Inverter
Available Materials of Mill Jars	Tungsten carbide, Agate, 304 Stainless steel, 316L Stainless steel, Corundum, Zirconia, Nylon, PU,Alumina ceramic, PTFE, and etc.

Features of Kingda Planetary Ball Mill

1.Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.

Workshop

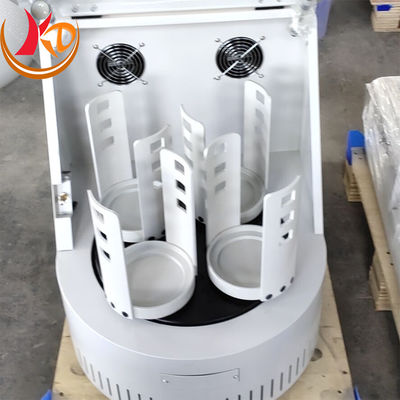

Inner structure of 0.4L Mini Size Lab Vertical Planetary Ball Mill

Kingda use dust remove cast iron and a one-piece casting molding process to make the main disk of the planetary ball mill.

This process can extend the service life of the equipment compared with splicing process of other manufacturers.

Working Principle

The lab planetary gear ball mill is named after its working mode similar to the trajectory of planetary motion in the solar system, that is, the planets revolve around the stars and rotate at the same time. On the working turntable, four or two symmetrical ball mills are installed at the eccentric position of the middle fixed gear. When the turntable rotates (revolution), it drives the ball mill to rotate around the axis of rotation, and the direction is opposite to the rotation of the turntable, forming a planetary motion. The transmission ratio of revolution and rotation is 1:2 (one revolution of revolution is two rotations of rotation). When the balls in the ball mill move together with the ball mill, they are affected by the superposition of Coriolis force (i.e., rotational deflection force), generating strong impact and friction. This combination of impact and friction allows the grinding media balls in the ball mill jar to grind and mix the samples at high speed.

Ball mill jars are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1μm.

Optional Accessories (Available mill jars & balls)

We provide all kinds of mill pots in any matched size, which are made from following materials of agate, Alumina corundum,ceramics, zirconia ceramics, silicon nitride ceramics, carborundum ceramics, stainless steel, high wear resistant steel, manganese steel, nylon, PU, cemented carbide, crystal glass, and etc

We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.

Recommendation For Matching Solutions About Mill Jars & Materials
Categories of Materials	Recommended Mill Jars
Soil and other Materials which are not allowed with any impurity	Agate mill jar
Metal & nonmetal materials which are not allowed with any impurity	Zirconia mill jar
High hardness materials like diamond, tungsten carbide	Tungsten carbide mill jar
Strong add & alkali materials or other materials at high temperature	PTFE mill jar
Iron ore materials with lower impurity sensitivity	304 Stainless steel mill jar
Pigment or other materials with later process under high temperature	Nylon mill jar
Aluminum materials like ceramic glaze	Corundum mill jar
Electronic materials like lithium battery	Polyurethane mill jar
Easily oxidized materials or some special materials which need to be protected under special atmosphere.	Vacuum mill jar

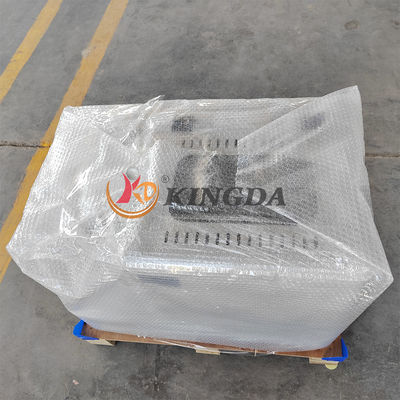

Packaging & Delivery

FAQ

1. Which procedure to secure your Quality?

Our company has own research & development and production base, the products have been calibrated by central laboratory
professionals before they leave the factory, ensure the accuracy of test results and authority.

2.What’s your warranty?

One-year warranty period is provided. If any problem while you are using the machine, you may contact Service Hotline: 0086 15367874686

3.Can you provide testing service of grinding powder experiment before we place order?

Yes. Sample powder testing is available for any customer who sends material to us, and powder testing is also free of charge.

4.Our country's power supply and plug are different, how do you solve it?

We can according to different countries and the power plug, equipped with a transformer and plug that in accordance with your local requirement.
