Durable 0.4L Vertical Lab Planetary Ball Mill for Laboratory with 90-870 RPM Speed

The KD-0.4 Planetary Ball Mill is an essential device for high-tech materials mixing, fine grinding, sample preparation, new product development, and small batch production. This vertical planetary ball mill features compact design, high efficiency, low noise operation, and versatile functionality, making it ideal for R&D institutions, universities, and enterprise laboratories.

Capable of processing four samples simultaneously, this equipment can obtain powder samples under vacuum conditions when equipped with vacuum ball mill jars.

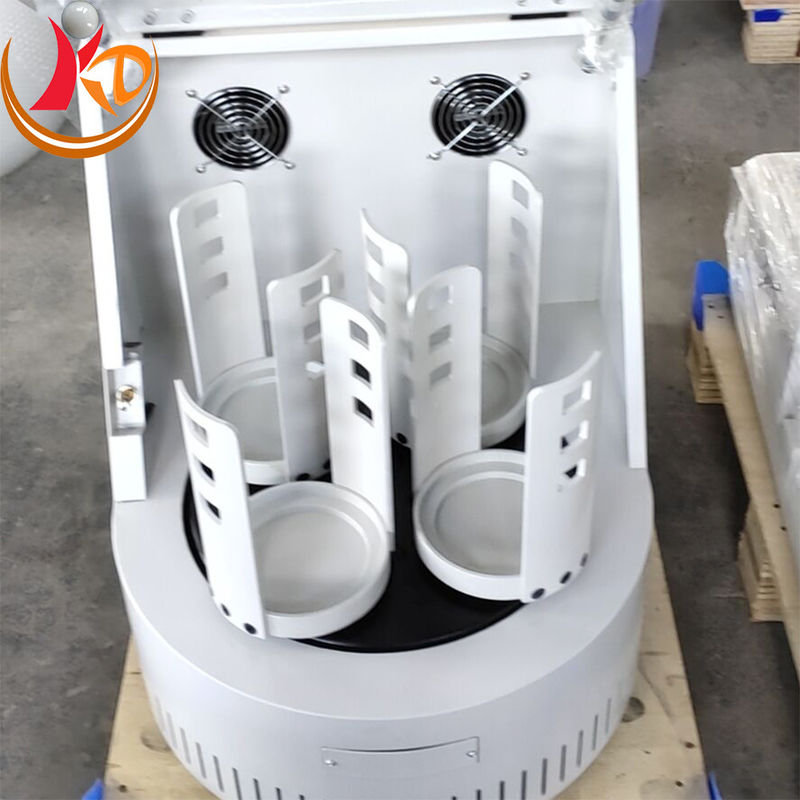

The planetary ball milling machine features four ball grinding jars mounted on a single turntable. When the turntable rotates, the jar axes perform planetary movements, causing the balls inside the tanks to grind and mix samples through high-speed motion.

This system can effectively smash and blend various products of different materials and granularity using both dry and wet methods. The minimum achievable granularity of ground products reaches 0.1 micron (1.0×10-4mm).

Applications include Geology, Mining, Metallurgy, Electronics, Construction Materials, Ceramics, Chemical Engineering, Light Industry Medicine, and Environmental Protection.



• Stable gear transmission ensures consistent and repeatable experimental results
• Planetary movement principle delivers high speed, energy efficiency, and fine granularity
• Simultaneous processing of four powder samples from different materials and sizes

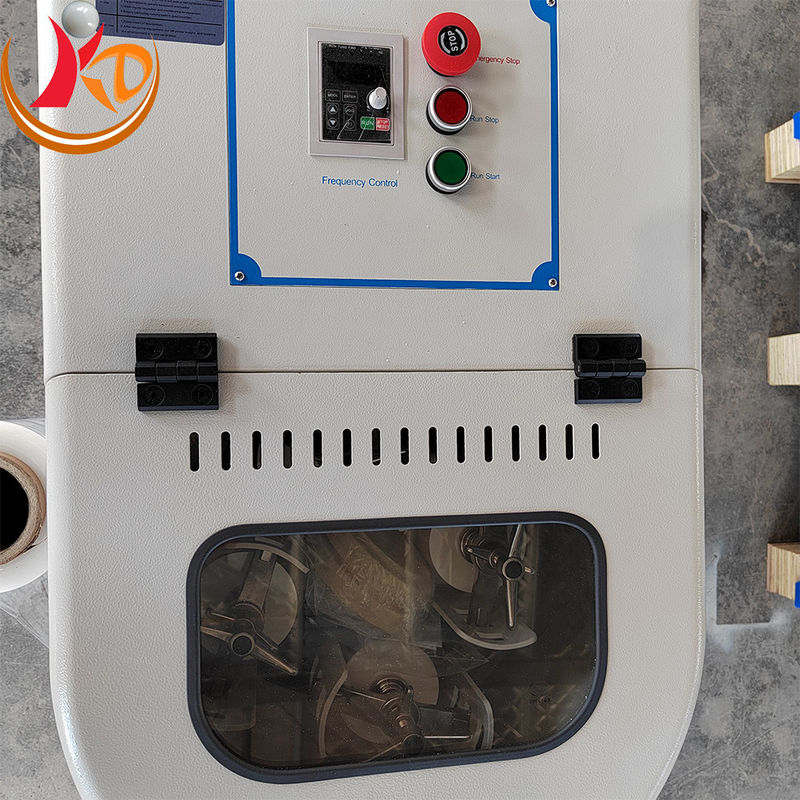

• Frequency converter control allows selection of ideal rotating speed for optimal results
• Multiple operation modes: one-way direction, alternation, succession with time settings
• Technical advantages: low center of gravity, stable performance, compact structure
• Safety switch prevents operation when safety cover is opened

Available mill jars in various matched sizes manufactured from:

Agate, Alumina corundum, ceramics, zirconia ceramics, silicon nitride ceramics, carborundum ceramics, stainless steel, high wear resistant steel, manganese steel, nylon, PU, cemented carbide, crystal glass, and other specialized materials.

Compatible mill balls include:

Stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel balls, manganese steel balls, nylon balls, cemented carbide, crystal glass, and other specialized metal materials.
