Vertical Planetary Ball Milling Machine - Durable Laboratory Ball Mill
Product Overview
The KD-0.4 Planetary Ball Mill is an essential device for high-tech materials mixing, fine grinding, sample preparation, new product development, and small batch production. This vertical planetary ball mill features compact design, high efficiency, low noise operation, and versatile functionality, making it ideal for R&D institutions, universities, and enterprise laboratories.
Capable of processing four samples simultaneously, this equipment can obtain powder samples under vacuum conditions when equipped with vacuum ball mill jars.
Working Principle
The planetary ball milling machine features four ball grinding jars mounted on a single turntable. When the turntable rotates, the jar axes perform planetary movements, causing the balls inside the tanks to grind and mix samples through high-speed motion.
This system can effectively smash and blend various products of different materials and granularity using both dry and wet methods. The minimum achievable granularity of ground products reaches 0.1 micron (1.0×10-4mm).
Applications include Geology, Mining, Metallurgy, Electronics, Construction Materials, Ceramics, Chemical Engineering, Light Industry Medicine, and Environmental Protection.

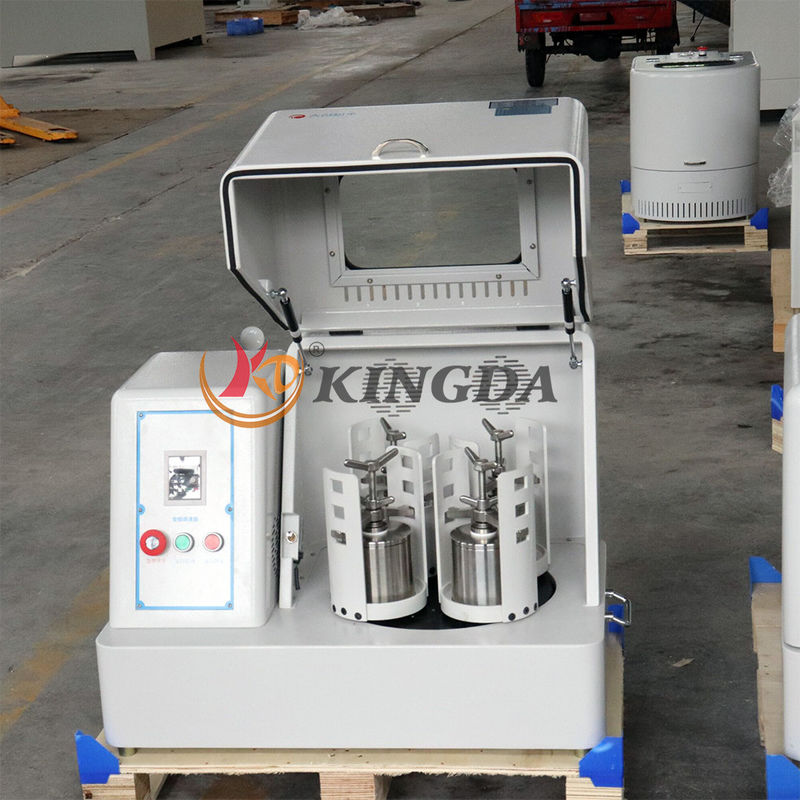

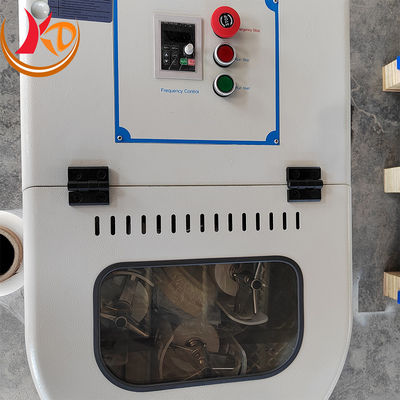

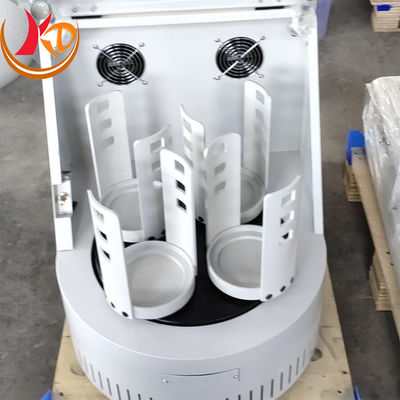

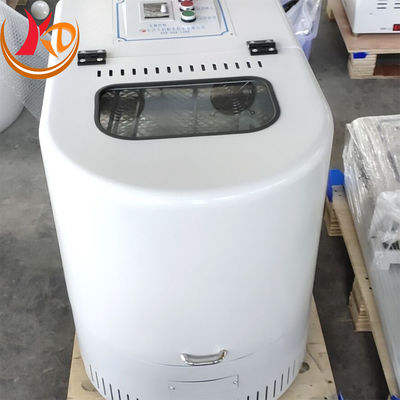

Product Display
Technical Specifications - Model KD-0.4A
| Parameter |
Specification |
| Model |
KD-0.4A |
| Power |
0.25 KW |
| Voltage |
220V-50Hz |
| Dimensions |
530×300×342 mm |
| Revolution Speed |
45-435 rpm |
| Rotation Speed |
90-870 rpm |
| Total Timing |
1-9999 min |
| Alternating Run Time |
1-9999 min |
Key Features
- Stable gear transmission ensures consistent and repeatable experimental results
- Planetary movement principle delivers high speed, energy efficiency, and fine granularity
- Simultaneous processing of four powder samples from different materials and sizes
- Frequency converter control allows selection of ideal rotating speed for optimal results
- Multiple operation modes: one-way direction, alternation, succession with time settings
- Technical advantages: low center of gravity, stable performance, compact structure
- Safety switch prevents operation when safety cover is opened
Optional Accessories:
Available mill jars in various matched sizes manufactured from:
Agate, Alumina corundum, ceramics, zirconia ceramics, silicon nitride ceramics, carborundum ceramics, stainless steel, high wear resistant steel, manganese steel, nylon, PU, cemented carbide, crystal glass, and other specialized materials.
Compatible mill balls include:
Stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel balls, manganese steel balls, nylon balls, cemented carbide, crystal glass, and other specialized metal materials.
Packaging & Delivery
Frequently Asked Questions
How do you ensure product quality?
Our company maintains its own research & development and production facilities. All products undergo calibration by central laboratory professionals before leaving the factory, ensuring accuracy and authoritative test results.
What is your warranty policy?
We provide a one-year warranty period. For any operational issues, contact our Service Hotline: 0086 15367874686
Do you provide grinding powder testing services?
Yes, we offer free sample powder testing for customers who send materials to us prior to order placement.
How do you handle different power supplies and plugs?
We can equip the machine with appropriate transformers and plugs that comply with your local country requirements.
What payment methods do you accept?
We accept T/T, L/C, D/P, and other standard payment methods.
What is your packaging method?
All equipment is packaged in standard export wooden boxes for secure international shipping.
What is your delivery timeline?
We maintain stock of regular models. Packing is completed within 3 working days after payment confirmation, with courier delivery taking approximately 5 days. Total expected delivery time is about 10 days after payment confirmation.
