Product Description————————
1. The Vertical Planetary Ball Mill stands as an indispensable device for high-tech materials mixing, fine grinding, sample making, new product development, and small batch production.
2. With its small volume, high efficiency, low noise, and versatile features, this mill is the ideal equipment for research institutions, universities, and enterprise laboratories seeking precision and reliability in sample preparation.

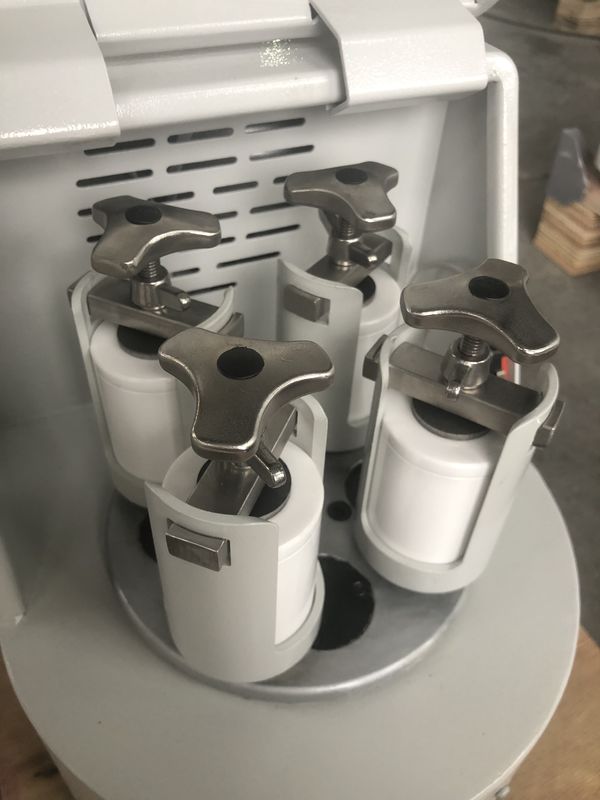

3. 0.4L planetary ball milling machine has four ball grinding tanks installed on one turnplate. When the turnplate rotates, the tank axis makes planetary movements and the balls in the tanks grinds and mixes samples in high speed movement.
4. The product can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of grinded products can be as small as 0.1 micron (i.e.) 1.0×10-4mm)
5. The generous 6L capacity of this planetary ball mill machine provides ample space for grinding and mixing, making it suitable for a variety of laboratory-scale applications.
6. Harnessing the power of planetary motion, this machine ensures uniform grinding of samples. The unique rotation and revolution motion of the planetary ball mill deliver unparalleled results in terms of particle size reduction.
Application————————
-
1. Materials Research and Development: The Vertical Planetary Ball Mill plays a crucial role in the mixing, fine grinding, and new product development of high-tech materials. Researchers can utilize its ability for small batch production, swiftly obtaining samples with high purity and precise particle size.
-
-
2. Laboratory Sample Preparation: As an ideal laboratory equipment, the Vertical Planetary Ball Mill is employed in universities, research institutions, and enterprise laboratories for sample preparation. Its small volume and high efficiency ensure the acquisition of four samples in a single experiment, enhancing experimental efficiency.
3.Nanotechnology Studies:
Delve into the world of nanotechnology with precision and control. This machine is well-suited for grinding and dispersing nanoparticles, making it an essential tool for researchers engaged in cutting-edge nanotechnology studies.
4. Culinary Research and Development:
Elevate culinary experiments with the ability to finely grind and mix various ingredients. Explore the impact of particle size on flavors and textures, enhancing the R&D process for food and beverage applications.
Technical Specifications————————
| Drive Mode |
gear drive / belt drive |
| Operation Mode |
2 / 4 grinding tanks working together |
| Maximum Loading Capacity |
2/3 of the capacity of milling tank |
| Feeding Granularity |
soil material ≤10mm, other materials ≤3mm |
| Output Granularity |
Minimum 0.1um |
| Rotational speed ratio |
1:2 (0.4L,2L,4L); 1:1.5(12L,20L) |
| Rotation Speed |
0.4L:0~600rounds/min; 2L:0~580rounds/min
4L:0~530rounds/min 20L:0-280 rounds/min |
| Speed Regulation Mode |
variable-frequency-control-type and program-control-type stepless speed regulation;
manual or automatic timed; positive or negative revolving |
Max. continuous operating time
full-load) |
72 hours |
Features————————
1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.
Types for Planetary Ball Mill————————
| Model |
Specification |
Spec(ml,L) |
Quantity (Set) |
| KD-XQM-0.4L |
0.4L |
50-100ml |
4 mill tanks |
| KD-XQM-1L |
1L |
50-250ml |
4 mill tanks |
| KD-XQM-2L |
2L |
560-500ml |
4 mill tanks |
| KD-XQM-4L |
4L |
50-1000ml |
4 mill tanks |
| KD-XQM-8L |
8L |
0.5-2L |
4 mill tanks |
| KD-XQM-12L |
12L |
1-3L |
4 mill tanks |
| KD-XQM-16L |
16L |
1-4L |
4 mill tanks |
Package & Shipping————————
Package Type:
PE Form + Cartons / Woodern cases;
Can be dispatched according to customr's requirement
Port:
Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao port.
Delivery time:
Within 3-7 working days from the date of payment receipt
FAQ————————
1.Q: What is the size in your products?
A: The minimum type is 0.4L planetary ball mill Model XQM-0.4A in size of 53*30*34cm, machine weight 26kgs. We have other types from 0.2-100L to 100L for your options.
2.Q: What is your terms of delivery?
A: FOB, CFR, CIF.
3.Q: Can you accept small quantity sample order before production?
A: Yes, we can offer sample for your testing first before production, but the customers have to pay the courier cost.
4.Q: What is your production time?
A: Generally, it will take 3-7 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5.Q: What is your terms of payment?
A: T/T 30% as deposit, 70% balance against the copy of original B/L. Or 100% L/C at sight. We'll show you the photos of the products and the copy of original B/L before you pay the balance.
6.Q: What is the working principle of planetary ball mill?
A: Please refer to this news: China Hunan jingshengda ceramic technology Co.,ltd latest company news about Working principle of planetary ball mill (ecer.com)
Our Service————————
1. We can produce other grinding balls as your need.
2. We test all the goods before delivery.
3. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
4. If you have any questions, please contact with us without any hesitation, we will reply you in 12 hours.
ABOUT KINGDA————————
1. HUNAN KINGDA CERAMIC TECHNOLOGY CO.,LTD is a manufacturer of the Grinding Media Ball, Grinding Jars, Zirconium Dioxide, Zirconia structures, etc.
2. "Quality Is in the First Position forever", we have gained a high reputation and good recognition from a lot of domestic and overseas customers such as University of Oxford, Lough borough University, Peking University, Tsinghua University, etc.
3. We promise that we would make great efforts to provide high quality grinding products and best services for all customers in the coming years.
4. Nowadays, KINGDA CERAMIC MATERIALS has gained great reputation from our business partners. We will continue to contribute the best to realize mutual benefit and sustainability.
5. We appreciate your interest and support in the efforts and passion of KINGDA CERAMIC, the company of Human Technology.
