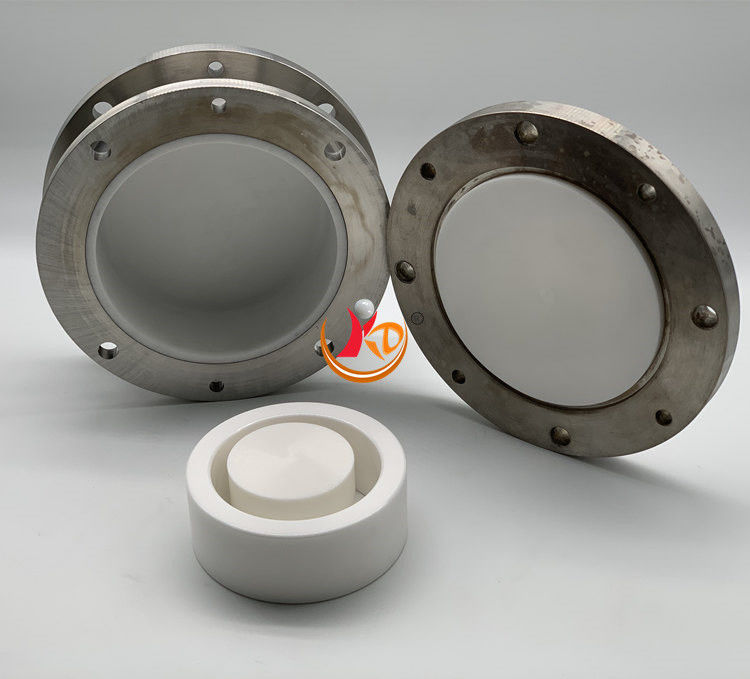

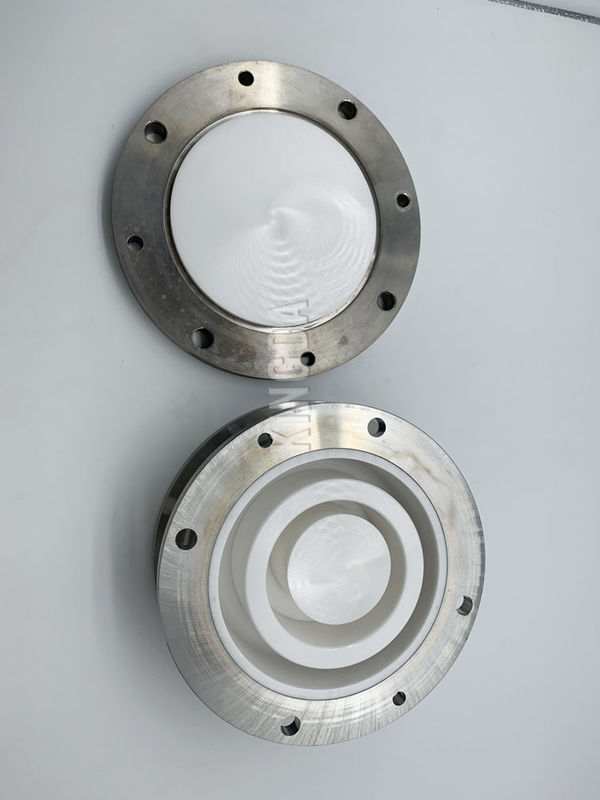

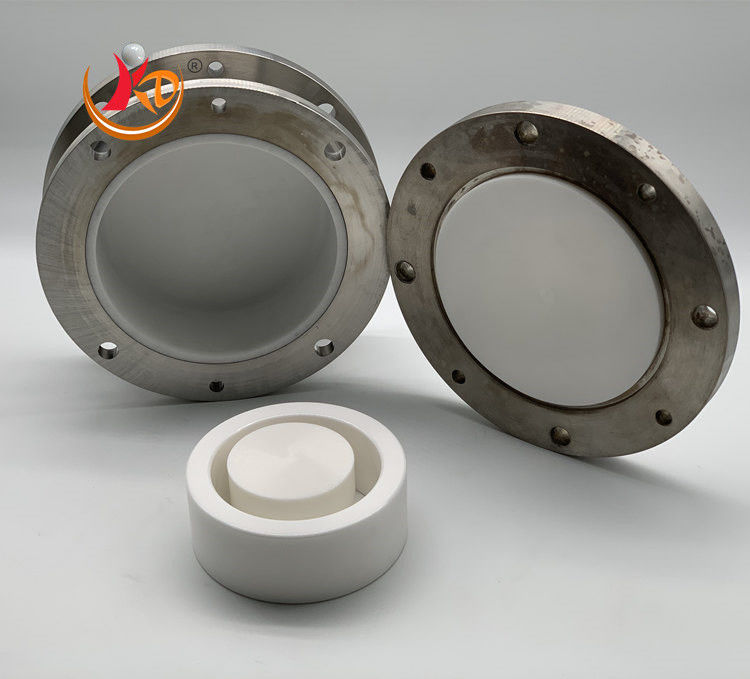

zirconia ceramic ball mill jar for retsch ball mill: 100ml zirconium oxdie grinding set
The Zirconia oxide grinding sets have been developed especially for extreme test conditions such as high sample throughput and high mechanical stress. Features include.
- safe, non-slip attachment with integral safety devices on cover and base
- gap between dish and cover edge for easy opening
- optimum sealing with O-ring
- protective jacket made from stainless steel (for agate, zirconium oxide and tungsten carbide dishes)
- grinding set identification (article number, material and volume)
- marking field (e. g. for information about sample)
- available in 3 sizes and 5 materials
Disc Mills rapidly pulverize materials such as cement, cement clinker, ceramics, coal, coke, concrete, corundum, glass, metal oxides, minerals, ores, silicate, slag, soil, etc.
Highly polished YSZ (Yttrium stabilized ZrO2) zirconium oxide jars, 60 times hardness of regular steel, highly wear-resistant and resistant to acid and solvents. The grinding jars are extensively applied on in the fields of Paint, Ink,Coating, Geology, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, Environmental Protection and so on. Each jar set includes grinding jar, jar lid, rubber sealing gasket and different sizes of mixed zirconium oxide grinding balls.
We have mass-produced various types of ball mill jars for Retsch and Fristch from Germany brand.
Retsch grinding jar: 50ml,80ml,125ml zirconium oxdie, agate, tungsten carbide grinding jar for Retsch planetary bal mill PM100,PM200,PM 400; 25ml,35ml,50ml zirconia oxide ,tungsten carbide jars for Retsch Mix mill MM 500; 50ml,100ml,250ml and 500ml zirconia oxide and tungsten carbide for Retsch vibratory disc ball mill RS200
Fritsch grinding jar: 250ml and 500ml zirconia,alumina,agate grinding jar for Fritsch P6.
We have drawings for all the above models of equipment.
We have inventory of all the above ball mill jars. Just let us talk more!
Just let us talk more! whatapp/wechat: +86 153 6787 4686
Technical indicators for Zirconia Ball mill jar
|
Composition
(%)
|
Specific Gravity
(G/CM3)
|
Bulk Density
(Kg/L)
|
Capacity
(ML)
|
|
ZrO2: 95± 0.2
Y2O3: 5± 0.2
|
≥ 6.02 |
≥3.7 |
25,50,80,100,125,250,
500,1000,2000,3000
|
Dimension for our regualar avaliable zirconia mill jar (offer OEM & ODM Service)
| Zirconia oxide Jar Volume |
OD (mm) |
ID (mm) |
Total Height (mm) |
| 25ml |
49 |
32 |
51 |
| 50ml |
55 |
38 |
67 |
| 100ml |
65 |
50 |
75 |
| 250ml |
92 |
74 |
88 |
| 500ml |
100 |
84 |
118 |
| 1000ml |
128 |
108 |
150 |
| 2.0L |
158 |
138 |
162 |
| 3.0L |
158 |
138 |
220 |
Note 1: Jar size of each patch will control tolerance ±0.1-0.2mm.
2:One set includes: jar + lid + rubber sealing gasket.
Choice of Grinding Jars & Grinding Balls
In order to prevent excessive abrasion, the hardness of the grinding jars used and of the
grinding balls must be higher than that of the material used. Normally, grinding jars and
grinding balls of the same material should be chosen.
Features of Zirconium oxdie grinding jar:
1. High specific gravity, high efficiency
2. Highly wear resistant to acid and solvents
3. High cost-effective, low wear and long lifetime
4. Highly polished, smooth, easy to clean, low abrasion to the equipment
5. High mechanical strength, good toughness, impact resistance, no broken beads
6. Mainly used for lab planetary ball mill machines
100cc zirconium oxide ball mill jar used for RETSCH VIBRATORY DISC MILL RS 200 and RS300
