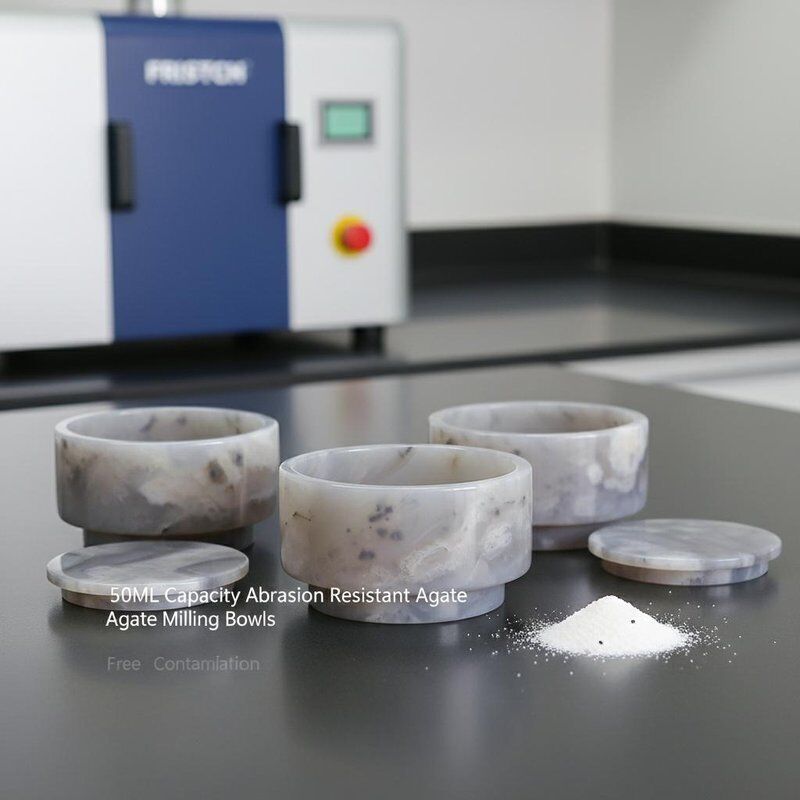

50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill

50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill

FRITSCH Agate Milling Bowls

Agate Milling Bowls with Grinding Mortar

50mL Agate Milling Bowls

Place of Origin:

Hunan, China

Brand Name:

KINGDA

Model Number:

For FRITSCH Vibrating Cup Mill PULVERISETTE 9

Contact Us
Request A Quote
50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill
Product Details
Type:
Ceramic Parts
Application:
Industrial Ceramic
Material:
Agate, Natural Agate From Brazil
Fit In Machine:
FRITSCH Vibrating Cup Mill PULVERISETTE 9
Surface:
Polishing Agate Milling Jars With Agate Mortar
Size:
50ml,100ml,250ml
Usage:
Size Reduction, Mixing,grinding,dispersing, Triturating
Abrasion Resistance:
Very Good
OEM:
Available
Shape:
Agate Cylindrical Jar, Agate Grinding Mortar And Agate Gring Ring
Product Name:
Fritsch Agate Grinding Set For Vibrating Cup Mill PULVERISETTE 9
Advantage:
Free Contamination
Highlight:

FRITSCH Agate Milling Bowls

,

Agate Milling Bowls with Grinding Mortar

,

50mL Agate Milling Bowls

Payment & Shipping Terms
Minimum Order Quantity
2 sets
Price
$1,359.00 - $1,459.00/sets
RELATED PRODUCTS
Good price 50ml TC tungstern alloy ball mill jar for laboratory ball milling machine price online

50ml TC tungstern alloy ball mill jar for laboratory ball milling machine price

Get Best Price
Good price fritsch planetary ball mill used 100ml Capacity tungten carbide tc jar China factory online

fritsch planetary ball mill used 100ml Capacity tungten carbide tc jar China factory

Get Best Price
Good price 250ml Tungsten Carbide Ball Grinding set Jar For FRITSCH Ball Mill online

250ml Tungsten Carbide Ball Grinding set Jar For FRITSCH Ball Mill

Get Best Price
Good price Fritsch milling jars 250ml zirconium Grinding set used for high energy planetary ball mill online

Fritsch milling jars 250ml zirconium Grinding set used for high energy planetary ball mill

Get Best Price
CONTACT US
15367874686
sales@kingdacera.com
Contact Now
Product Description

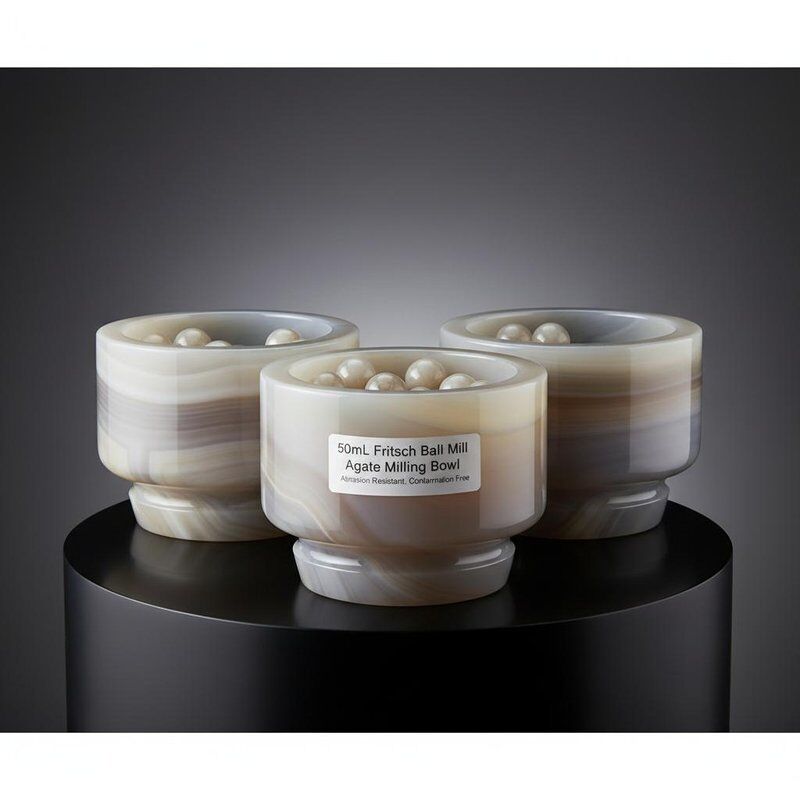

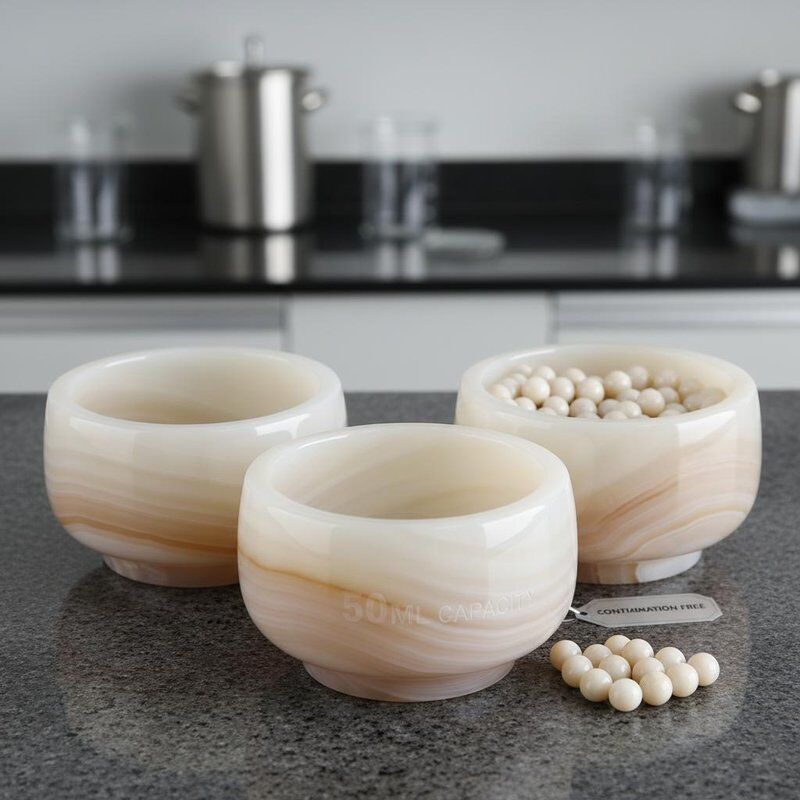

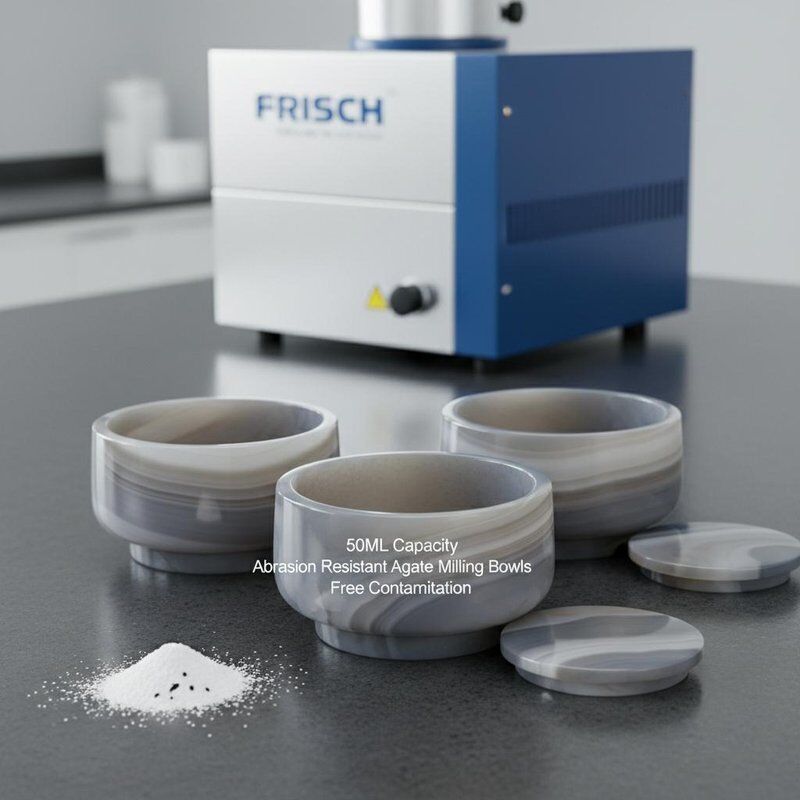

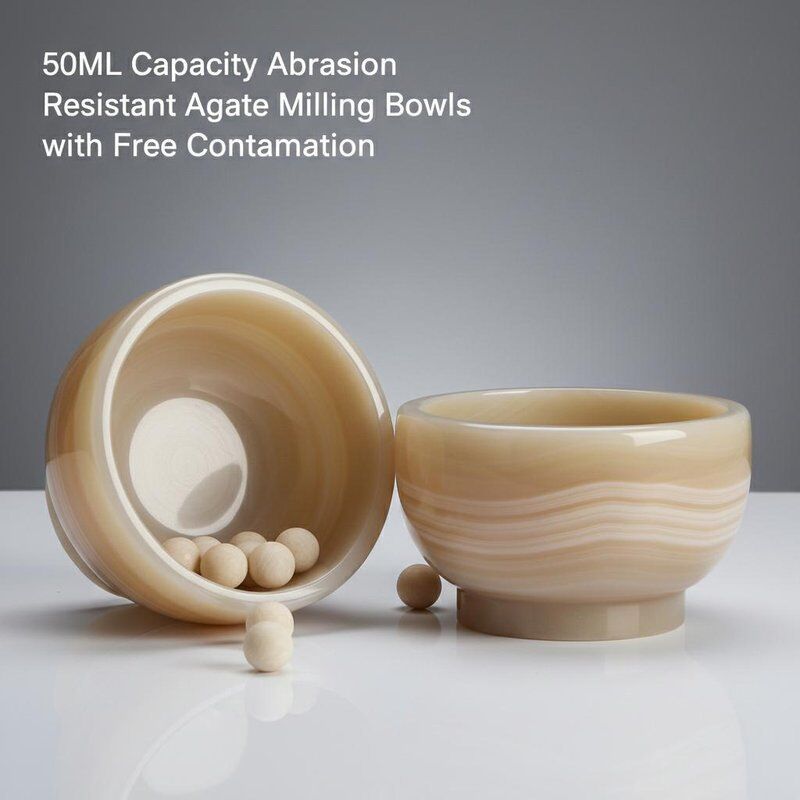

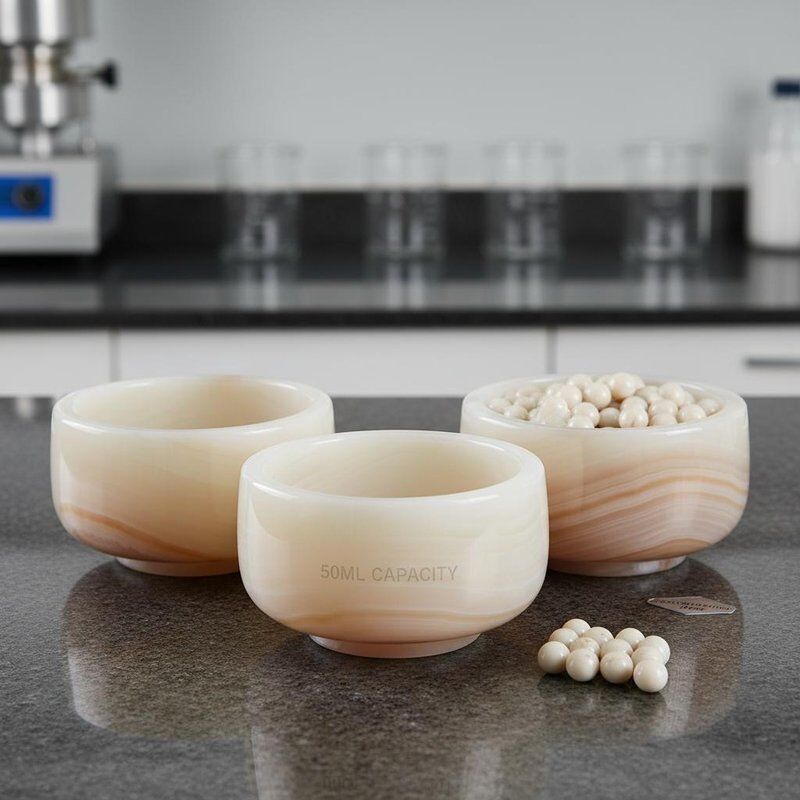

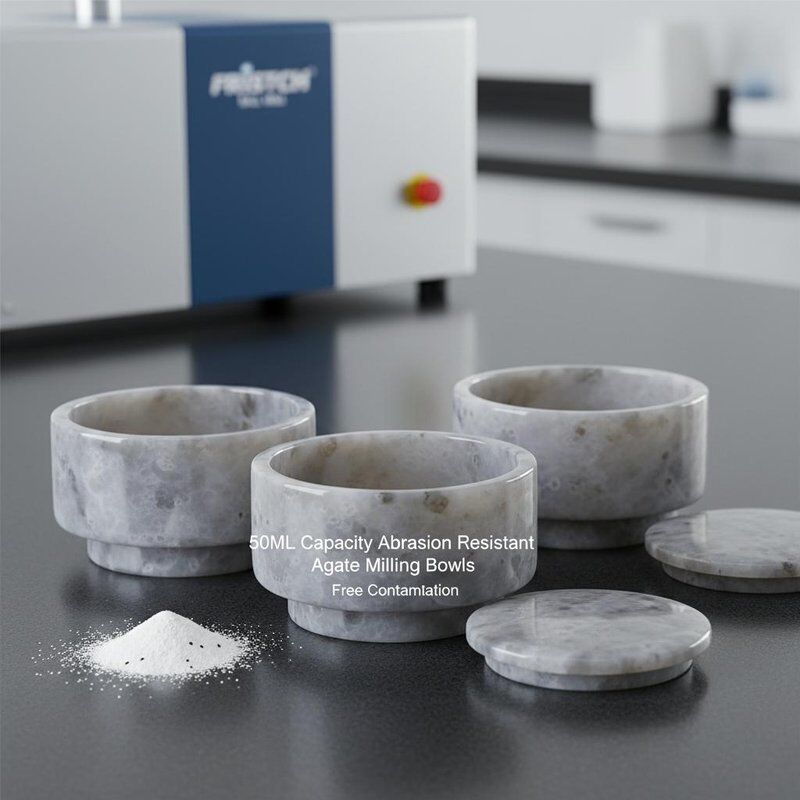

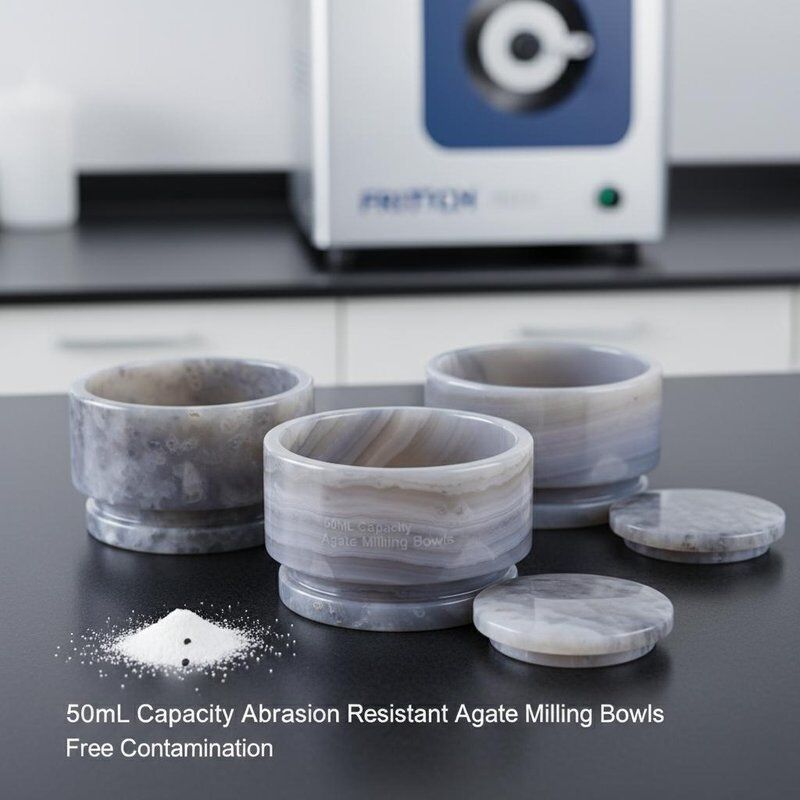

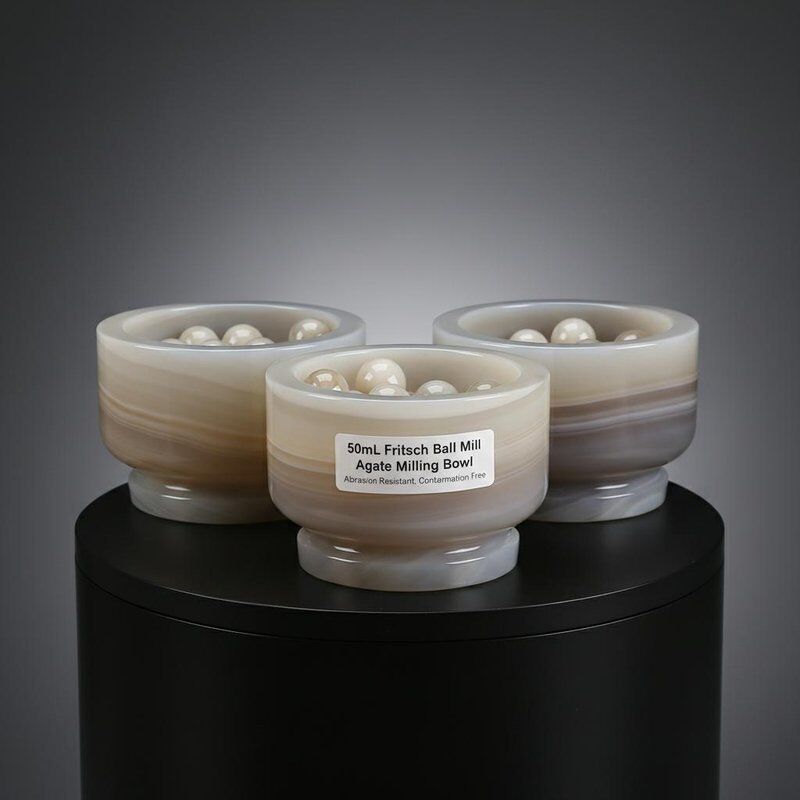

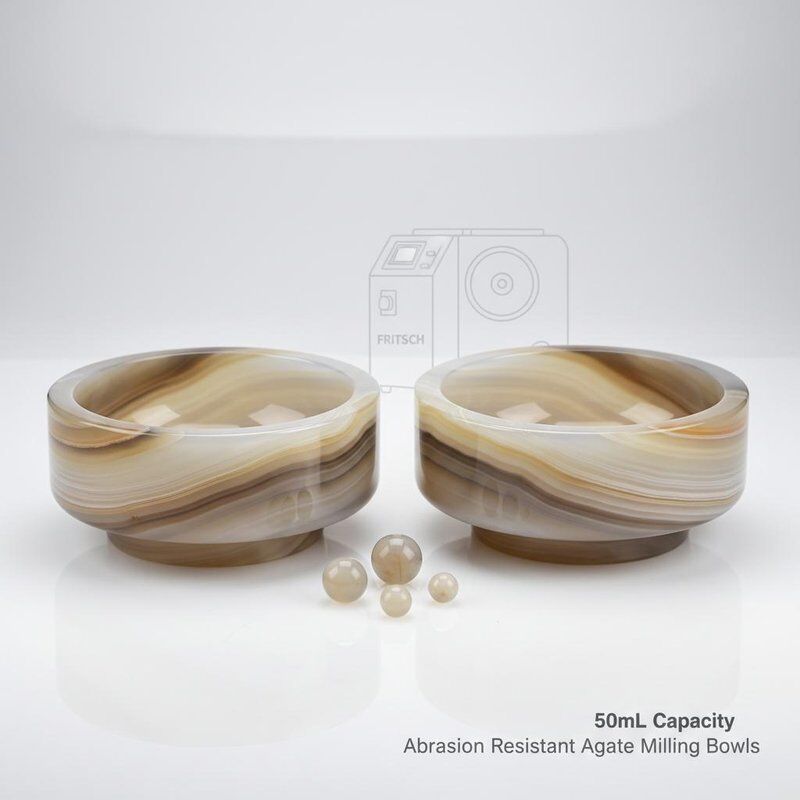

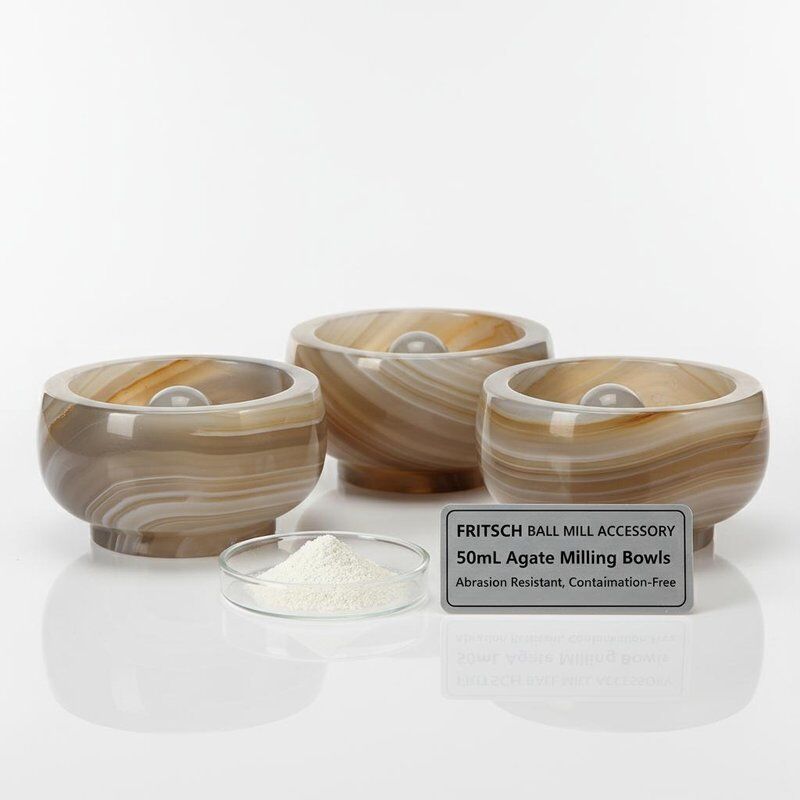

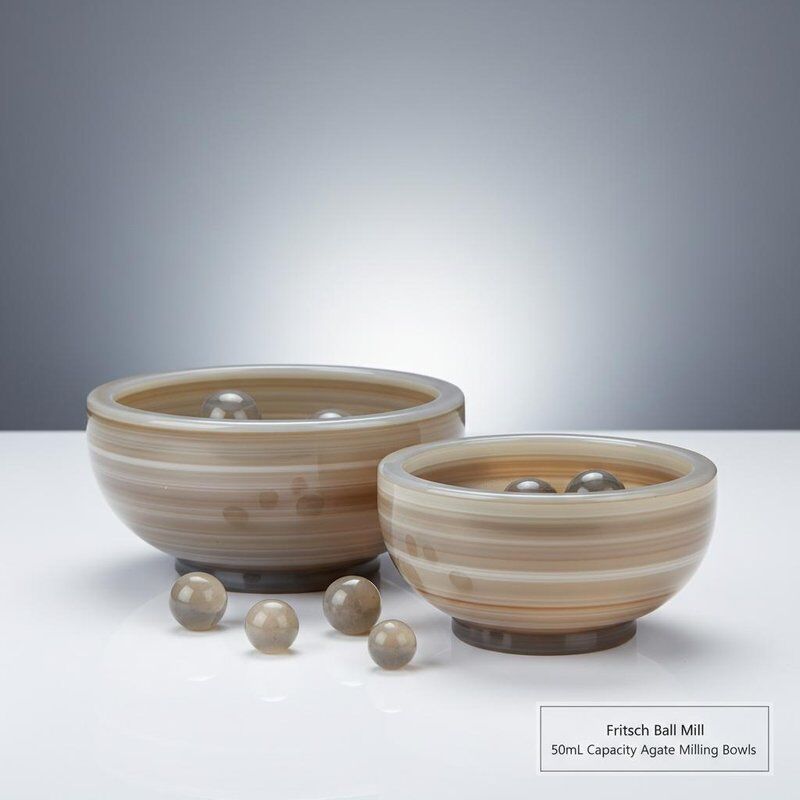

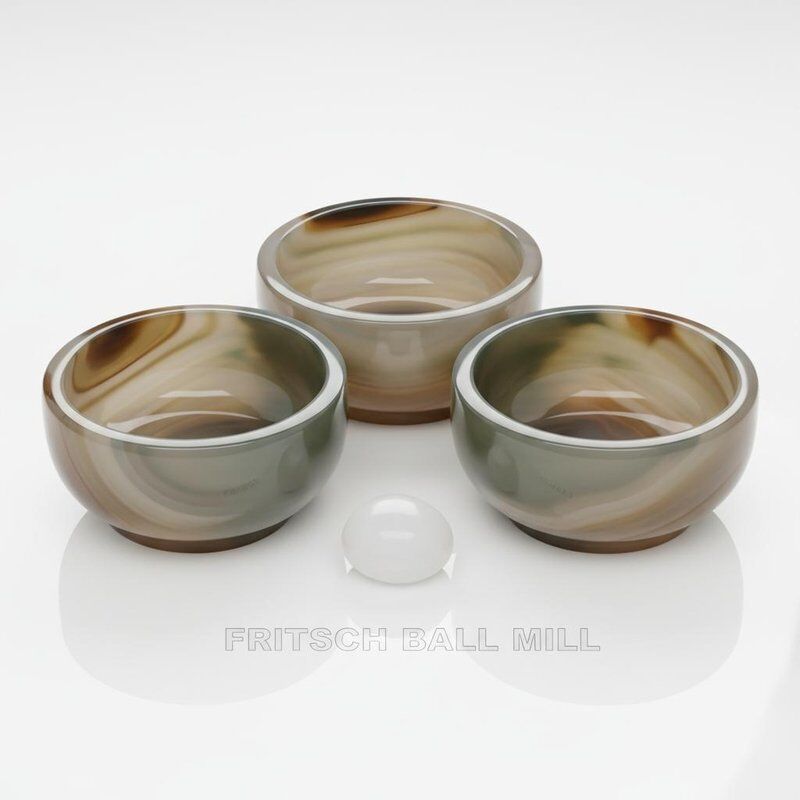

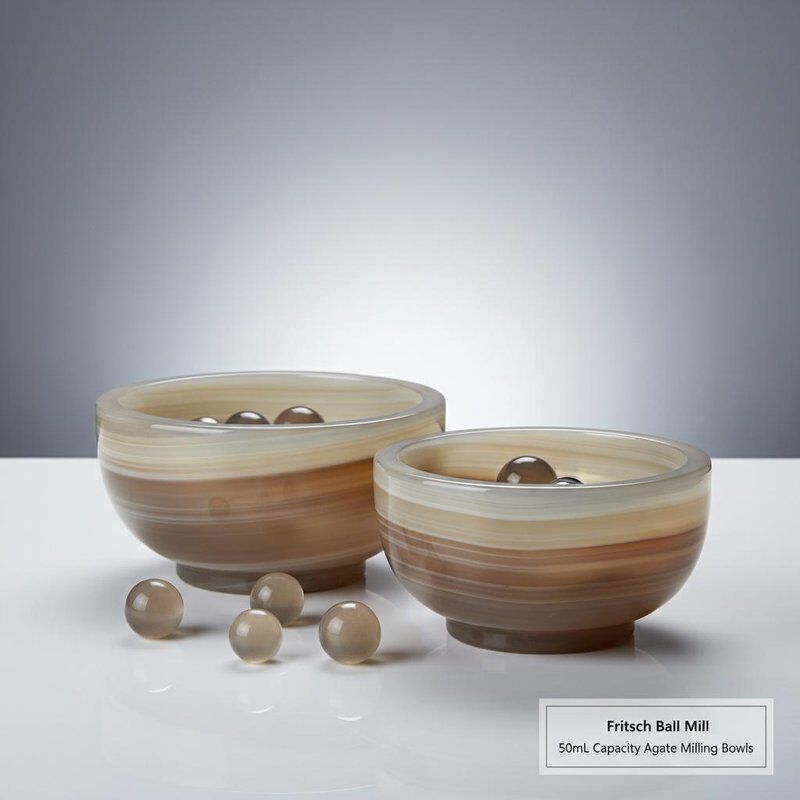

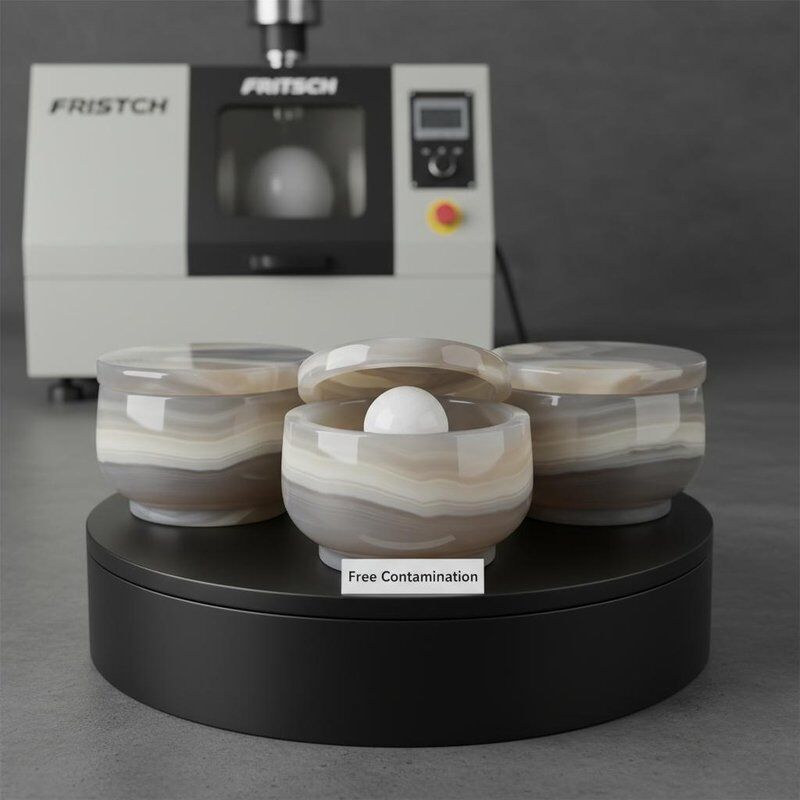

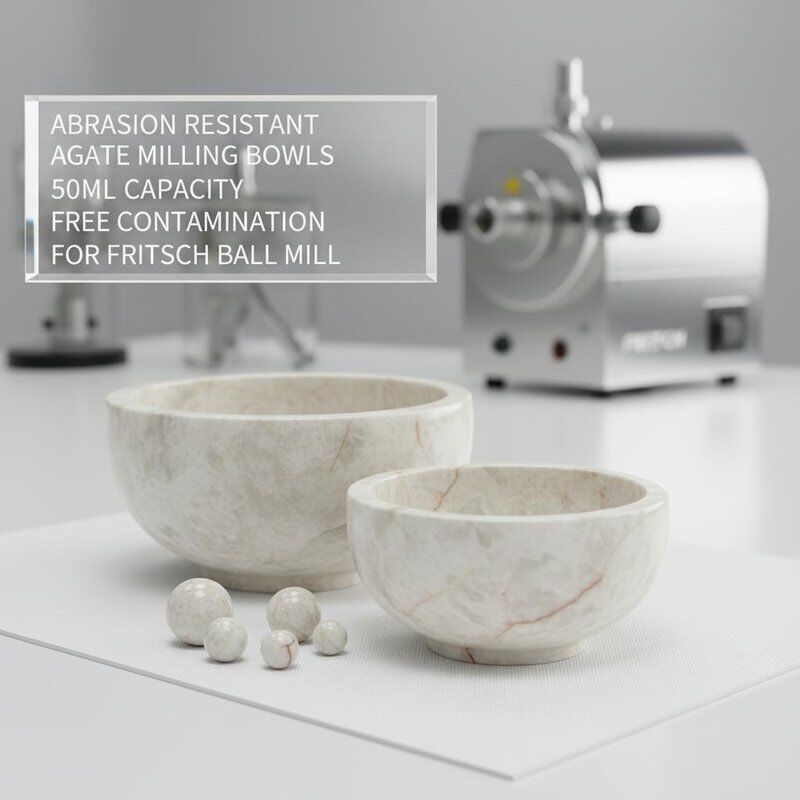

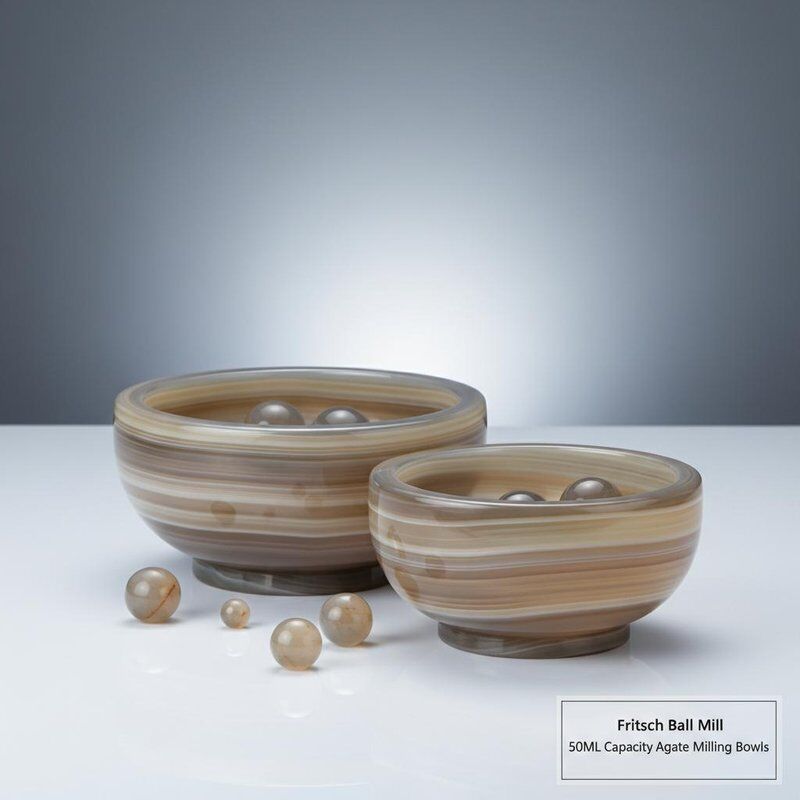

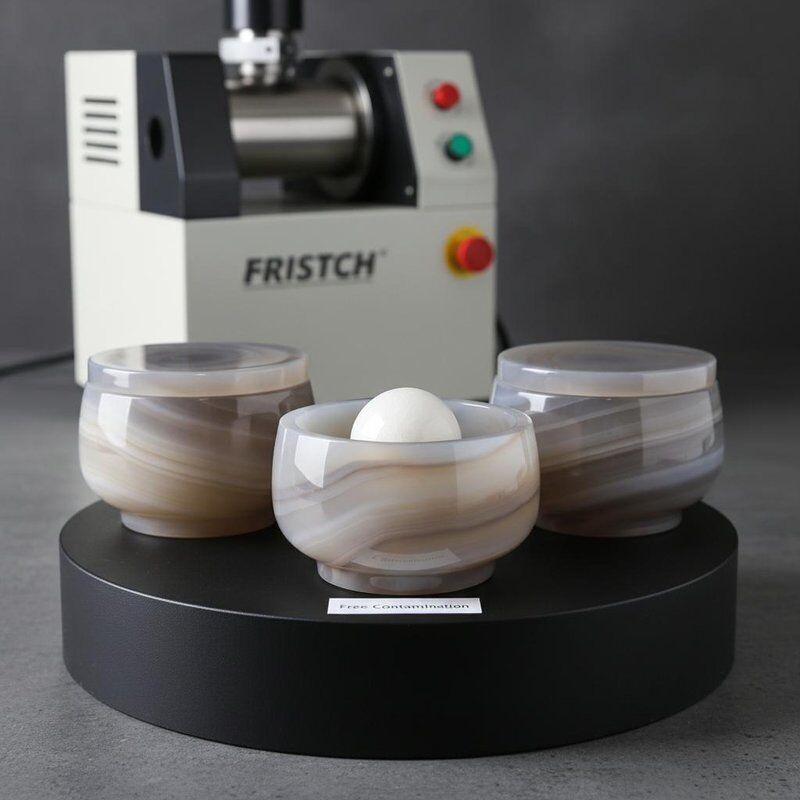

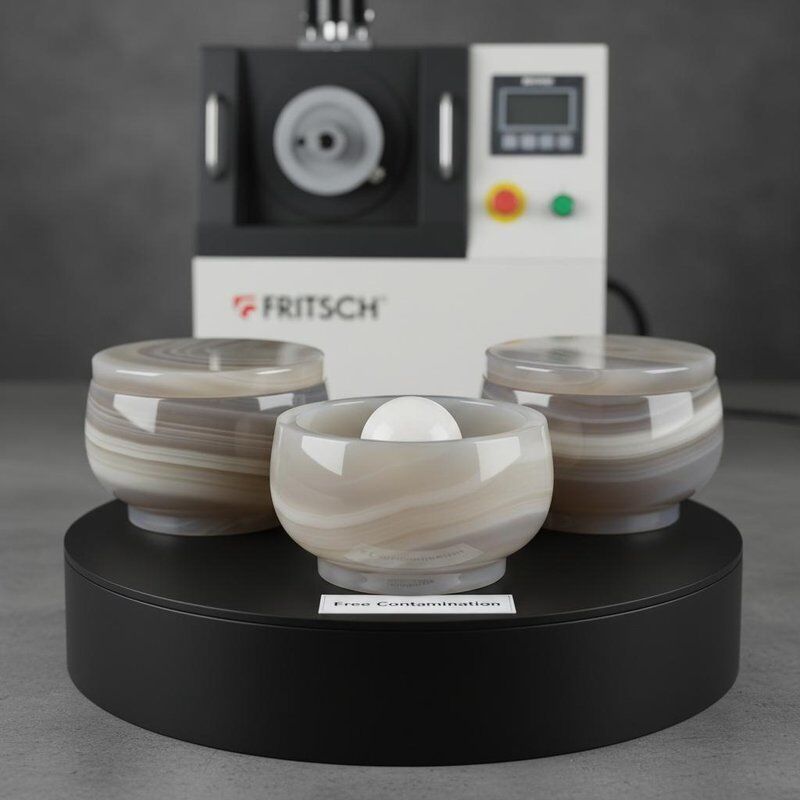

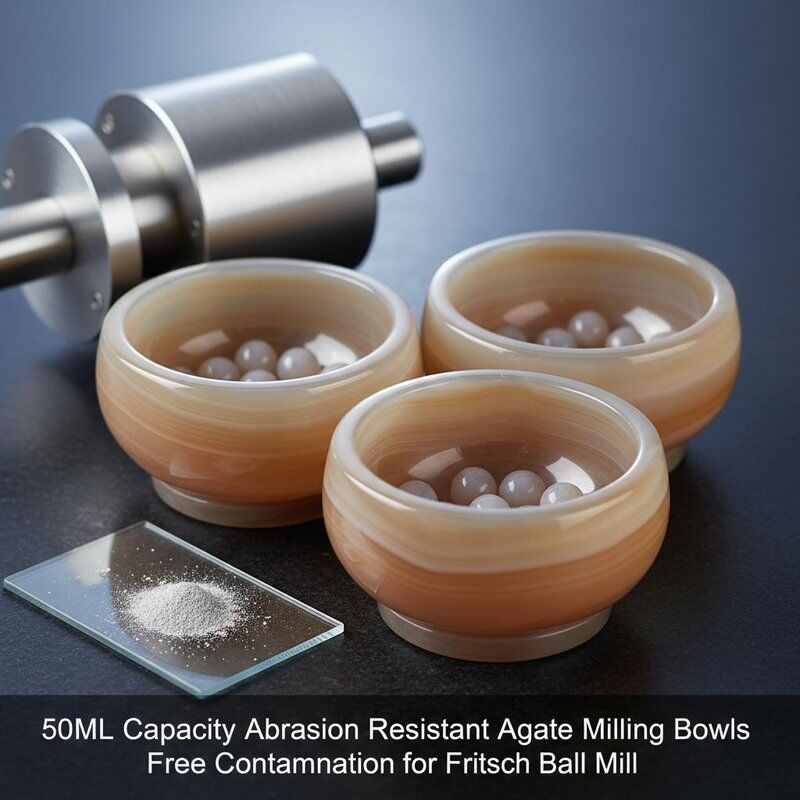

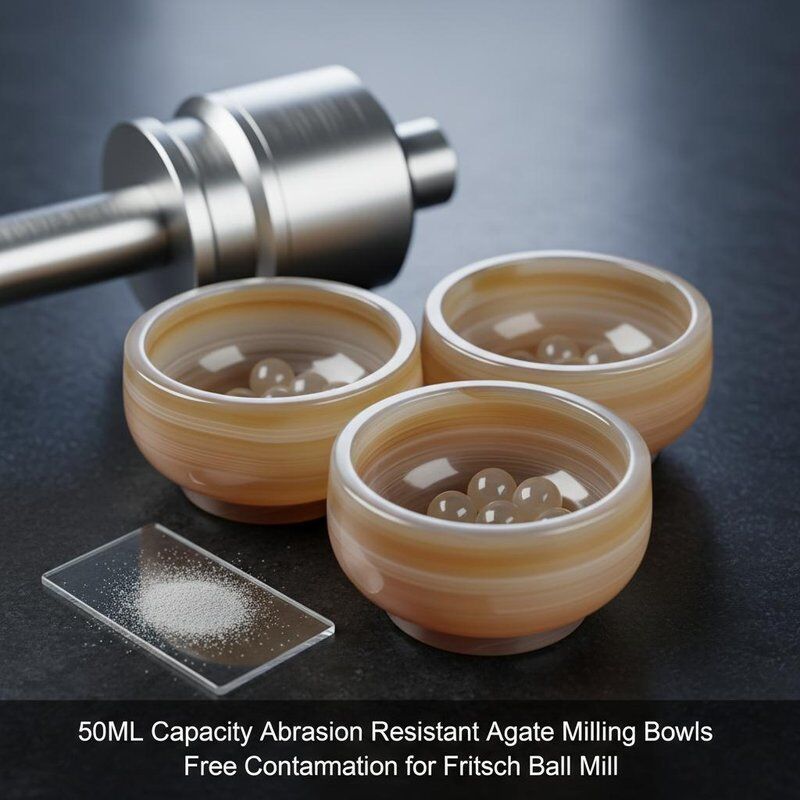

50mL Agate Milling Bowls with Grinding Mortar for Fritsch Ball Mill
Product Overview

High-quality 50mL agate grinding bowls designed specifically for Fritsch ball mill applications, featuring excellent abrasion resistance and chemical stability.

50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 0 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 1
Material Specifications

Material: Agate - SiO₂

Abrasion Resistance: Excellent

Suitable For: Soft to medium-hard, brittle, and fibrous samples

Chemical Composition
Element Share %
Silicon oxide - SiO₂ 99.9
Aluminium - Al₂O₃ < 0.02
Iron oxide - Fe₂O₃ < 0.02
Calcium oxide - CaO < 0.02
Magnesium oxide - MgO < 0.02
Sodium oxide - Na₂O < 0.02
Potassium oxide - K₂O < 0.02
Manganese oxide - MnO < 0.02
Physical & Mechanical Properties
Density 2.65 g/cm³
Hardness 6.5 - 7 Mohs
Technical Specifications
Applications Size reduction, mixing, grinding, dispersing, triturating
Field of Application Construction materials, environment/recycling, geology/metallurgy, glass/ceramics
Feed Material Medium-hard, hard, brittle, fibrous
Size Reduction Principle Pressure, friction
Material Feed Size < 15 mm
Final Fineness < 20 µm
Batch Size / Feed Quantity 15-250 ml depending on size of grinding set
Available Sizes & Dimensions
Volume Outside Diameter (mm) Inner Diameter (mm) Inner Depth (mm) Height without Lid (mm) Total Height (mm)
50ml 65 45 37 58
100ml 73 50 52 70
150ml 90 62 55 80
250ml 93 73 70 90
400ml 105 82 80 103
500ml 104 86 90 108
1L 133 107 114 140
1.5L 167 137 103 133
2L 156 130 155 188

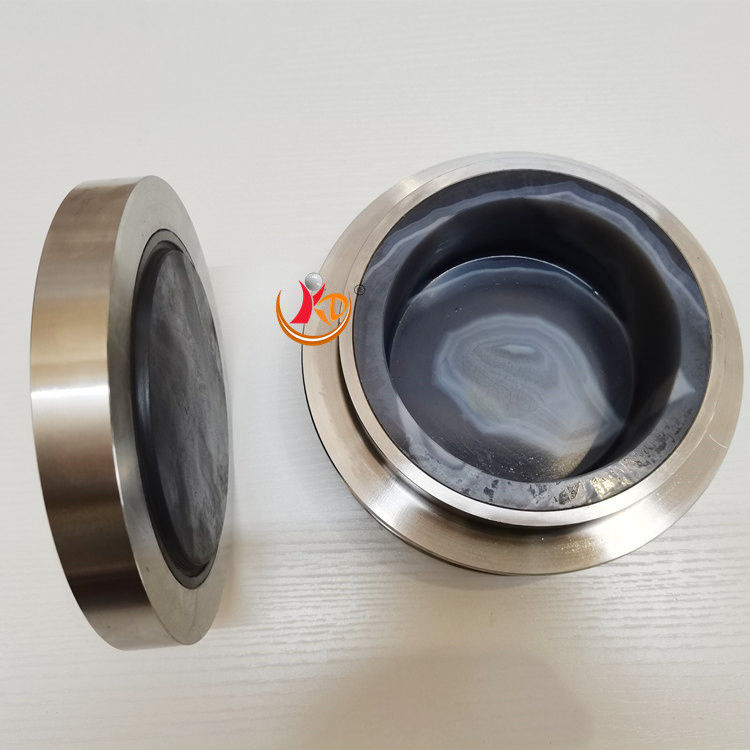

Notes: Size deviation within ±0.2-0.5mm; One set includes: jar + lid + rubber sealing gasket; Agate covered 1mm stainless steel outside available upon request.

Material Compatibility Guide
Material Category Recommended Mill Jar
Soil and materials sensitive to impurities Agate mill jar
Metal & nonmetal materials sensitive to impurities Zirconia mill jar
High hardness materials (diamond, tungsten carbide) Tungsten carbide mill jar
Strong acid & alkali materials or high temperature applications PTFE mill jar
Iron ore materials with lower impurity sensitivity 304 Stainless steel mill jar
Pigment or materials requiring high temperature processing Nylon mill jar
Aluminum materials like ceramic glaze Corundum mill jar
Electronic materials (lithium battery) Polyurethane mill jar
Easily oxidized materials requiring special atmosphere protection Vacuum mill jar
Grinding Ball Compatibility Matrix
Mill Jar Type Agate Balls Alumina Balls Stainless Steel Balls Zirconia Balls Tungsten Carbide Balls
Agate Mill Jar Most Suitable
Alumina/Corundum Mill Jar Suitable Most Suitable Suitable
Stainless Steel Mill Jar Most Suitable
Zirconia Mill Jar Suitable Most Suitable
Nylon Mill Jar Suitable Most Suitable
PTFE Mill Jar Most Suitable Suitable
Polyurethane Mill Jar Most Suitable Suitable
Tungsten Carbide Mill Jar Suitable Most Suitable
Key Features
• High purity with minimal sample contamination
• Cost-effective with low wear and long service life
• Excellent resistance to acids and solvents
• Highly polished surface for easy cleaning
• Superior mechanical strength and impact resistance
• Compatible with Retsch PM100, PM100CM planetary ball mills
Application Fields

Ideal for processing materials such as cement, cement clinker, ceramics, coal, coke, concrete, corundum, glass, metal oxides, minerals, ores, silicate, slag, and soil samples.

50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 2 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 3 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 4 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 5 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 6 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 7 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 8 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 9 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 10 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 11 50mL Capacity Abrasion Resistant Agate Milling Bowls with Free Contamination for Fritsch Ball Mill 12
Contact Information

We maintain inventory for all standard ball mill jar sizes and offer OEM & ODM services.

WhatsApp/WeChat: +86 153 6787 4686
