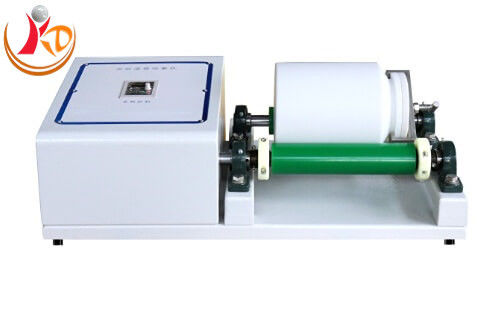

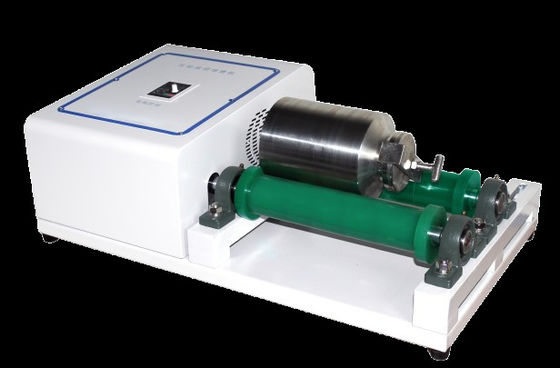

Laboratory Rolling Ball Mill for Nano Powder Production with Minimal Contamination and Ultra-Fine Grinding
The Rolling Ball Mill is a precision powder milling equipment designed for ultra-fine grinding and mixing in laboratory settings and small batch production. This multi-position rolling ball mill is an essential tool for scientific research, education, experiments, and production due to its modern design, compact structure, operational efficiency, and uniform particle size distribution.
Widely used in electronic materials, magnetic materials, biological medicine, ceramic glaze, metal powder, nonmetallic minerals, and new material development. The mill features an optimal rotational speed design with rubber rollers rotating the mill jar, creating an inclined flow movement of grinding balls for effective material dispersion and micro-powder production.
The machine includes a timing control panel with pause and cumulative timing functions for precise operation control, saving time and labor while simplifying processes.
Key Features
- Easy Cleaning: Designed for quick maintenance with minimal downtime
- Compact Laboratory Size: Ideal for space-constrained research environments
- Versatile Material Processing: Suitable for planetary grinding of various samples
- Precision Performance: Delivers uniform and reproducible grinding results
- User-Friendly Operation: Intuitive controls suitable for all experience levels
- Specialized Design: Optimized for fine particle size reduction and homogeneous mixing
Working Principle
During operation, grinding media and materials are elevated within the cylinder before descending due to gravity. This process crushes materials through impact forces while rolling and sliding actions generate additional friction and shear forces for effective grinding.
Technical Specifications
| Category | Model | Power Supply | Rotate Speed | Max Load for Each Jar | Dimensions/Weight |
|---|
| 1 Working Position | QM-5 | 220V or 110V Single phase 0.37KW | 60-570rpm | 35KGS | 730*415*260mm 32KGS |
| 1 Working Position | QM-10 | 220V or 110V Single phase 0.75KW | 60-570rpm | 80KGS | 845*435*270mm 45KGS |
| 1 Working Position | QM-15 | 220V or 110V Single phase 0.75KW | 60-570rpm | 80KGS | 845*435*270mm 45KGS |
Advanced Features
- Enhanced Grinding Efficiency: Precision-engineered rollers ensure thorough material mixing
- Versatile Jar Compatibility: Accommodates various ball mill jar sizes
- Consistent Results: Delivers reproducible outcomes for research applications
- Robust Construction: Durable drum and sturdy ball mill jar for long-term reliability
- Intuitive Operation: User-friendly design suitable for all researchers
Available Grinding Jars & Balls
Compatible with various material jars including:
- Zirconia ball mill jar
- Alumina ball mill jar
- Agate ball mill jar
- Tungsten ball mill jar
- Hard metal mill jar
Packaging & Shipping
Package Type: PE Form + Cartons / Wooden cases (customizable per customer requirements)
Shipping Ports: Shanghai, Guangzhou, Tianjin, Qingdao
Delivery Time: 3-7 working days after payment confirmation

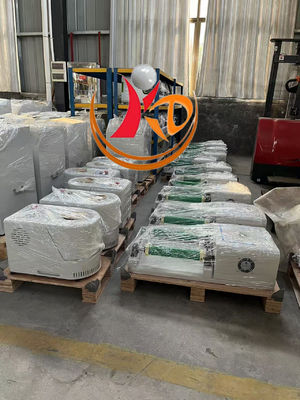

Manufacturing Facility
Frequently Asked Questions
Q: What types of roll mill jars are available?
A: We offer alumina/zirconia ceramic, nylon, stainless steel, tungsten carbide, PTFE, polyurethane, and other specialized jars.
Q: What are your delivery terms?
A: We offer FOB, CFR, and CIF shipping options.
Q: Do you accept sample orders before production?
A: Yes, we provide samples for testing with customer responsibility for courier costs.
Q: What is your standard production time?
A: Typically 3-15 days after receiving advance payment, depending on order specifics.
Q: What are your payment terms?
A: 30% deposit via T/T, 70% balance against B/L copy. We provide product photos and B/L copy before final payment.
Customer Service
- Custom grinding ball production available
- Comprehensive pre-delivery testing
- Dedicated customer relationship management
- Prompt response within 2 hours for all inquiries
About Kingda Ceramic Technology
HUNAN KINGDA CERAMIC TECHNOLOGY CO.,LTD specializes in manufacturing grinding media balls, grinding jars, zirconium dioxide products, and zirconia structures. Our commitment to quality has earned recognition from prestigious institutions worldwide including University of Oxford, Loughborough University, Peking University, and Tsinghua University.
We continue to innovate in ceramic materials technology while maintaining our core values of quality, customer service, and sustainable partnerships.
