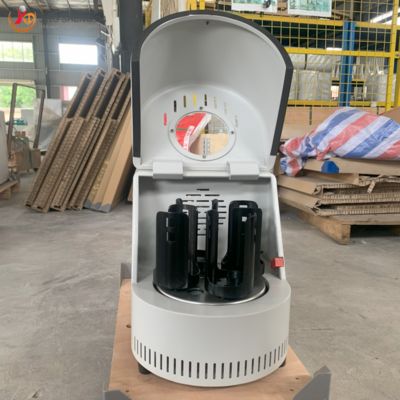

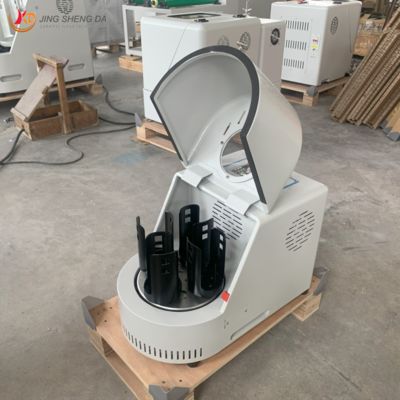

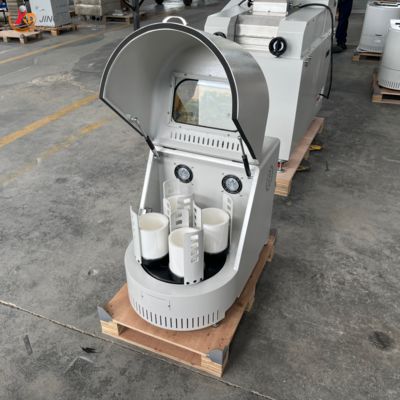

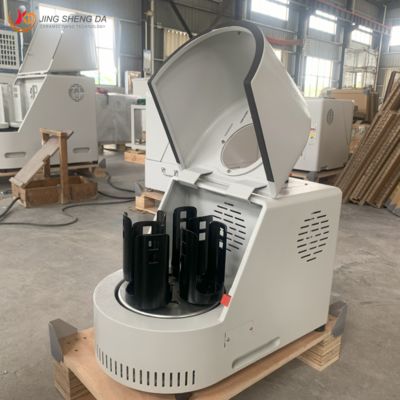

Lab Planetary Ball Mill — laboratory ball mill Used for mixing, fine grinding, sample preparation, nanomaterial dispersion.
The Planetary Ball Mill is a vertical laboratory mill engineered for precise material mixing, fine grinding, sample preparation, product innovation, and small-scale manufacturing. Featuring a compact design with high efficiency and quiet operation, it provides versatile performance, making it an ideal solution for laboratories in research institutions,universities, and industrial sectors.
The machine is capable of processing four samples at once in each experiment and can produce powder samples under vacuum conditions when fitted with a vacuum milling jar. Its planetary motion mechanism enables efficient and uniform grinding and mixing of materials through high-speed rotation.
Technical Specifications
| Feature |
Specification |
| Drive Mode |
Gear drive / Belt drive |
| Operation Mode |
2 / 4 grinding tanks working together |
| Maximum Loading Capacity |
2/3 of the capacity of milling tank |
| Output Granularity |
Minimum 0.1um |
| Rotation Speed |
0.4L: 0-600 rpm; 2L: 0-580 rpm; 4L: 0-530 rpm; 20L: 0-280 rpm |
| Max. Continuous Operating Time |
72 hours (full-load) |
Available Models
| Model |
Power (KW) |
Voltage |
Dimension (mm) |
Weight (KG) |
| KD-XQM-1 |
0.75 |
220V-50Hz |
750*470*564 |
80 |
| KD-XQM-2 |
0.75 |
220V-50Hz |
750*470*564 |
80 |
| KD-XQM-4 |
0.75 |
220V-50Hz |
750*470*564 |
80 |
| KD-XQM-8 |
1.5 |
220V-50Hz |
900*600*640 |
132
|
Remarks: 1: We also can supply 110V-60HZ. All equipment is equipped with frequency converter.
2: There are semi-circle and square shapes for your choosing.
Choice of Grinding Jars & Grinding Balls
In order to prevent excessive abrasion, the hardness of the grinding jars used and of the grinding balls must be higher than that of the material used. Normally, grinding jars and grinding balls of the same material should be chosen. However, the size of grinding jars and grinding balls should be determined experimentally if necessary.
Stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, cemented carbide, crystal glass and other special metal materials.
Why Choose Our Planetary Ball Mill?
- 14 years of manufacturing experience with CE, ISO 9001 and SGS certifications
- High-quality machines with competitive pricing and 18-month warranty
- Ready-to-use equipment requiring no assembly with easy maintenance
- Wide selection of compatible grinding jars and media balls
- Compatible with Retsch and Fritsch milling systems
- Professional team providing 24/7 support
- Global customer base with distributors worldwide
- Custom machine configurations available
- Fast delivery within 3-7 working days
After-Sales Support
Technical Support
- 24/7 support via phone, email, WhatsApp, WeChat or Skype
- Comprehensive English manuals and operation videos
- Pre-adjusted machines delivered ready for immediate use
- Free training and lifetime technical support
Warranty
18-month warranty covering any quality issues with the main unit under normal usage conditions, including free replacement parts during warranty period.
Additional Services
- Custom grinding ball production available
- Rigorous pre-shipment testing
- Quick response within 12 hours for any inquiries
Packaging & Shipping
- Package Type: PE Form + Cartons / Wooden cases
- Port: Shanghai, Guangzhou, Tianjin, Qingdao
- Delivery Time: 3-7 working days after payment
Frequently Asked Questions
Q: What sizes are available?
A: We offer models from 0.2L to 100L capacity.
Q: What are your delivery terms?
A: FOB, CFR, CIF available.
Q: Do you accept sample orders?
A: Yes, samples available with customer covering courier costs.
Q: What is your production time?
A: Typically 3-7 days after receiving advance payment.
Company Profile
Hunan Jing Sheng Da Ceramic Technology Co., Ltd, established in 2016 and located in Changsha City, operates under the brand "KINGDA". We specialize in the design, R&D, manufacturing, and sales of laboratory ball mills, grinding jars, and nano grinding solutions.
Free Grinding Experiment Service
We offer complimentary material grinding experiments and particle size testing for customers who send us material samples. Our team will verify if the grinding results meet your requirements and provide professional grinding solutions based on time and efficiency parameters.
Product Construction & Working Principle
Inner Structure
KINGDA planetary ball mills feature dust-resistant cast iron construction with a one-piece casting molding process for the main disk, significantly extending equipment lifespan compared to conventional splicing methods.
Working Principle
The planetary ball mill operates similarly to planetary motion in the solar system. Four or two ball mills positioned eccentrically on a turntable perform simultaneous rotation and revolution (1:2 ratio). This motion generates strong Coriolis forces, creating intense impact and friction that efficiently grind samples to powder as fine as 0.1μm.
Additional FAQs
Q: What's your smallest lab model?
A: Our 0.2L planetary ball mill (Model XQM-0.4A) measures 42*30*26cm and weighs 20kg, with larger models available up to 100L capacity.
Q: What maintenance does the equipment require?
A: We use specialized wear-resistant gears for reduced noise without oil seal leakage risks. Models above XQM-20 use oil seals with proper maintenance protocols.
Q: What are your payment terms?
A: 30% deposit via T/T with 70% balance against B/L copy, or 100% L/C at sight. We provide product photos and B/L copies before final payment.
