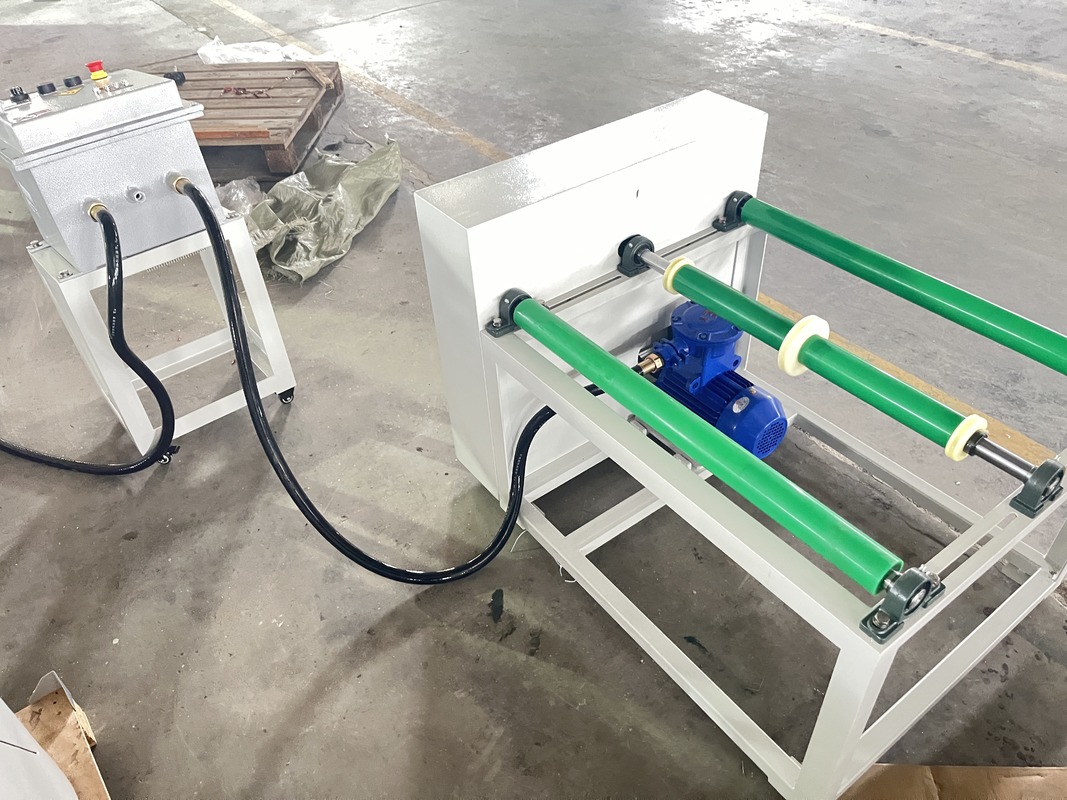

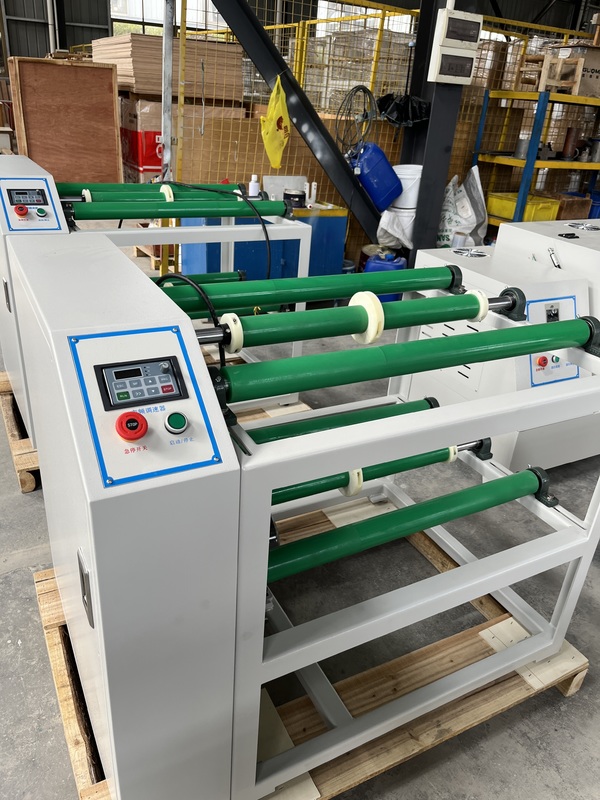

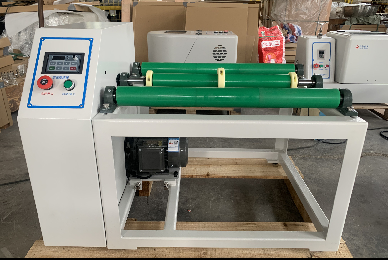

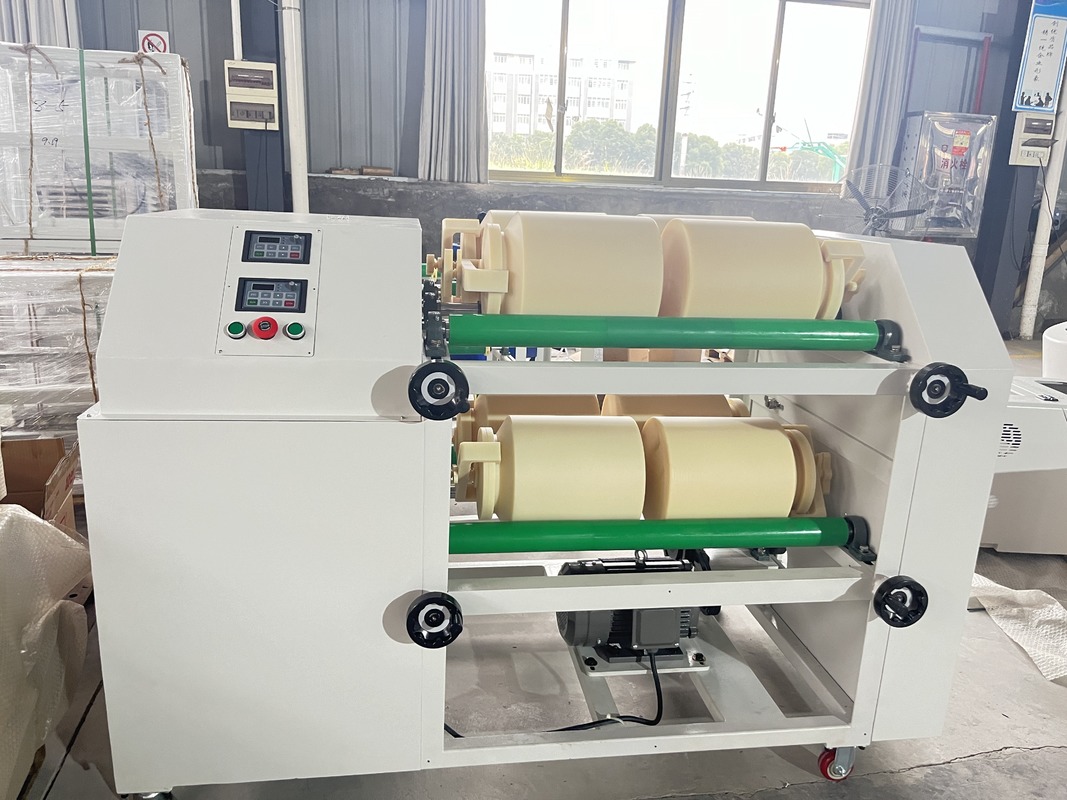

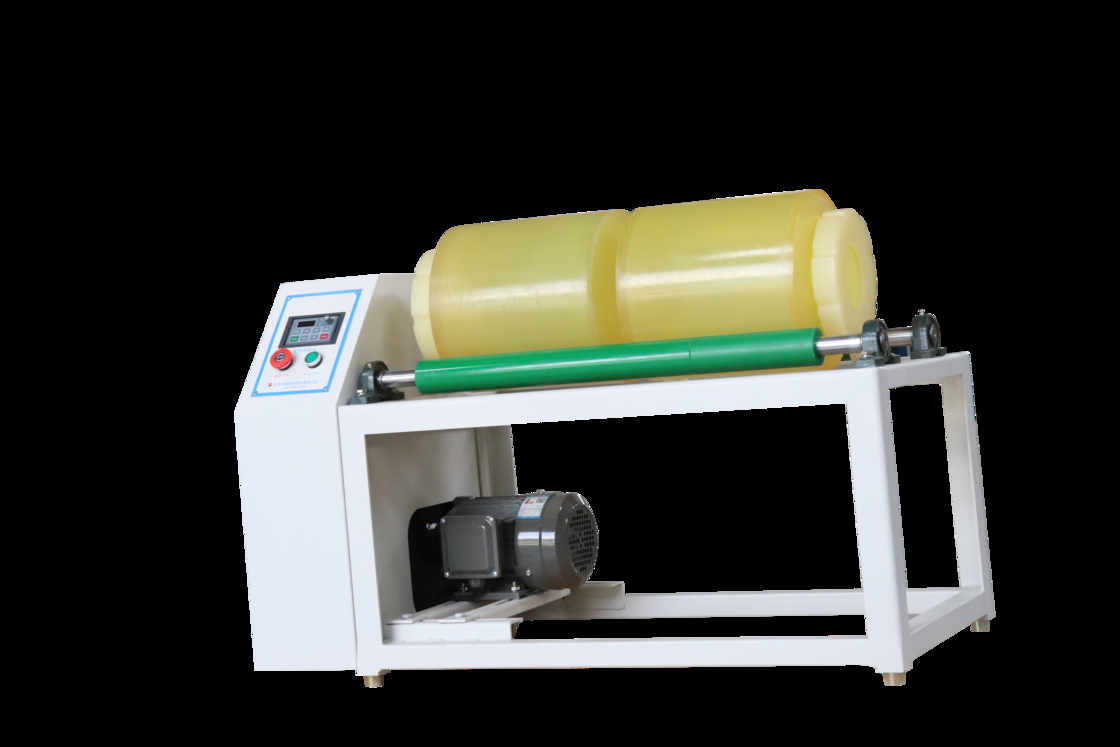

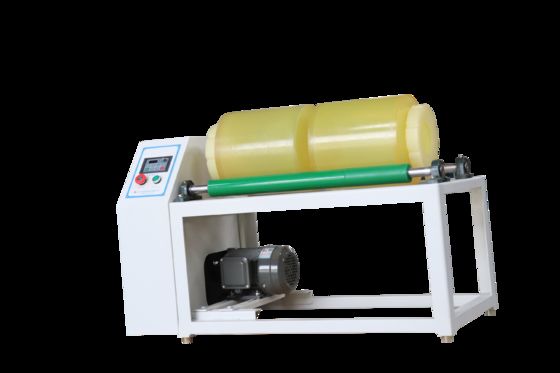

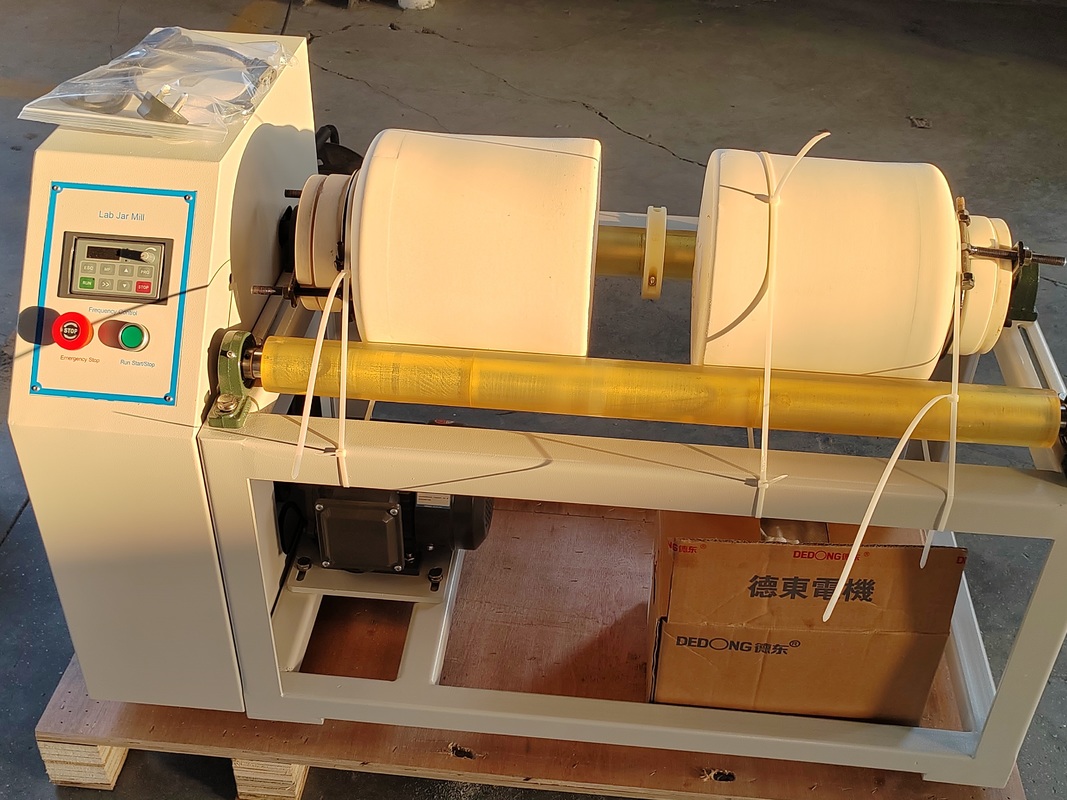

Laboratory Compact Jar Mill Ball Milling Machine 220V Roller Ball Mill with Multi Stations Powder Grinding

Large Image : Laboratory Compact Jar Mill Ball Milling Machine 220V Roller Ball Mill with Multi Stations Powder Grinding

Product Details:

Place of Origin:	Hunan, China
Brand Name:	KINGDA
Certification:	CE ISO
Model Number:	GQM-8*5L

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	PE Foam + Cartons / Wooden cases
Delivery Time:	15Day
Payment Terms:	L/C,D/A,T/T,Western Union
Supply Ability:	1000 set / Month

Contact Now

Laboratory Compact Jar Mill Ball Milling Machine 220V Roller Ball Mill with Multi Stations Powder Grinding

Description

ProdJar Rolling Milluct Name:	Rolling Ball Mill	Applicable Industries:	Lab Research
Weight (KG):	106 KG	Output (kg/h):	1-14 Kg/h
Feeding Size (mm):	≥5mm	Output Size (mesh):	1000 Mesh / 13µm
Volumn Of Matched Pot:	8*5L Jar	Warranty:	1 Year
After-sales Service Provided:	Video Technical Support
Highlight:	220V laboratory jar mill , multi-station ball milling machine , compact powder grinding roller mill

Laboratory Compact Jar Mill Ball Milling Machine 220V Roller Ball Mill with Multi Stations Powder Grinding

Product Description

Kingda Mixing Small Alumina Ceramic Grinding High Energy Jar Roller Ball Mill Lab Planetary Use

Easy Cleaning: Designed for easy cleaning, facilitating swift maintenance and minimizing downtime between experiments.
Small Lab Size: Compact size ideal for small laboratory spaces, allowing efficient planetary grinding experiments.
Versatile Grinding: Suitable for various materials, enabling planetary grinding of samples for different research applications.
Precision Performance: Delivers precise and uniform grinding results, ensuring reproducibility and reliability.
User-Friendly Design: Intuitive controls and ergonomic design for ease of operation.
Planetary Grinding Use: Specifically designed for planetary grinding applications for fine particle size reduction.

Working Principle

The working principle of a laboratory rotary drum ball mill revolves around the movement and friction within the drum:

Loading Samples and Media: Solid samples and grinding media (typically metal balls) are placed into the drum.
Drum Rotation: The drum rotates, causing samples and media to move within.
Friction and Collision: Friction and collisions between samples and media break and mix particles.
Gravity Action: Movement downward along the drum wall enhances friction and collision.
Continuous Cycling: This cyclic process continues until desired particle size and mixing consistency is achieved.

Specifications

Category	Model No.	Power Supply	Rotate Speed	Max Load Per Jar	Dimensions & Net Weight
2 Work Positions	GQM-2-5	220V-50Hz or 60Hz/0.75kw	50-410 rpm	35KGS	950480685mm 59KGS
	GQM-2-15	220V-50Hz or 60Hz/1.1kw	40-365 rpm	80KGS	1130550690mm 80KGS
	GQM-2-20	220V-50Hz or 60Hz/1.5kw	40-340 rpm	120KGS	1350650690mm 92KGS
4 Work Positions	GQM-4-5 Single layer	220V-50Hz or 60Hz/0.75kw	50-410 rpm	35KGS	950660690mm 70KGS
	GQM-4-5 Double layer	220V-50Hz or 60Hz/0.75kw	50-410 rpm	35KGS	950480870mm 92KGS
	GQM-4-15	220V-50Hz or 60Hz/1.5kw	40-365 rpm	80KGS	1130800690mm 95KGS
	GQM-4-20	380V-50Hz or 60Hz/2.2kw	40-340 rpm	120KGS	1350820690mm 122KGS
8 Work Positions	GQM-8-5	220V-50Hz or 60Hz/1.5kw	50-410 rpm	35KGS	950660960mm 106KGS
8 Work Positions	GQM-8-15	380V-50Hz or 60Hz/2.2kw	40-365 rpm	80KGS	1130800960mm 152KGS

Features

Enhanced Grinding Efficiency: Precisely engineered roller design ensures thorough and uniform mixing.
Versatile Jar Compatibility: Accommodates various sizes of ball mill jars for different applications.
Consistent Results: Delivers reproducible results ideal for research and development.
Robust Construction: Durable drum and sturdy ball mill jar ensure longevity.
Easy Operation: Intuitive operation suitable for all experience levels.

Accessories of Grinding Pots & Balls

Available grinding jars in full sizes:

Zirconia ball mill jar, alumina ball mill jar, Agate ball mill jar, Tungsten ball mill, hard metal mill jar and etc.

Package & Shipping

Package Type: PE Form + Cartons / Wooden cases; Can be dispatched according to customer's requirement
Port: Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao port
Delivery time: Within 3-7 working days from the date of payment receipt

FAQ

1. What are the roll mill jars available in your products?

A: Our available roll mill jars are alumina / zirconia ceramic, nylon, stainless steel, tungsten carbide, PTFE, polyurethane and so on.

2. What is your terms of delivery?

A: FOB, CFR, CIF.

3. Can you accept small quantity sample order before production?

A: Yes, we can offer sample for your testing first before production, but the customers have to pay the courier cost.

4. What is your production time?

A: Generally, it will take 3-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

5. What is your terms of payment?

A: T/T 30% as deposit, 70% balance against the copy of original B/L. Or 100% L/C at sight. We'll show you the photos of the products and the copy of original B/L before you pay the balance.

Our Service

We can produce other grinding balls as your need.
We test all the goods before delivery.
We respect every customer as our friend and we sincerely do business and make friends with them.
If you have any questions, please contact with us without any hesitation, we will reply you in 2 hours.
