Home > Products > Rolling Ball Mill >

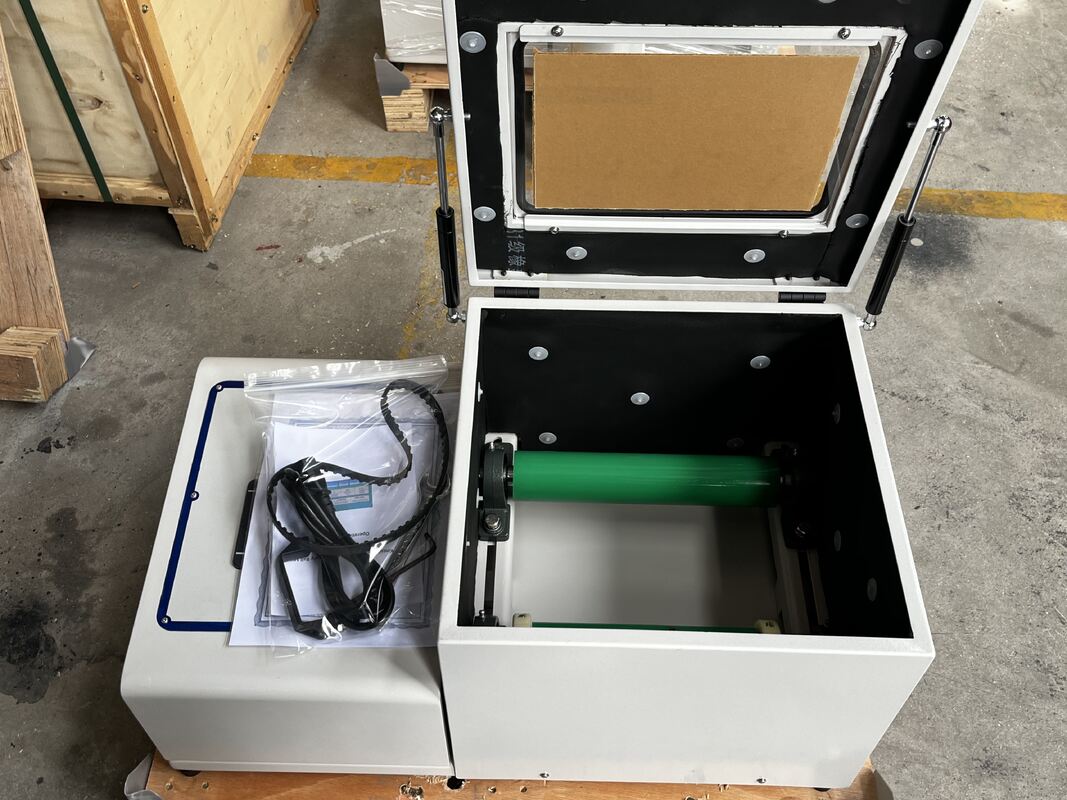

Lab Small Ball Mill Grinder with Ceramic Rolling Jars for Battery Material Powder Milling LFP NMC High Productivity

Lab Small Ball Mill Grinder with Ceramic Rolling Jars for Battery Material Powder Milling LFP NMC High Productivity

small ball mill grinder with ceramic jars

battery material powder milling ball mill

LFP NMC high productivity ball mill

Place of Origin:

Hunan, China

Brand Name:

KINGDA

Certification:

CE ISO

Model Number:

GQM-1*5L

Contact Us
Request A Quote
Lab Small Ball Mill Grinder with Ceramic Rolling Jars for Battery Material Powder Milling LFP NMC High Productivity
Lab Small Ball Mill Grinder with Ceramic Rolling Jars for Battery Material Powder Milling LFP NMC High Productivity Lab Small Ball Mill Grinder with Ceramic Rolling Jars for Battery Material Powder Milling LFP NMC High Productivity Lab Small Ball Mill Grinder with Ceramic Rolling Jars for Battery Material Powder Milling LFP NMC High Productivity Lab Small Ball Mill Grinder with Ceramic Rolling Jars for Battery Material Powder Milling LFP NMC High Productivity Lab Small Ball Mill Grinder with Ceramic Rolling Jars for Battery Material Powder Milling LFP NMC High Productivity Lab Small Ball Mill Grinder with Ceramic Rolling Jars for Battery Material Powder Milling LFP NMC High Productivity
Product Details
ProdJar Rolling Milluct Name:
Rolling Ball Mill
Applicable Industries:
Lab Research
Weight (KG):
32 KG
Output (kg/h):
0.1 - 1.75 Kg/h
Feeding Size (mm):
≤5mm
Output Size (mesh):
1000 Mesh / 13µm
Volumn Of Matched Pot:
1-5L Mill Jar
Warranty:
1 Year
After-sales Service Provided:
Video Technical Support
Highlight:

small ball mill grinder with ceramic jars

,

battery material powder milling ball mill

,

LFP NMC high productivity ball mill

Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
PE Foam + Cartons / Wooden cases
Delivery Time
15 Days
Payment Terms
L/C,D/A,T/T,Western Union
Supply Ability
1000 set / Month
RELATED PRODUCTS
Good price Lab Small Ball Mill Grinder with Ceramic Rolling Jars for Battery Material Powder Milling LFP NMC High Productivity online Video

Lab Small Ball Mill Grinder with Ceramic Rolling Jars for Battery Material Powder Milling LFP NMC High Productivity

Get Best Price
Good price Lab Small Ball Mill Grinder with Ceramic Rolling Jars for Nano Powder Grinding Ceramic Pigment Material Testing online Video

Lab Small Ball Mill Grinder with Ceramic Rolling Jars for Nano Powder Grinding Ceramic Pigment Material Testing

Get Best Price
Good price Ceramic Rolling Ball Mill Jars Lab Jar Roller Mill with High Productivity and 1000 Mesh Output online Video

Ceramic Rolling Ball Mill Jars Lab Jar Roller Mill with High Productivity and 1000 Mesh Output

Get Best Price
Good price Alumina Ceramic Jar Mill Multi-Functional Lab Grinding Jar Machine for Small Batch Precision online Video

Alumina Ceramic Jar Mill Multi-Functional Lab Grinding Jar Machine for Small Batch Precision

Get Best Price
Contact Us
15367874686
sales@kingdacera.com
Contact Now
Product Description
Lab Small Ball Mill Grinder with Ceramic Rolling Jars for Battery Material Powder Milling LFP NMC High Productivity
Lab Roller Mill Compact Jar Grinding Equipment
Product Applications
  • Materials Science and Research: Grind, blend, and homogenize ceramics, glasses, metals, polymers, composites, and nanoparticles for material property studies and particle size analysis.
  • Pharmaceutical Development: Reduce particle size, enhance pharmaceutical dissolution rates, improve bioavailability, and achieve uniform mixing of APIs with excipients.
  • Chemical Engineering: Produce fine powders, prepare homogeneous mixtures, and optimize reaction kinetics through efficient particle size reduction.
  • Paints, Pigments, and Coatings: Disperse and blend pigments, dyes, and additives for consistent coloration and enhanced coating properties.
  • Food and Beverage Industry: Achieve particle size reduction, ingredient blending, and mixture homogenization for consistent quality and texture.
Geological and Environmental Sciences
Grind and prepare geological samples, soils, sediments, and minerals for analysis and characterization studies.
Quality Control and Testing
Assess particle size distributions, evaluate material properties, and verify product performance across various industries.
Working Principle
During operation, grinding media and cylinder materials rotate to a predetermined height and descend from the tube wall under gravity. Material crushing occurs through impact, friction, and shearing from rolling and sliding motions, ensuring efficient operation with minimal time and labor.
Technical Specifications
Technical Parameters of Roll Ball Mill
Category Dimensions/Weight (mm/kgs) Model No. Motor Power (kW) Voltage Rotate Speed (rpm)
Lab Model 730*415*260/35 QM-5 0.37 220V-50Hz/60Hz 60-570

845*435*270/43 QM-15 0.75 220V-50Hz/60Hz 60-570

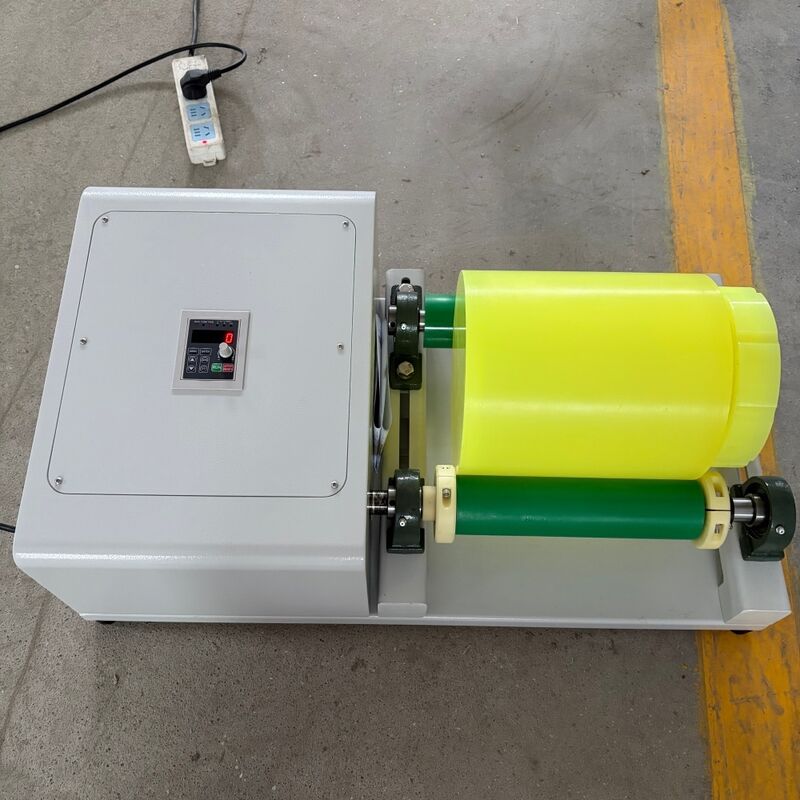

Roll Ball Mill technical details Roll Ball Mill operation view
Key Features
  • Simultaneous grinding of multiple sample materials
  • Intermittent and continuous operation modes
  • Adjustable timing to suit specific requirements

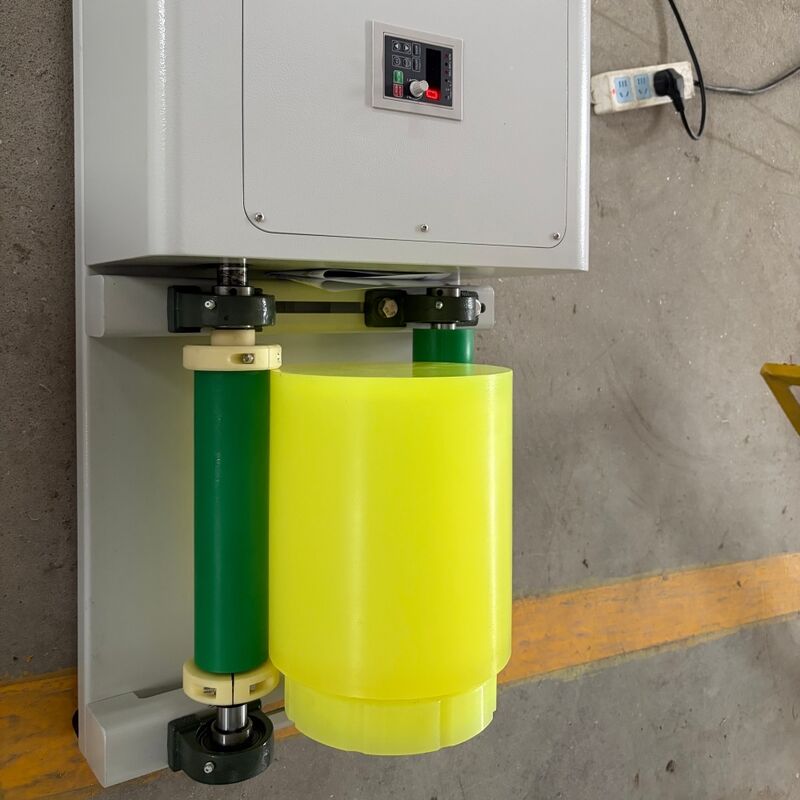

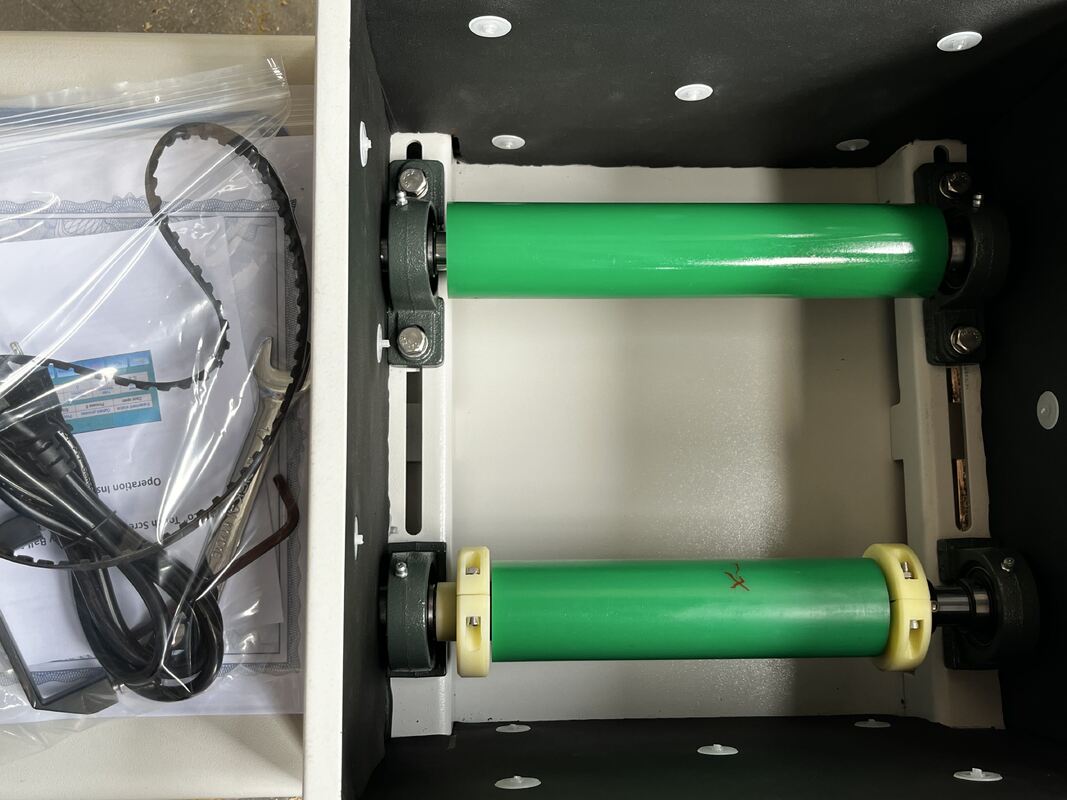

Roll Ball Mill key features demonstration Rolling mill detailed components and structure
Available Grinding Pots & Balls
Complete range of grinding jars available in various materials:
  • Zirconia ball mill jar
  • Alumina ball mill jar
  • Agate ball mill jar
  • Tungsten ball mill jar
  • Hard metal mill jar
  • And other specialized materials
Various grinding jar materials and types available
Packaging & Shipping

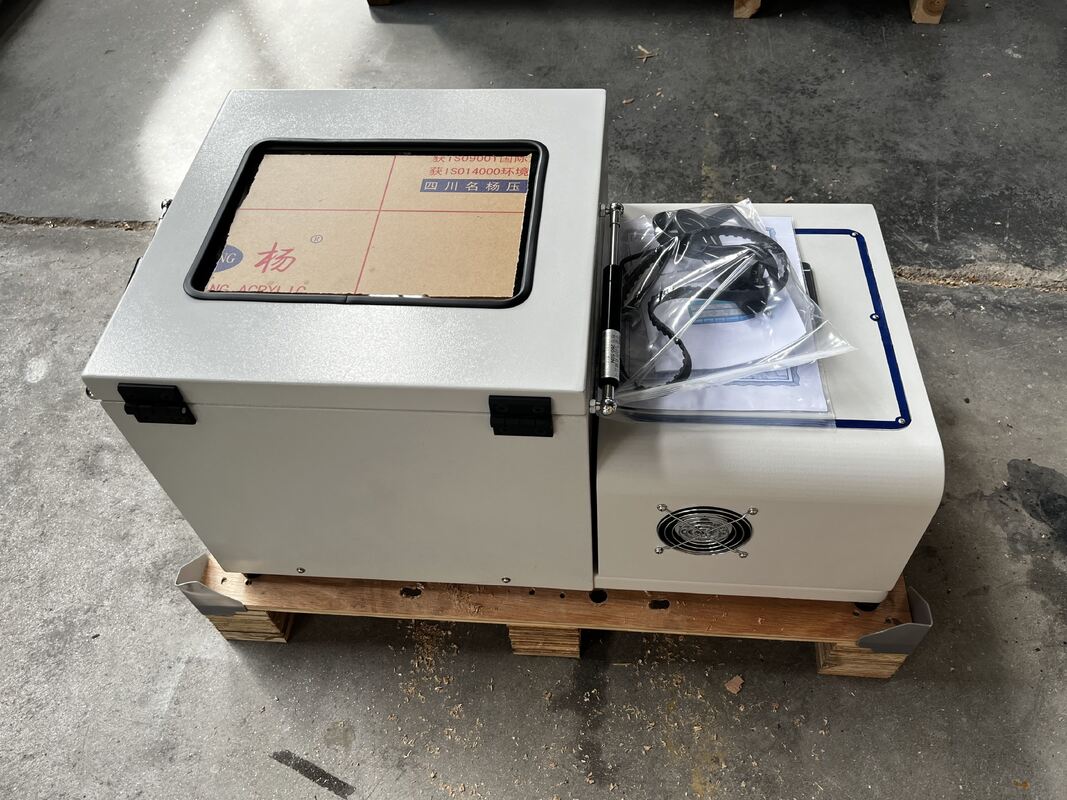

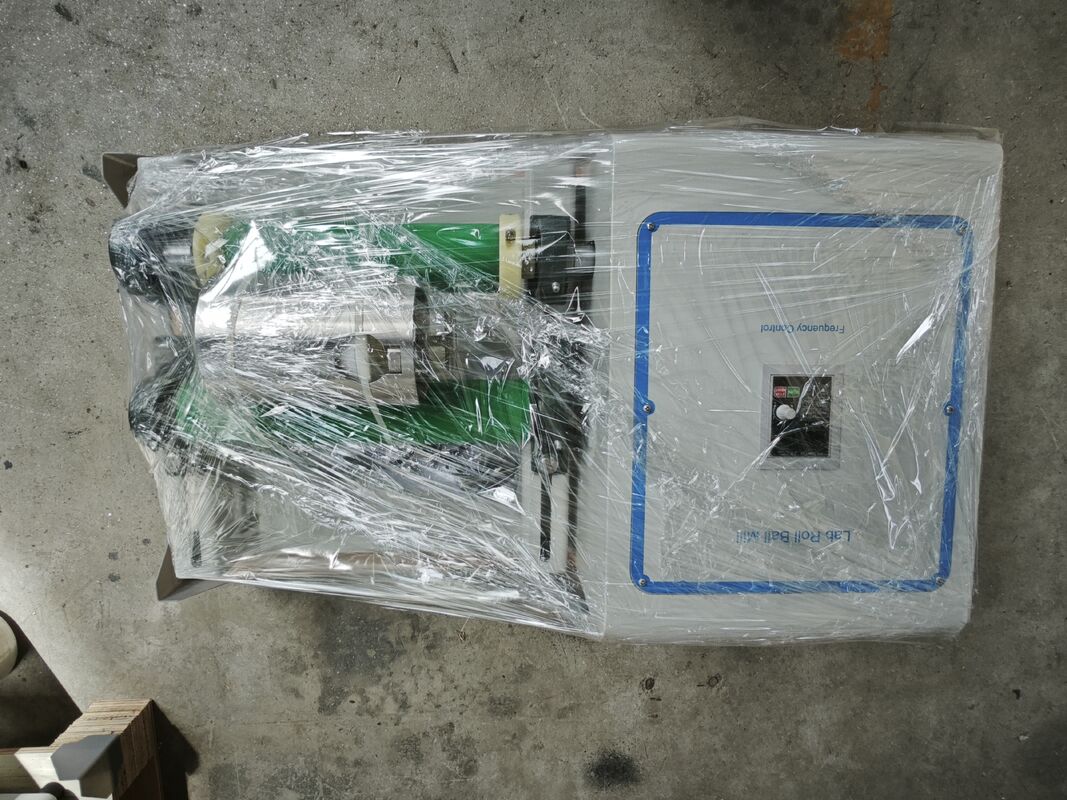

Product packaging and shipping process
Manufacturing Facility
KINGDA production equipment and quality control facility
Frequently Asked Questions
What roll mill jars are available in your products?
Our available roll mill jars include alumina/zirconia ceramic, nylon, stainless steel, tungsten carbide, PTFE, polyurethane, and more.
What are your terms of delivery?
FOB, CFR, CIF.
Can you accept small quantity sample orders before production?
Yes, we can provide samples for testing before production, with customers responsible for courier costs.
What is your production time?
Generally 3-15 days after receiving advance payment. Specific delivery time depends on items and order quantity.
What are your terms of payment?
T/T 30% as deposit, 70% balance against copy of original B/L, or 100% L/C at sight. We provide product photos and B/L copy before balance payment.
About KINGDA Ceramic Technology
  • Specialized manufacturer of Grinding Media Balls, Grinding Jars, Zirconium Dioxide, and Zirconia structures
  • "Quality Is in the First Position forever" - trusted by prestigious institutions including University of Oxford, Loughborough University, Peking University, and Tsinghua University
  • Commitment to providing high quality grinding products and excellent customer service
  • Established reputation for mutual benefit and sustainability with business partners
  • Dedicated to technological advancement and customer satisfaction
KINGDA quality certification and standards KINGDA company overview and manufacturing capabilities
