Kingda Lab Semi-Circle Planetary Ball Mill with 0.1μm Granularity, 4 Grinding Tanks, and 72 Hours Continuous Operation

Kingda Lab Semi-Circle Planetary Ball Mill with 0.1μm Granularity, 4 Grinding Tanks, and 72 Hours Continuous Operation
Kingda Lab Semi-Circle Planetary Ball Mill with 0.1μm Granularity, 4 Grinding Tanks, and 72 Hours Continuous Operation
Kingda Lab Semi-Circle Planetary Ball Mill with 0.1μm Granularity, 4 Grinding Tanks, and 72 Hours Continuous Operation Kingda Lab Semi-Circle Planetary Ball Mill with 0.1μm Granularity, 4 Grinding Tanks, and 72 Hours Continuous Operation Kingda Lab Semi-Circle Planetary Ball Mill with 0.1μm Granularity, 4 Grinding Tanks, and 72 Hours Continuous Operation Kingda Lab Semi-Circle Planetary Ball Mill with 0.1μm Granularity, 4 Grinding Tanks, and 72 Hours Continuous Operation Kingda Lab Semi-Circle Planetary Ball Mill with 0.1μm Granularity, 4 Grinding Tanks, and 72 Hours Continuous Operation

Large Image :  Kingda Lab Semi-Circle Planetary Ball Mill with 0.1μm Granularity, 4 Grinding Tanks, and 72 Hours Continuous Operation

Product Details:
Place of Origin: Hunan, China
Brand Name: Kingda
Certification: CE ISO
Model Number: KD- XQM
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: PE Foam + Cartons / Wooden cases
Delivery Time: 3-7 Days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 1000 Set / Month
Contact Now

Kingda Lab Semi-Circle Planetary Ball Mill with 0.1μm Granularity, 4 Grinding Tanks, and 72 Hours Continuous Operation

Description
Working Style: High-speed Universal Power Supply: 110V-60Hz Or 220-50Hz 0.32kw
Matchable Jar Volume: 0.4-20L Rotation Speed: 90-870 Rpm
Applicable Industries: Grinding / Polishing / Despersing After Warranty Service: Video Technical Support
Customization: Available Max.Continuous Operating Time: 72 Hours
Output Granule: Smallest Granularity Can Be Achieved To 0.1μm Feed Size Of Materials: Soft And Crispy Materials ≤ 10mm Other Hard Materials ≤ 3mm
Materials Of Available Mill Jars: 304 Stainless Steel, 316l Stainless Steel, Zirconia, Nylon, Polyurethane, Alumina Ceramic (corundum), PTFE, Agate, Tungsten Carbide Warranty Of Core Components: 1 Year
Highlight:

220V Planetary Ball Mill

,

Semi- Circle Planetary Ball Mill

,

2L Lab Bead Mill

Kingda Lab Semi-Circle Type Planetary Ball Mill
Product Overview
Kingda Lab Semi-Circle Planetary Ball Mill with 0.1μm Granularity, 4 Grinding Tanks, and 72 Hours Continuous Operation 0

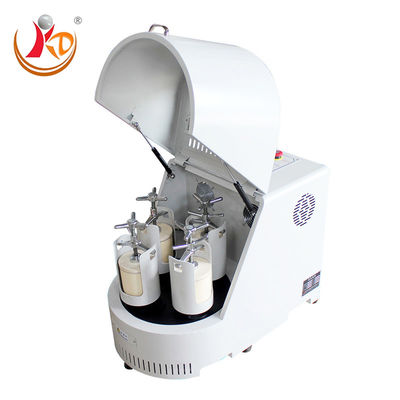

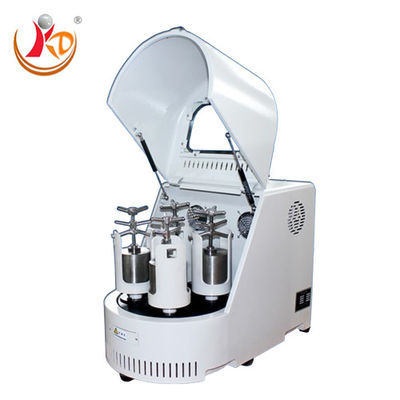

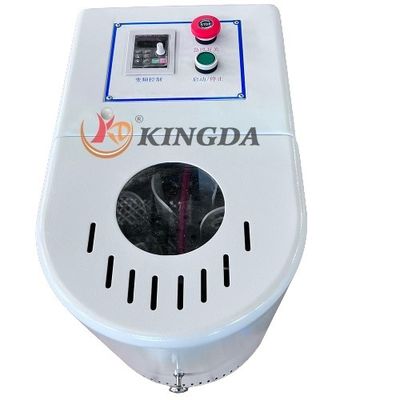

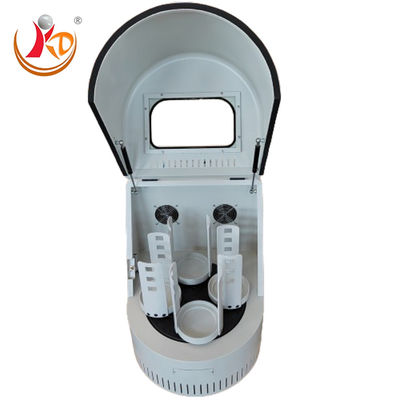

The Kingda Lab Planetary Ball Mill Semi-Circle Type is an essential device for high-tech materials processing, offering precision grinding, sample preparation, and small batch production capabilities.
  • Essential equipment for advanced materials mixing, fine grinding, and sample development
  • Compact design with high efficiency, low noise operation, and versatile functionality
  • Capable of processing powder samples under vacuum conditions with optional vacuum ball mill tank
  • Four ball grinding tanks mounted on rotating platform for simultaneous sample processing
  • Handles various materials and granularities using dry or wet methods
  • Achieves minimum particle size of 0.1 micron (1.0×10⁻⁴mm)
  • Widely applied in geology, mining, metallurgy, electronics, construction materials, ceramics, chemical engineering, light industry, medicine, and environmental protection

Technical Specifications
Drive Mode Gear drive / Belt drive
Operation Mode 2 / 4 grinding tanks working together
Maximum Loading Capacity 2/3 of the capacity of milling tank
Feeding Granularity Soil material ≤10mm, other materials ≤3mm
Output Granularity Minimum 0.1μm
Rotational Speed Ratio 1:2 (0.4L, 2L, 4L); 1:1.5 (12L, 20L)
Rotation Speed 0.4L: 0-600 rpm; 2L: 0-580 rpm; 4L: 0-530 rpm; 20L: 0-280 rpm
Speed Regulation Mode Variable-frequency control and program-control stepless speed regulation; manual or automatic timing; positive or negative rotation
Max. Continuous Operating Time (full-load) 72 hours
Kingda Lab Semi-Circle Planetary Ball Mill with 0.1μm Granularity, 4 Grinding Tanks, and 72 Hours Continuous Operation 1

Applications
Kingda Lab Semi-Circle Planetary Ball Mill with 0.1μm Granularity, 4 Grinding Tanks, and 72 Hours Continuous Operation 2 Kingda Lab Semi-Circle Planetary Ball Mill with 0.1μm Granularity, 4 Grinding Tanks, and 72 Hours Continuous Operation 3
  • Food Sample Preparation: Ensures uniform distribution of components for quality control and R&D
  • Pigment and Ink Production: Grinds pigment particles for uniform color and high dispersion
  • Cosmetic Formulation: Provides precise grinding and mixing for smooth texture and even color distribution
  • Waste Treatment and Recycling: Facilitates efficient grinding processes for material recycling

Key Features
Kingda Lab Semi-Circle Planetary Ball Mill with 0.1μm Granularity, 4 Grinding Tanks, and 72 Hours Continuous Operation 4
  • Stable gear transmission ensures consistent and repeatable experimental results
  • Planetary movement principle delivers high speed, energy efficiency, and fine particle size reduction
  • Simultaneous processing of four powder samples with different sizes and materials
  • Frequency converter control with under-voltage and over-current protection
  • Multiple operation modes including timing, forward/reverse rotation, and alternation
  • Low center of gravity, stable performance, compact structure, and easy operation
  • Safety switch prevents operation when safety cover is open

Planetary Ball Mill Models
Model Power (KW) Voltage Dimension (mm) Revolution Speed (rpm) Rotation Speed (rpm) Weight (KG)
KD-XQM-1 0.75 220V-50Hz 750*470*564 35-325 70-670 80
KD-XQM-2 0.75 220V-50Hz 750*470*564 35-335 70-670 80
KD-XQM-4 0.75 220V-50Hz 750*470*564 35-335 70-670 80
KD-XQM-6 0.75 220V-50Hz 750*470*564 35-335 70-670 80
KD-XQM-8 1.5 220V-50Hz 900*600*640 35-290 70-580 132
KD-XQM-10 1.5 220V-50Hz 900*600*640 35-290 70-580 132
KD-XQM-12 1.5 220V-50Hz 900*600*640 35-290 70-580 132

Grinding Jars & Balls Selection
Available grinding jars in full sizes: Zirconia, alumina, agate, tungsten carbide, hard metal, and more.
Kingda Lab Semi-Circle Planetary Ball Mill with 0.1μm Granularity, 4 Grinding Tanks, and 72 Hours Continuous Operation 5
Material Category Recommended Mill Jar
Soil and materials sensitive to impurities Agate mill jar
Metal & nonmetal materials sensitive to impurities Zirconia mill jar
High hardness materials (diamond, tungsten carbide) Tungsten carbide mill jar
Strong acid/alkali materials or high temperature applications PTFE mill jar
Iron ore with lower impurity sensitivity 304 Stainless steel mill jar
Pigment or materials requiring high temperature processing Nylon mill jar
Aluminum materials (ceramic glaze) Corundum mill jar
Electronic materials (lithium battery) Polyurethane mill jar
Easily oxidized materials or special atmosphere requirements Vacuum mill jar

Packaging & Shipping
Packaging: PE Form + Cartons / Wooden cases; Custom packaging available according to customer requirements.
Ports: Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao Port
Delivery Time: Within 3-7 working days from payment receipt

Kingda Lab Semi-Circle Planetary Ball Mill with 0.1μm Granularity, 4 Grinding Tanks, and 72 Hours Continuous Operation 6


Frequently Asked Questions
What sizes are available in your products?
The minimum type is 1L planetary ball mill. We have other types from 0.2-100L to 100L for your options.
What are your delivery terms?
FOB, CFR, CIF.
Can you accept small quantity sample orders before production?
Yes, we can provide samples for testing, with customers covering courier costs.
What is your production time?
Generally 3-7 days after receiving advance payment. Specific timing depends on order items and quantity.
What are your payment terms?
T/T 30% deposit, 70% balance against B/L copy, or 100% L/C at sight.

Customer Service
  • Custom grinding balls production available
  • Comprehensive product testing before delivery
  • Dedicated customer relationship management
  • 2-hour response time for all inquiries
Kingda Lab Semi-Circle Planetary Ball Mill with 0.1μm Granularity, 4 Grinding Tanks, and 72 Hours Continuous Operation 7

About Kingda Ceramic Technology
  • Manufacturer of grinding media balls, grinding jars, zirconium dioxide, and zirconia structures
  • "Quality Is in the First Position forever" philosophy
  • Trusted by prestigious institutions including University of Oxford, Loughborough University, Peking University, and Tsinghua University
  • Commitment to high quality products and exceptional service
  • Established reputation for reliability and sustainability
Kingda Lab Semi-Circle Planetary Ball Mill with 0.1μm Granularity, 4 Grinding Tanks, and 72 Hours Continuous Operation 8 Kingda Lab Semi-Circle Planetary Ball Mill with 0.1μm Granularity, 4 Grinding Tanks, and 72 Hours Continuous Operation 9
