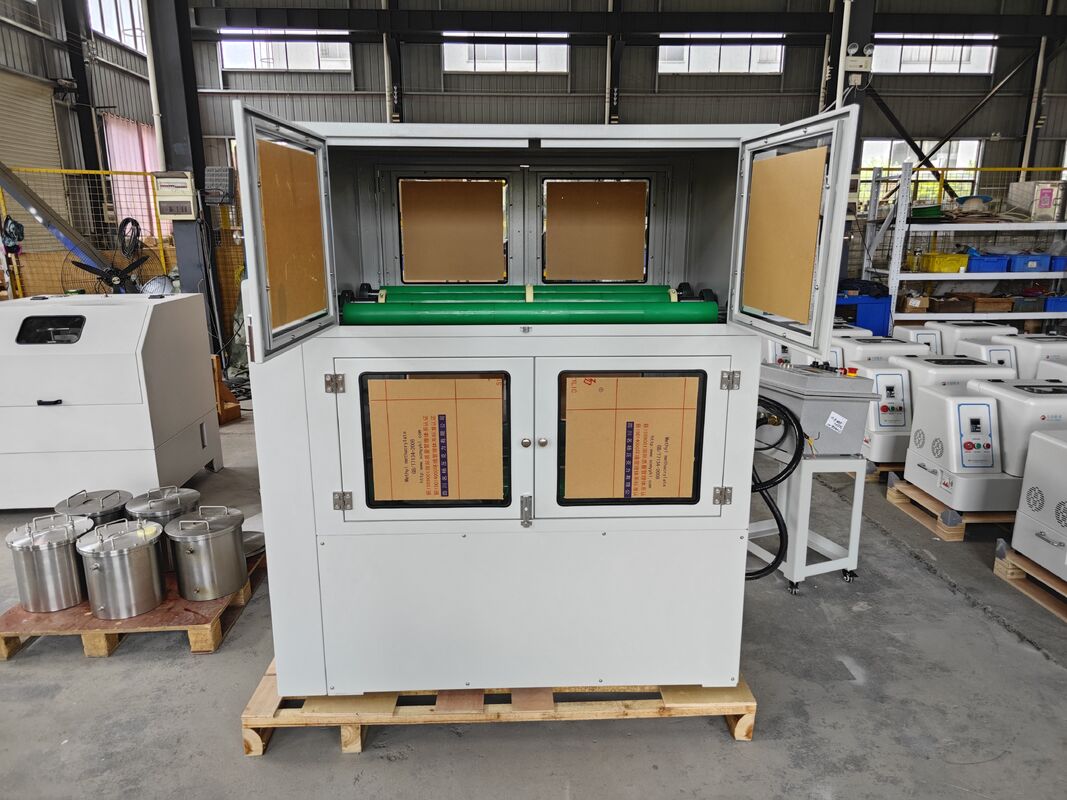

Double-layer, multi-station industrial jar-type grinding equipment for small-batch powder grinding

Large Image : Double-layer, multi-station industrial jar-type grinding equipment for small-batch powder grinding

Product Details:

Place of Origin:	Hunan, China
Brand Name:	KINGDA
Certification:	CE ISO
Model Number:	GQM-4*5L

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	PE Foam + Cartons / Wooden cases
Delivery Time:	15Day
Payment Terms:	L/C,D/A,T/T,Western Union
Supply Ability:	1000 set / Month

Contact Now

Double-layer, multi-station industrial jar-type grinding equipment for small-batch powder grinding

Description

ProdJar Rolling Milluct Name:	Rolling Ball Mill	Applicable Industries:	Lab Research
Weight (KG):	70 KG	Output (kg/h):	1 - 7 Kg/h
Feeding Size (mm):	≥5mm	Output Size (mesh):	1000 Mesh / 13µm
Volumn Of Matched Pot:	4-5L Mill Jar	Warranty:	1 Year
After-sales Service Provided:	Video Technical Support
Highlight:	double-layer industrial jar grinding equipment , multi-station rolling ball mill , small-batch powder grinding machine

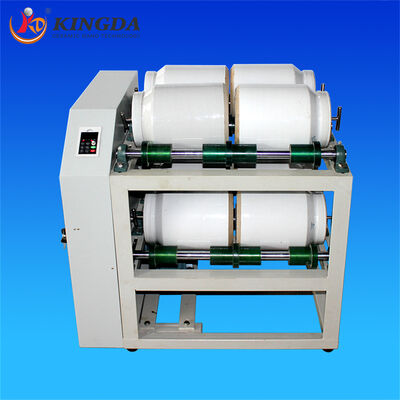

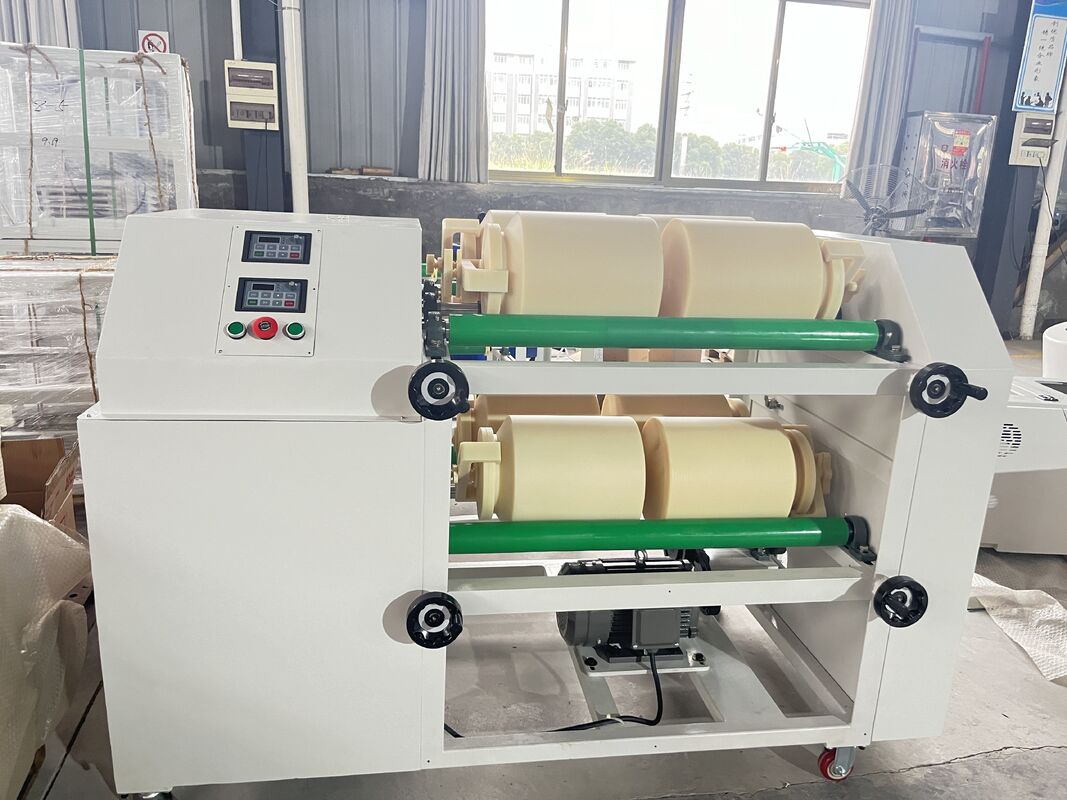

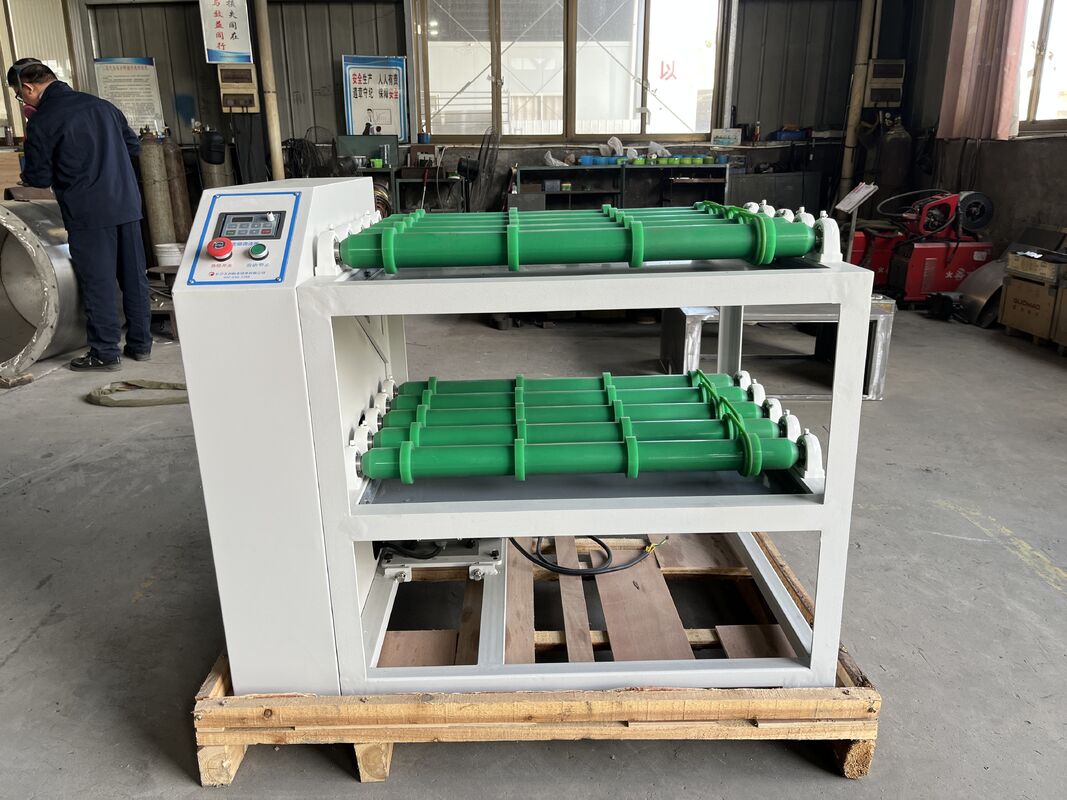

Double-Layer Multi-Station Industrial Jar Roller Mill

This advanced laboratory jar roller mill machine is engineered for precision grinding and mixing of small-batch powder materials in research and experimentation settings.

Constructed with high-quality stainless steel and ceramic components, this robust equipment features precisely aligned rotating jars mounted on horizontal rollers. The innovative roller mechanism creates both rotational and lateral movement, producing a cascading motion that ensures efficient grinding and mixing across diverse sample types and sizes.

Working Principle

The grinding process initiates as media and materials within the cylinder rotate to a predetermined height, then descend from the tube walls under gravity. Material crushing occurs through a combination of impact, friction, and shearing forces from rolling and sliding movements, optimizing efficiency while ensuring smooth operation.

Technical Specifications

Category	Model No.	Power Supply	Rotate Speed	Max Load Per Jar	Dimensions & Net Weight
2 Work Positions	GQM-2-5	220V-50Hz or 60Hz/0.75kw	50-410 rpm	35KGS	950480685mm 59KGS
	GQM-2-15	220V-50Hz or 60Hz/1.1kw	40-365 rpm	80KGS	1130550690mm 80KGS
	GQM-2-20	220V-50Hz or 60Hz/1.5kw	40-340 rpm	120KGS	1350650690mm 92KGS
4 Work Positions	GQM-4-5 Single layer	220V-50Hz or 60Hz/0.75kw	50-410 rpm	35KGS	950660690mm 70KGS
	GQM-4-5 Double layer	220V-50Hz or 60Hz/0.75kw	50-410 rpm	35KGS	950480870mm 92KGS
	GQM-4-15	220V-50Hz or 60Hz/1.5kw	40-365 rpm	80KGS	1130800690mm 95KGS
	GQM-4-20	380V-50Hz or 60Hz/2.2kw	40-340 rpm	120KGS	1350820690mm 122KGS
8 Work Positions	GQM-8-5	220V-50Hz or 60Hz/1.5kw	50-410 rpm	35KGS	950660960mm 106KGS
8 Work Positions	GQM-8-15	380V-50Hz or 60Hz/2.2kw	40-365 rpm	80KGS	1130800960mm 152KGS

Key Features

Multiple Sample Processing

Simultaneous grinding of multiple sample materials for increased laboratory efficiency

Flexible Operation Modes

Both intermittent and continuous operation modes available to suit various research requirements

Adjustable Timing

Customizable timing settings to meet specific experimental protocols and material requirements

Grinding Pots & Balls Accessories

Available grinding jars in various high-performance materials:

Zirconia ball mill jar
Alumina ball mill jar
Agate ball mill jar
Tungsten ball mill jar
Hard metal mill jar

Package & Shipping

Package Type

PE Form + Cartons / Wooden cases; Custom packaging available

Shipping Ports

Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao port

Delivery Time

Within 3-7 working days from payment receipt

Manufacturing Facility

Frequently Asked Questions

What roll mill jars are available?

Our available roll mill jars include alumina, zirconia ceramic, nylon, stainless steel, tungsten carbide, PTFE, polyurethane, and more.

What are your delivery terms?

FOB, CFR, CIF shipping terms available.

Do you accept sample orders?

Yes, we provide samples for testing before production. Customers are responsible for courier costs.

What is your production time?

Typically 3-15 days after receiving advance payment. Specific delivery time depends on items and order quantity.

What are your payment terms?

T/T 30% deposit, 70% balance against original B/L copy, or 100% L/C at sight. We provide product photos and B/L copy before balance payment.
