Lab Planetary Ball Mill Machine Grinding Powder Grinder 0.75kW
  • Lab Planetary Ball Mill Machine Grinding Powder Grinder 0.75kW
  • Lab Planetary Ball Mill Machine Grinding Powder Grinder 0.75kW
  • Lab Planetary Ball Mill Machine Grinding Powder Grinder 0.75kW
  • Lab Planetary Ball Mill Machine Grinding Powder Grinder 0.75kW
  • Lab Planetary Ball Mill Machine Grinding Powder Grinder 0.75kW
Lab Planetary Ball Mill Machine Grinding Powder Grinder 0.75kW

Lab Planetary Ball Mill Machine Grinding Powder Grinder 0.75kW

Place of Origin Hunan, China
Brand Name Kingda
Certification CE ISO
Product Details
Output (kg/h):
1 - 30 Kg/h
Feeding Size (mm):
0.1 - 10 Mm
Output Size (mesh):
45 - 535 Mesh
Power (kW):
0.75
Range Of Spindle Speed(r.p.m):
90 - 870 R.p.m
Voltage:
220V-50Hz
Dimension(L*W*H):
530*300*340mm
Weight (KG):
55 KG
Warranty:
1 Year
Showroom Location:
None
Model No.:
KD-0.4A
Power Supply:
110V-60Hz Or 220-50Hz 0.32KW
Rotation Speed:
90-870 Rpml
Working Position:
4 Working Positions
Matchable Jar Volume:
50ml/100ml
After-sales Service Provided:
Video Technical Support
Highlight:

Lab Planetary Ball Mill

,

Planetary Ball Mill Machine

,

Ball Mill Machine Grinding

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
PE Foam + Cartons / Wooden cases
Delivery Time
3-7 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
1000 Set / Month
Product Description
Lab Grinding Planetary Ball Mill Machine Powder Grinder
Product Overview

Lab Planetary Ball Mill Machine Grinding Powder Grinder 0.75kW 0
0.4 Planetary Ball Mill
Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. Kingda planetary ball mill owns small volume, high efficiency, low noise and functional features which is a ideal equipment for R&D institution, university, enterprises laboratory to get samples (each experiment can get four samples at the same time). It gets powder samples under the vacuum state when equipped with vacuum ball mill jar.

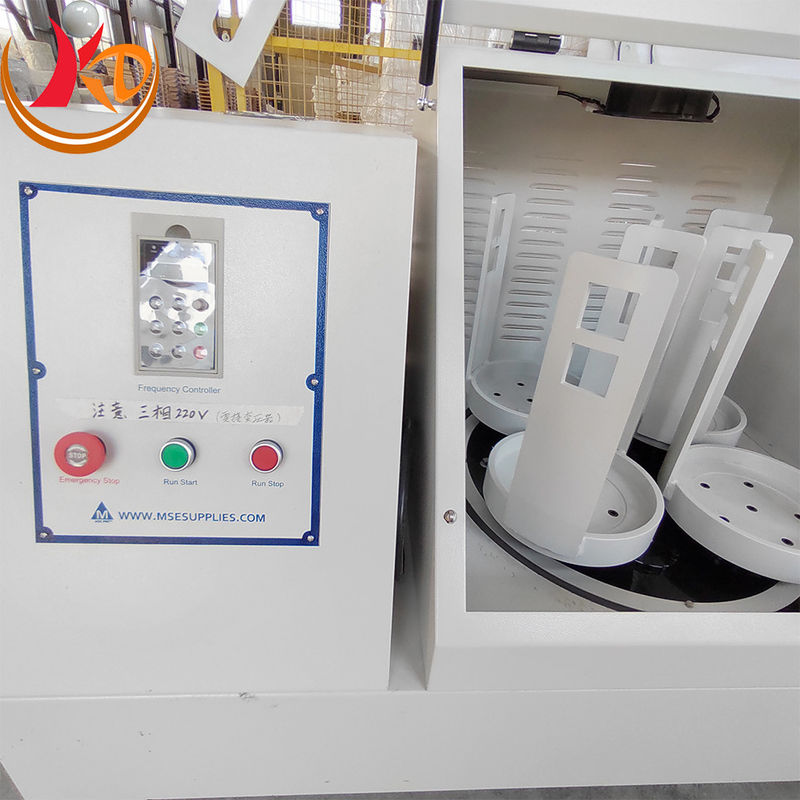

Lab Planetary Ball Mill Machine Grinding Powder Grinder 0.75kW 1

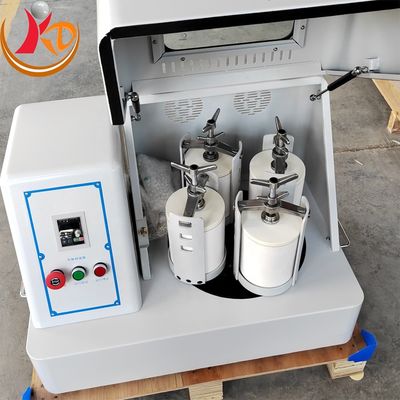

Lab Planetary Ball Mill Machine Grinding Powder Grinder 0.75kW 2
Working Principle
Planetary ball milling machine has four ball grinding jars installed on one turnplate.
When the turnplate rotates, the jar axis makes planetary movements and the balls in
the tanks grinds and mixes samples in high speed movement. The product can smash
and blend various products of different materials and granularity with dry or wet methods.
Minimum granularity of grinded products can be as small as 0.1 micron (i.e.) 1.0×10-4mm)




Parameters for Planetary Ball Mill Model No. KD-0.4A
Main Parameters of Mini Vertical Planetary Mill Ball







Model
Power
(KW)
Voltage
Dimension
(mm)
Revolution
Speed
(rpm)
Rotation Speed
(rpm)
Total
Timing
(min)
Alternating Run Time of Forward & Reversal Rotation
(min)
KD-0.4A
0.25
220V-50Hz
530*300*342
45-435
90-870
1-9999
1-9999



Features of Kingda Planetary Ball Mill
1.Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.
Workshop

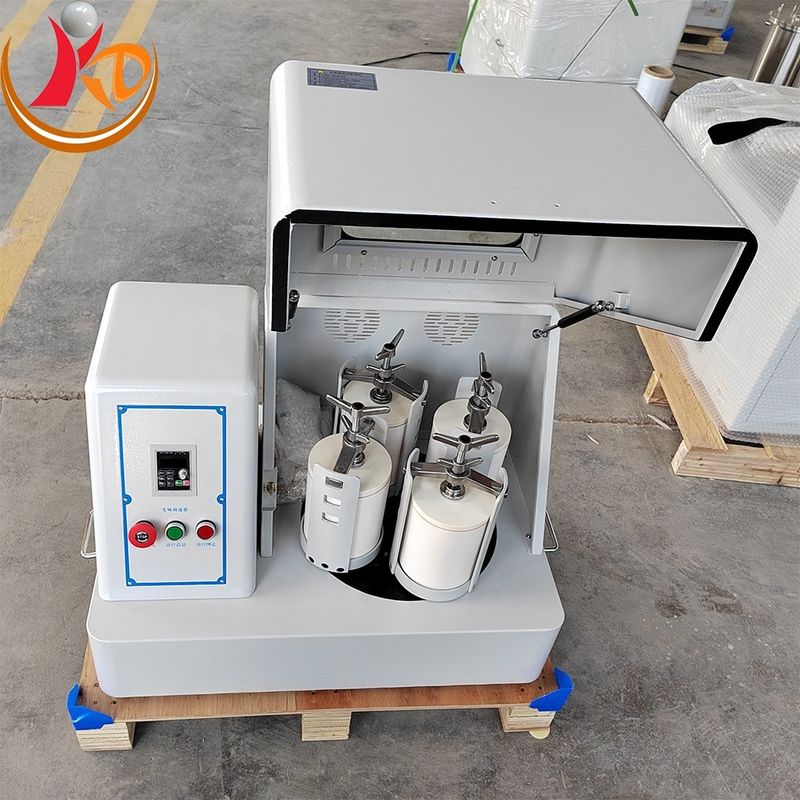

Lab Planetary Ball Mill Machine Grinding Powder Grinder 0.75kW 3

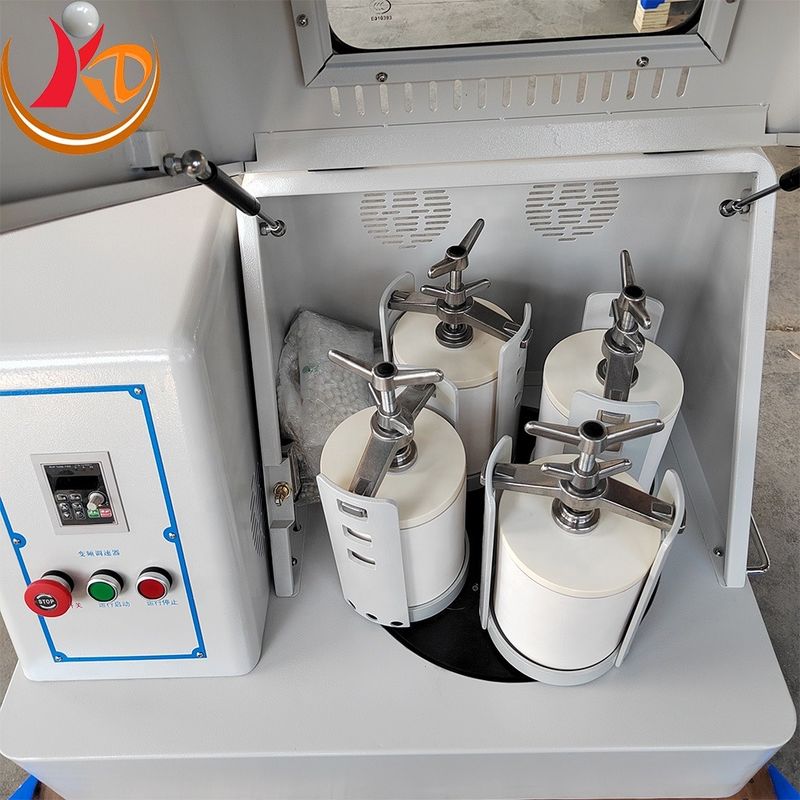

Lab Planetary Ball Mill Machine Grinding Powder Grinder 0.75kW 4



Packaging & Delivery
Lab Planetary Ball Mill Machine Grinding Powder Grinder 0.75kW 5
Lab Planetary Ball Mill Machine Grinding Powder Grinder 0.75kW 6
FAQ
1. Which procedure to secure your Quality?
Our company has own research & development and production base, the products have been calibrated by central laboratory
professionals before they leave the factory, ensure the accuracy of test results and authority.

2.What’s your warranty?
One-year warranty period is provided. If any problem while you are using the machine, you may contact Service Hotline: 0086 15367874686

3.Can you provide testing service of grinding powder experiment before we place order?
Yes. Sample powder testing is available for any customer who sends material to us, and powder testing is also free of charge.

4.Our country's power supply and plug are different, how do you solve it?
We can according to different countries and the power plug, equipped with a transformer and plug that in accordance with your local requirement.

5.Payment methods?
T/T, L/C, D/P and so on.

6.Packing method?
Standard export wooden box packaging

7.What’s the delivery time?
We have lots of regular Models in stock. Packing can be done within 3 working days after your full payment is confirmed. Delivery
time is about 5 days by courier. Therefore, you are expected to get the equipment in about 10 days after your payment confirmed.
