Kingda Digital Control Lab Roll Ball Mill Machine with 15L Capacity and 43kg Weight

Kingda Digital Control Lab Roll Ball Mill Machine with 15L Capacity and 43kg Weight

Digital Lab Roll Ball Mill

15L Lab Roll Ball Mill

43kg Jar Rolling Mill

Place of Origin:

Hunan, China

Brand Name:

KINGDA

Certification:

CE ISO

Contact Us
Request A Quote
Kingda Digital Control Lab Roll Ball Mill Machine with 15L Capacity and 43kg Weight
Kingda Digital Control Lab Roll Ball Mill Machine with 15L Capacity and 43kg Weight Kingda Digital Control Lab Roll Ball Mill Machine with 15L Capacity and 43kg Weight Kingda Digital Control Lab Roll Ball Mill Machine with 15L Capacity and 43kg Weight Kingda Digital Control Lab Roll Ball Mill Machine with 15L Capacity and 43kg Weight Kingda Digital Control Lab Roll Ball Mill Machine with 15L Capacity and 43kg Weight Kingda Digital Control Lab Roll Ball Mill Machine with 15L Capacity and 43kg Weight
Product Details
ProdJar Rolling Milluct Name:
Rolling Ball Mill
Applicable Industries:
Lab Research
Voltage:
220V/110V
Output (kg/h):
1 - 5.25 Kg/h
Feeding Size (mm):
1 - 5 Mm
Output Size (mesh):
200 - 500 Mesh
Weight (KG):
43 KG
Warranty:
1 Year
After-sales Service Provided:
Video Technical Support
Highlight:

Digital Lab Roll Ball Mill

,

15L Lab Roll Ball Mill

,

43kg Jar Rolling Mill

Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
PE Foam + Cartons / Wooden cases
Delivery Time
15Day
Payment Terms
L/C,D/A,T/T,Western Union
Supply Ability
1000 set / Month
RELATED PRODUCTS
Good price Kingda 0.72KW/220V Lab Roll Ball Mill for Ultra-Fine Grinding with 1000 Mesh Output online Video

Kingda 0.72KW/220V Lab Roll Ball Mill for Ultra-Fine Grinding with 1000 Mesh Output

Get Best Price
Good price Hunan Kingda Machine 2-5L SS Mill Jar High Efficient Lab Roller Ball Mill Machine for Lab Research online Video

Hunan Kingda Machine 2-5L SS Mill Jar High Efficient Lab Roller Ball Mill Machine for Lab Research

Get Best Price
Good price Variable speed control – Wide speed range for different materials such as ceramics, minerals, batteries, and inks. online Video

Variable speed control – Wide speed range for different materials such as ceramics, minerals, batteries, and inks.

Get Best Price
Good price Laboratory Compact Jar Mill Ball Milling Machine 220V Roller Ball Mill with Multi Stations Powder Grinding online Video

Laboratory Compact Jar Mill Ball Milling Machine 220V Roller Ball Mill with Multi Stations Powder Grinding

Get Best Price
CONTACT US
15367874686
sales@kingdacera.com
Contact Now
Product Description

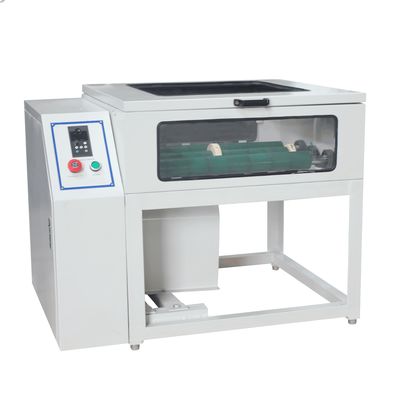

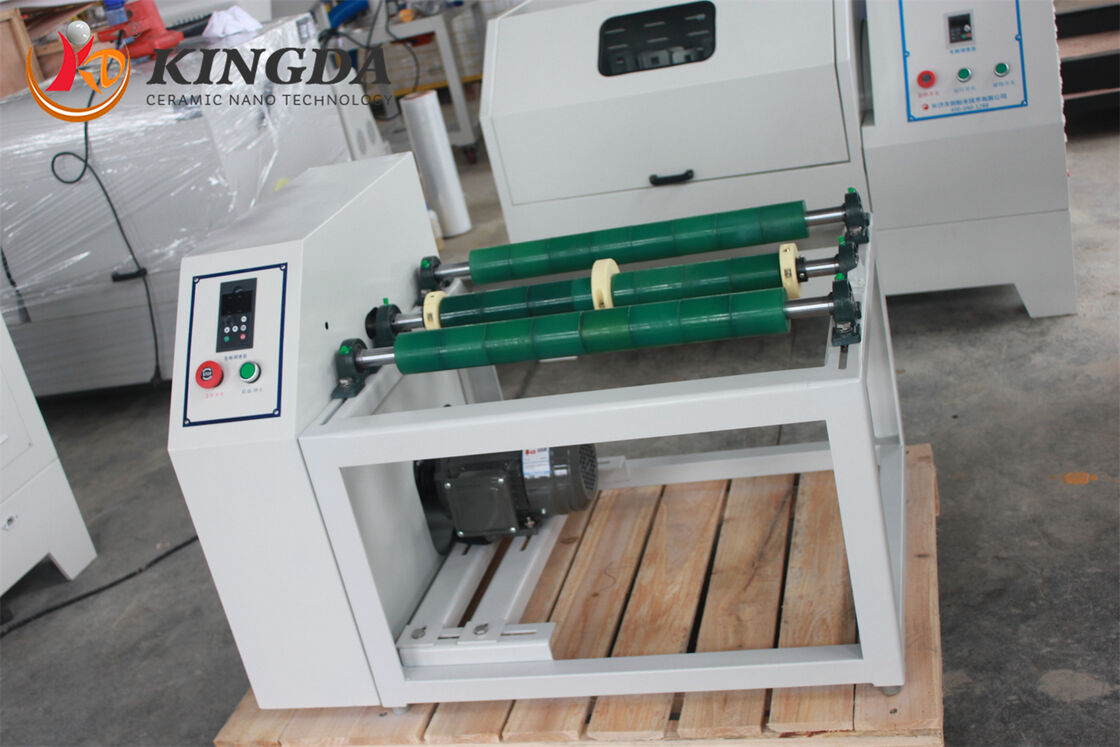

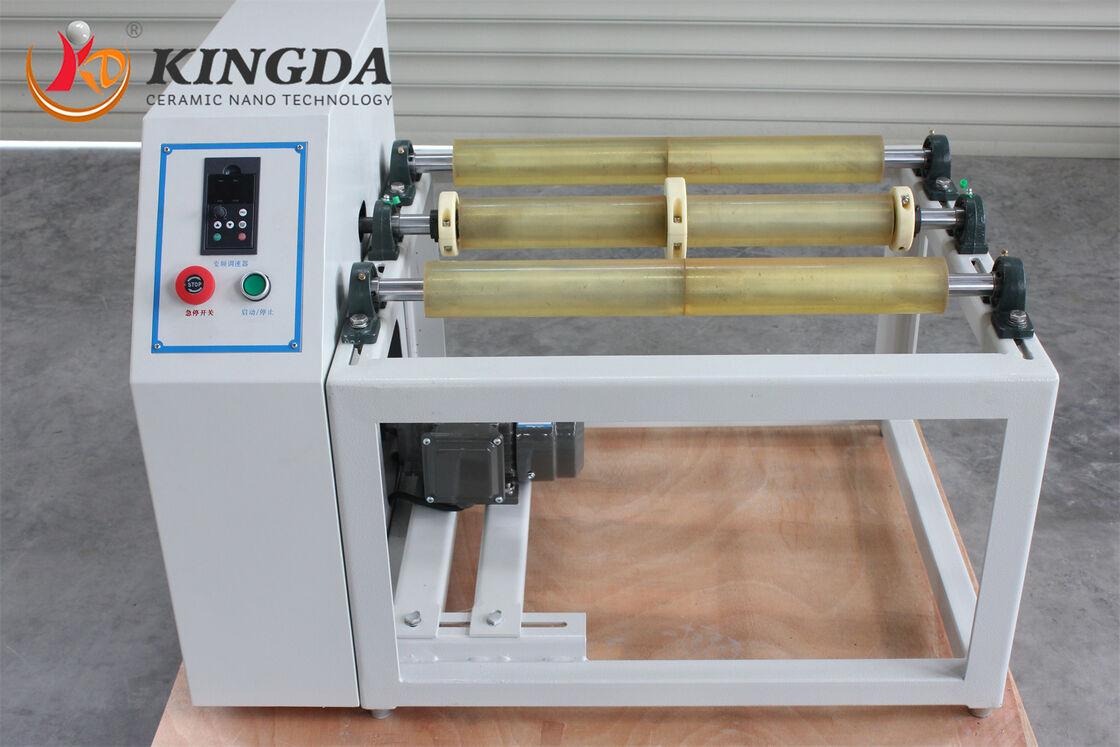

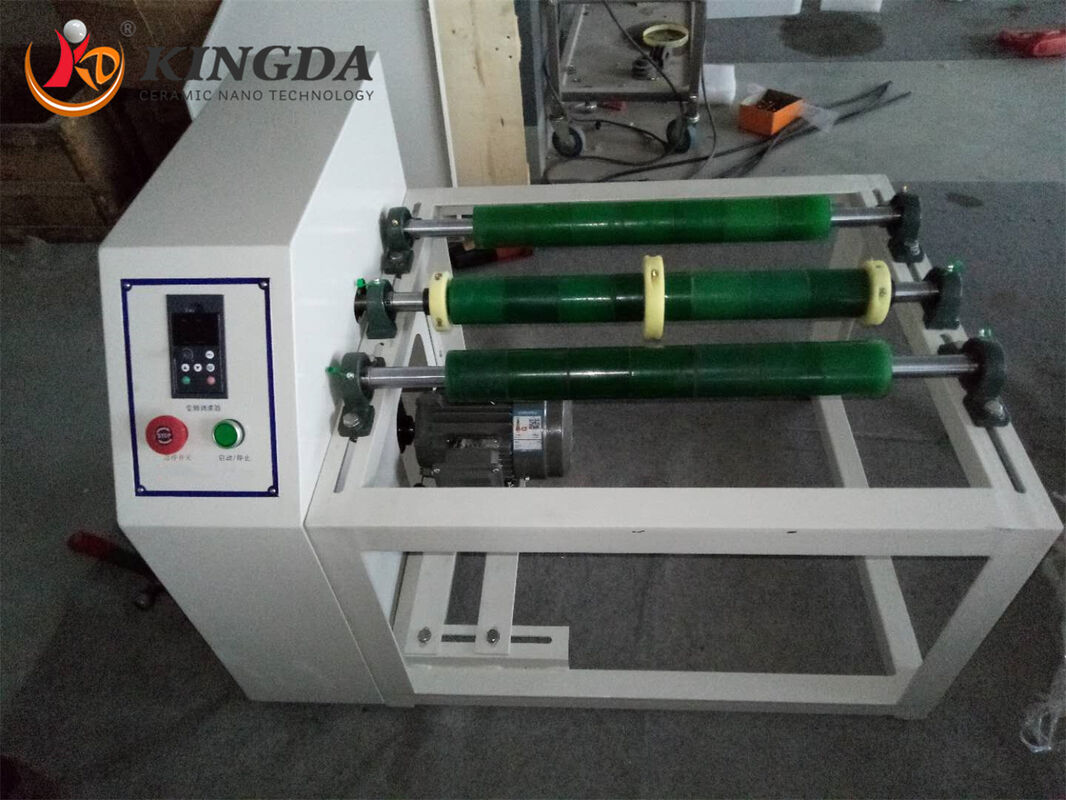

Kingda Digital Control Lab Roll Ball Mill Machine 15L 43kg
Kingda 15L 43kg Digital control lab roll ball mill machine Factory Sale

Product Overview
Rolling Jar Mill is a powder milling equipment designed for ultra-fine grinding and mixing in laboratory settings and small batch production. Also known as a roller ball mill, it features multiple working positions for enhanced efficiency.

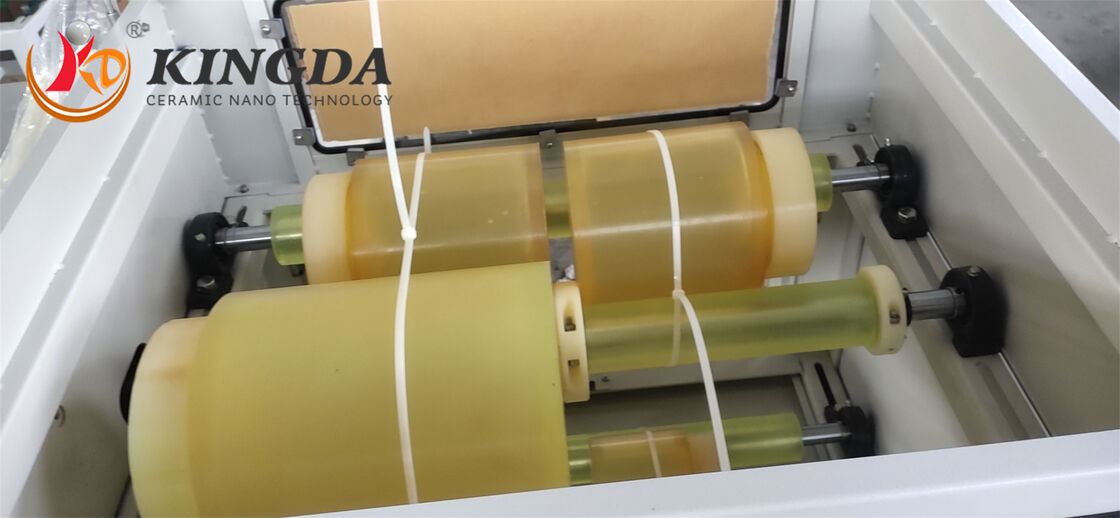

Ideal for scientific research, education, experiments, and production due to elegant design, compact structure, and easy operationDelivers high efficiency and uniform granularity for consistent resultsWidely applied in electronic materials, magnetic materials, biological medicine, ceramic glaze, metal powder, nonmetallic minerals, and new materialsFeatures optimal rotating speed design with mill jars rotated by rubber rollersBalls inside jars create incline flow movement to effectively disperse materials

Working Principle
When the machine operates, grinding media and materials within the cylinder rotate to a specific height. Due to gravity, they fall from the tube wall. Materials are crushed through impact action of grinding media, combined with friction and shearing action from rolling and sliding. This process saves time and labor while ensuring easy operation.

Technical Specifications
Category Model No. Power Supply Rotate Speed Max Load Per Jar Dimensions & Net Weight
2 Work Positions GQM-2-5 220V-50Hz or 60Hz/0.75kw 50-410 rpm 35KGS 950*480*685mm 59KGS
GQM-2-15 220V-50Hz or 60Hz/1.1kw 40-365 rpm 80KGS 1130*550*690mm 80KGS
GQM-2-20 220V-50Hz or 60Hz/1.5kw 40-340 rpm 120KGS 1350*650*690mm 92KGS
4 Work Positions GQM-4-5 Single layer 220V-50Hz or 60Hz/0.75kw 50-410 rpm 35KGS 950*660*690mm 70KGS
GQM-4-5 Double layer 220V-50Hz or 60Hz/0.75kw 50-410 rpm 35KGS 950*480*870mm 92KGS
GQM-4-15 220V-50Hz or 60Hz/1.5kw 40-365 rpm 80KGS 1130*800*690mm 95KGS
GQM-4-20 380V-50Hz or 60Hz/2.2kw 40-340 rpm 120KGS 1350*820*690mm 122KGS
8 Work Positions GQM-8-5 220V-50Hz or 60Hz/1.5kw 50-410 rpm 35KGS 950*660*960mm 106KGS
GQM-8-15 380V-50Hz or 60Hz/2.2kw 40-365 rpm 80KGS 1130*800*960mm 152KGS
Kingda Digital Control Lab Roll Ball Mill Machine with 15L Capacity and 43kg Weight 0 Kingda Digital Control Lab Roll Ball Mill Machine with 15L Capacity and 43kg Weight 1

Key Features
Multiple sample materials can be ground simultaneou
Operates intermittently or continuously based on requirements
Customizable timing settings to meet user needs


Kingda Digital Control Lab Roll Ball Mill Machine with 15L Capacity and 43kg Weight 2
Kingda Digital Control Lab Roll Ball Mill Machine with 15L Capacity and 43kg Weight 3

Available Grinding Pots & Balls
Complete range of grinding jars available in various materials:
Zirconia ball mill jarAlumina ball mill jarAgate ball mill jarTungsten ball mill jarHard metal mill jarAnd other specialized materials
Kingda Digital Control Lab Roll Ball Mill Machine with 15L Capacity and 43kg Weight 4

Packaging & Shipping
Package Type: PE Form + Cartons / Wooden cases; Custom packaging available per customer requirements
Port: Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao port
Delivery Time: Within 3-7 working days from payment receipt
Kingda Digital Control Lab Roll Ball Mill Machine with 15L Capacity and 43kg Weight 5

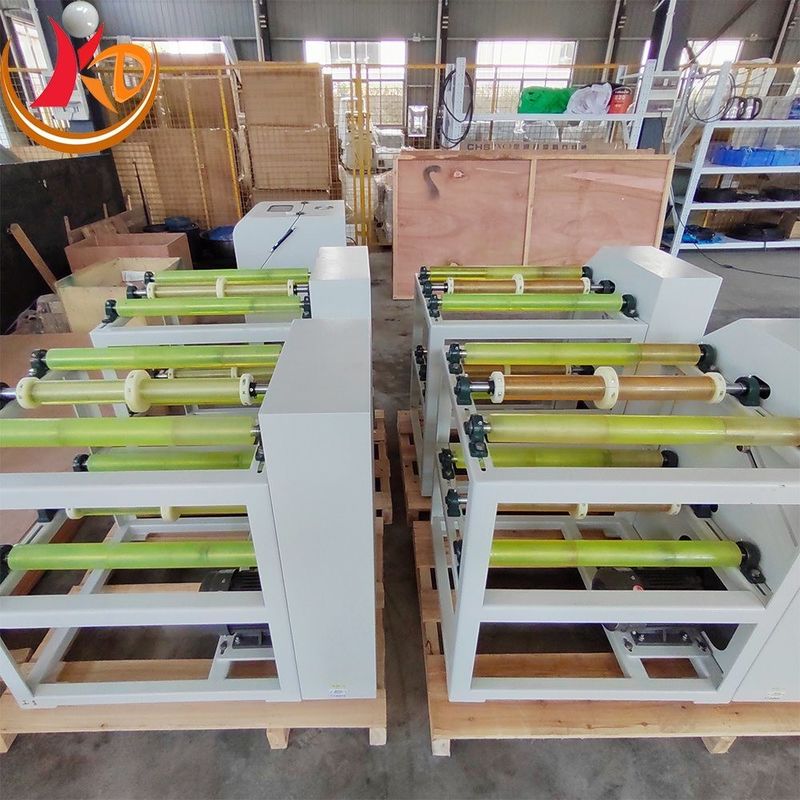

Manufacturing Facility

Kingda Digital Control Lab Roll Ball Mill Machine with 15L Capacity and 43kg Weight 6


Kingda Digital Control Lab Roll Ball Mill Machine with 15L Capacity and 43kg Weight 7


Frequently Asked Questions
What roll mill jars are available in your products?
Our available roll mill jars include alumina/zirconia ceramic, nylon, stainless steel, tungsten carbide, PTFE, polyurethane and more.
What are your terms of delivery?
FOB, CFR, CIF
Can you accept small quantity sample orders before production?
Yes, we can provide samples for testing before production, with customers covering courier costs.
What is your production time?
Generally 3-15 days after receiving advance payment. Specific timing depends on items and order quantity.
What are your payment terms?
T/T 30% deposit, 70% balance against copy of original B/L, or 100% L/C at sight. We provide product photos and B/L copy before final payment.

Customer Service Commitment
Custom grinding balls production available per customer requirementsComprehensive testing of all goods before deliveryTreating every customer as a partner in business and friendshipPrompt response within 2 hours for any inquiries

Kingda Digital Control Lab Roll Ball Mill Machine with 15L Capacity and 43kg Weight 8


About Kingda Ceramic Technology
HUNAN KINGDA CERAMIC TECHNOLOGY CO.,LTD specializes in manufacturing Grinding Media Balls, Grinding Jars, Zirconium Dioxide, and Zirconia structures"Quality Is in the First Position forever" - trusted by prestigious institutions including University of Oxford, Loughborough University, Peking University, and Tsinghua UniversityCommitment to providing high-quality grinding products and exceptional servicesEstablished reputation among business partners for mutual benefit and sustainabilityDedicated to advancing ceramic technology and materials science
