Nano Powder Grinding Ball Mill Grinder Laboratory Planetary Automatic

Powder Grinding Ball Mill

Grinding Ball Mill Planetary

Ball Mill Grinder Laboratory

Place of Origin:

Hunan, China

Brand Name:

Kingda

Certification:

CE ISO

Request A Quote

Product Details

Output (kg/h):

1 - 30 Kg/h

Feeding Size (mm):

0.1 - 10 Mm

Output Size (mesh):

45 - 535 Mesh

Power (kW):

0.75

Range Of Spindle Speed(r.p.m):

90 - 870 R.p.m

Material:

SUS304, SUS304L, SUS316

Application:

Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing

Voltage:

220V-50Hz

Dimension(L*W*H):

530*300*340mm

Weight (KG):

55 KG

Warranty Of Core Components:

1 Year

Model No.:

KD-0.4A

Power Supply:

110V-60Hz Or 220-50Hz 0.32KW

Rotation Speed:

90-870 Rpml

Highlight:

Powder Grinding Ball Mill

Grinding Ball Mill Planetary

Ball Mill Grinder Laboratory

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

PE Foam + Cartons / Wooden cases

Delivery Time

3-7 Days

Payment Terms

L/C, D/A, D/P, T/T, Western Union

Supply Ability

1000 Set / Month

Planetary Milling Equipment for Lithium Battery Cathode Material Processing

Get Best Price

Video

Laboratory Planetary Ball Mill Benchtop Nano Powder Grinder for Precision Material Processing

Get Best Price

Video

Low Noise High Efficiency Nano Grinding System for Small Batch Production

Get Best Price

Video

Laboratory High Energy Grinding Machine with Adjustable Speed Control

Get Best Price

15367874686

sales@kingdacera.com

Contact Now

Product Description

Laboratory Ball Grinder For Nano Powder Grinding/Automatic Planetary Ball Mill

Product Overview

0.4 Planetary Ball Mill

Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. Kingda planetary ball mill owns small volume, high efficiency, low noise and functional features which is a ideal equipment for R&D institution, university, enterprises laboratory to get samples (each experiment can get four samples at the same time). It gets powder samples under the vacuum state when equipped with vacuum ball mill jar.

Working Principle
Planetary ball milling machine has four ball grinding jars installed on one turnplate.
When the turnplate rotates, the jar axis makes planetary movements and the balls in
the tanks grinds and mixes samples in high speed movement. The product can smash
and blend various products of different materials and granularity with dry or wet methods.
Minimum granularity of grinded products can be as small as 0.1 micron (i.e.) 1.0×10-4mm)

It is widely used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material,
Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.

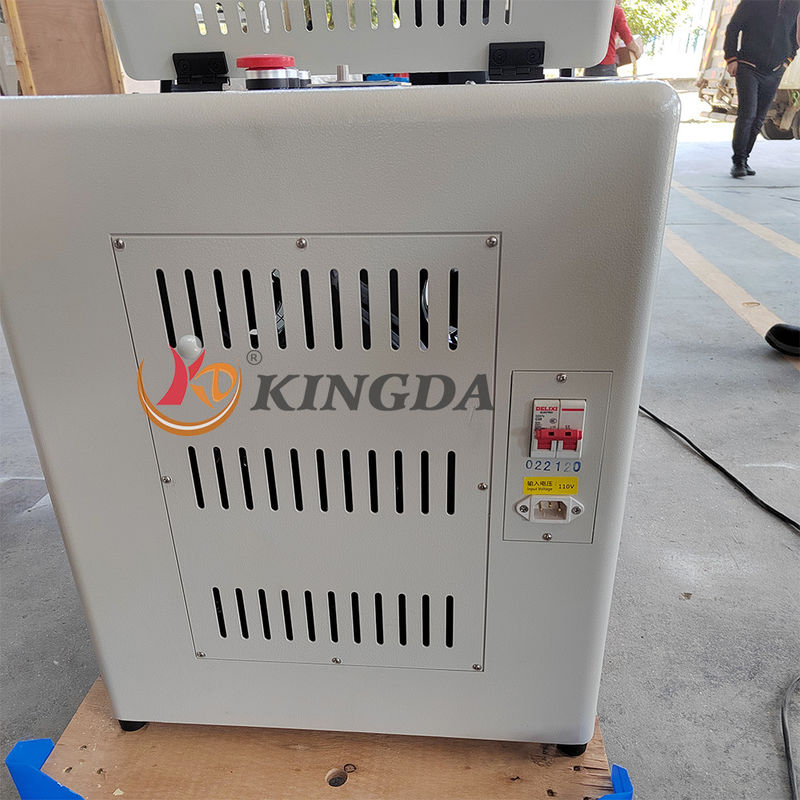

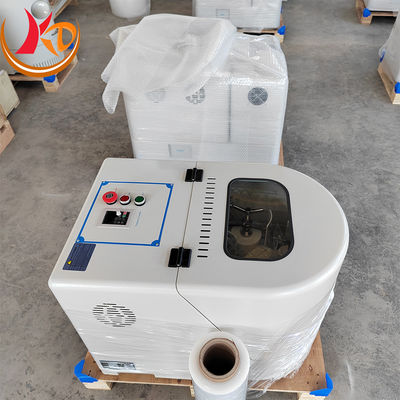

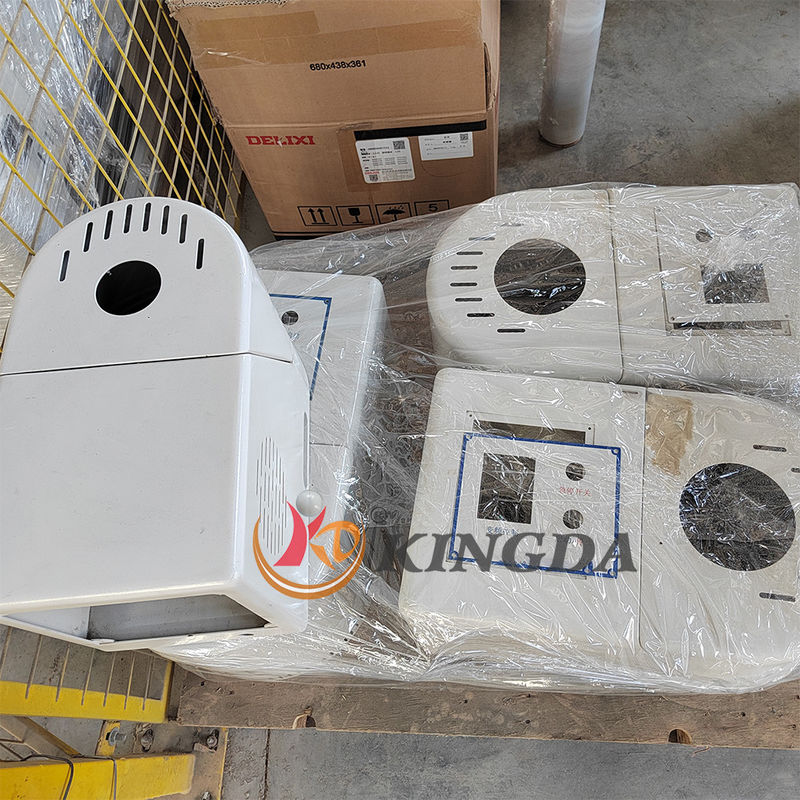

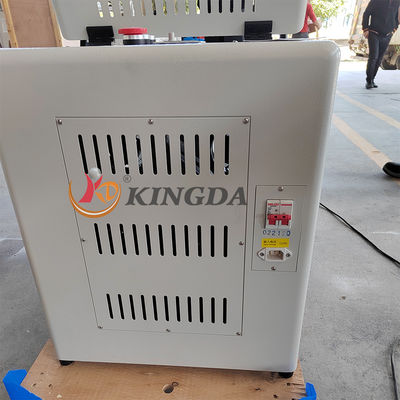

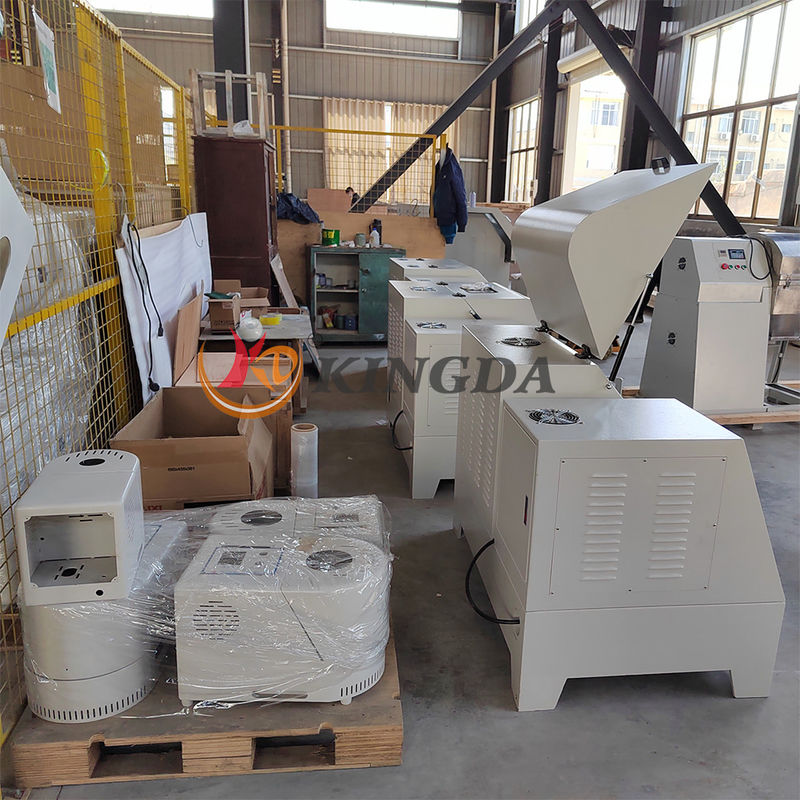

Product Show

Parameters for Planetary Ball Mill Model No. KD-0.4A

Main Parameters of Mini Vertical Planetary Mill Ball

Model

Power

(KW)

Voltage

Dimension

(mm)

Revolution

Speed
(rpm)

Rotation Speed
(rpm)

Total

Timing

(min)

Alternating Run Time of Forward & Reversal Rotation

(min)

KD-0.4A

0.25

220V-50Hz

530*300*342

45-435

90-870

1-9999

Features of Kingda Planetary Ball Mill

1.Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.

FAQ

1. Which procedure to secure your Quality?

Our company has own research & development and production base, the products have been calibrated by central laboratory
professionals before they leave the factory, ensure the accuracy of test results and authority.

2.What’s your warranty?

One-year warranty period is provided. If any problem while you are using the machine, you may contact Service Hotline: 0086 15367874686

3.Can you provide testing service of grinding powder experiment before we place order?

Yes. Sample powder testing is available for any customer who sends material to us, and powder testing is also free of charge.

4.Our country's power supply and plug are different, how do you solve it?

We can according to different countries and the power plug, equipped with a transformer and plug that in accordance with your local requirement.

5.Payment methods?

T/T, L/C, D/P and so on.
